DTC P2135 TP SENSOR

EC-625

C

D

E

F

G

H

I

J

K

L

M

A

EC

10. Perform

EC-46, "Idle Air Volume Learning"

 .

Removal and Installation

EBS00MNH

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-17, "INTAKE MANIFOLD"

 .

EC-626

DTC P2138 APP SENSOR

DTC P2138 APP SENSOR

PFP:18002

Component Description

EBS00MNI

Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc.
Accelerator pedal position sensor is connected to the accelerator
pedal through the throttle drum and accelerator wire, and detects the
accelerator pedal position by the throttle drum rotation angle.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM receiving the signal from the accelerator pedal
position sensor. The ECM uses this signal for the engine operation such as fuel cut.

CONSULT-II Reference Value in Data Monitor Mode

EBS00MNJ

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00MNK

The MIL will not light up for this diagnosis.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

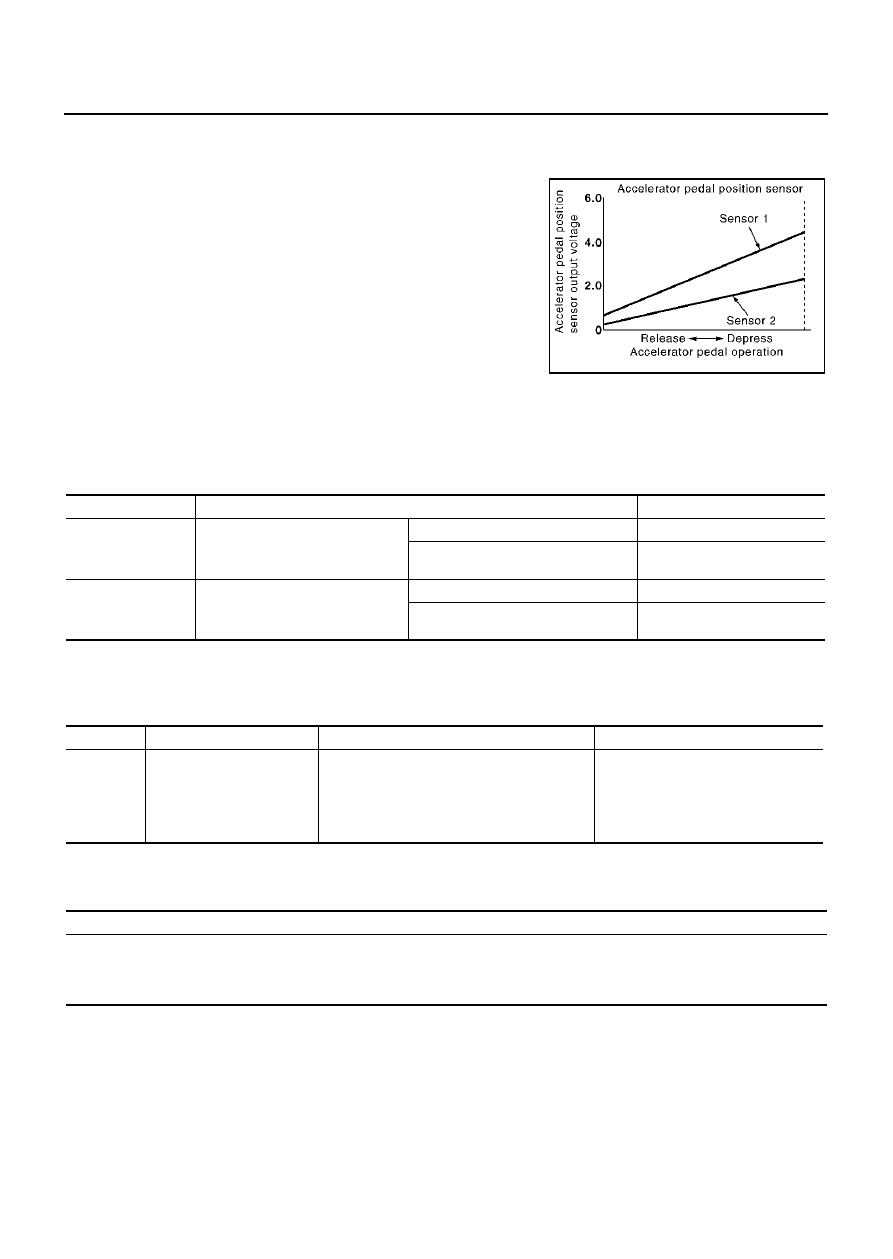

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1
ACCEL SEN2*

Ignition switch: ON
(engine stopped)

Selector lever: “D”

Accelerator pedal: Released

More than 0.36V

Accelerator pedal: Fully depressed

Less than 4.75V

CLSD THL POS

Ignition switch: ON
(engine stopped)

Selector lever: “D”

Accelerator pedal: Released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2138
2138

Accelerator pedal position
sensor circuit range/perfor-
mance problem

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.

Harness or connector
(The APP sensor 1 and 2 circuit is
open or shorted.)

Accelerator pedal position sensor 1
and 2

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P2138 APP SENSOR

EC-627

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

EBS00MNL

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-629, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-628

DTC P2138 APP SENSOR

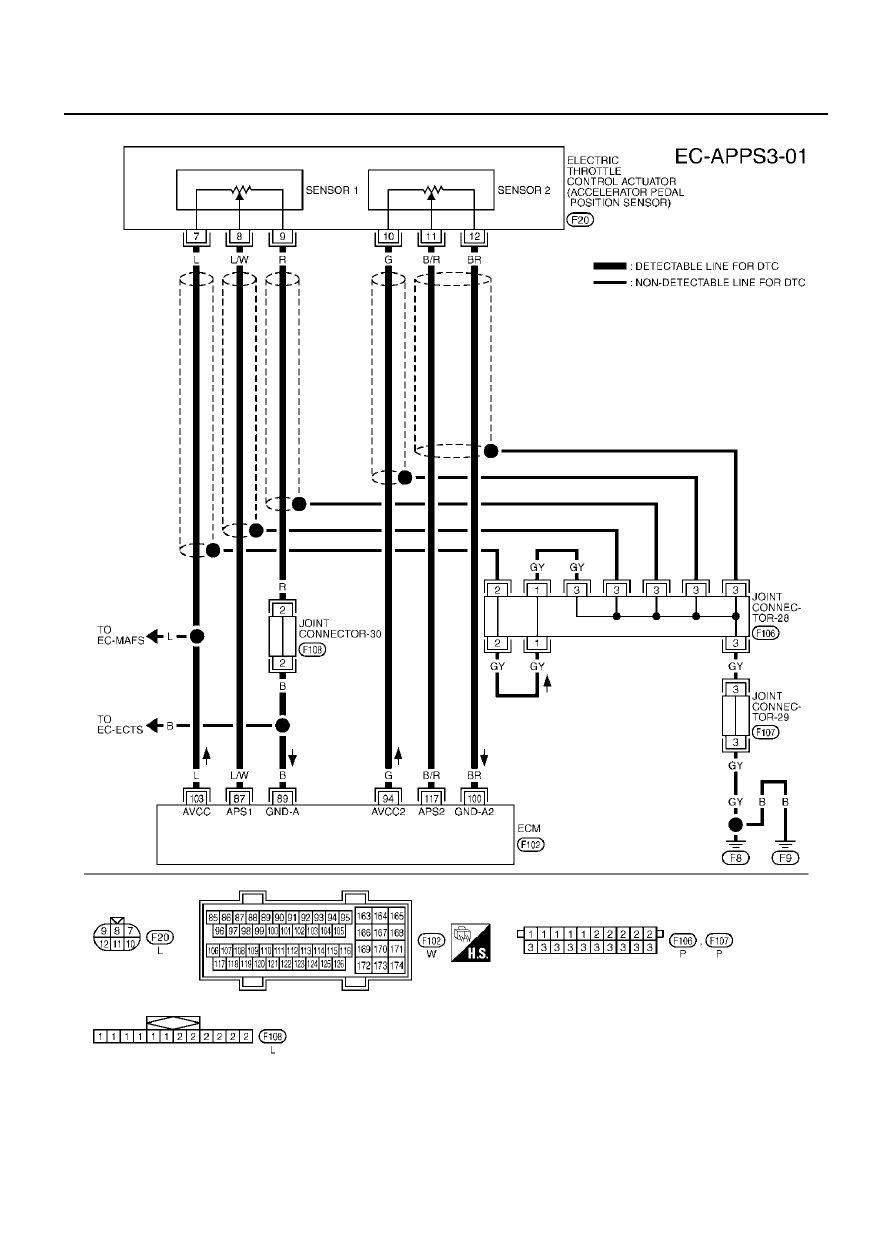

Wiring Diagram

EBS00MNM

TBWM0126E
