DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

EC-449

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

Check continuity between relay terminals 3 and 5.

3.

If NG, replace throttle control motor relay.

Conditions

Continuity

12V direct current supply between terminals
1 and 2

Yes

No current supply

No

PBIB0098E

EC-450

DTC P1128 THROTTLE CONTROL MOTOR

DTC P1128 THROTTLE CONTROL MOTOR

PFP:16119

Component Description

EBS00MI1

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.

On Board Diagnosis Logic

EBS00MI2

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

EBS00MI3

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch “ON” and wait at least 2 seconds.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 5 seconds.

4.

If DTC is detected, go to

EC-452, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1128
1128

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

●

Harness or connectors
(Throttle control motor circuit is shorted.)

●

Electric throttle control actuator
(Throttle control motor)

Engine operating condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

SEF058Y

DTC P1128 THROTTLE CONTROL MOTOR

EC-451

C

D

E

F

G

H

I

J

K

L

M

A

EC

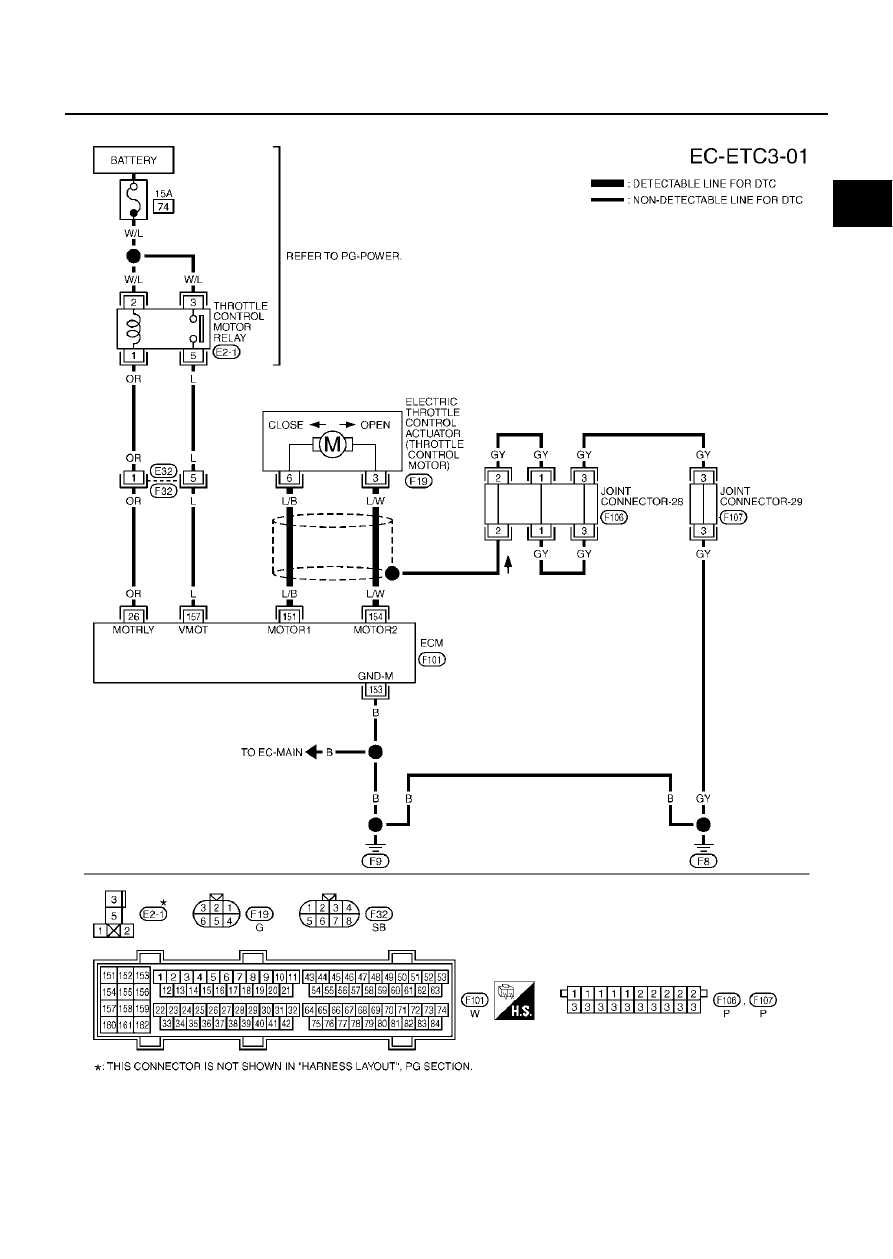

Wiring Diagram

EBS00MI4

TBWM0123E

EC-452

DTC P1128 THROTTLE CONTROL MOTOR

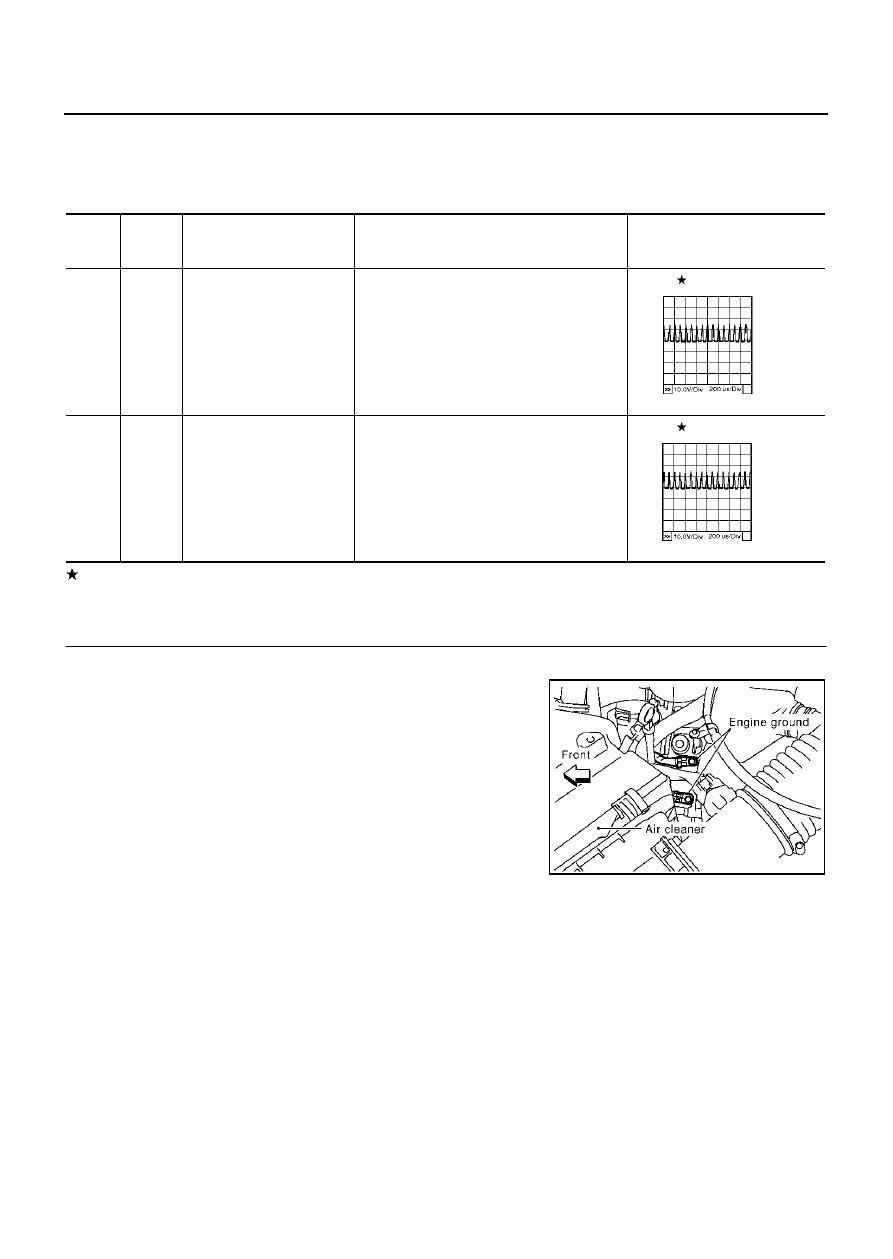

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00MI5

1.

RETIGHTEN GROUND SCREWS

1.

Turn ignition switch “OFF”.

2.

Loosen and retighten engine ground screws.

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

151

L/B

Throttle control motor
(Open)

[Ignition switch “ON”]

●

Engine stopped

●

Selector lever: “D”

●

Accelerator pedal is fully depressed

0 - 14V

154

L/W

Throttle control motor
(Close)

[Ignition switch “ON”]

●

Engine stopped

●

Selector lever: “D”

●

Accelerator pedal is released

0 - 14V

PBIB0058E

PBIB0061E

PBIB0011E
