VOICE ACTIVATED CONTROL SYSTEM

DI-191

C

D

E

F

G

H

I

J

L

M

A

B

DI

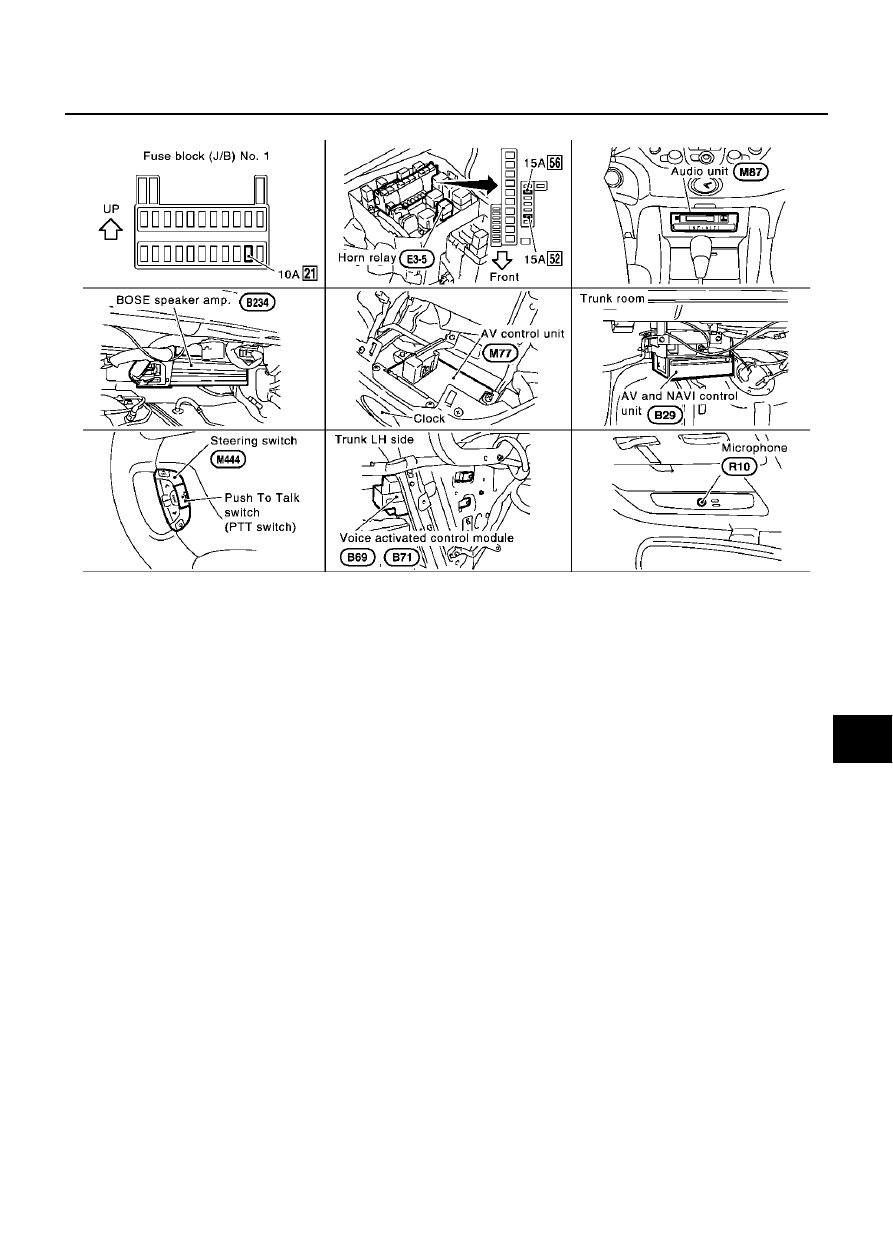

Component Parts and Harness Connector Location

EKS0017F

SKIA3917E

DI-192

VOICE ACTIVATED CONTROL SYSTEM

Trouble Diagnoses

EKS0017G

THIS CONDITION IS NOT MALFUNCTION
Example of Basic Operational Errors

The system should respond correctly to all voice commands. Follow the solutions given in this guide for the
appropriate error when any of the following symptom is encountered.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the symp-
tom is resolved.

Self-Diagnosis Function

EKS001AT

DESCRIPTION

Diagnosis function consists of the self-diagnosis mode, and the “CONFIRMATION/ADJUSTMENT” mode.

Self-diagnosis mode checks for connection between AV and NAVI control unit (with navigation system) or
AV control unit (without navigation system) and voice activated control module and analyzes each unit,
then displays the results.

“CONFIRMATION/ADJUSTMENT” function analyzes each microphone.

DIAGNOSIS ITEM

Self-Diagnosis Mode

EKS001AU

OPERATION PROCEDURE

To start the self-diagnosis mode and to check the diagnosis result, refer to

DI-109, "Self-Diagnosis Mode"

(with navigation system), or

DI-109, "Self-Diagnosis Mode"

  (without navigation system).

Symptom

Remedy

Displays “COMMAND NOT
RECOGNIZED” or the sys-
tem does not interpret the
command correctly.

1. Ensure that the command is valid, see Command list (Refer to Owner’s Manual).

2. Ensure that the command is given after the tone while “ LISTENING” is displayed.

3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

4. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.

NOTE:
If it is too noisy to use the microphone, it is likely that voice commands will not be recognized.

5. If optional words of the command have been omitted, then the command should be tried with these in

place.

6. If a number of commands have been given in rapid succession resulting in the message “COMMAND

NOT RECOGNIZED” to be displayed, then allow the system to recover (approximately one minute)
before trying the command again.

7. If the system consistently does not recognize commands, the voice training procedure should be car-

ried out to improve the recognition response for the speaker.

Displays “NO SPEECH
DETECTED”.

1. Ensure that the command is given after the tone while “LISTENING” is displayed.

2. Ensure that the command is given within a maximum of five seconds from the end of the tone.

NOTE:
Be sure you know what to say before pressing the Voice button.

Displays “NAMETAG NOT
UNIQUE”.

1. This response will be received when storing a nametag if the nametag being given has already been

stored. This can be confirmed by giving the Radio Directory command.

2. If this response is received and the nametag has not been used already, then it is too similar to an

existing nametag or voice grammar and an alternative should be used.

The system consistently
selects the wrong nametag.

1. Ensure that the nametag requested matches what was originally stored. This can be confirmed by

giving the Radio Directory command.

2. Delete one of the nametags being confused and replace it with a different nametag.

Mode

Description

Self-diagnosis

Checks for the connections between AV and NAVI control unit or AV control unit and
voice activated control module.

Performs the unit diagnosis of voice activated control module.

CONFIRMATION/
ADJUSTMENT

Voice Mic. Test

Checks microphone.

VOICE ACTIVATED CONTROL SYSTEM

DI-193

C

D

E

F

G

H

I

J

L

M

A

B

DI

Confirmation/Adjustment Mode

EKS001AV

OPERATION PROCEDURE

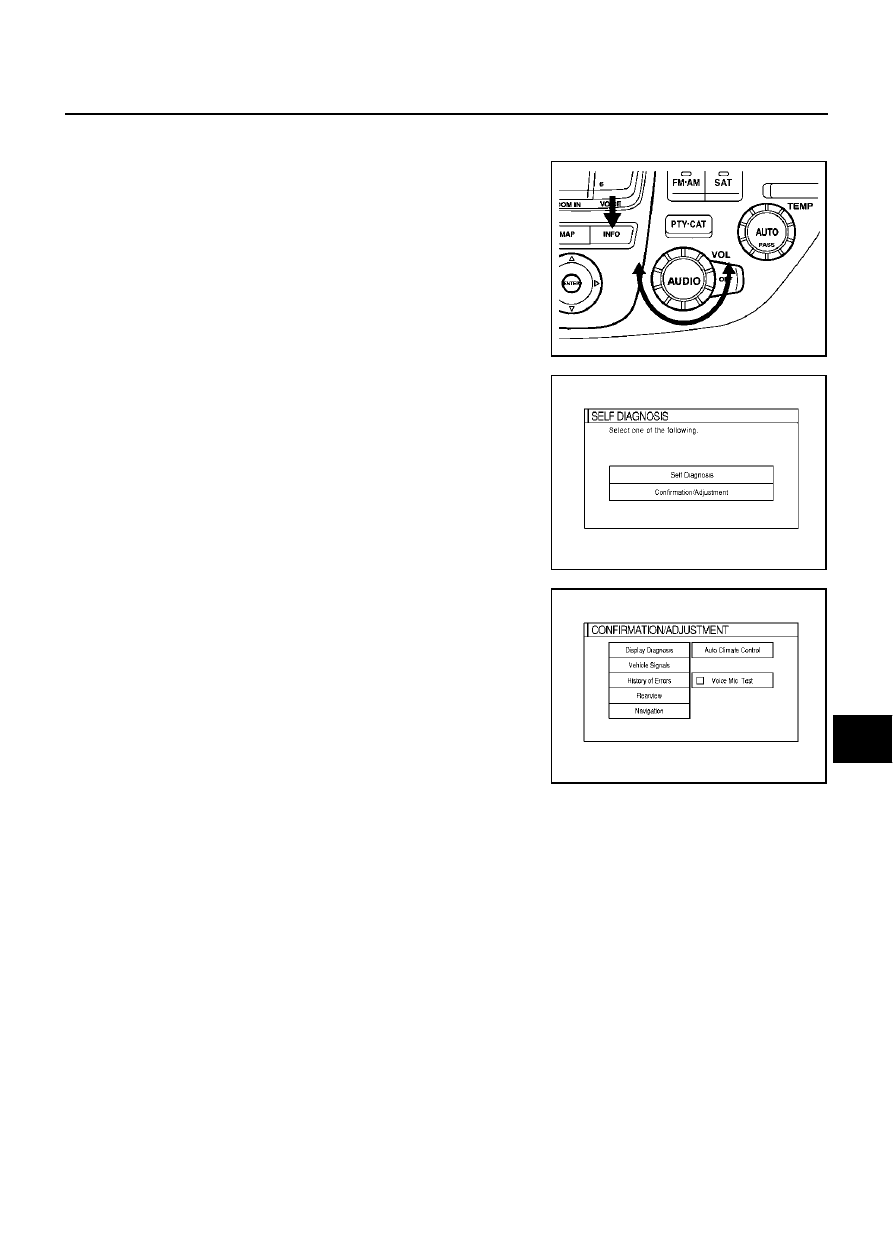

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more.

4.

The initial trouble diagnosis screen will be shown, and items
“SELF-DIAGNOSIS” and “CONFIRMATION/ADJUSTMENT” will
become selective.

5.

When “CONFIRMATION/ADJUSTMENT” is selected on the
trouble diagnosis screen, the operation will enter the CONFIR-
MATION/ADJUSTMENT mode. In this mode, check and adjust-
ment of each item will become possible.

6.

When “Voice Mic. Test” is selected with joystick, icon indicator
turns on (green) and voice input into microphone is sent out
through speakers.

NOTE:
Voice from speakers may sound echoic.

SKIA3512E

SKIA0381E

SKIA3938E

DI-194

VOICE ACTIVATED CONTROL SYSTEM

Power Supply and Ground Circuit Inspection

EKS001AW

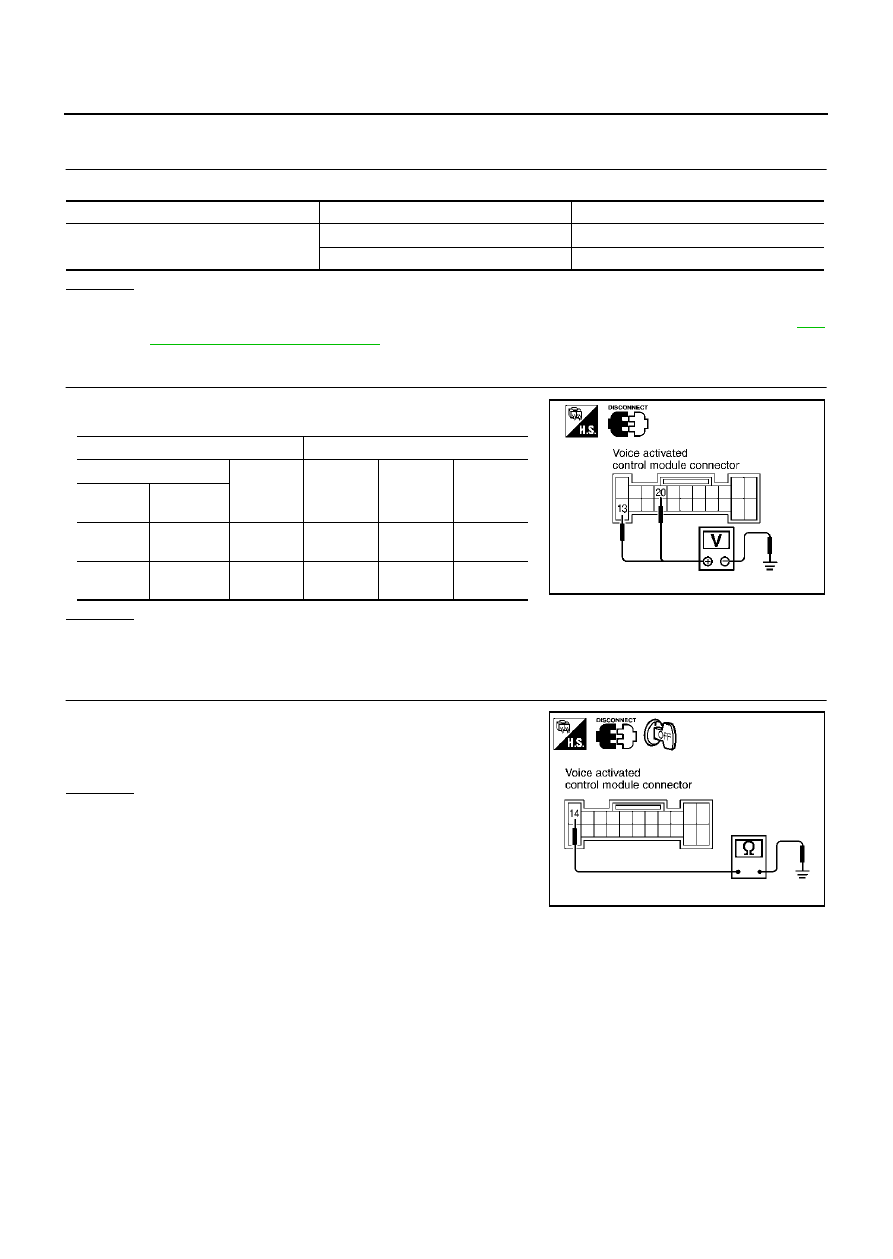

1.

CHECK FUSES

Check that any of the following fuses for voice activated control module is blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

2, "POWER SUPPLY ROUTING"

 .

2.

CHECK POWER SUPPLY CIRCUIT

Check voltage between voice activated control module harness con-
nector B69 terminal 13 (SB), 20 (L/OR) and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness between voice activated control module and fuse.

3.

CHECK GROUND CIRCUIT

Check continuity between voice activated control module harness
connector B69 terminal 14 (B) and ground.

OK or NG

OK

>> Inspection end.

NG

>> Repair harness or connector.

Unit

Power source

Fuse No.

Voice Activated Control Module

Battery

52

Ignition switch ACC or ON

21

Terminals

Ignition switch position

(+)

(-)

OFF

ACC

ON

Connector

Terminal

(Wire color)

B69

13 (SB)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

B69

20 (L/OR)

Ground

0V

Battery
voltage

Battery
voltage

SKIA4150E

Continuity should exist.

SKIA4151E
