CLOCK

DI-163

C

D

E

F

G

H

I

J

L

M

A

B

DI

CLOCK

PFP:25820

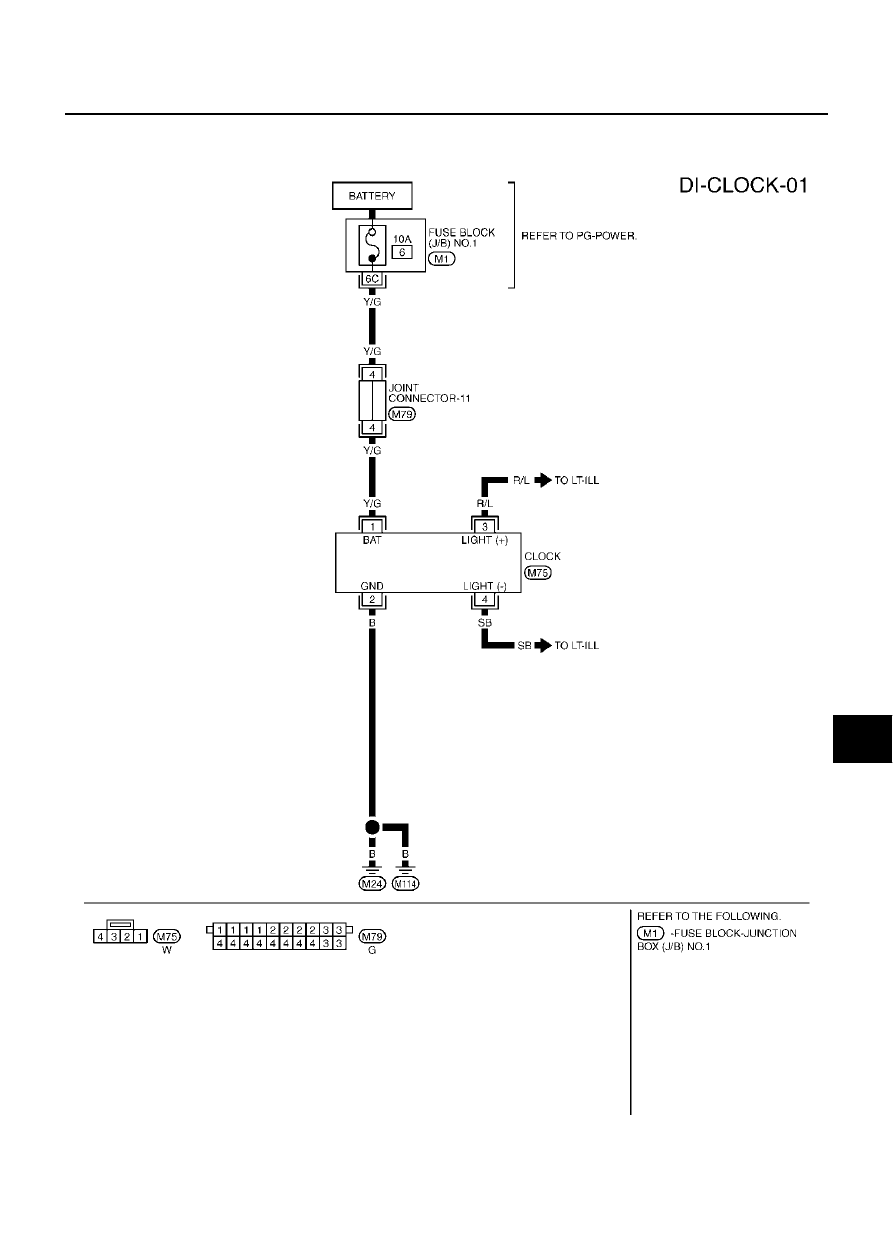

Wiring Diagram — CLOCK —

EKS001B7

TKWM0428E

DI-164

CLOCK

Removal and Installation

EKS001B8

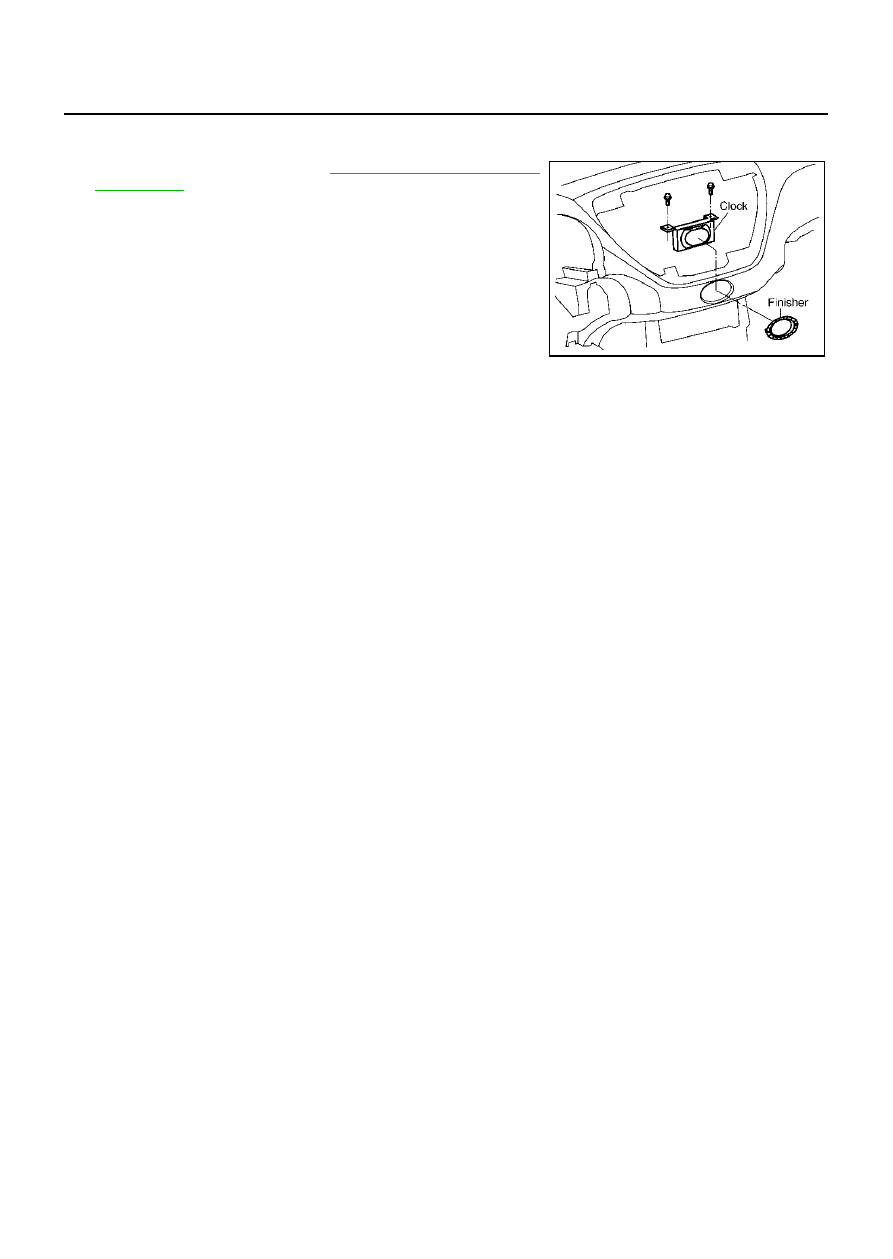

REMOVAL

1.

Remove the cluster lid C, refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

2.

Remove the screws (2), and remove clock.

INSTALLATION

Install in the reverse order of removal.

PKIA0309E

REAR VIEW MONITOR

DI-165

C

D

E

F

G

H

I

J

L

M

A

B

DI

REAR VIEW MONITOR

PFP:28260

System Description

EKS0012G

●

The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.

●

The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.

POWER SUPPLY AND GROUND

Power is supplied at all time

●

through 15A fuse [No. 52, located in fuse, fusible link and relay block (J/B)]

●

to rear view camera control unit terminal 2.

When ignition switch is ACC or ON position, power is supplied

●

through 10A fuse [No. 21, located in fuse block (J/B) No. 1]

●

to rear view camera control unit terminal 4.

When Ignition switch is ON or START position, power is supplied

●

through 10A fuse [No. 9, located in fuse block (J/B) No. 1]

●

to back-up lamp relay terminal 2 and 5.

Ground is supplied

●

to rear view camera control unit terminal 1

●

through grounds B217 and B256, and

●

to rear view camera terminal 2

●

through grounds B17 and B57.

AV COMMUNICATION LINE

Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.

●

AV and NAVI control unit (with navigation system)

●

AV control unit (without navigation system)

●

Display

●

Multifunction switch

REAR VIEW CAMERA OPERATION

When A/T selector lever is reverse position, power is supplied

●

through back-up lamp relay terminal 1

●

to TCM terminal 41.

Then back-up lamp relay is energized,

●

from back-up lamp relay terminal 3

●

to rear view camera control unit terminal 10.

Then, rear view camera control unit is sent camera ON signal

●

through rear view camera control unit terminal 6

●

to rear view camera terminal 1.

An image taken by rear view camera is sent

●

through rear view camera terminals 3 and 4

●

to rear view camera control unit terminals 18 and 16.

Then an image is sent

●

through rear view camera control unit terminals 22 and 24

●

to the display terminals 9 and 10.

An image of rear view will be projected on the display.

DI-166

REAR VIEW MONITOR

Rear View Camera Guide Line

When A/T selector lever is in reverse position, AV and NAVI control unit (with navigation system) or AV control
unit (without navigation system) is sent rear view camera guideline signal with AV communication line

●

from AV and NAVI control unit terminals 44 and 45 (with navigation system) or AV control unit terminal 47
and 48 (without navigation system)

●

through display, multifunction switch, audio unit and audio amp. (Bose speaker amp.)

●

to rear view camera control unit terminal 11and 9.

Then rear view camera control unit is sent rear view camera guideline image

●

through rear view camera control unit terminals 22 and 24

●

to the display terminals 9 and 10.

Rear view camera guide line will be projected on the display.
Display shows image from rear view camera image and rear view camera guideline.

FUNCTION OF BACKLIGHT CORRECTION

When visibility of rear view image projected on the display is not good caused by backlight, the rear view
image projected on the display can be adjusted by pushing “ENTER” button.
When “ENTER” button is pushed, using AV communication line, backlight correction signal is sent

●

from multifunction switch terminals 12 and 13

●

through BOSE speaker amp. and audio unit

●

to rear view camera control unit terminals 11 and 9.

Then, backlight correction signal is sent

●

through rear view camera control unit terminal 8

●

to rear view camera terminal 5.

An iris function of rear view camera will be operated, and visibility of rear view image projected on the display
will be imaged.

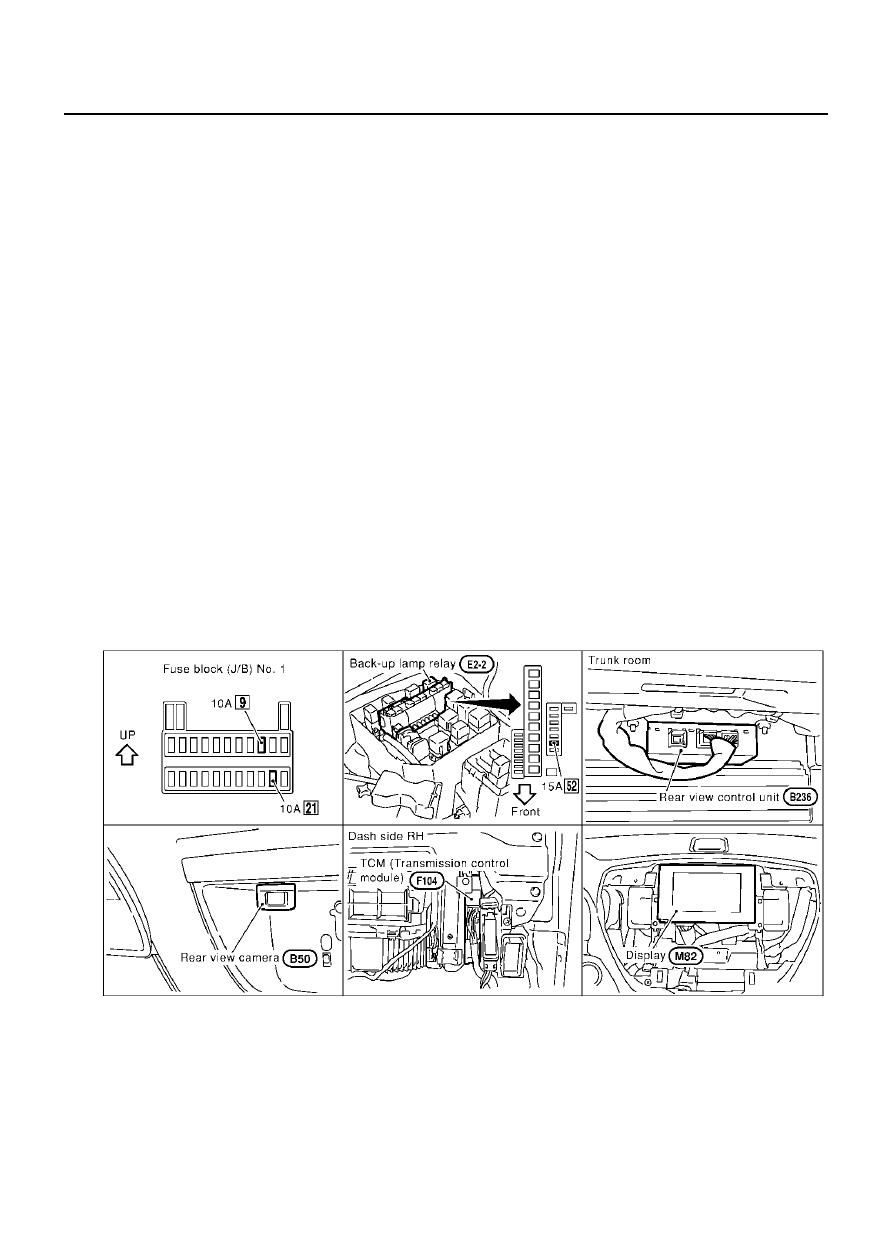

Component Parts and Harness Connector Location

EKS0012H

CKIM0007E
