VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-83

C

D

E

F

G

H

I

J

L

M

A

B

DI

VEHICLE DYNAMIC
CONTROL

VDC

Detection condition

Warning lamp ON signal is detected
when engine is running.

VDC system malfunc-
tion

Cancel condition

Warning lamp OFF signal is detected.

TRACTION CON-
TROL SYSTEM

TCS

Detection condition

Warning lamp ON signal is detected
when engine is running.

TCS system malfunc-
tion

Cancel condition

Warning lamp OFF signal is detected.

AUTOMATIC TRANS-
MISSION OIL TEM-
PERATURE

AT

CHECK

Detection condition

Warning lamp ON signal is detected
after ignition switch is turned ON.

TCM system malfunc-
tion

Cancel condition

Warning lamp OFF signal is detected.

TIRE PRESSURE

Tire Pressure

Detection condition

Warning lamp ON signal is detected
after ignition switch is turned ON.

Low tire pressure
warning control unit
system malfunction

Cancel condition

Warning lamp OFF signal is detected.

LOW TIRE PRES-
SURE (TIRE PRES-
SURE INFO.)

Detection condition

Tire pressure 180 kPa (1.8 kg/cm

2

 , 26

psi) is detected while vehicle is running.

Tire pressure is low

Cancel condition

Except above condition.

FLAT TIRE (TIRE
PRESSURE INFO.)

Detection condition

Tire pressure 70 kPa (0.7 kg/cm

2

 , 10

psi) is detected while vehicle is running.

Flat tire

Cancel condition

Except above condition.

CRUISE CONTROL

SET

Detection condition

Warning lamp ON signal is detected
after ignition switch is turned ON.

ASCD system malfunc-
tion

Cancel condition

Warning lamp OFF signal is detected.

Warning indicators

Warning lamps in

instrument panel

Warning detection and cancel conditions

Cases of malfunction

DI-84

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

Precautions for AV Control Unit Replacement

EKS006DP

The AV control unit has the following information stored in its memory. Record the memory contents before
replacing the control unit, and input them in the new unit as necessary.

NOTE:
Only removing the battery does not erase the memory.

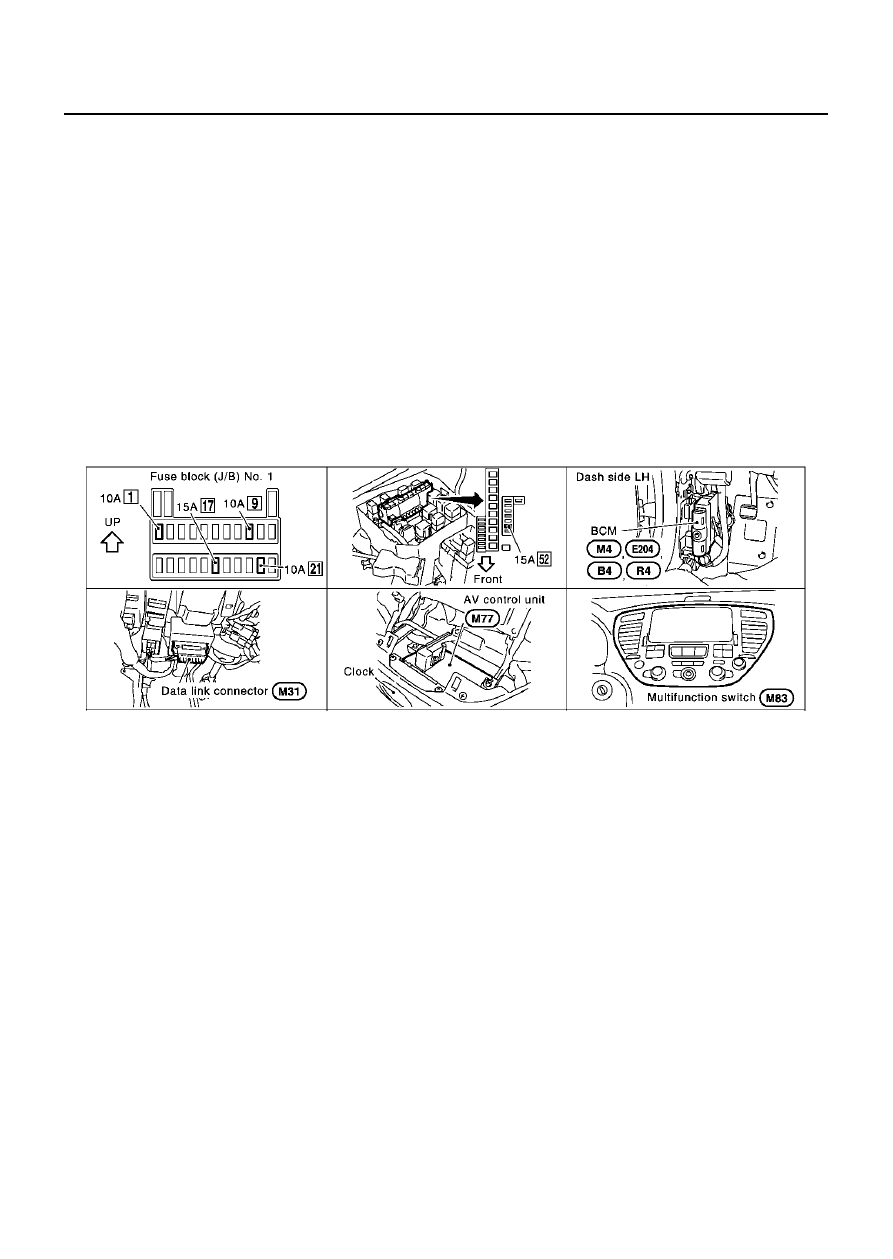

Component Parts and Harness Connector and Harness Connector Location

EKS006DQ

<FM·AM>

Preset frequency

Area for indicating station, selection of overlapped stations

<CD>

Program status

<Sound quality>

Volume balance memory set values

Equalizer memory set values

<Image quality>

Brightness of light when ON/OFF

Dimming switching

Display color switching

SKIA3738E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-85

C

D

E

F

G

H

I

J

L

M

A

B

DI

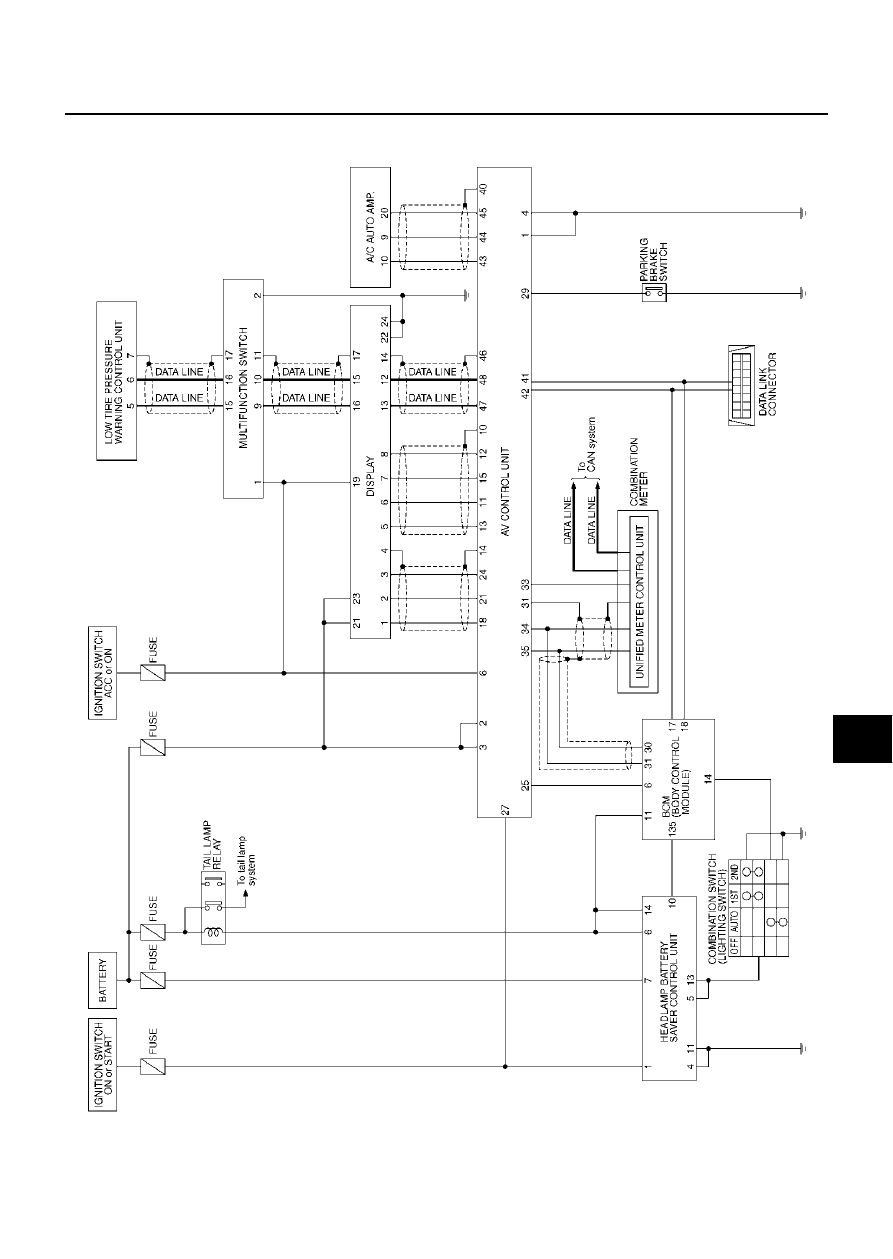

Schematic

EKS006DR

TKWM0725E

DI-86

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

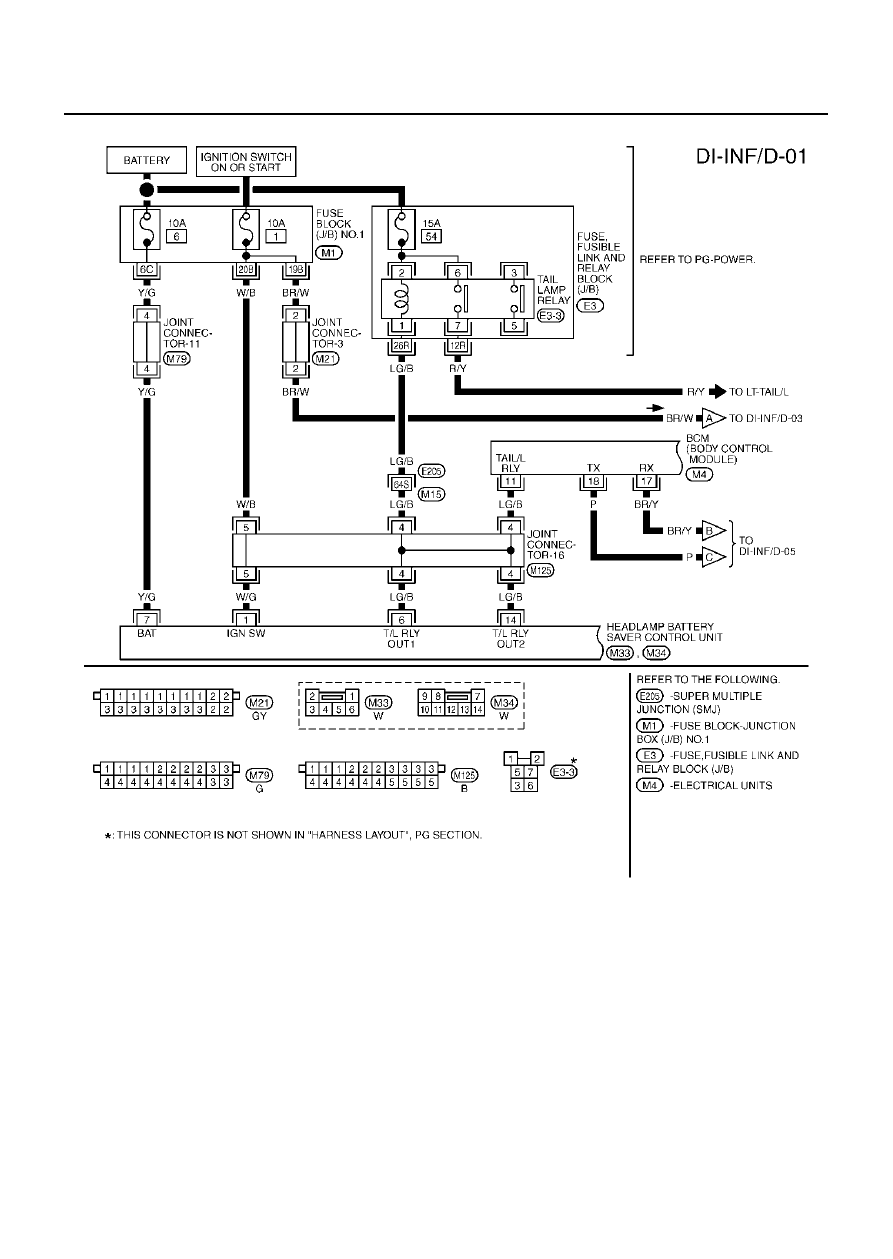

Wiring Diagram — INF/D —

EKS006DS

TKWM0362E
