VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-79

C

D

E

F

G

H

I

J

L

M

A

B

DI

Tire Pressure Information

1.

Select “Tire Pressure”.

2.

Tire pressure displayed as Tire Pressure information.

NOTE:

●

When air pressure becomes 180 kPa (1.8 kg/cm

2

 , 26 psi) or

less, “LOW PRESSURE” warning is indicated.

●

When air pressure becomes 70 kPa (0.7 kg/cm

2

 , 10 psi) or

less, “FLAT TIRE” warning is indicated.

●

When pressure is not detected or tire pressure system has
malfunction “** psi” is indicated.

●

Indication with yellow frame for the malfunctioning tire.

SETTING OF VEHICLE STATUS

●

Setting of electric status can be changed by multifunction switch.The signal is sent to BCM through AV
control unit to change vehicle electric system setting.

●

AV control unit is communicating with BCM and combination meter.

1.

Press “SETTING” switch to display vehicle information display.

2.

Select “Vehicle Electronic System”.

3.

Select a vehicle status shown on the display.

SKIA3737E

SKIA0605E

SKIA0606E

SKIA0608E

DI-80

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

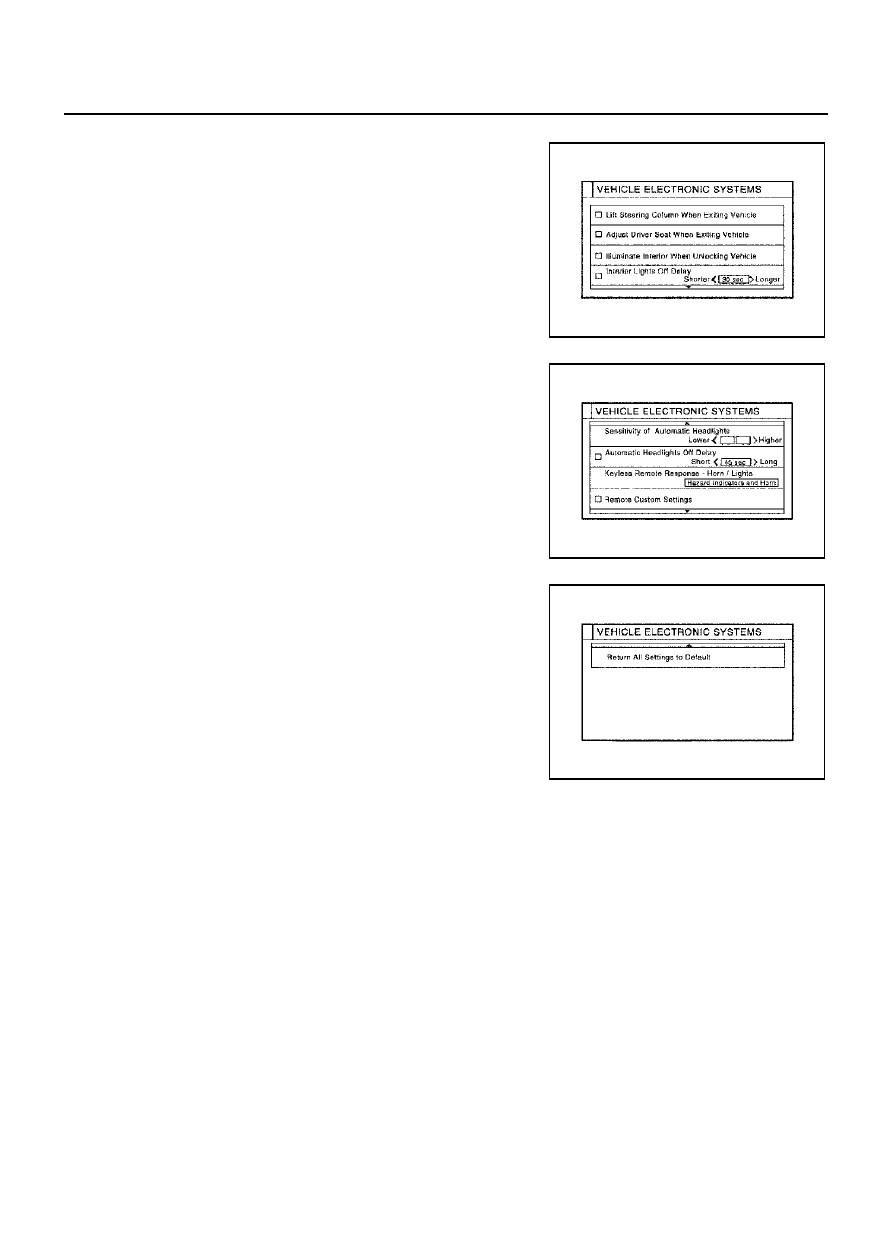

Adjustable vehicle status

●

Lift Steering Column When Exiting Vehicle

●

Adjust Driver Seat When Exiting Vehicle

●

Illuminate Interior When Unlocking Vehicle

●

Interior Lights Off Delay

●

Sensitivity of Automatic Headlights

●

Automatic Headlights Off Delay

●

Key Remote Response - Horn/Lights

●

Remote Custom Settings

●

Return All Settings to Default

SKIA0610E

SKIA0611E

SKIA0612E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-81

C

D

E

F

G

H

I

J

L

M

A

B

DI

Adjustable vehicle status

Setting items

Setting variations

Initial setting

Operation

Lift Steering Column When Exiting Vehicle

ON/OFF

ON

The steering column automatically tilts up when
the driver gets out, and returns to the original
position when the driver gets on.

●

When driver door is closed and key removed
from ignition key cylinder, the steering column
tilts up.

●

When driver door is open and key is turned to
OFF, the steering column tilts up.

Adjust Driver Seat When Exiting Vehicle

ON/OFF

ON

The driver’s seat automatically slides backward
when the driver gets out, and returns to the origi-
nal position when the driver gets on.

Illuminate Interior When Unlocking Vehicle

ON/OFF

ON

The interior room lamps are illuminate automati-
cally when the door unlocked with key or key fob.

Interior Lights Off Delay

OFF/15/30/45 sec.

30 sec.

Interior room lamp timer period can be changed
in this mode. Selects interior room lamp timer.

Sensitivity of Automatic Headlights

1/2/3/4

3

Sensitivity of auto light sensor can be adjusted.

Automatic Headlights Off Delay

OFF/20/45/90/120/

150/180 sec.

45 sec.

Auto light delay off timer period can be changed
in this mode. Selects auto light delay off timer.

Key Remote Response - Horn/Lights

Hazard indicators
only
/Hazard indicators
and horn

Hazard indi-
cators only

Hazard indicators Only:

●

Lock operation: The hazard warning lamp flash
twice when lock the doors with key fob.

●

Unlock operation: No response.

Hazard indicators and horn:

●

Lock operation: The hazard warning lamp flash
twice and horn sounds once when lock the
doors with key fob.

●

Unlock operation; The hazard warning lamp
flash once when unlock the doors with key fob.

Remote Custom Settings

ON/OFF

ON

The driving position -seat and steering column-
and the audio setting -current source and radio
station presets- are set to the same condition you
made last time by identifying the key fob ID.

This function operates when unlock the doors by
using the key fob.

NOTE:
It is necessary to memorize the driving position
before using this function.

Return All Settings to Default

None

None

If this key is selected, all vehicle electronic sys-
tems setting are return to default.

DI-82

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

WARNING INDICATIONS

When combination meter receives warning signal from some control units or sensors, then combination meter
warning lamp is illuminated.
Then combination meter sends warning signal to AV control unit to display warning indications on the screen.

Warning indicators

Warning lamps in

instrument panel

Warning detection and cancel conditions

Cases of malfunction

MALFUNCTION

SERVICE

ENGINE

SOON

Detection condition

Warning lamp ON signal is detected
while engine is running.

ECM malfunction

Cancel condition

Warning lamp OFF signal is detected.

ENGINE OIL PRES-
SURE

Engine oil

pressure

Detection condition

Warning lamp ON signal is detected for
at least approx. 5 seconds while engine
is running.
[Engine oil pressure: MAX. approx. 29

kPa (0.3 kg/cm

2

 , 4psi)]

Engine oil pressure
decreases

Cancel condition

Warning lamp OFF signal is detected.
[Engine oil pressure: MIN. approx. 29

kPa (0.3 kg/cm

2

 , 4psi)]

SUPPLEMENTAL AIR
BAG

Air bag

Detection condition

Warning lamp ON signal is detected for
at least approx. 10 seconds after ignition
switch is turned ON.

SRS air bag system
malfunction

Cancel condition

Warning lamp OFF signal is detected.

LOW BRAKE FLUID

Brake

Detection condition

Warning lamp ON signal (fluid level) is
detected.

Low brake fluid level

Cancel condition

Warning lamp OFF signal is detected.

OVERHEATING

–

Detection condition

Engine coolant temperature as being
approx. 119

°

C (246

°

F) min.

Engine cooling system
malfunction

Cancel condition

Engine coolant temperature as being
approx. 105

°

C (221

°

F) max.

CHARGE

Charge

Detection condition

Warning lamp ON signal is detected
while engine is running. Charging sys-
tem malfunction

Charging system mal-
function

Cancel condition

Warning lamp OFF signal is detected.

LOW WASHER
FLUID

–

Detection condition

Washer liquid level falls below approx.

0.4

.(7/8 US qt, 3/4 Imp pt)

Low washer liquid level

Cancel condition

Except above condition.

LOW FUEL

Fuel level

Detection condition

After warning lamp ON signal is
detected, vehicle is driven for over spec-
ified distance. (Fuel level: Approx. 14.0

14-3/4 US qt,12-3/8 Imp pt)

Low fuel level

Cancel condition

Warning lamp OFF signal is detected.

PARKING BRAKE

Brake

Detection condition

Parking brake ON signal is detected
while vehicle is running [approx. 5 km/h
(3 MPH) or faster].

Parking brake remains
engaged.

Cancel condition

Vehicle is stopped, or parking brake
OFF signal is detected.

DOOR OPEN

Door

Detection condition

Vehicle is running [approx. 5 km/h (3
MPH) or faster] and door ajar of any of
the doors is detected.

Door is open

Cancel condition

Vehicle is stopped and all the doors
lock.

ANTI-LOCK BRAKE

ABS

Detection condition

Warning lamp ON signal is detected
when engine is running.

ABS control system
malfunction

Cancel condition

Warning lamp OFF signal is detected.
