Infiniti F50. Manual - part 293





COMBINATION METERS

DI-15

C

D

E

F

G

H

I

J

L

M

A

B

DI

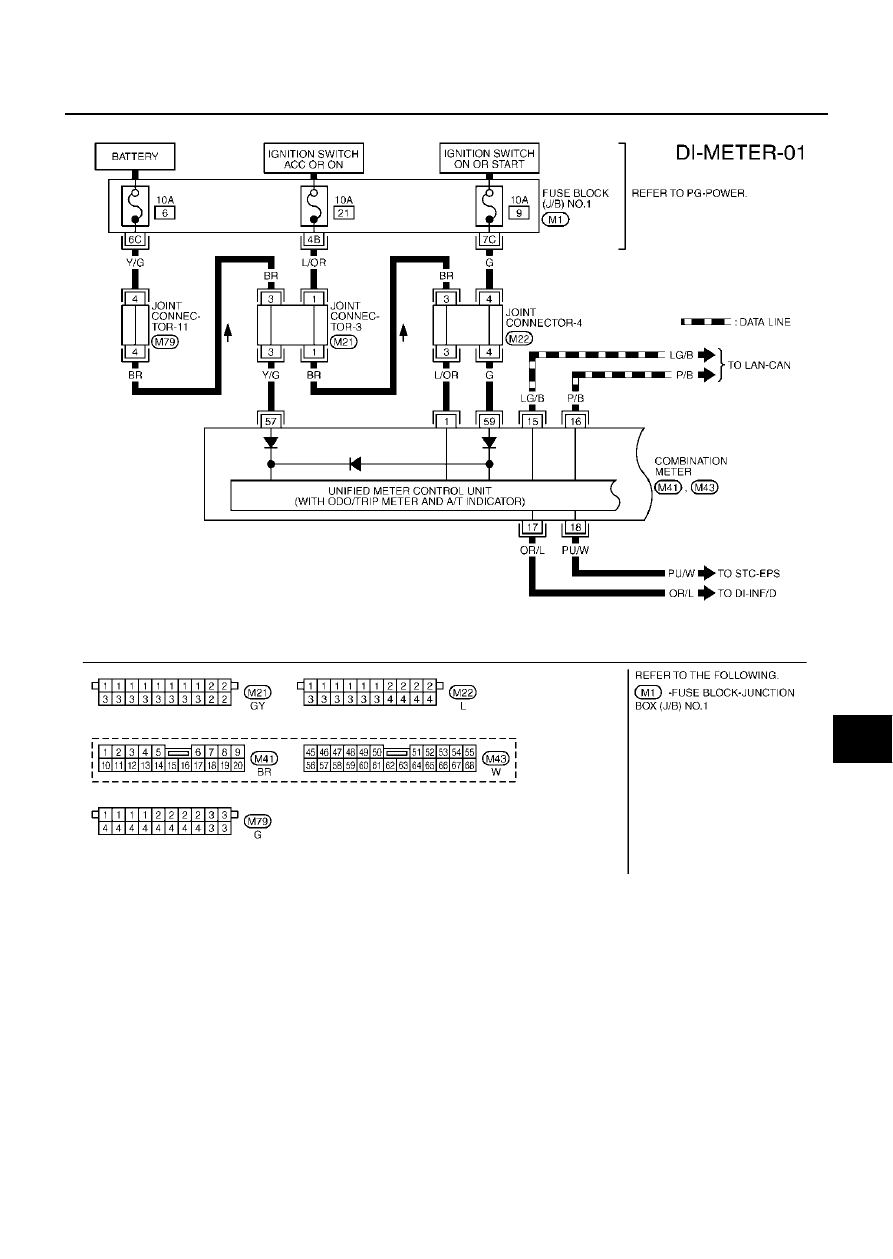

Wiring Diagram — METER —

EKS00184

TKWM0060E

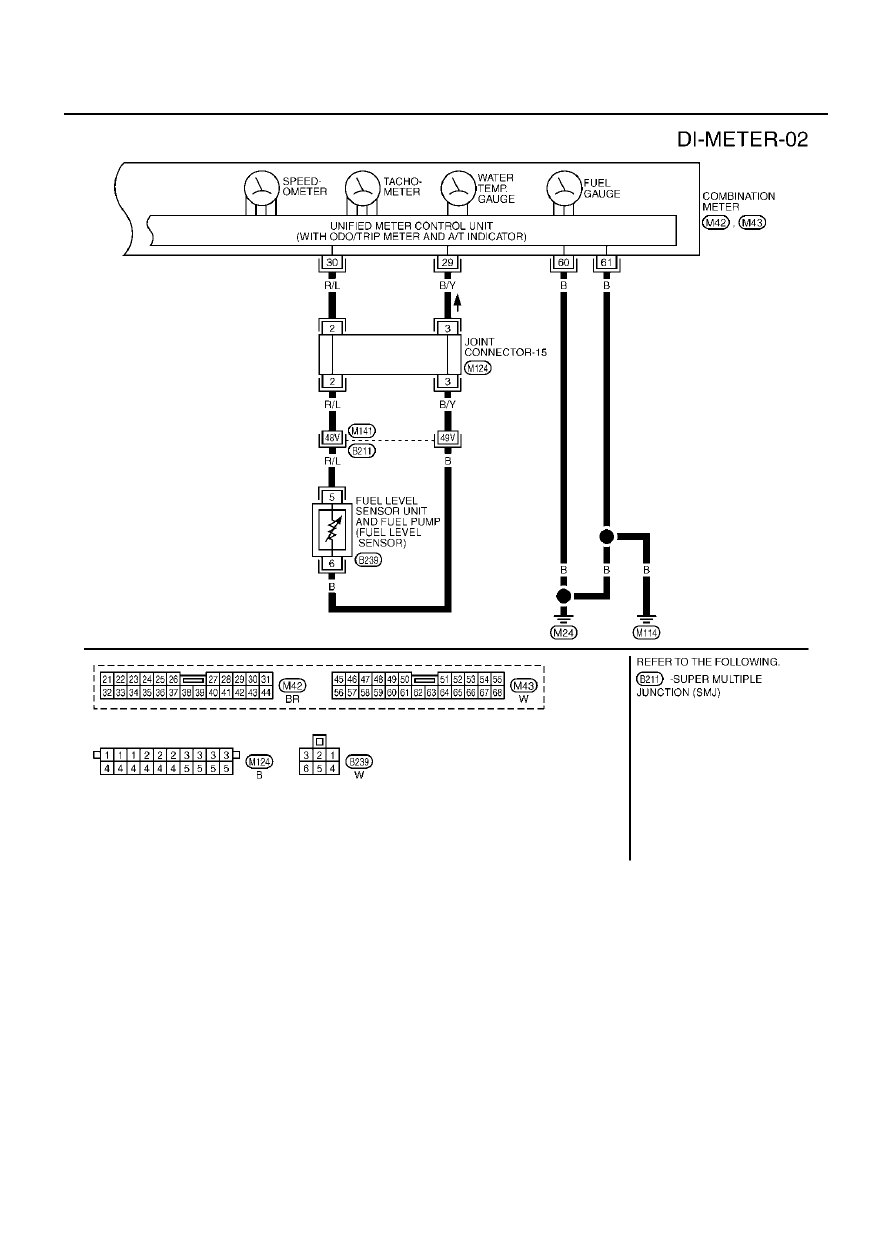

DI-16

COMBINATION METERS

TKWM0422E

COMBINATION METERS

DI-17

C

D

E

F

G

H

I

J

L

M

A

B

DI

Terminals and Reference Value for Combination Meter

EKS000ZY

Terminal

No.

Wire

color

Item

Condition

Reference value (V)

Ignition

switch

Operation

1

L/OR

Ignition switch (ACC)

ACC

Battery voltage

15

LG/B

CAN L

16

P/B

CAN H

17

OR/L

Vehicle speed signal (8-pulse)

ON

Speedometer operated
[When vehicle speed is
approx. 40 km/h (25MPH)]

18

PU/W

Vehicle speed signal
(2-pulse)

ON

Speedometer operated
[When vehicle speed is
approx. 40 km/h (25MPH)]

29

B/Y

Fuel level sensor ground

ON

Approx. 0

30

R/L

Fuel level senor signal

ON

Refer to

DI-26, "Electrical Compo-

nents Inspection"

 .

57

Y/G

Battery power supply

OFF

Battery voltage

59

G

Ignition switch (ON)

ON

Battery voltage

60

B

Ground

ON

Approx. 0

61

B

Ground

ON

Approx. 0

ELF1084D

ELF1080D

DI-18

COMBINATION METERS

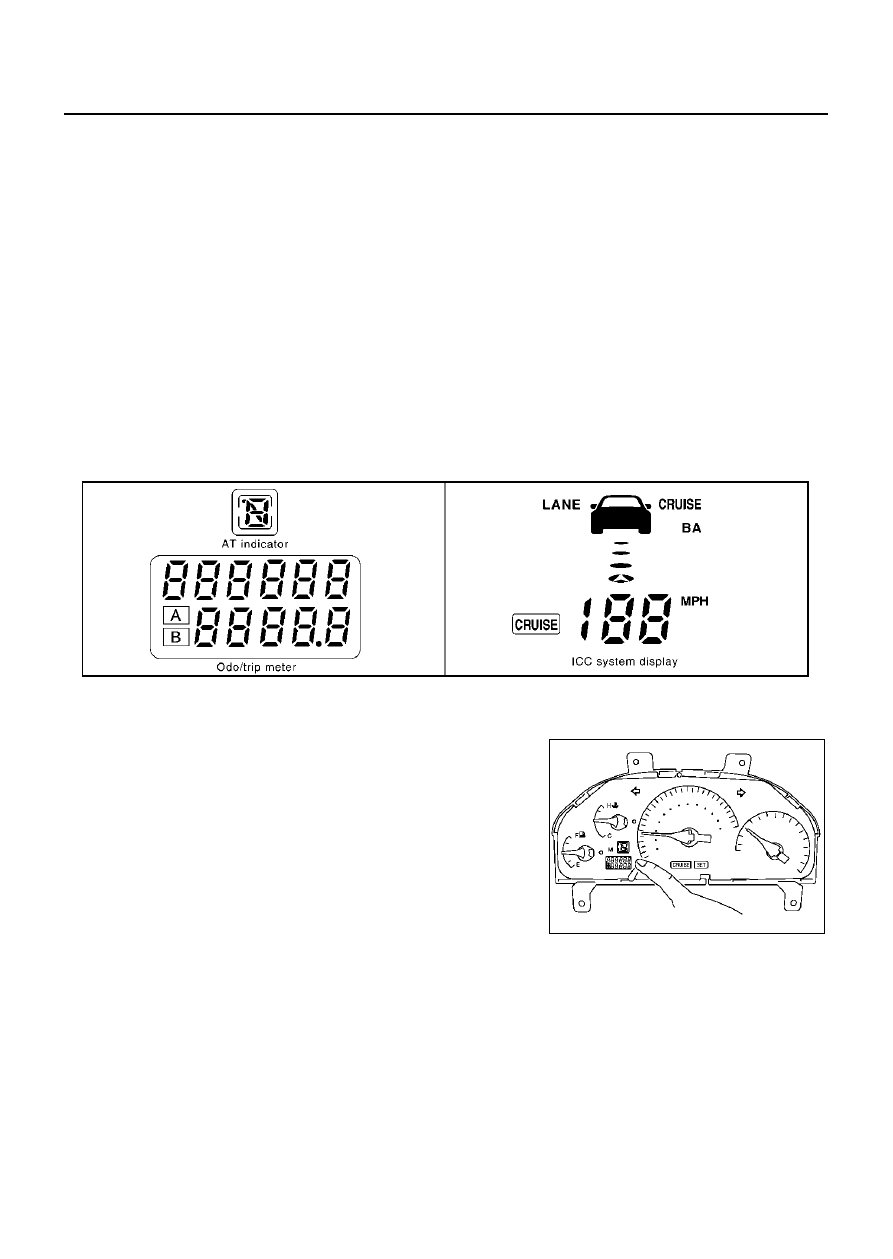

Meter/Gauges Operation, Odo/Trip Meter, A/T Indicator and ICC System Display

EKS000ZZ

SELF-DIAGNOSIS FUNCTION

Odo/trip meter segment, A/T indicator segment and ICC system display segment can be checked in self-
diagnosis mode.

Meters/gauges can be checked in self-diagnoses mode.

HOW TO ALTERNATE DIAGNOSIS MODE

1.

Turn the ignition switch ON, and switch the odo/trip meter to “trip A” or “trip B”.

NOTE:
If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A is
reset to 0.0 km (same as the trip meter B display).

2.

Turn the ignition switch OFF.

3.

While pushing the odo/trip meter switch, turn the ignition switch ON again.

4.

Check that the trip meter displays “0000.0”.

5.

Push the odo/trip meter switch at least 3 times within 5 seconds.

6.

All the segments on the odo/trip meter, A/T indicator and ICC system display illuminate, and simulta-
neously the low-fuel warning lamp indicator illuminate. At this time, the unified control meter is turned to
diagnosis mode.

NOTE:
If any of the segments is not displayed, replace the odo/trip meter and A/T indicator with the speedometer
assembly.

7.

Push the odo/trip meter switch. Indication of each meter/gauge
should be as shown in the right during pushing odo/trip meter
switch if there is no malfunctioning. (at this time, the low-fuel
warning lamp goes off).

SKIA3720E

SKIA0484E
