ELECTRONIC KEY SYSTEM

BL-187

C

D

E

F

G

H

J

K

L

M

A

B

BL

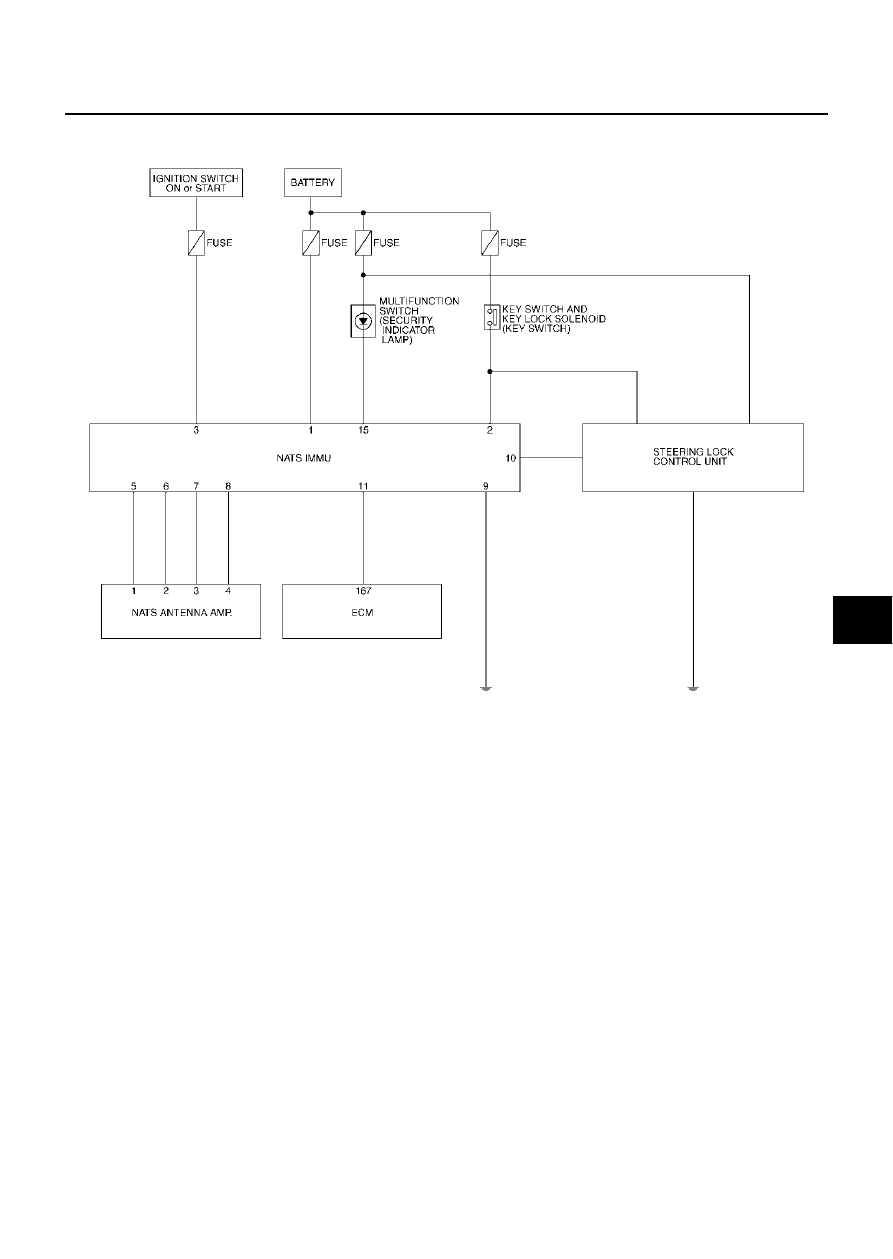

Schematic

EIS0012R

TIWM0032E

BL-188

ELECTRONIC KEY SYSTEM

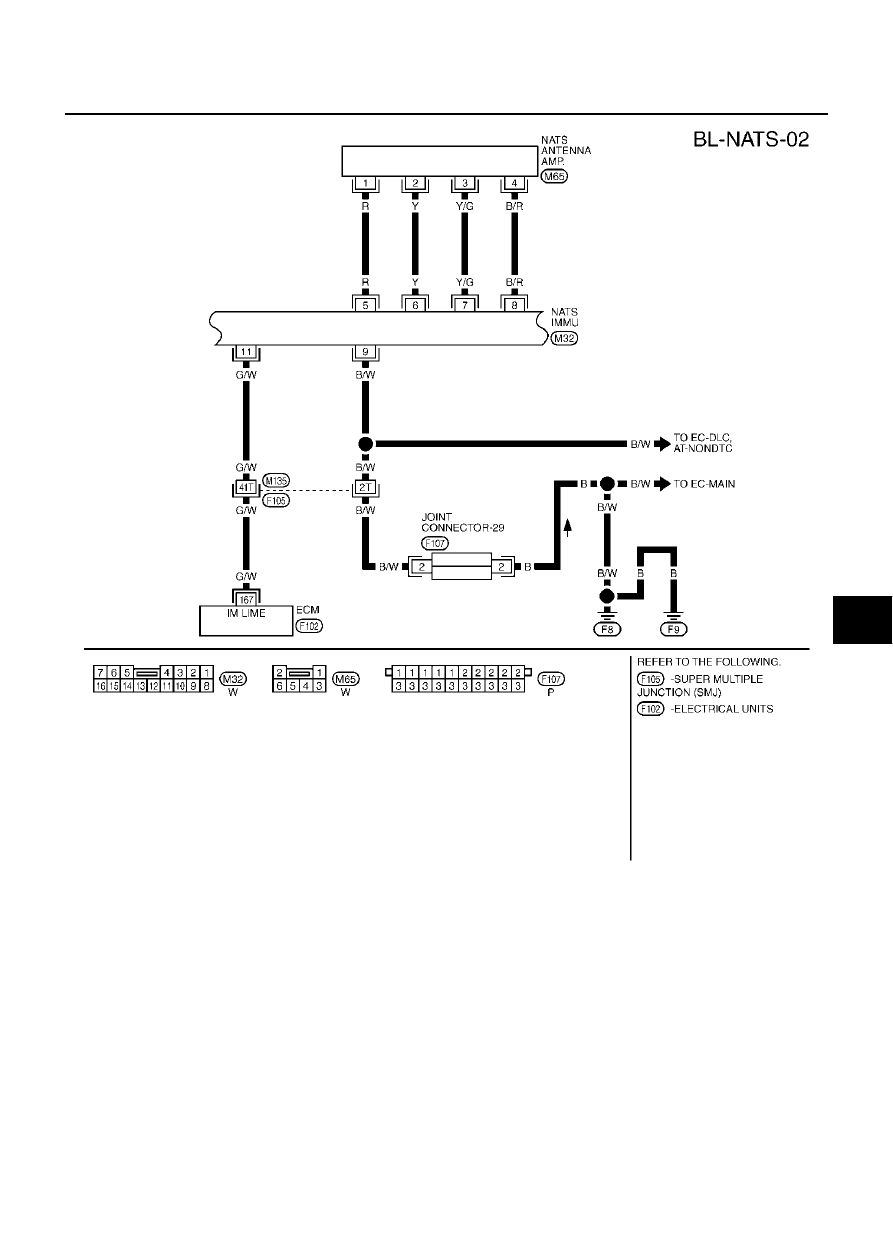

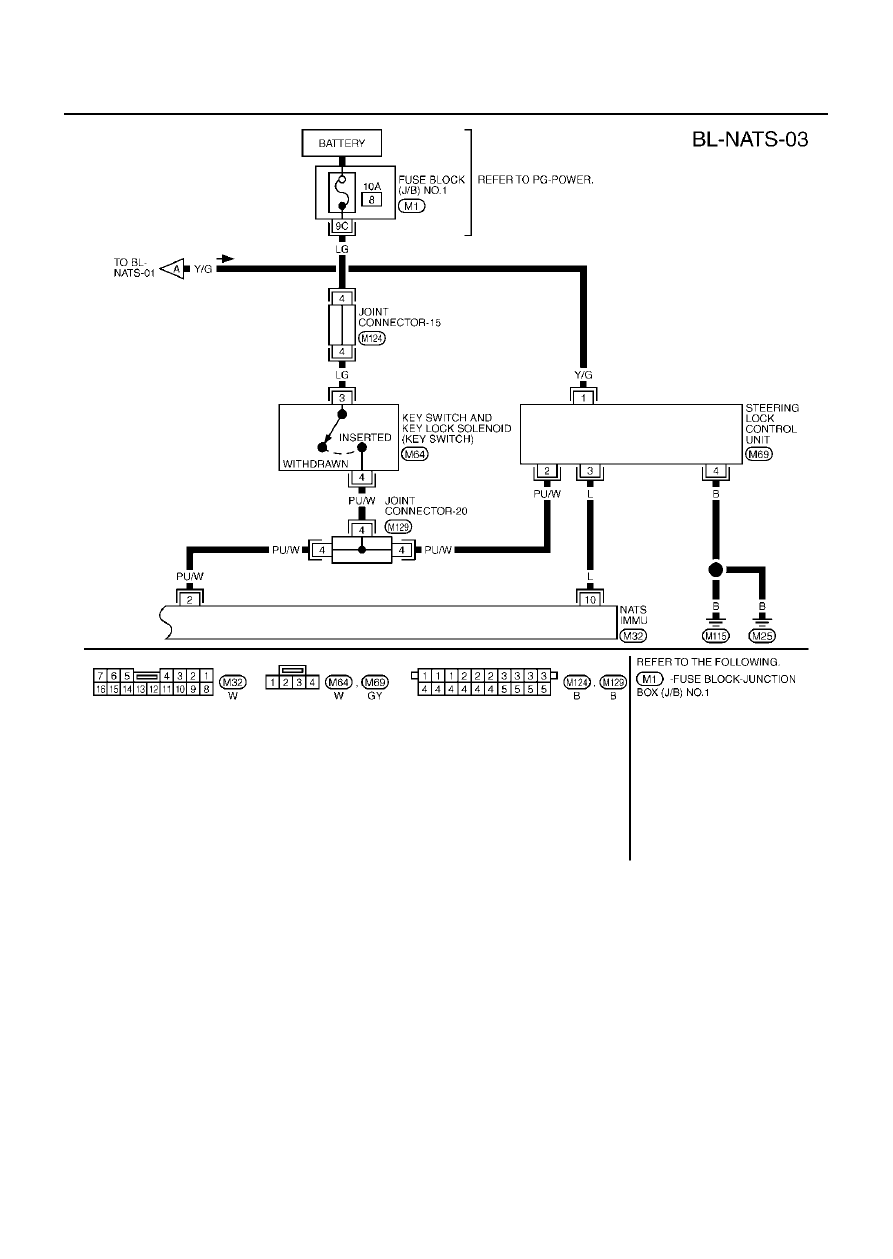

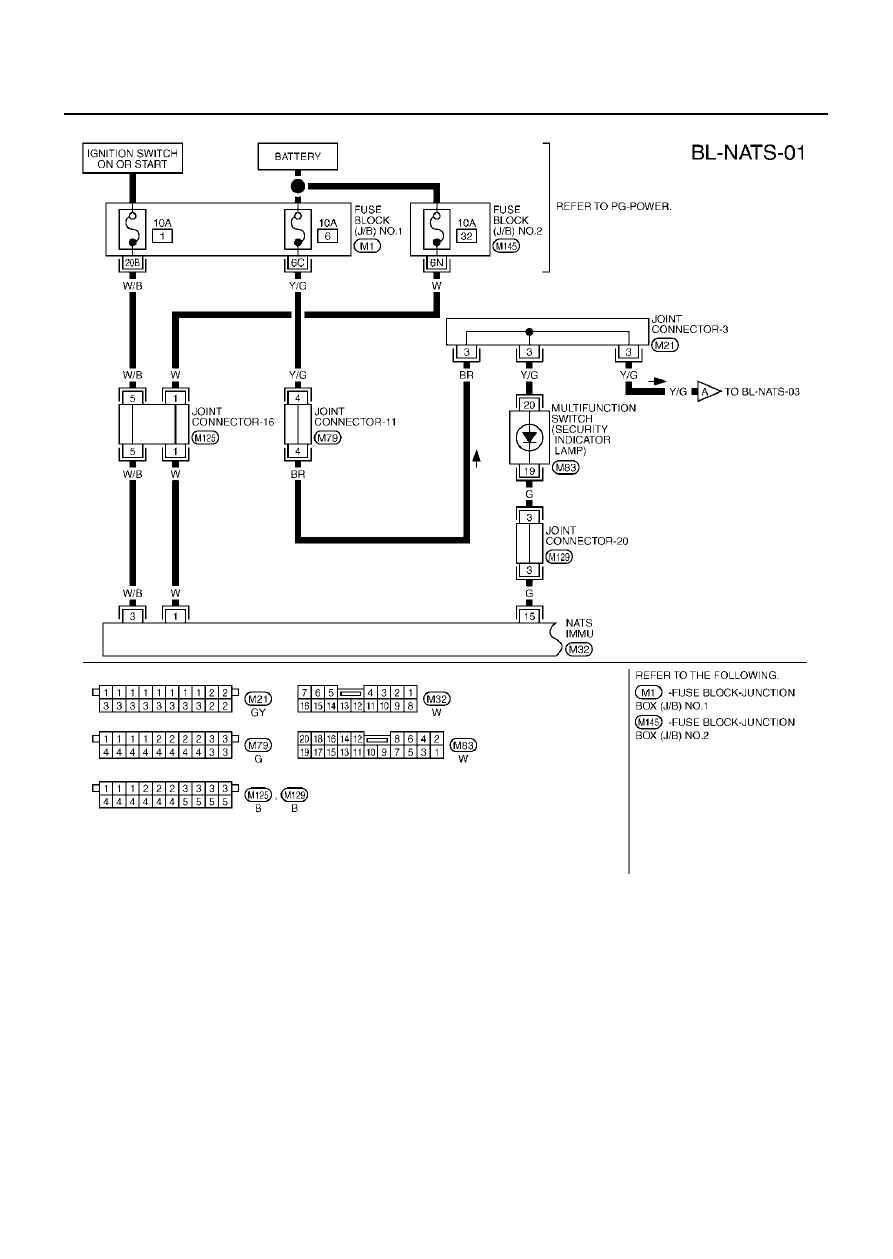

Wiring Diagram – NATS –

EIS0012S

TIWM0033E

ELECTRONIC KEY SYSTEM

BL-189

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWM0203E

BL-190

ELECTRONIC KEY SYSTEM

TIWM0204E
