TRUNK CLOSURE SYSTEM

BL-127

C

D

E

F

G

H

J

K

L

M

A

B

BL

2.

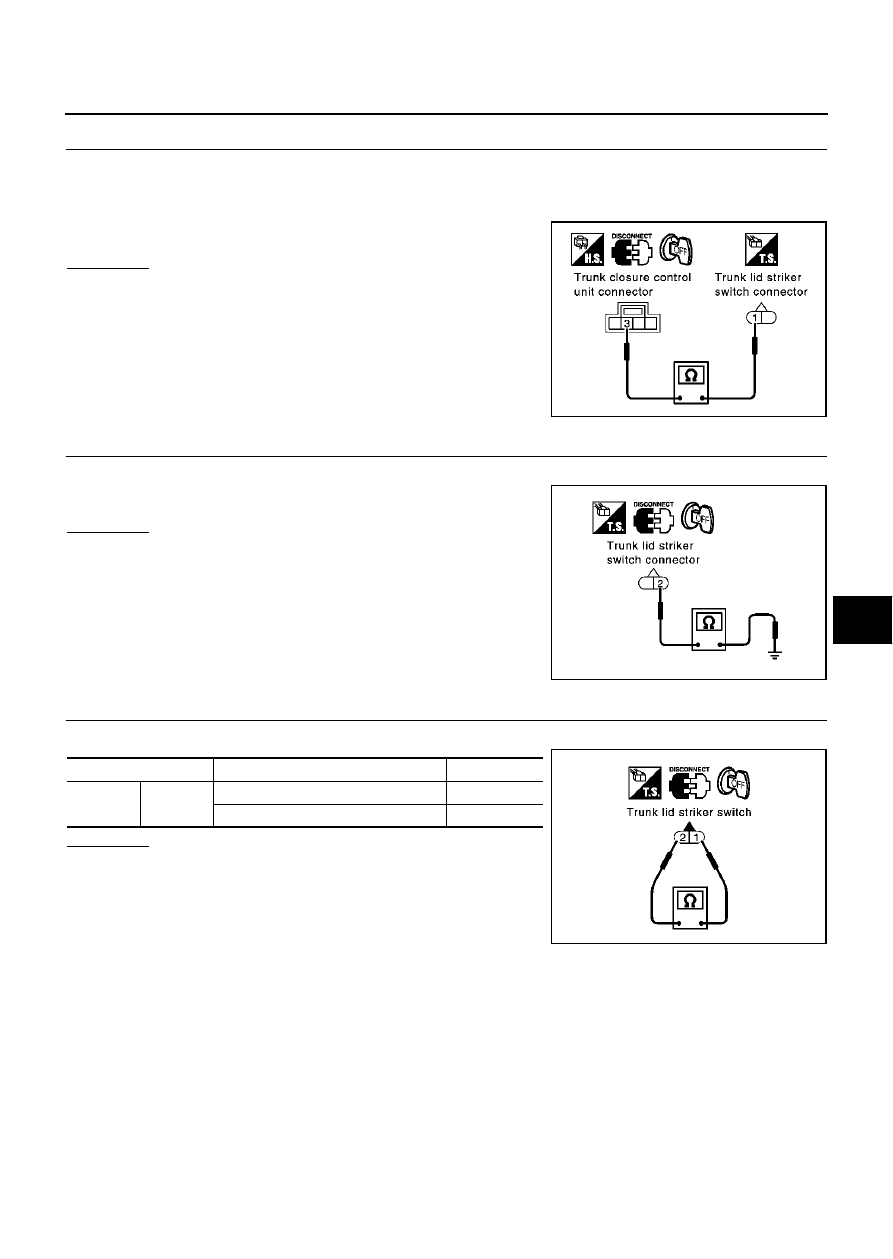

TRUNK LID STRIKER SWITCH CIRCUIT CHECK

1.

Disconnect trunk closure control unit and trunk lid striker switch connector.

2.

Check continuity between trunk closure control unit connector B56 terminal 3 and trunk lid striker switch
connector B55 terminal 1.

OK or NG ?

OK

>> GO TO 3

NG

>> Repair or replace harness.

3.

TRUNK LID STRIKER SWITCH CHECK

Check continuity between trunk lid striker switch connector B55 terminal 2 and ground.

OK or NG ?

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

TRUNK LID STRIKER SWITCH CHECK

Check continuity between trunk lid striker switch terminals 1 and 2.

OK or NG ?

OK

>> Replace trunk closure control unit.

NG

>> Replace trunk lid striker switch.

3 (P/L) – 1 (P/L)

: Continuity should exist

PIIA3075E

2 (B) – Ground

: Continuity should exist

PIIA3076E

Terminals

Condition

Continuity

1

2

Pressed the striker switch lever (OFF)

No

Other then the above (ON)

Yes

PIIA3077E

BL-128

AUTO TRUNK SYSTEM

AUTO TRUNK SYSTEM

PFP:98841

Outline of System

EIS0055K

●

Operating remote controller trunk switch or trunk lid opener switch (under the driver door armrest) allows
trunk lid auto OPEN operation. Also, operating trunk lid close switch (inside the trunk lid) allows trunk lid
auto CLOSE operation.

●

If any pinched foreign material is detected during auto CLOSE operation, the anti-pinch mechanism stops
trunk lid from closing and shifts the operation to manual.

●

The buzzer sounds when trunk lid auto operation starts (operation start buzzer).

●

The buzzer sounds during trunk lid auto CLOSE operation (warning buzzer).

OPERATING CONDITION

Any of the following operations during trunk lid auto operation stops the auto operation and shifts the operation
to manual. Moving trunk lid manually to a position just before fully closed position activates the auto closure
mechanism to close trunk lid completely.

●

When trunk lid opener switch is operated.

●

When trunk lid close switch is operated.

●

When remote control trunk opening switch is operated (at least 0.5 seconds).

●

When selector lever is shifted to a position other than “P” position (detention switch: ON).

●

When vehicle speed becomes 7 km/h or higher.

●

When auto operation does not end after 10 seconds since the start.

●

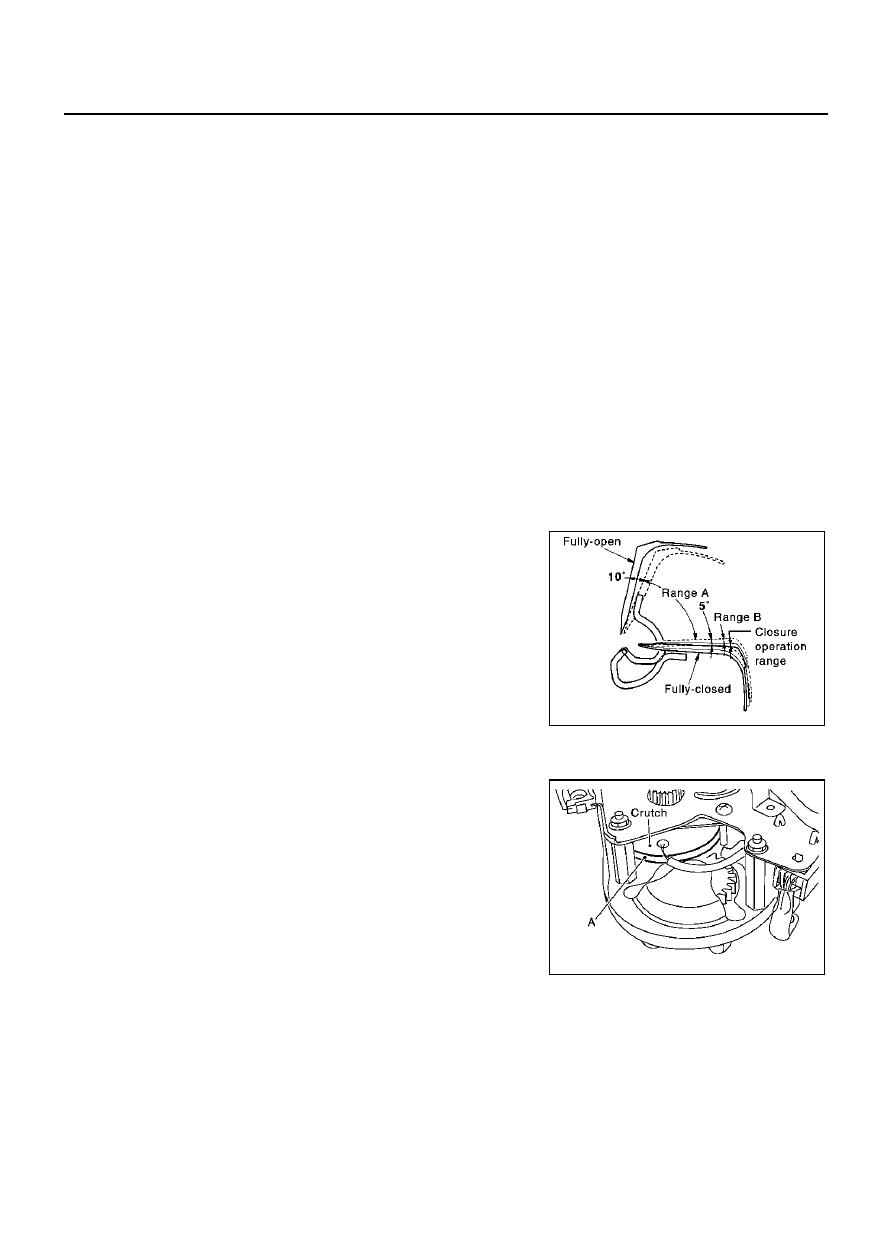

With trunk lid position falls within ranges A and B in the figure,
when trunk lid stops auto operation forcefully or because of
pinched foreign material.

Removal and Installation

EIS0055L

PRECAUTIONS FOR WORK

●

During removal and installation, be careful not to allow any
grease to adhere to the solenoid clutch joint (A in the figure).

●

If grease adheres to the solenoid clutch joint (A in the figure),
clutch becomes slippery and generates a transmission loss
resulting in inactive auto operation.

PIIA0510E

SIIA0759E

AUTO TRUNK SYSTEM

BL-129

C

D

E

F

G

H

J

K

L

M

A

B

BL

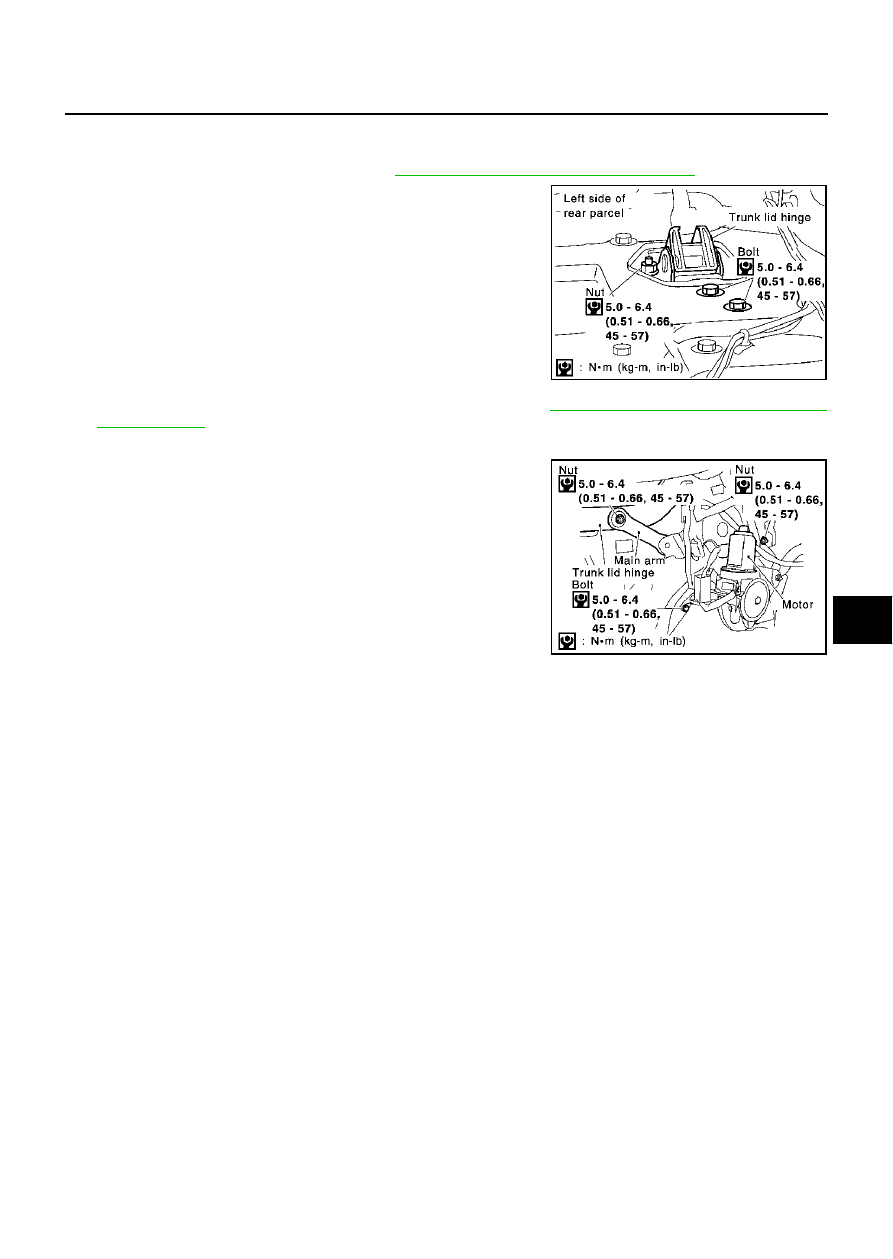

REMOVAL

1.

Open trunk lid.

2.

Remove rear parcel shelf finisher. Refer to

EI-39, "REAR PARCEL SHELF FINISHER"

 .

3.

Remove trunk motor assembly mounting bolts and nut.

4.

Remove trunk front finisher and trunk side finisher (LH). Refer to

EI-52, "TRUNK ROOM TRIM & TRUNK

LID FINISHER"

 .

5.

Disconnect trunk motor connector.

6.

Remove main arm mounting nut on trunk lid hinge.

7.

Remove mounting bolt and nut, and remove trunk motor assem-
bly.

INSTALLATION

Install in reverse order of removal.

CAUTION:

Be careful not to pinch the harnesses. Be sure to check operation after installation is completed.

PIIA0130E

PIIA0131E

BL-130

AUTO TRUNK SYSTEM

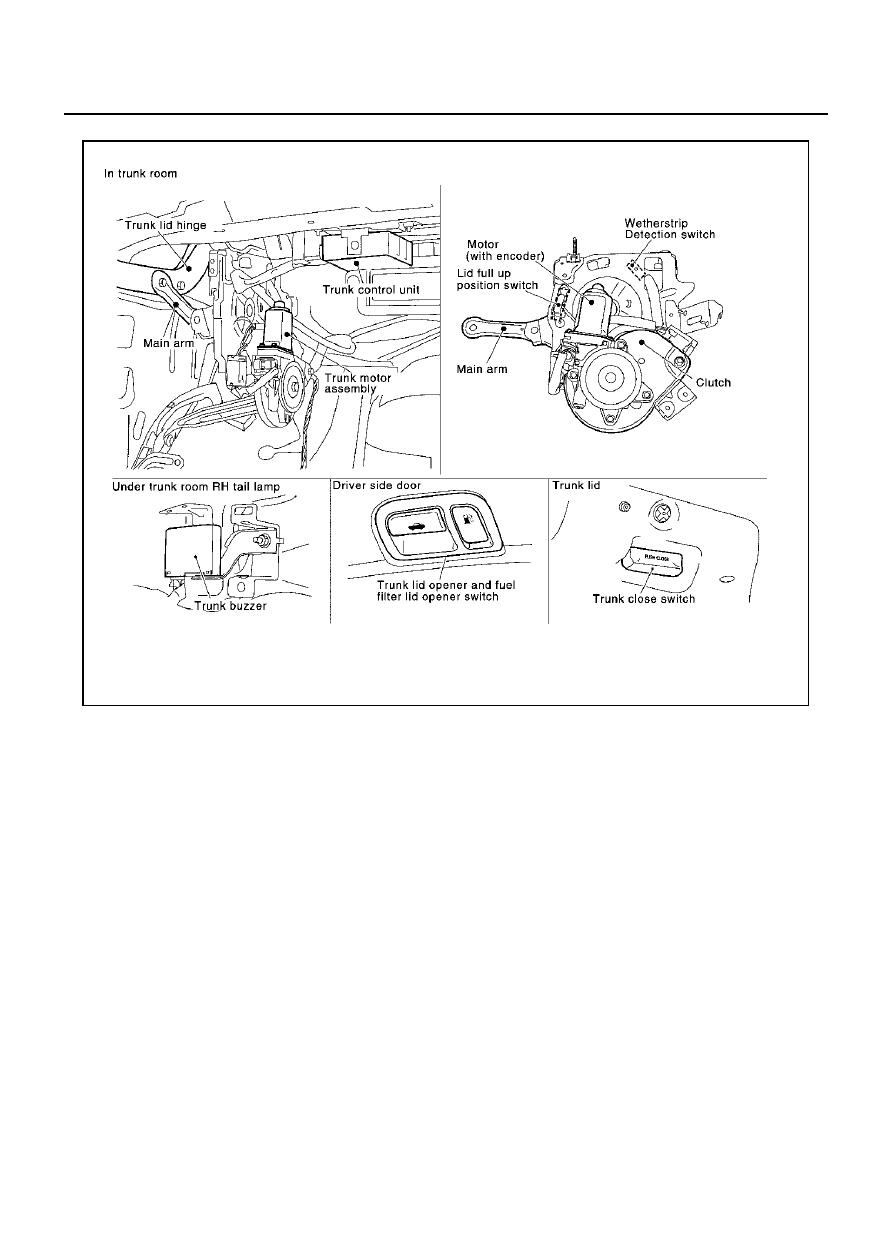

Component Installation Location

EIS0055M

PIIA0132E
