Infiniti F50. Manual - part 218

TRUNK LID AND FUEL FILLER LID OPENER

BL-119

C

D

E

F

G

H

J

K

L

M

A

B

BL

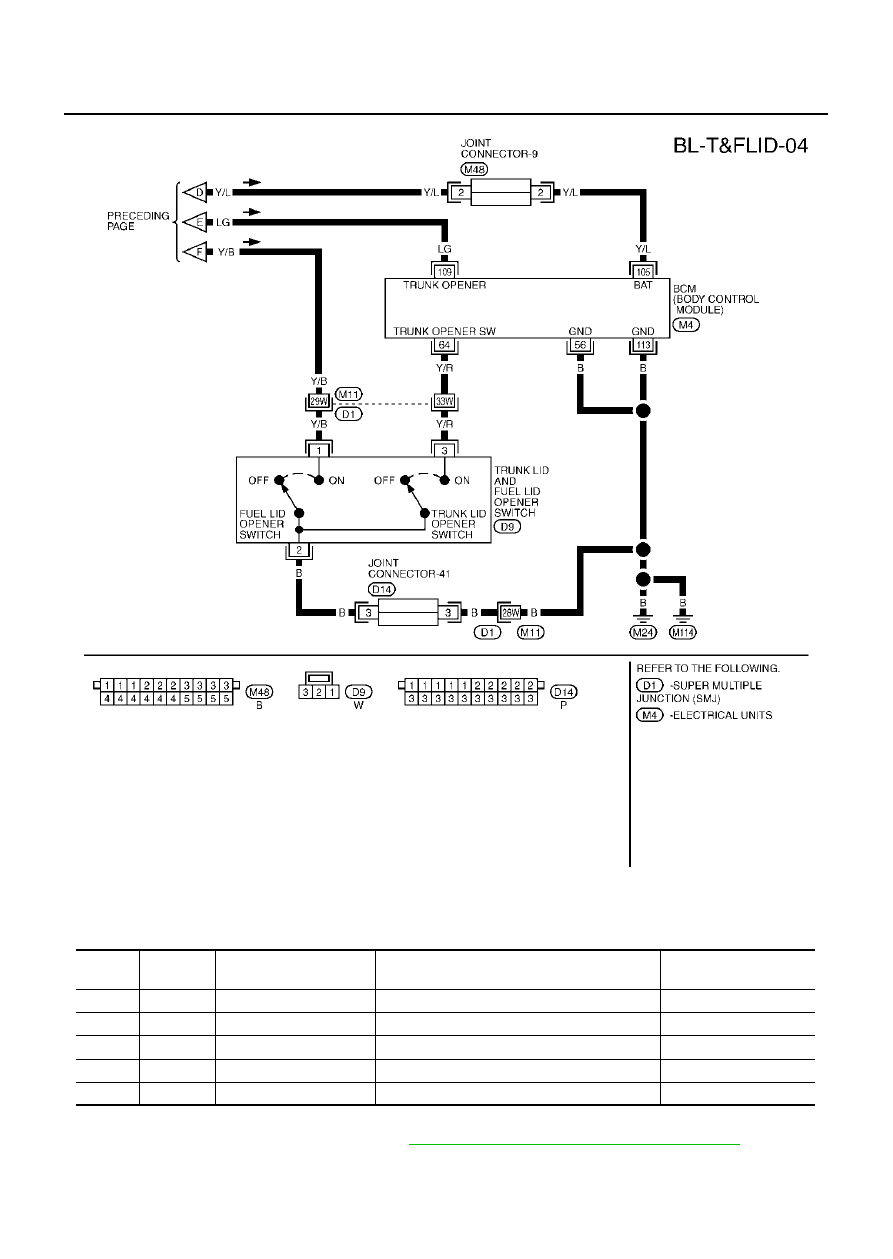

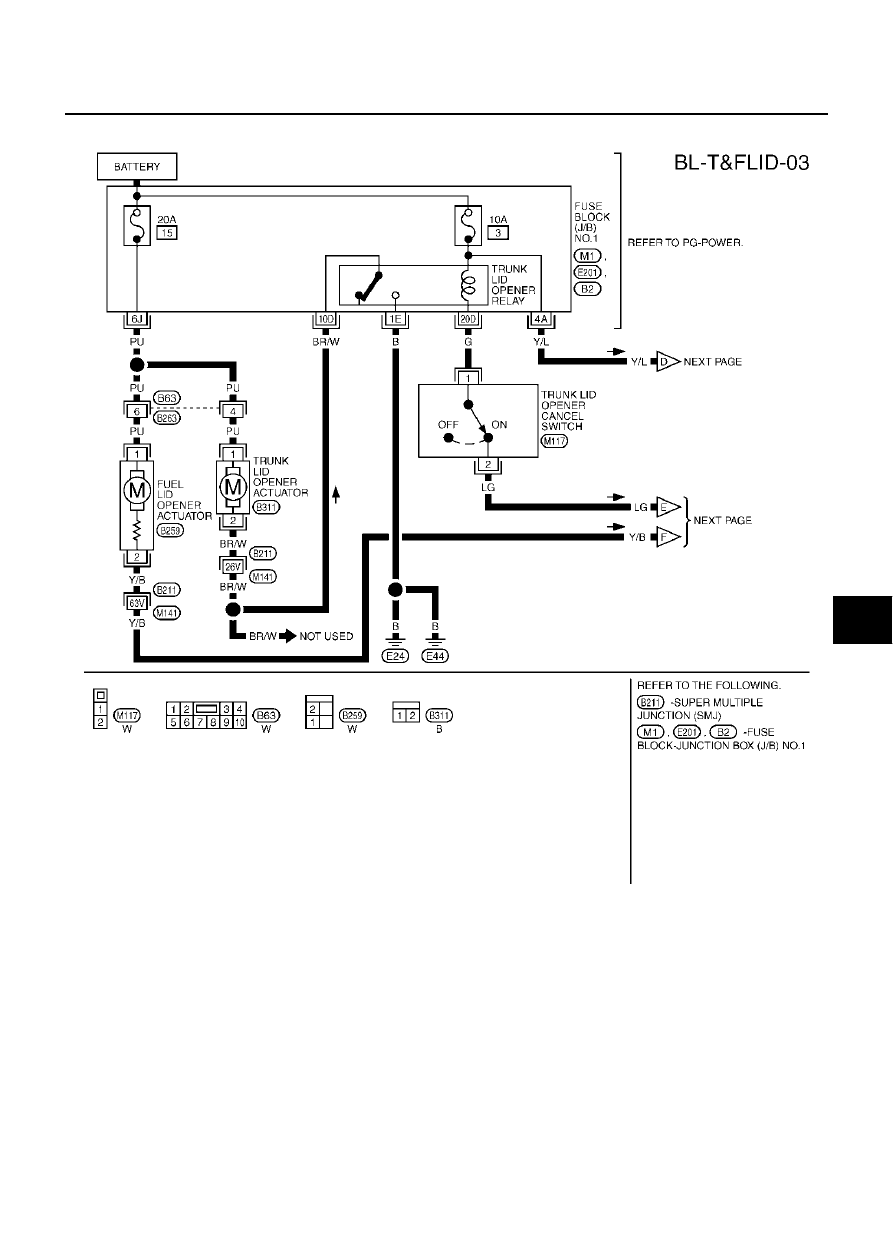

Wiring Diagram — T&FLID — / With Auto Trunk

EIS00568

TIWM0398E

BL-120

TRUNK LID AND FUEL FILLER LID OPENER

Terminals and Reference Value for BCM

EIS000IX

NOTE:
For Trouble diagnosis of trunk lid opener, refer to

BL-52, "REMOTE KEYLESS ENTRY SYSTEM"

 .

TIWM0399E

Terminal

Wire color

Item

Condition

Voltage (V)

(Approx.)

56

B

Ground

—

0

64

Y/R

Trunk lid opener switch

Trunk lid opener switch OFF

→

ON

5

→

 0

105

Y/L

BAT power supply

—

Battery voltage

109

LG

Trunk lid opener relay

Trunk lid opener switch OFF

→

ON

Battery voltage

→

 0

113

B

Ground

—

0

TRUNK CLOSURE SYSTEM

BL-121

C

D

E

F

G

H

J

K

L

M

A

B

BL

TRUNK CLOSURE SYSTEM

PFP:84622

System Description

EIS003OT

●

When the trunk lid lock latch engaged with striker, striker is lowered by means of a motor the trunk lid fully
closed.

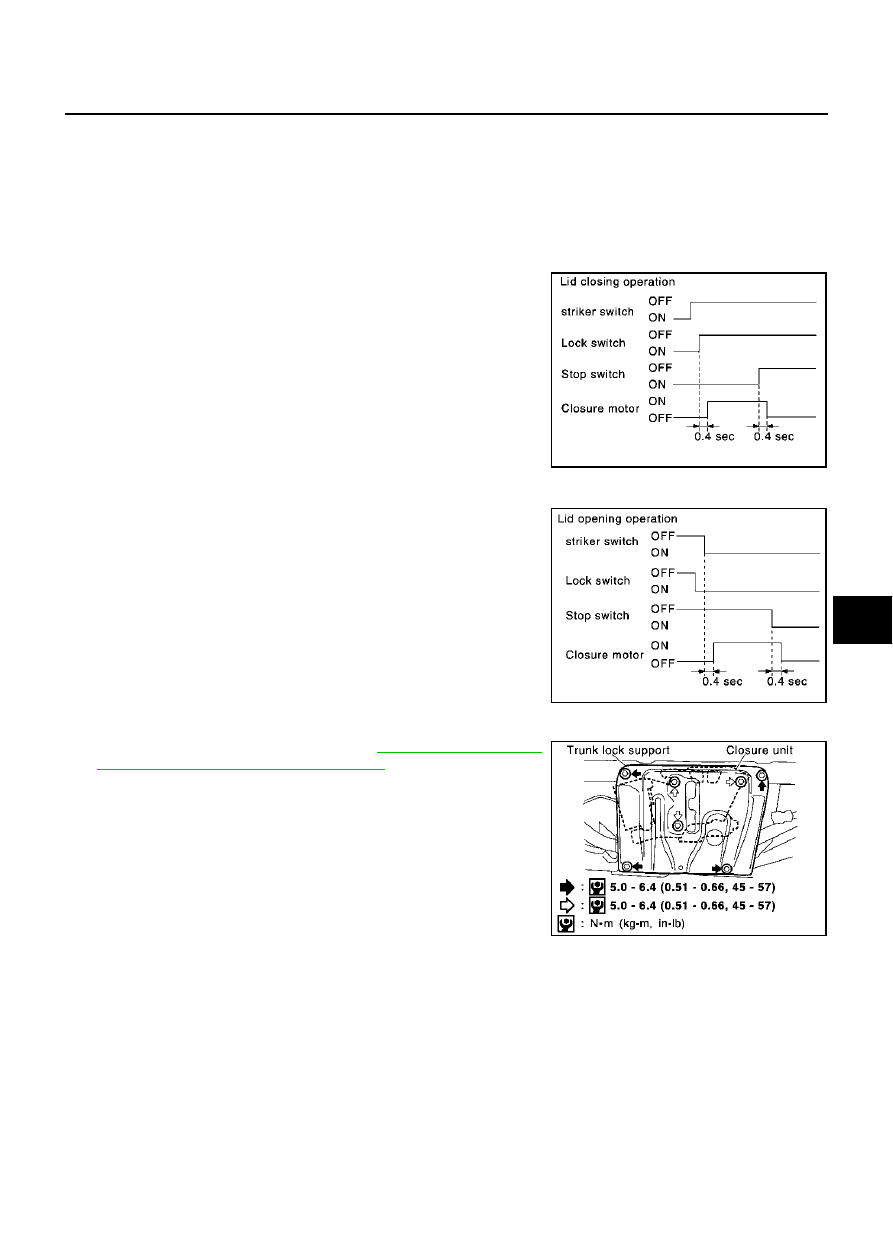

Operation Description

EIS003OU

Trunk lid closing operation.

●

With the striker switch: OFF (trunk lock pressed the striker
switch), when the Lid lock switch is operated: ON

→

OFF (trunk

lock is engaged with the striker).

Trunk lid opening operation

●

With the locking switch: ON (trunk lock is not engaged with the
striker), when the striker switch is operated: OFF

→

ON (the trunk

lock releases the striker switch).

Removal and Installation of Auto Closure Unit

EIS003OV

1.

Remove trunk rear finisher. Refer to

BL-115, "Removal and

Installation of Trunk Closure Control Unit"

 .

2.

Disconnect the harness connector.

3.

Remove the mounting bolt, and remove auto closure unit.

Install in the reverse order of removal.

NOTE:
When installing the auto closure unit, be careful not to pinch nearby
wiring harnesses.

PIIA0517E

PIIA0518E

PIIA0128E

BL-122

TRUNK CLOSURE SYSTEM

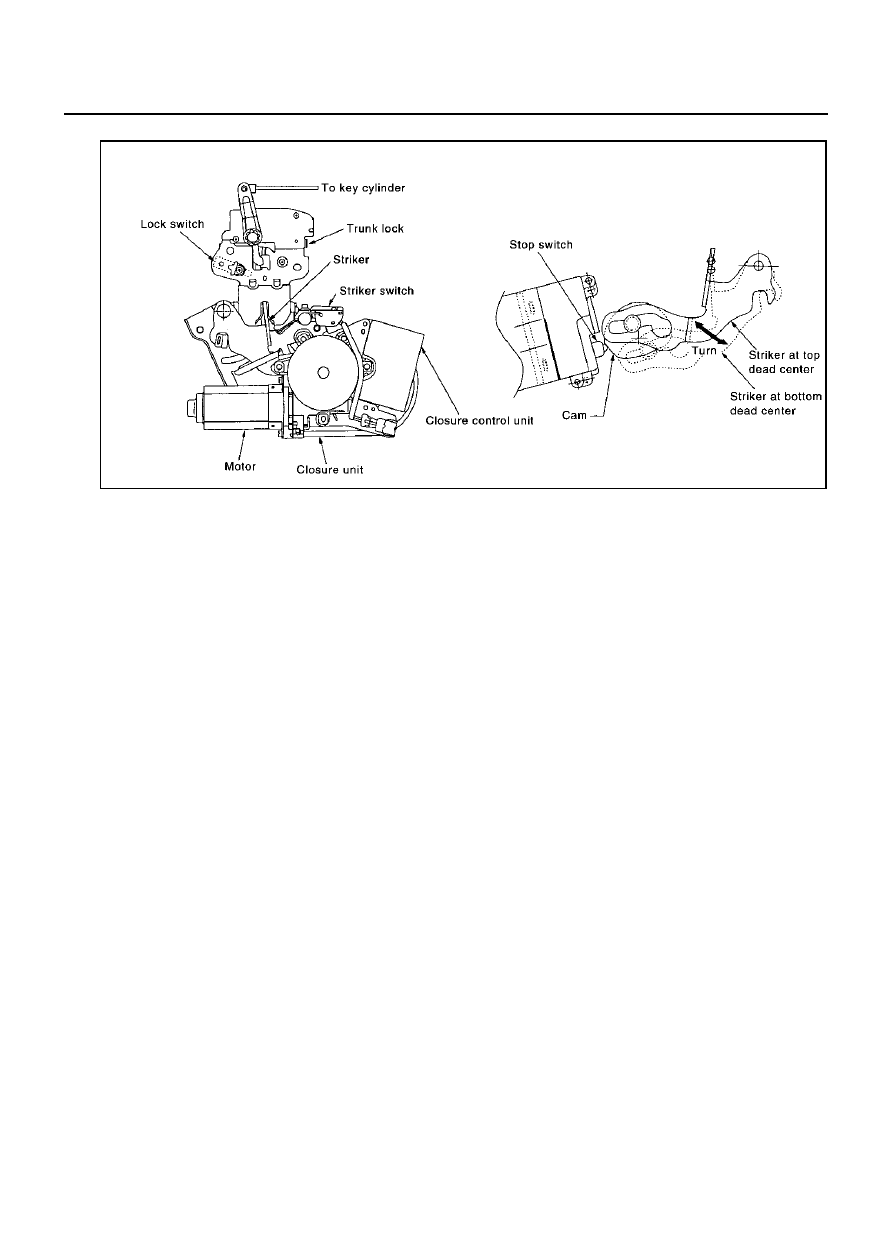

Component Installation Location

EIS003OW

PIIA0129E
