REMOTE KEYLESS ENTRY SYSTEM

BL-55

C

D

E

F

G

H

J

K

L

M

A

B

BL

TRUNK LID OPENER OPERATION

Power is supplied at all times

to trunk lid opener actuator terminal 1

through 20A fuse [No. 15, located in the fuse block (J/B) No. 1].

When a TRUNK OPEN signal is sent from electronic key without the electronic key inserted in the ignition key
cylinder, if the trunk lid opener cancel switch is ON position, power is supplied

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1].

through trunk lid opener relay

through trunk lid cancel switch terminals 1 and 2

to BCM terminal 109.

Then ground is supplied

to trunk lid opener actuator terminal 2

through trunk lid opener relay

through grounds E24 and E44.

Then power and ground are supplied, trunk lid opener actuator opens trunk lid.

PANIC ALARM OPERATION

Remote keyless entry system activates horn and headlamps intermittently when an ALARM signal is sent from
electronic key to remote keyless entry system without the electronic key inserted in the ignition key cylinder.
For detailed description, refer to

BL-150, "VEHICLE SECURITY (THEFT WARNING) SYSTEM"

 .

KEYLESS POWER WINDOW DOWN (OPEN) OPERATION

When electronic key unlock switch is turned ON with ignition switch OFF, and electronic key unlock switch is
detected to be on continuously for 3 seconds, the front door LH, RH power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the electronic key unlock switch is
pressed.

AUTO DOOR LOCK OPERATION

Auto lock function signal is sent for operation when any of the following signals are not sent within 5 minutes
after the unlock signal is sent from the electronic key:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the electronic key.

INTERIOR LAMP AND STEP LAMP OPERATION

When the following conditions come:

condition of interior lamp switch is DOOR position;

door switch OFF (when all the doors are closed);

Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob. For detailed description, refer to

LT-81, "INTERIOR ROOM LAMP"

 .

BL-56

REMOTE KEYLESS ENTRY SYSTEM

Schematic

EIS0028E

TIWM0386E

REMOTE KEYLESS ENTRY SYSTEM

BL-57

C

D

E

F

G

H

J

K

L

M

A

B

BL

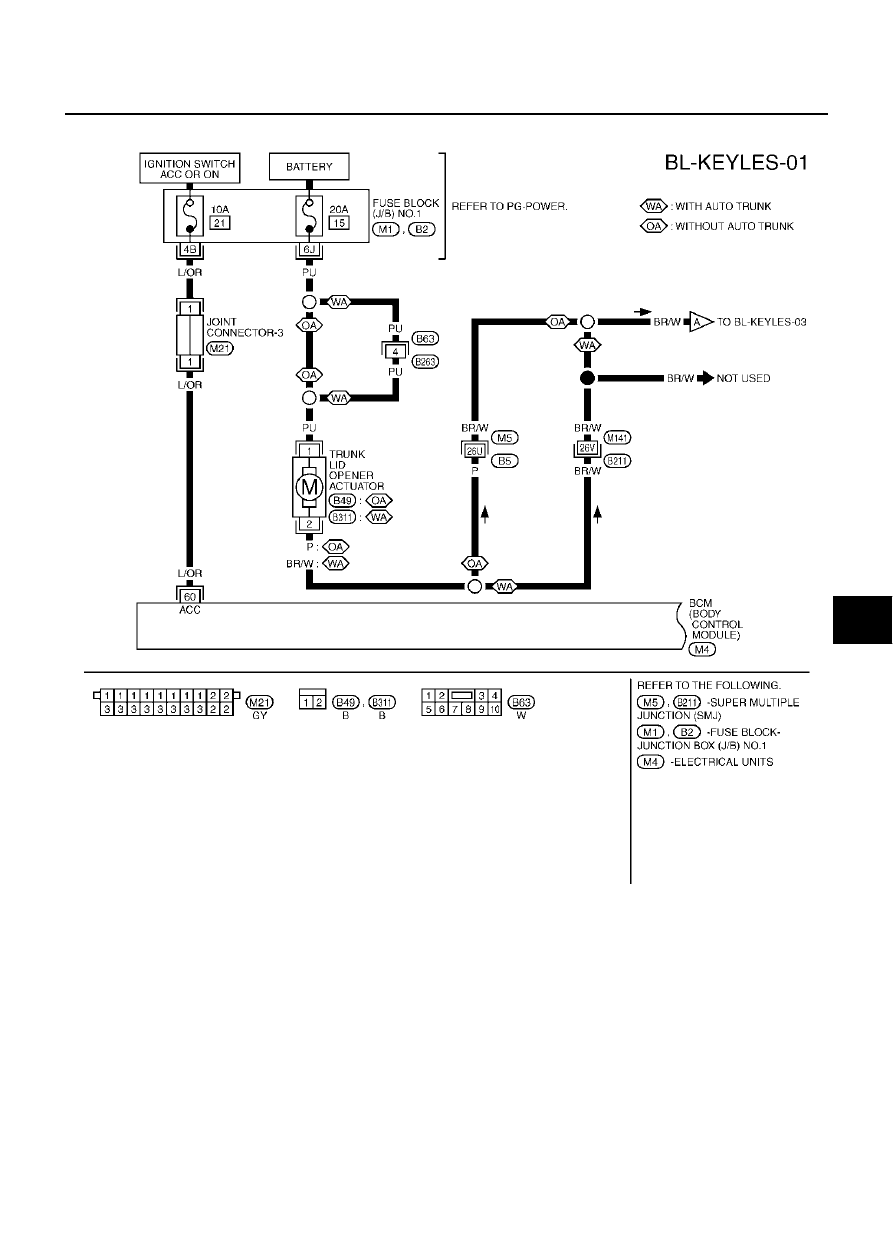

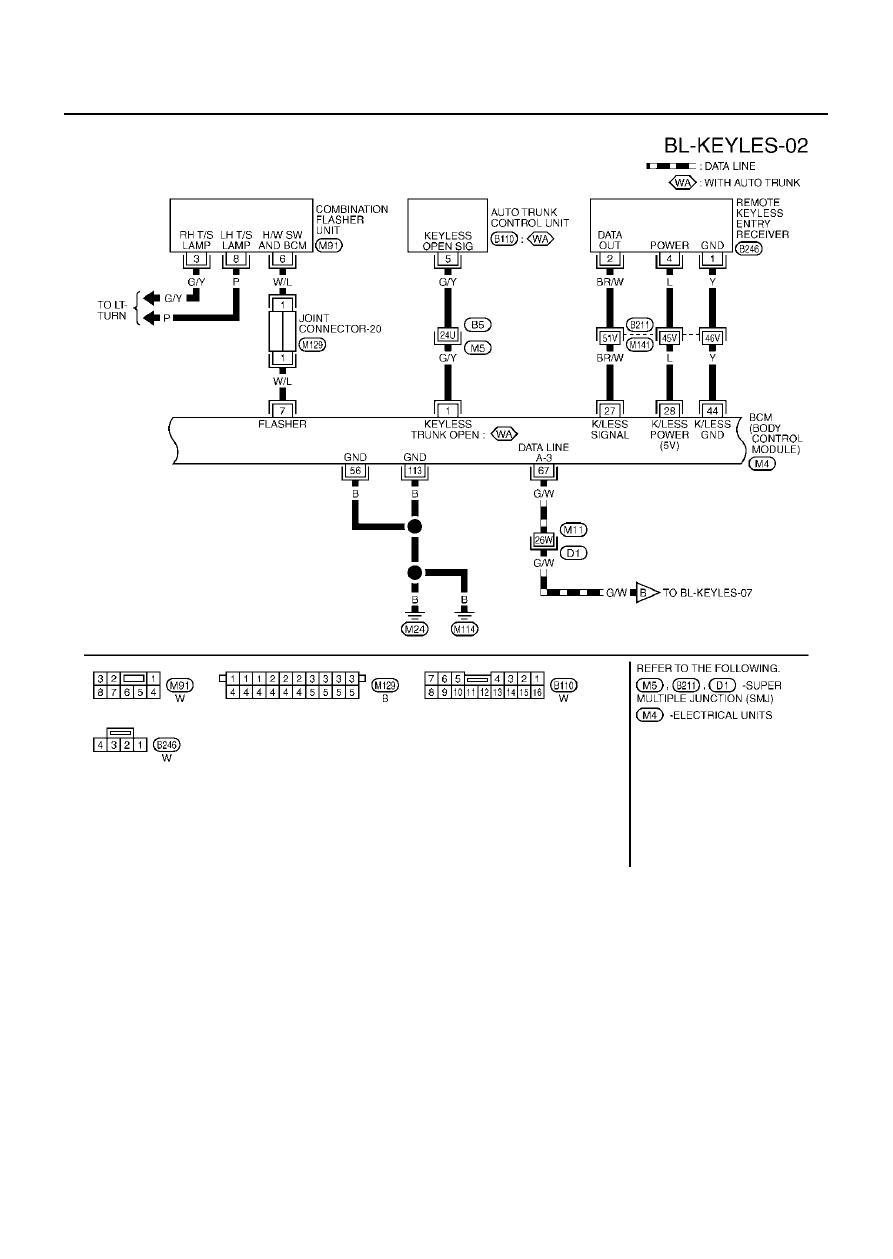

Wiring Diagram – KEYLES –

EIS0028F

TIWM0387E

BL-58

REMOTE KEYLESS ENTRY SYSTEM

TIWM0388E
