NAVIGATION SYSTEM

AV-45

C

D

E

F

G

H

I

J

L

M

A

B

AV

●

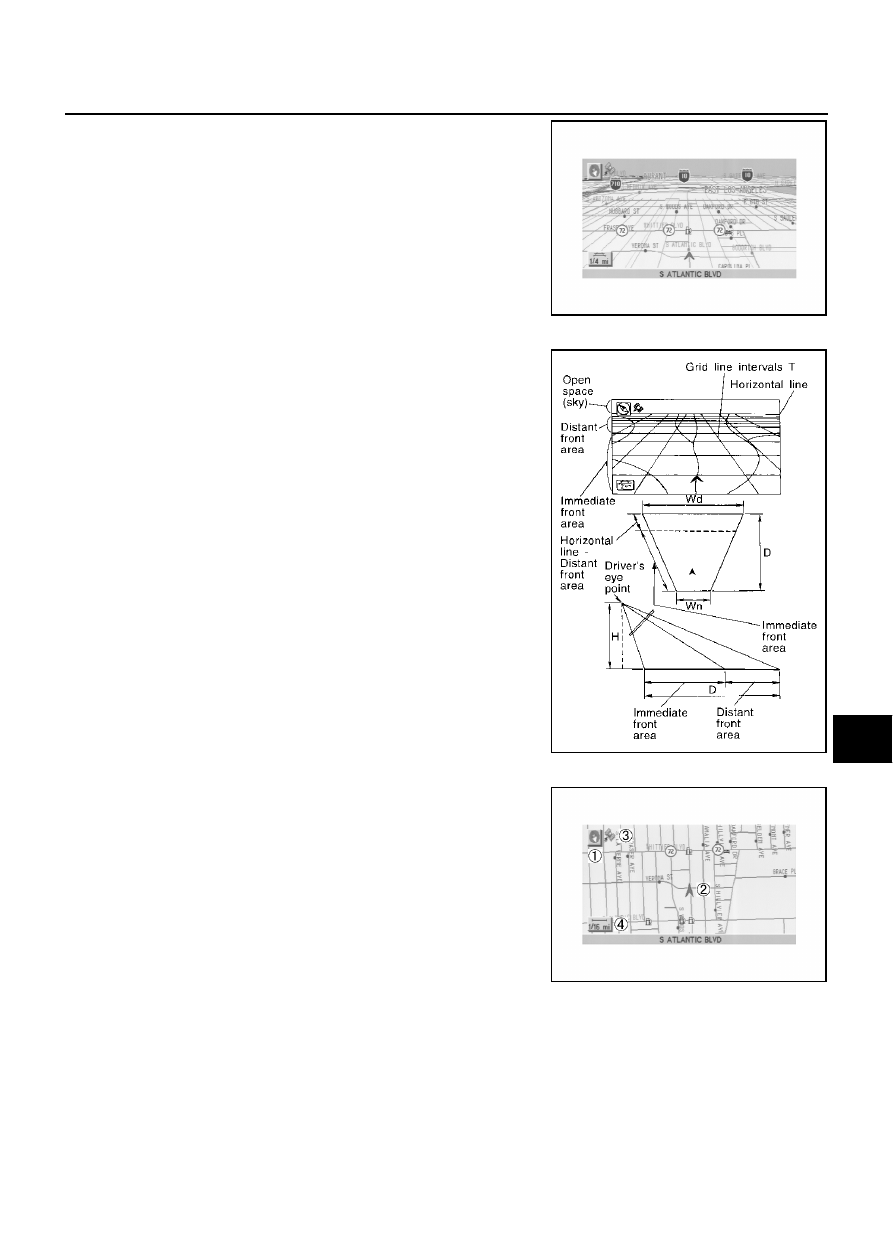

BIRDVIEW

™

Description

●

Display area: Trapezoidal representation showing approximate
distances (Wn, D, and Wd).

●

Ten horizontal grid lines indicate display width while six vertical
grid lines indicate display depth and direction.

●

Drawing line area shows open space, depth, and immediate
front area. Each area is to a scale of approximately 5:6:25.

●

Pushing the “ZOOM IN” button during operation displays the
scale change and the view point height on the left side of the
screen.
The height of the view point increases or decreases when
“ZOOM” or “WIDE” is selected with the joystick.

MAP DISPLAY

Function of each icon is as follows:

1.

Azimuth indication.

2.

Position marker.

–

The tip of the arrow shows the current position. The shaft of the
arrow indicates the direction in which the vehicle is traveling.

3.

GPS reception signal (indicates current reception conditions).

4.

Distance display (shows the distance in a reduced scale).

SKIA0544E

SEL691V

SKIA0545E

AV-46

NAVIGATION SYSTEM

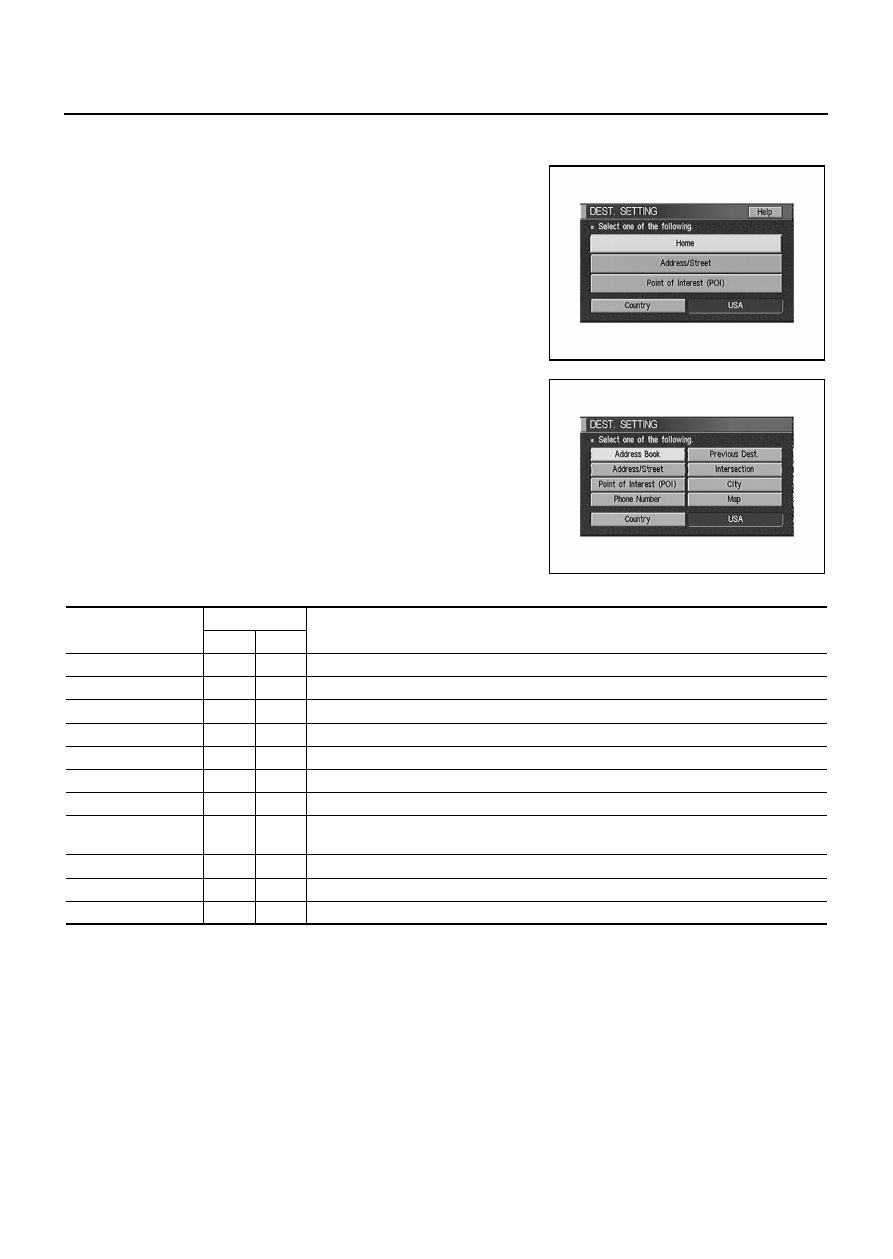

FUNCTION OF MULTIFUNCTION SWITCH
Display with Pushed “DEST” Switch

●

Easy Mode

●

Expert Mode

The function of each icon is as follows:

SKIA3509E

SKIA3510E

Icon

MODE

Description

Easy

Expert

Address Book

×

Favorite place can be saved to memory.

Address/Street

×

×

The destination can be searched from the address.

Point of Interest (POI)

×

×

The destination of favorite facility can be searched.

Previous Dest.

×

The previous ten destinations stored in memory are displayed.

Intersection

×

The destination can be searched from the intersection.

City

×

The destination can be searched from city name.

Map

×

The destination can be searched from the map.

Phone Number

×

When two or more countries are included in one DVD-ROM, the destination can be
searched for under the country name.

Home

×

Sets the home as a destination.

Help

×

Explanation of navigational functions appear on the display.

Country

×

×

Select country (USA, CANADA)

NAVIGATION SYSTEM

AV-47

C

D

E

F

G

H

I

J

L

M

A

B

AV

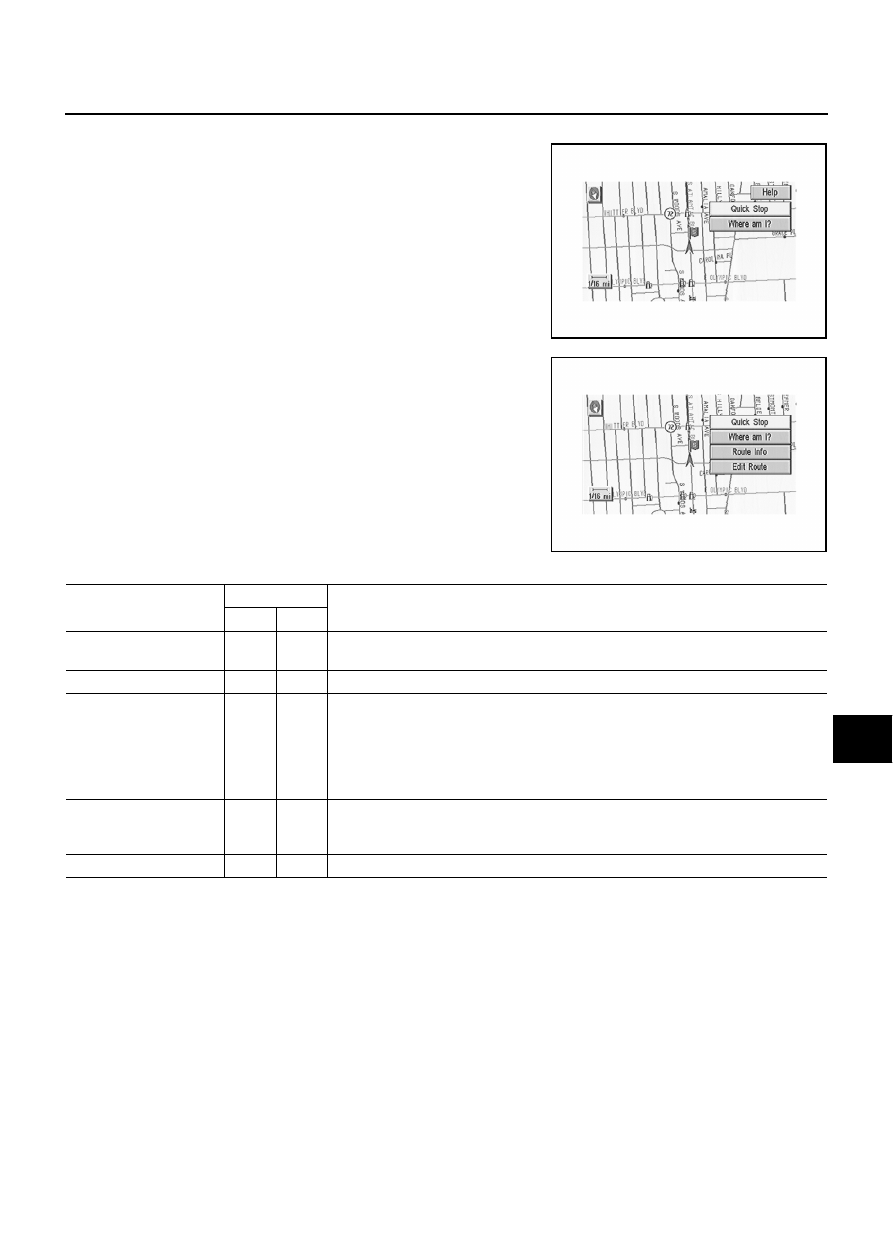

Display with Pushed “ROUTE” Switch

●

Easy Mode

●

Expert Mode

The function of each icon is as follows:

*: When destinations have been entered, route guidance has been turned OFF or destination has been reached, “Route Info.” and “Edit
Route” are not displayed.

SKIA0548E

SKIA0549E

Icon

MODE

Description

Easy

Expert

Quick Stop

×

×

The selected facility is set as the destination or waypoint.
(Route guidance has been turned OFF or the destination has been reached)

Where am I?

×

×

Next, current and previous street names can be displayed.

Route Info.*

×

The following items can be set.

●

Complete Route

●

Turn List

●

Route Simulation

(Displayed only when the destination area has been set.)

Edit Route*

×

Change the destination or add the transit points of the route set in the route guide. (Dis-
played only when the automatic reroute function has been turned OFF and the recom-
mended route is not followed.)

Help

×

Explanation of navigational functions appear on the display.

AV-48

NAVIGATION SYSTEM

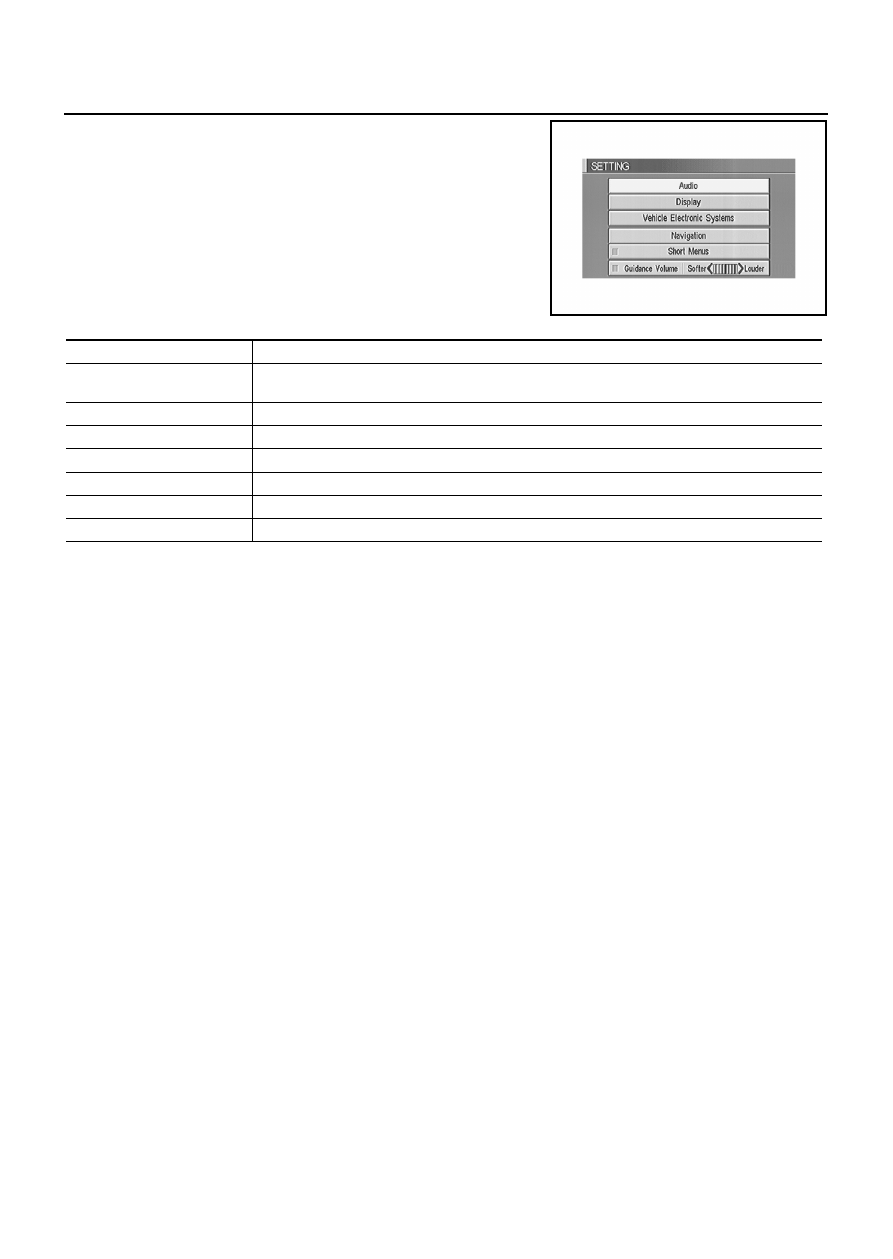

Display with Pushed “SETTING” Switch

The function of each icon is as follows:

SKIA0550E

Icon

Description

Audio

Sound quality can be adjusted, and also ON/OFF setting of switch beep sound can be performed.
Noise compensation ON/OFF setting can be performed.

Display

Settings of display can be performed.

Vehicle Electronic Systems

Settings of vehicle electrical equipment can be performed.

Navigation

Settings and adjusting of navigation can be performed.

Short Menus

Easy Mode and Expert Mode can be switched.

Guidance Volume

The volume and/or on/off of voice prompt can be controlled by the joystick.

Help (only easy mode)

Explanation of navigational functions appear on the display.
