IN-VEHICLE SENSOR

ATC-125

C

D

E

F

G

H

I

K

L

M

A

B

ATC

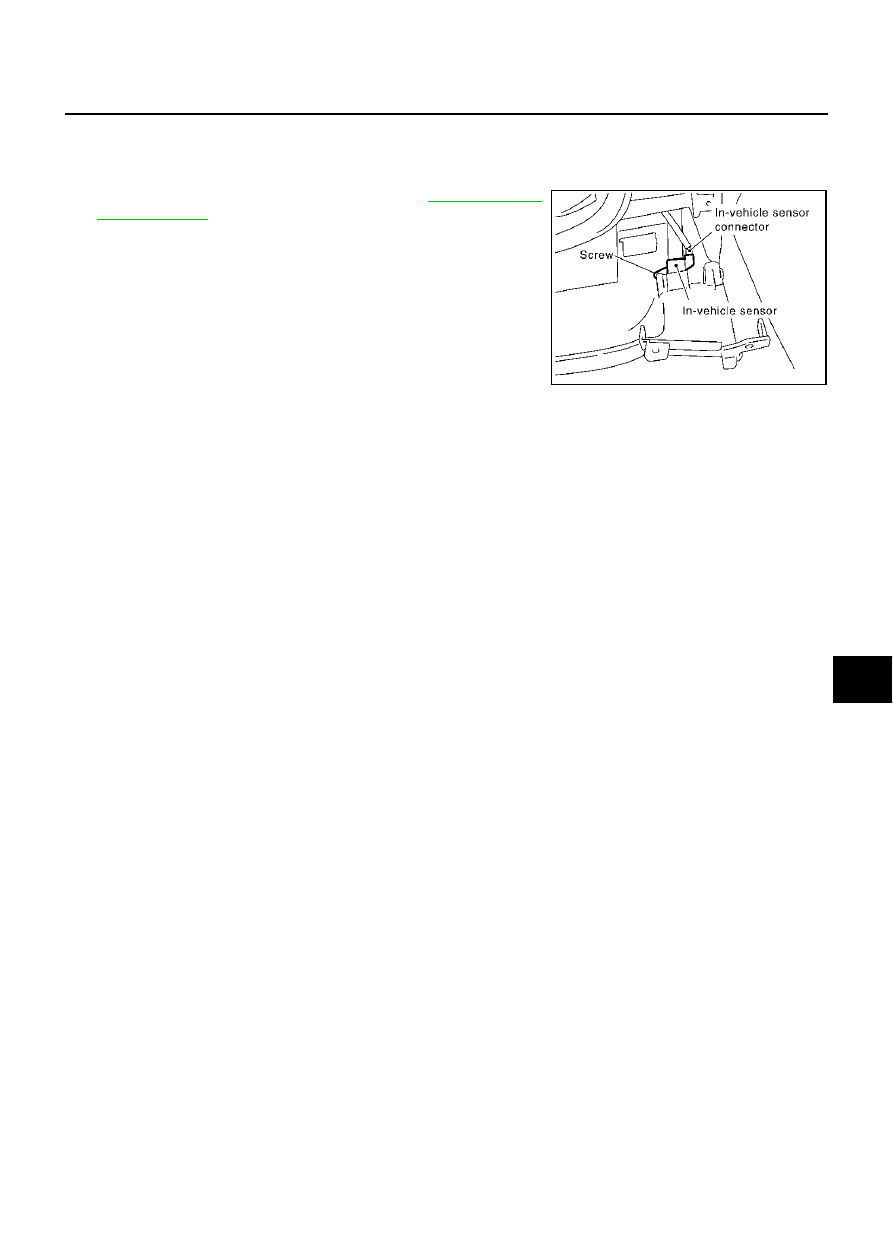

IN-VEHICLE SENSOR

PFP:27720

Removal and Installation

EJS0009R

REMOVAL

1.

Remove instrument lower driver panel. Refer to

IP-10, "Removal

and Installation"

 .

2.

Disconnect in-vehicle sensor connector and aspirator duct.

3.

Remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0312E

ATC-126

SUNLOAD SENSOR

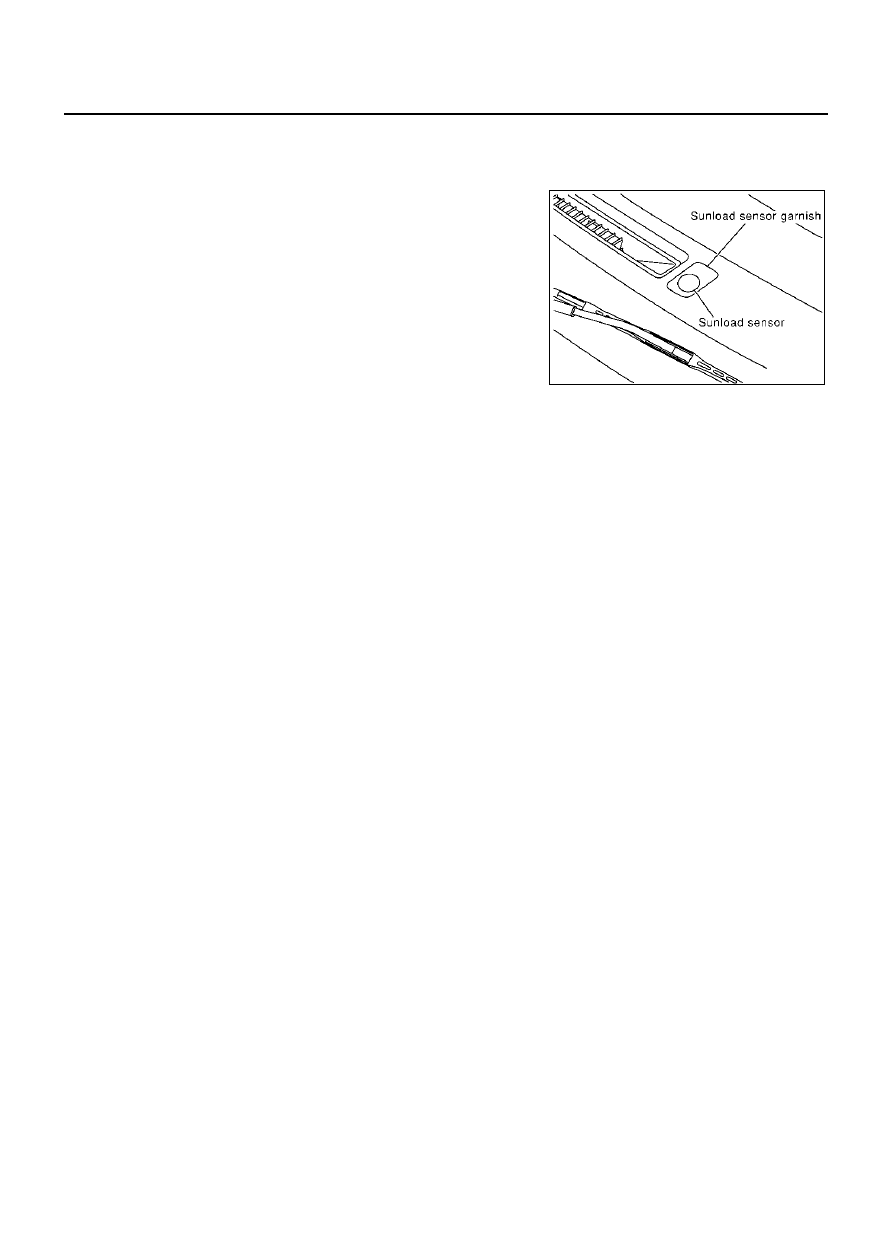

SUNLOAD SENSOR

PFP:27721

Removal and Installation

EJS0009S

REMOVAL

1.

Remove sunload sensor garnish.

2.

Disconnect sunload sensor connector, then remove it.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0109E

INTAKE SENSOR

ATC-127

C

D

E

F

G

H

I

K

L

M

A

B

ATC

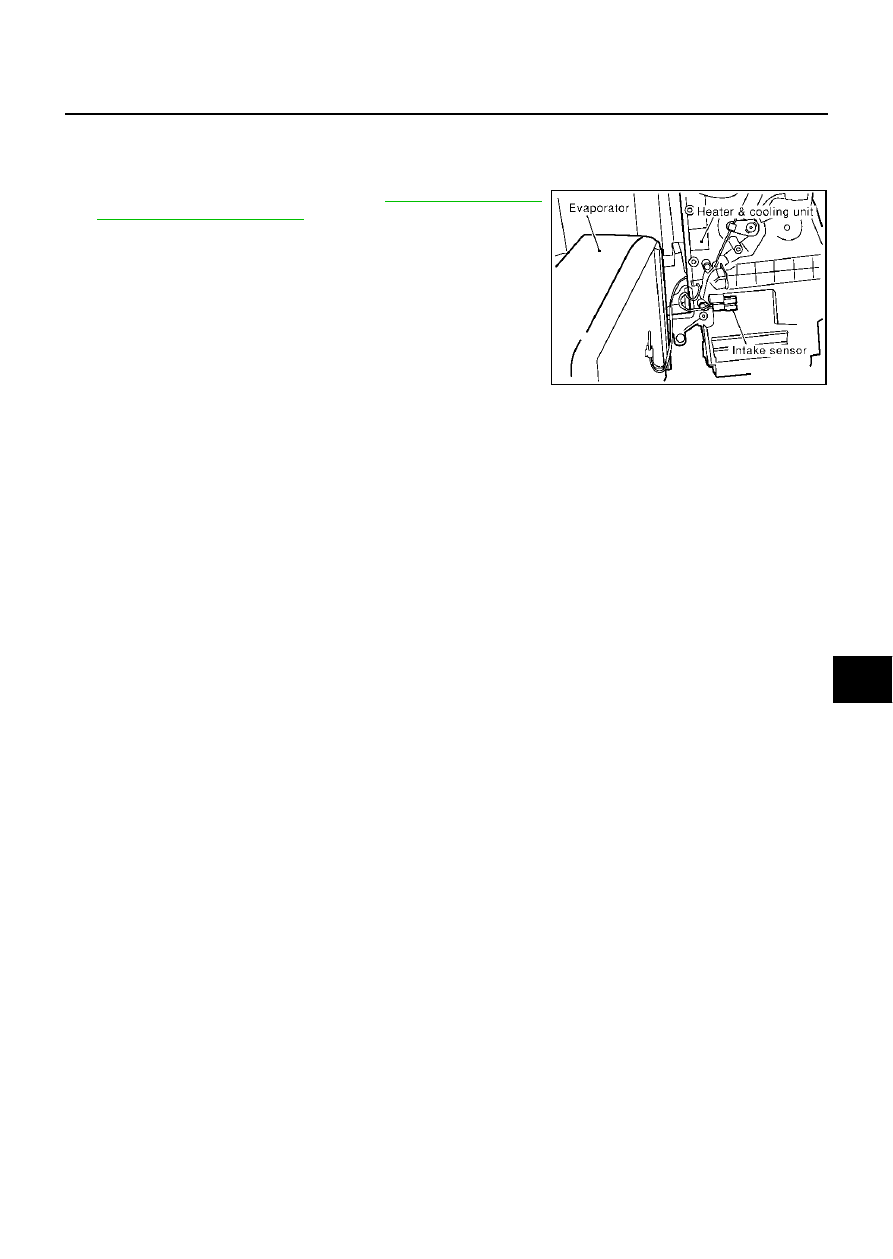

INTAKE SENSOR

PFP:27723

Removal and Installation

EJS001Y2

REMOVAL

1.

Remove heater & cooling unit. Refer to

ATC-133, "HEATER  &

COOLING UNIT ASSEMBLY"

 .

2.

Remove the evaporator from heater & cooling unit.

3.

Separate the heater & cooling unit case.

4.

Remove the intake sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0110E

ATC-128

BLOWER UNIT

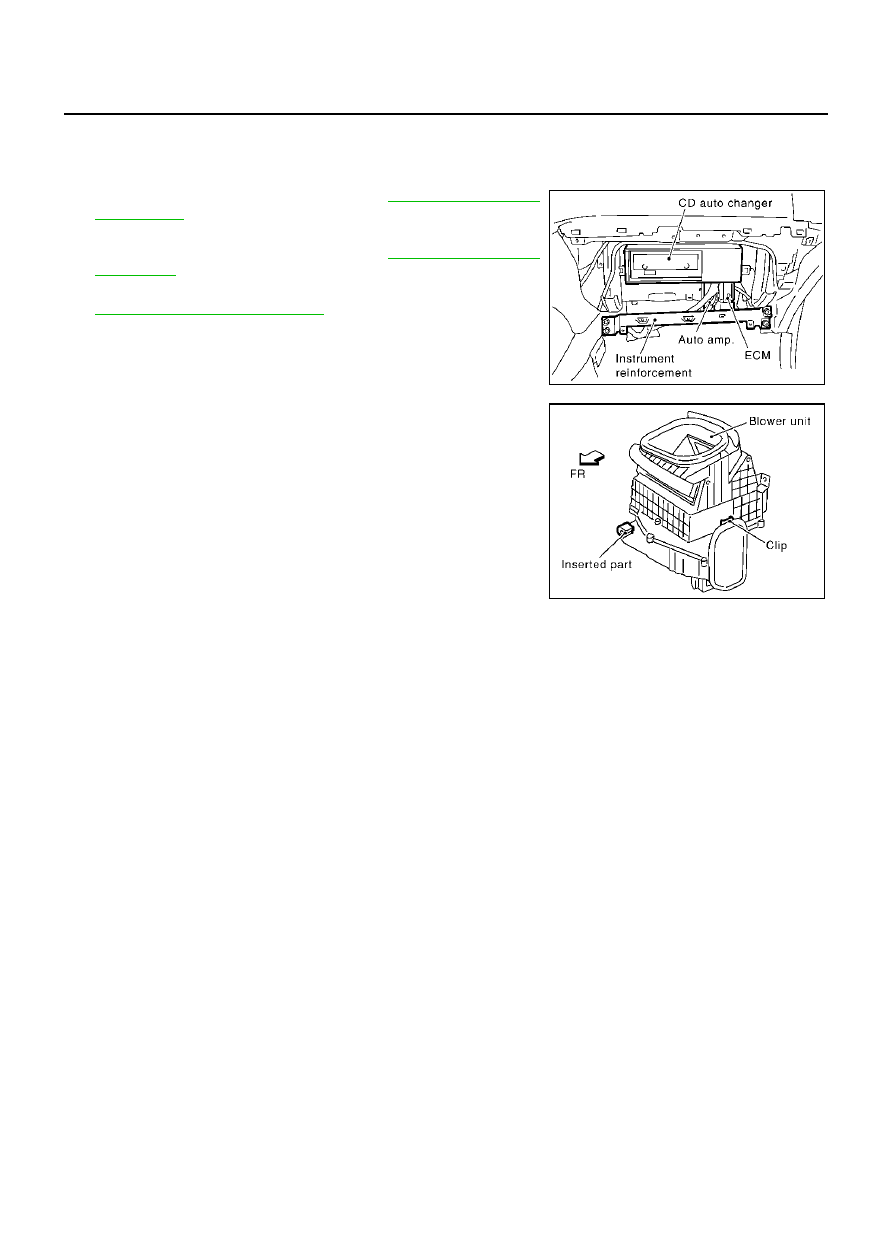

BLOWER UNIT

PFP:27200

Removal and Installation

EJS0009U

REMOVAL

1.

Remove glove box assembly. Refer to

IP-15, "GLOVE BOX

ASSEMBLY"

 .

2.

Remove glove box cover, the instrument lower assistant panel
and instrument reinforcement. Refer to

IP-10, "Removal and

Installation"

 .

3.

Remove the ECM and CD auto changer (If equipped). Refer to

IP-10, "Removal and Installation"

 .

4.

Disconnect the blower motor connector, intake door motor con-
nector and auto amp. connector.

5.

Remove the screws from the blower unit, then remove it.

CAUTION:

Slide the blower unit toward right, remove location pins (2
pieces), then move it downwards.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Make sure the location pins (2 pieces) are securely installed.

NOTE:

●

When attaching the blower unit, the work will be easier if the blower motor is removed first.

RJIA0313E

RJIA0314E
