DISASSEMBLY

AT-313

D

E

F

G

H

I

J

K

L

M

A

B

AT

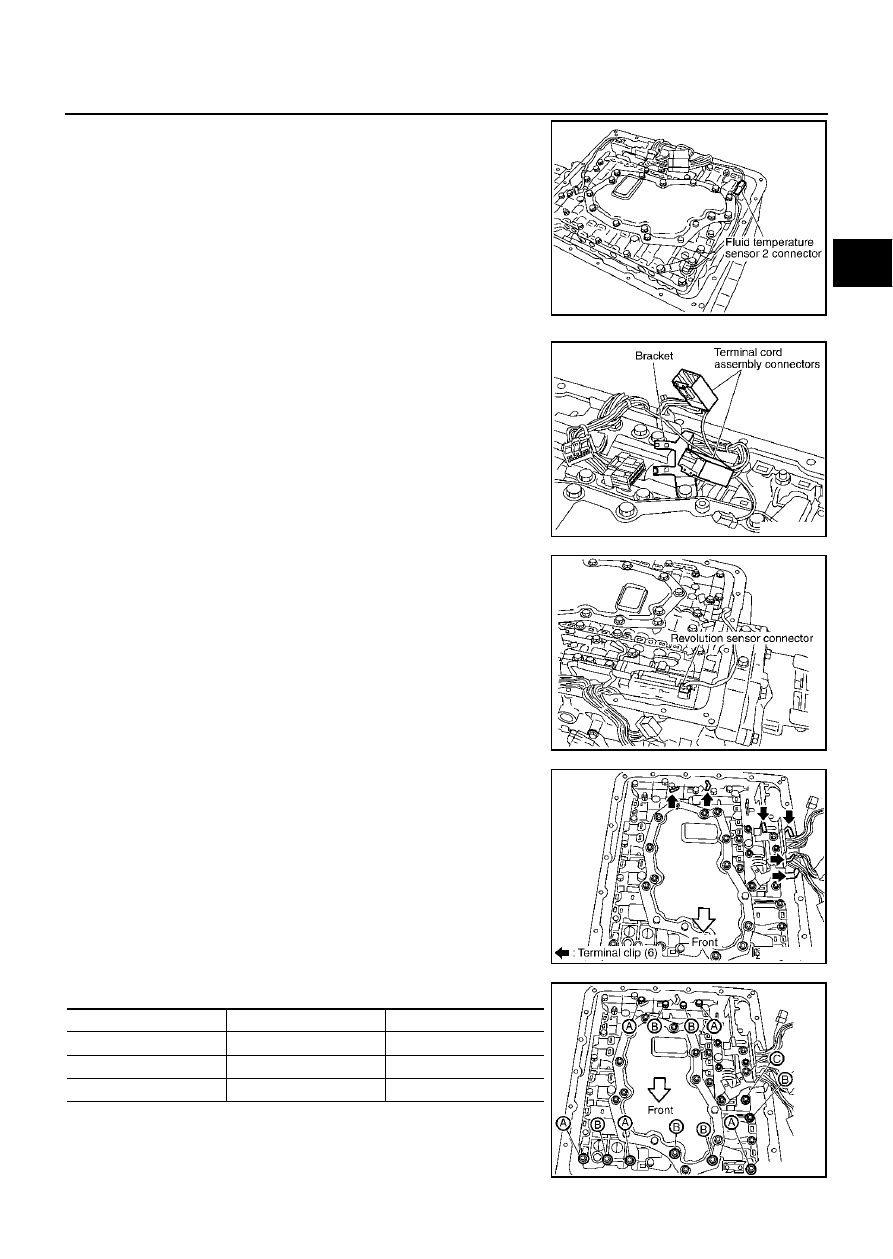

27. Disconnect fluid temperature sensor 2 connector.

CAUTION:

Be careful not to damage connector.

28. Remove terminal cord assembly connectors from bracket.

CAUTION:

Be careful not to damage connector.

29. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

30. Straighten terminal clips to free terminal cord assembly and rev-

olution sensor harness then remove terminal clips.

CAUTION:

Hang down terminal cord assembly and revolution sensor
harness toward outside so as not to disturb removal of con-
trol valve assembly.

31. Remove bolts A, B and C from control valve assembly.

SCIA2581E

SCIA2584E

SCIA2313E

SCIA2314E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA2312E

AT-314

DISASSEMBLY

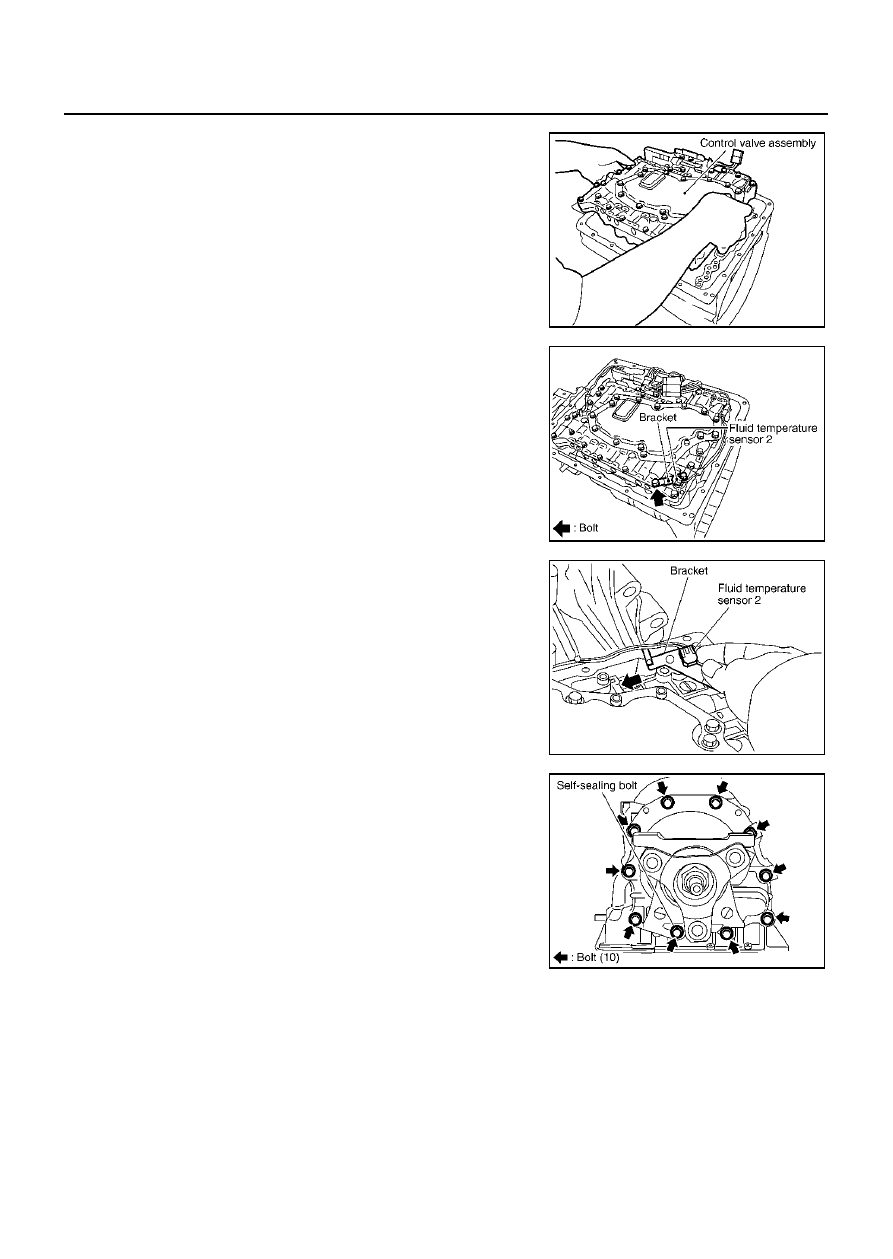

32. Remove control valve assembly from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height.Remove it vertically.

33. Remove fluid temperature sensor 2 with bracket from control

valve assembly.

34. Remove bracket from fluid temperature sensor 2.

35. Remove tightening bolts for output shaft & companion flange

complement and transmission case.

SCIA2315E

SCIA2582E

SCIA2583E

SCIA2316E

DISASSEMBLY

AT-315

D

E

F

G

H

I

J

K

L

M

A

B

AT

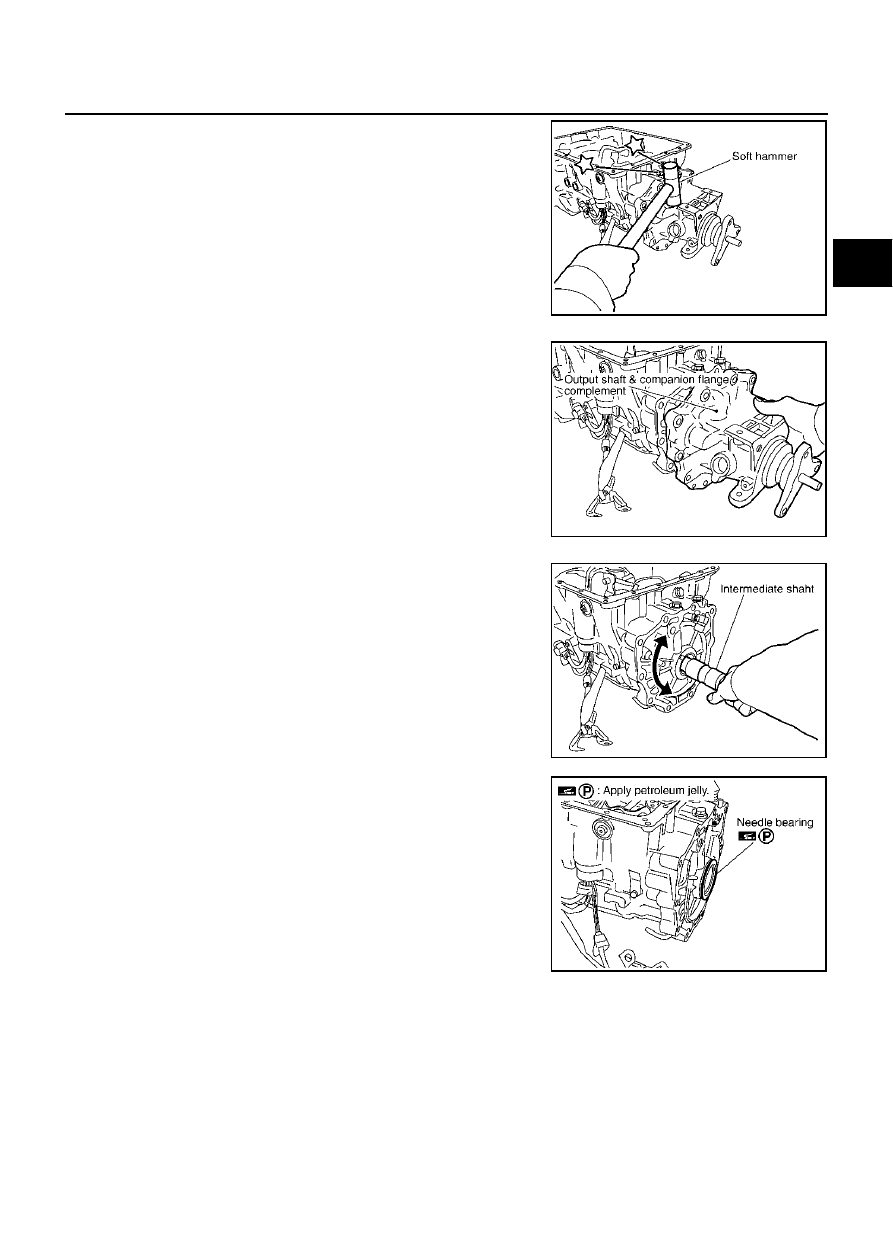

36. Tap output shaft & companion flange complement with soft ham-

mer.

37. Remove output shaft & companion flange complement from

transmission case. (With needle bearing)

38. Remove intermediate shaft from transmission case by rotating

left/right.

39. Remove needle bearing from transmission case.

SCIA2317E

SCIA2318E

SCIA2319E

SCIA2440E

AT-316

DISASSEMBLY

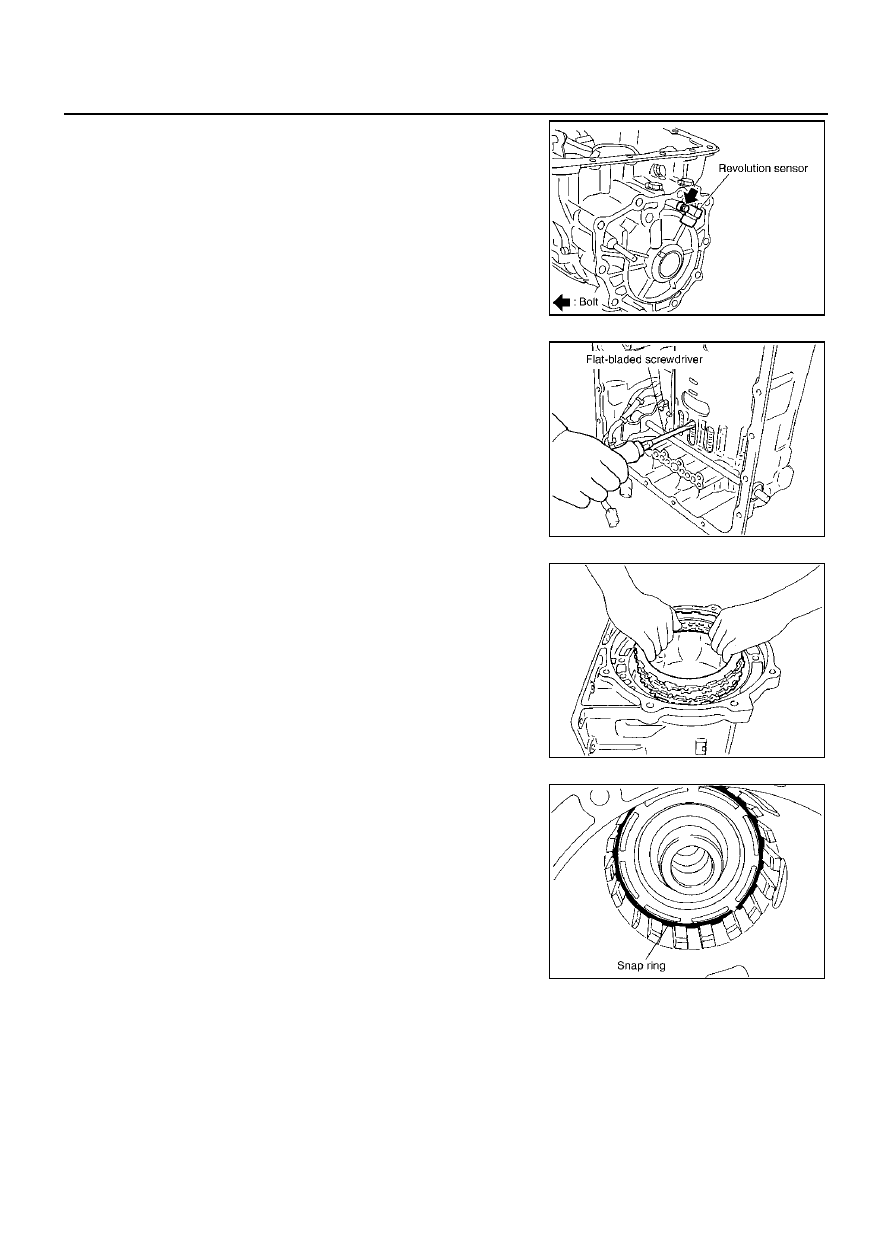

40. Remove revolution sensor from transmission case.

CAUTION:

Be careful not to damage harness with the edge of case.

41. Remove reverse brake snap ring (fixing plate) using 2 flat-

bladed screwdrivers.

NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using another
screwdriver.

42. Remove reverse brake retaining plate, drive plate, driven plate

and dish plate from transmission case.

CAUTION:

Be careful to remove it with N-spring.

43. Remove snap ring (fixing spring retainer) using a flat-bladed

screwdriver.

SCIA2320E

SCIA2321E

SCIA2322E

SCIA2323E
