Infiniti F50. Manual - part 11





ACTION TEST

ACS-37

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

ACTION TEST

PFP:00000

ICC system running test

EKS003OU

ICC SYSTEM SET CHECKING

1.

Turn on the ON/OFF switch.

2.

Drive the vehicle between 25 MPH (40 km/h for CANADA models) and 90 MPH (144 km/h for CANADA
models).

3.

Push the COAST/SET switch.

4.

Confirm that the desired speed is set as hand is released from the COAST/SET switch.

NOTE:

When there is no vehicle ahead, drive at the set speed steadily.

When there is a vehicle ahead, control to maintain distance from the vehicle ahead, watching its speed.

The set vehicle speed is displayed on the ICC system indicator in the combination meters.

CHECK FOR INCREASE OF THE CRUISING SPEED

1.

Set the ICC at desired speed.

2.

Check if the set speed increases by 1 MPH (1 km/h for CANADA models) as ACCELERATE/RESUME
switch is pushed.

NOTE:
The maximum set speed of the ICC system is 90 MPH (144 km/h for CANADA models).

CHECK FOR DECREASE OF THE CRUISING SPEED

1.

Set the ICC at desired speed.

2.

Check if the set speed decreases by 1 MPH (1 km/h for CANADA models) as COAST/SET switch is
pushed.

NOTE:

ICC system is automatically turned off when the driving speed lowers to 20 MPH (32 km/h for CANADA
models) due to the deceleration of the vehicle ahead.

The lowest set speed is 25 MPH (40 km/h for CANADA models).

CHECK FOR THE CANCELLATION OF ICC SYSTEM (NORMAL DRIVING CONDITION) IN THE
FOLLOWING CASES:

1.

When the brake pedal is depressed after the system is turned on.

2.

When the select lever is shifted into other than “D” including manual shift.

3.

When the ON/OFF switch is turned off.

4.

When CANCEL switch is operated.

CHECK FOR RESTORING THE SPEED THAT IS SET BY ICC SYSTEM BEFORE ICC CANCEL-
LATION

1.

Cancel the system by depressing the foot brake.Then, check that the speed before cancellation is
restored when pressing ACCEL/RES switch with 25 MPH (40 km/h for CANADA models) or above.

2.

Cancel the system by shifting the select lever into other than “D”, Then, check if the speed set before the
cancellation is restored when ACCEL/ RES switch is pressed.

3.

Check if the speed previously set is restored when ACCEL/RES switch is operated with driving 25
MPH(40 km/h for CANADA models), after canceling the ICC by operating the CANCEL switch.

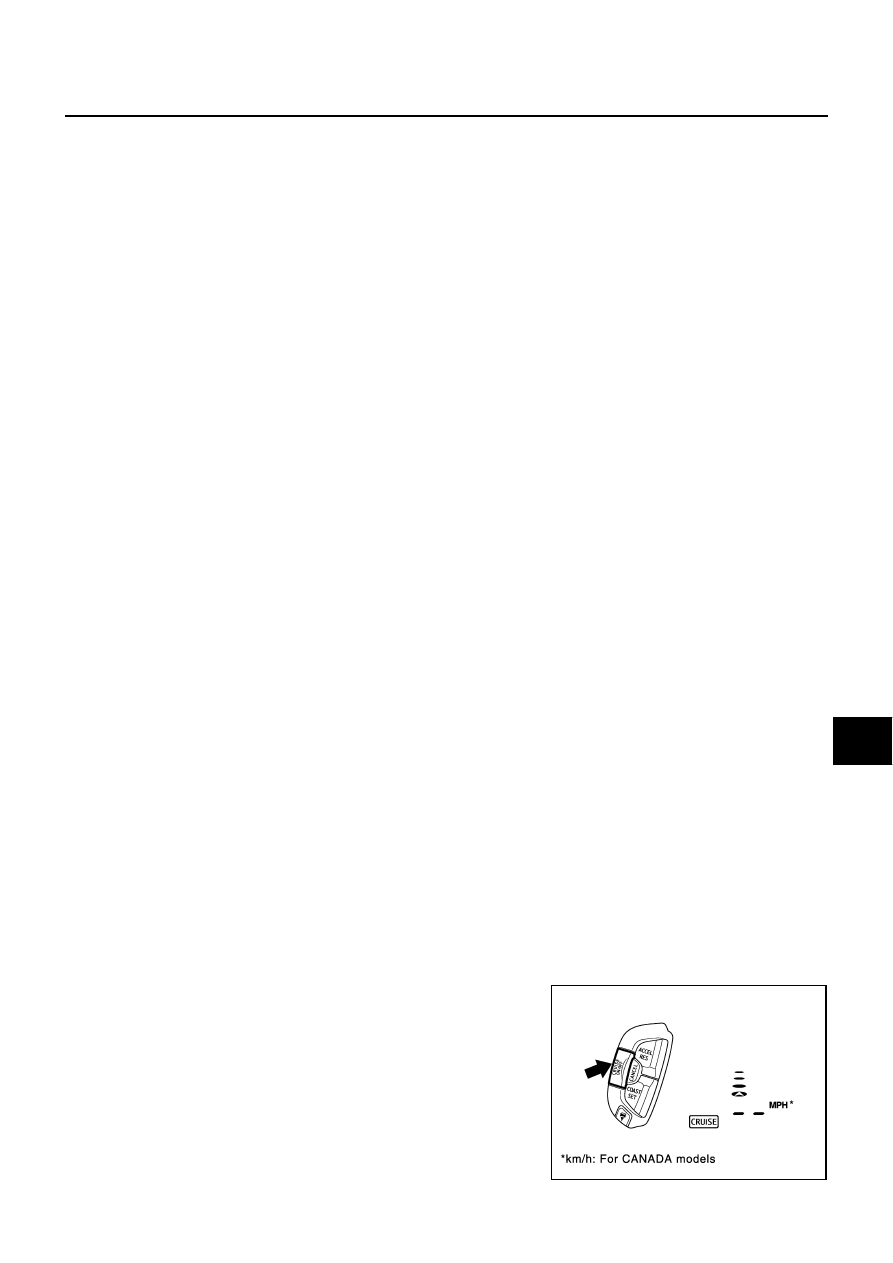

CHECK FOR ON/OFF SWITCH

1.

Start the engine.Then, check the following operations are car-
ried correctly.

2.

Intelligent Cruise Control (ICC) system is displayed in between
the tachometer and speedometer illuminates when ON/OFF
switch is ON and ready for operation.The illumination goes off
when ON/OFF switch is turned to OFF.

3.

“CRUISE” illumination and “ICC” system illumination go off when
the key switch is turned to OFF while ON/OFF switch is ON
(“CRUISE” illumination is ON and ICC system is ready for oper-
ation).

SKIA1205E

ACS-38

[ICC]

ACTION TEST

CHECK FOR ACCEL/RES, COAST/SET, CANCEL SWITCHES

1.

Check if ACCEL/ RES, COAST/SET, CANCEL switches are operated smoothly.

2.

Check if buttons come up as hand is released from the buttons.

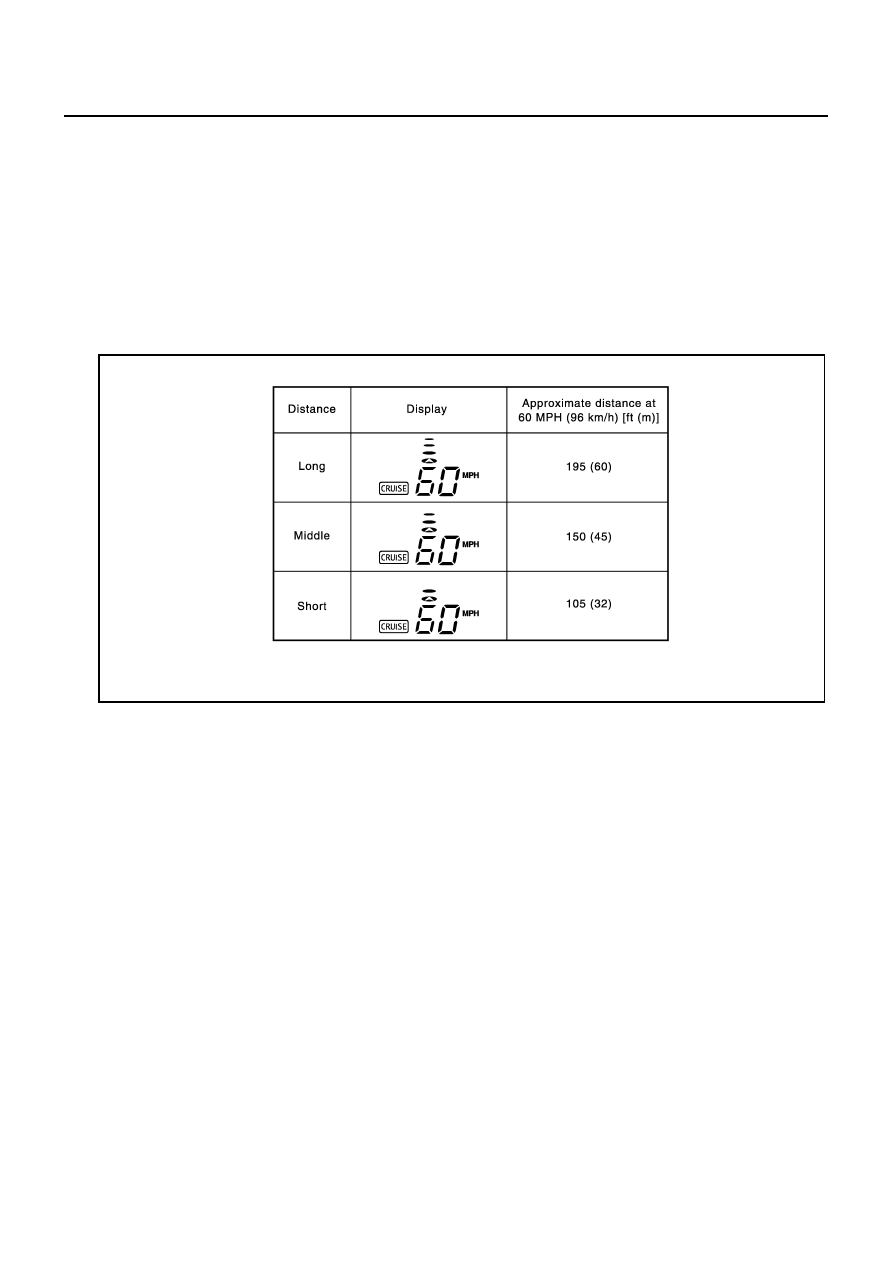

CHECK FOR DISTANCE SWITCH

1.

Start the engine.

2.

Turn on the ON/OFF switch.

3.

Press the DISTANCE switch.

4.

 Check if the set distance indicator changes display in order of:
(long)

(middle)

(short).

NOTE:
 The set distance indicator shows 'long' immediately after the engine starts.

SKIA1206E

LASER BEAM AIMING ADJUSTMENT

ACS-39

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

LASER BEAM AIMING ADJUSTMENT

PFP:00026

Outline

EKS003OV

Adjust the laser beam aiming every time the ICC sensor is removed or installed.

CAUTION:

Place the vehicle on the level ground when the laser beam aiming adjustment is operated.

Follow the CONSULT-II when adjusting the Laser beam aiming (Laser beam aiming adjustment
cannot be operated without CONSULT-II).

Preparation

EKS003OW

Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure value.

See that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

Shift the gear into “P” position and release the parking brake.

Clean the sensor with a soft cloth.

Outline of Adjustment Procedure

EKS003OX

1.

Set up the ICC target board [KV99110100 (J-45718)].

2.

Adjust the sensor following the procedure on CONSULT-II (Turn manually the screw for up-down position
adjustment. ICC sensor automatically adjust the right-left position).

Setting the ICC Target Board

EKS003OY

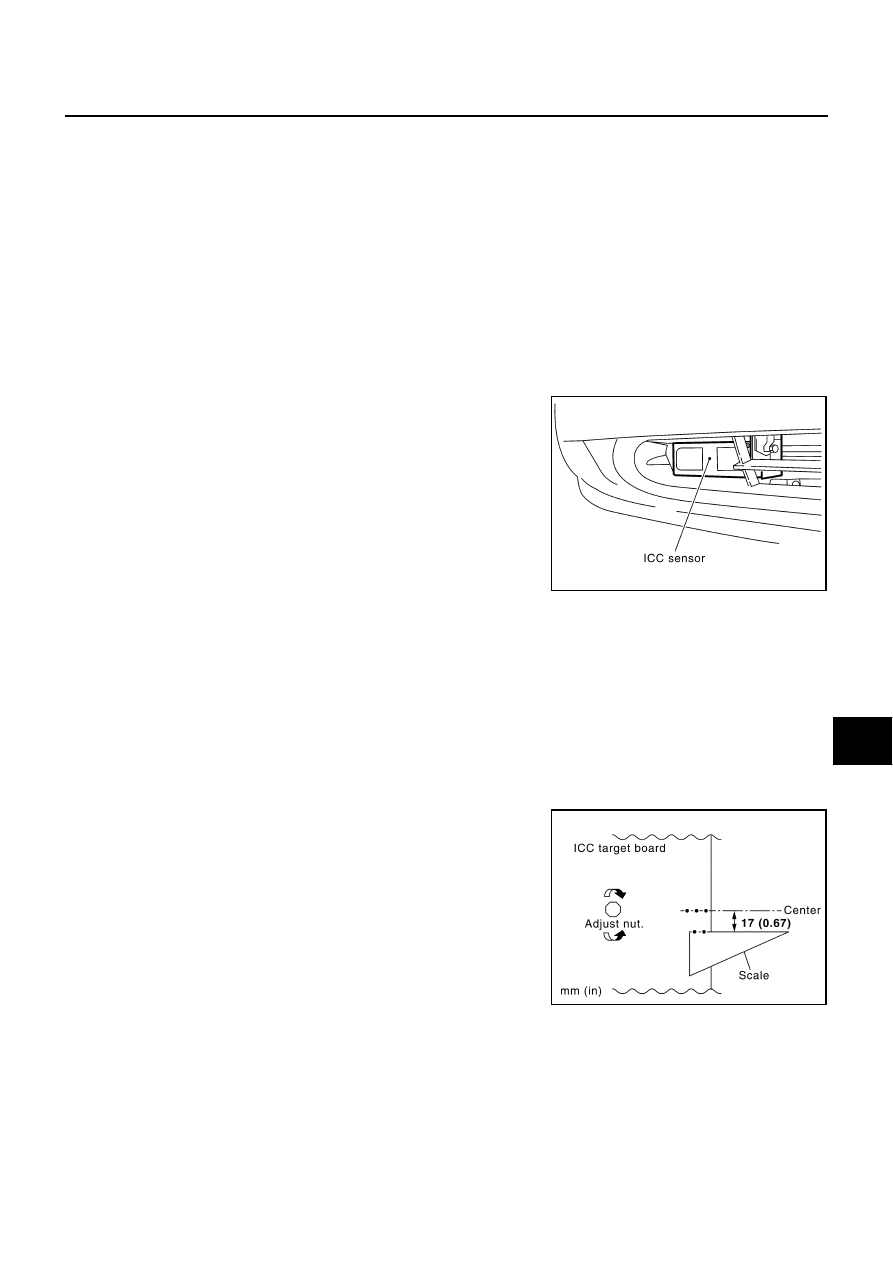

Accurate  ICC target board setting is required for the laser beam aiming adjustment.

CAUTION:

ICC system does not function normally if laser beam aiming is not accurate.

ADJUSTING HEIGHT OF THE TARGET

1.

Attach a triangle scale as shown in the right figure.

PKIA2297E

SKIA1208E

ACS-40

[ICC]

LASER BEAM AIMING ADJUSTMENT

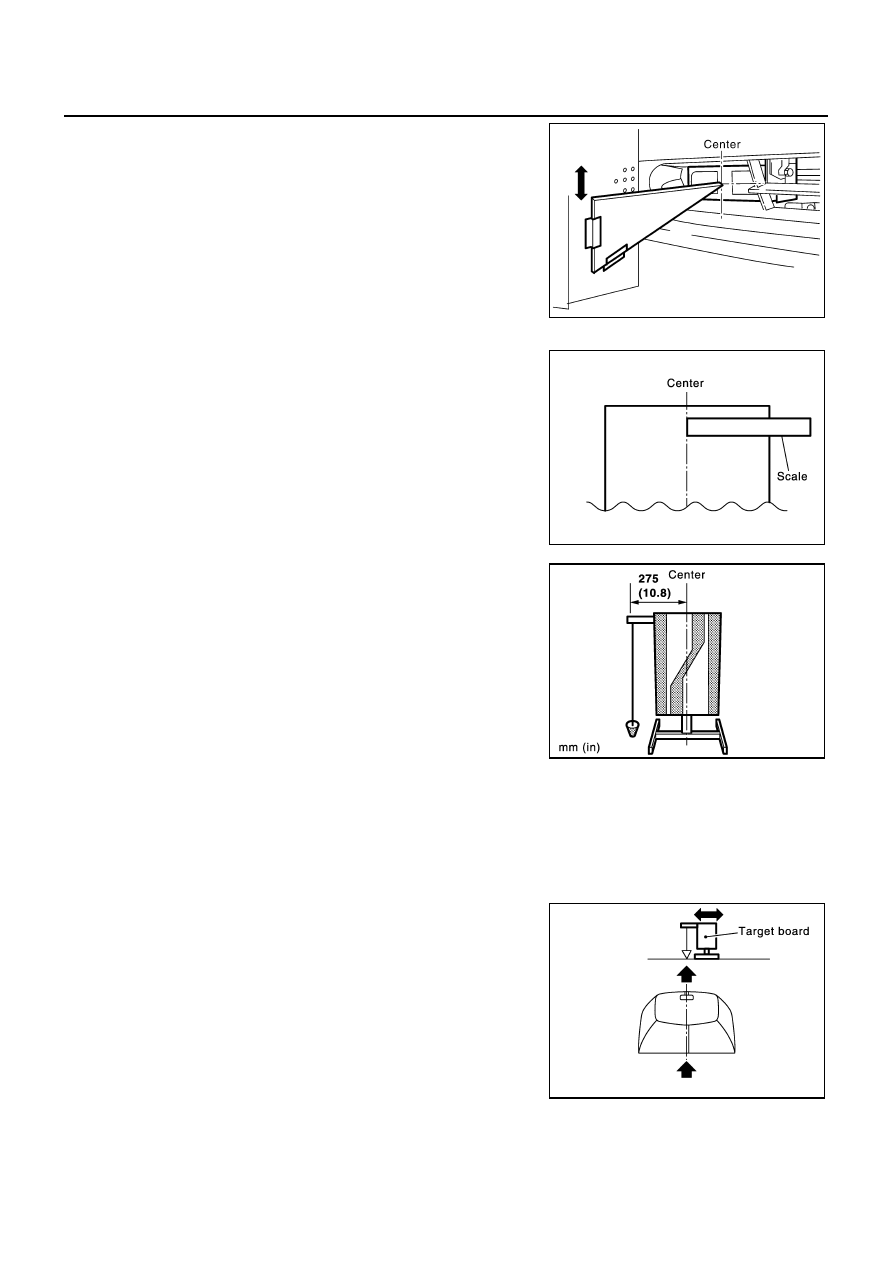

2.

Adjust the height of the target stand so that the point of the trian-
gle aims the center of the ICC sensor.

ADJUSTING THE RIGHT-LEFT POSITION OF THE TARGET

1.

Attach a scale (at least 300 mm[12 in] or longer) or stick as
shown in the figure.

2.

Suspend a thread with weight on the tip of the thread to 275 mm
(10.8 in) left side of the target board from the center of the target
board on top.

SETTING THE TARGET

1.

Suspend a thread with weight on tip to splice the center of the front and back bumpers.Then, mark the
center point on the ground as each weight points.

2.

Link the front and back bumpers' center points marked on the ground, and mark a point 5 m ahead of the
vehicle, on the extended line of the previous link line of the bumper center points.Then, adjust the position
of the target board so that the weight come on the top of the marked point (5 m ahead of the vehicle) and
face to the vehicle.

3.

Adjust the position of the target board so that the extended line
that links the center of the rear wind shield (the center of the rear
defogger pattern) and the center of the front wind shield (the set-
ting part of the room mirror) align with the weight suspended
from the board.

4.

Remove the thread suspended to the left side of board and suspend a thread with weight on tip on the
center of the target board. Then mark the point of weight on the ground.

PKIA2298E

SKIA1211E

SKIA1212E

SKIA1213E
