Infiniti I30 (A33). Manual - part 432





2

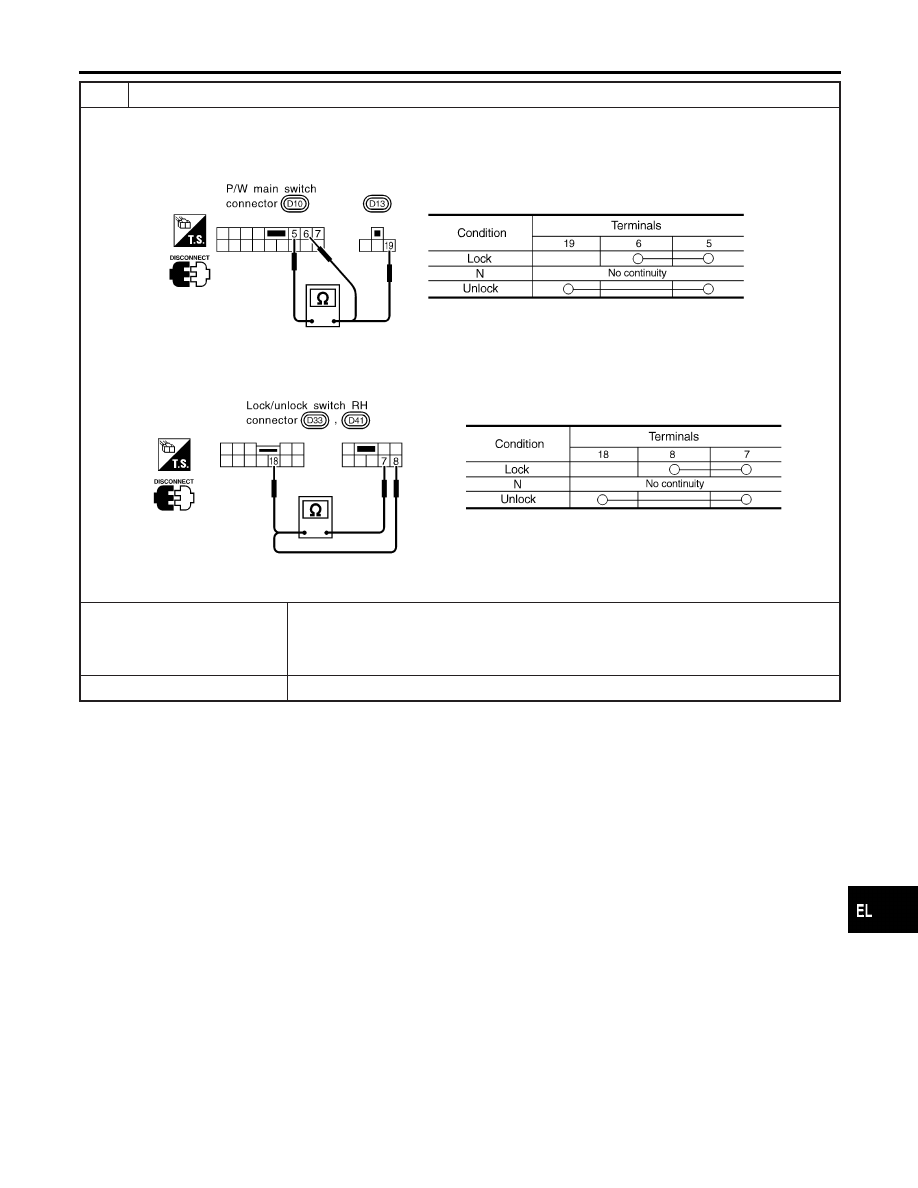

CHECK DOOR LOCK/UNLOCK SWITCH

1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between each door lock/unlock switch terminals.

I

Power window main switch (Door lock/unlock switch LH)

SEL648W

I

Door lock/unlock switch RH

SEL649W

OK or NG

OK

©

Check the following.

I

Ground circuit for door lock/unlock switch

I

Harness for open or short between door lock/unlock switch and smart entrance control
unit

NG

©

Replace door lock/unlock switch.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-397

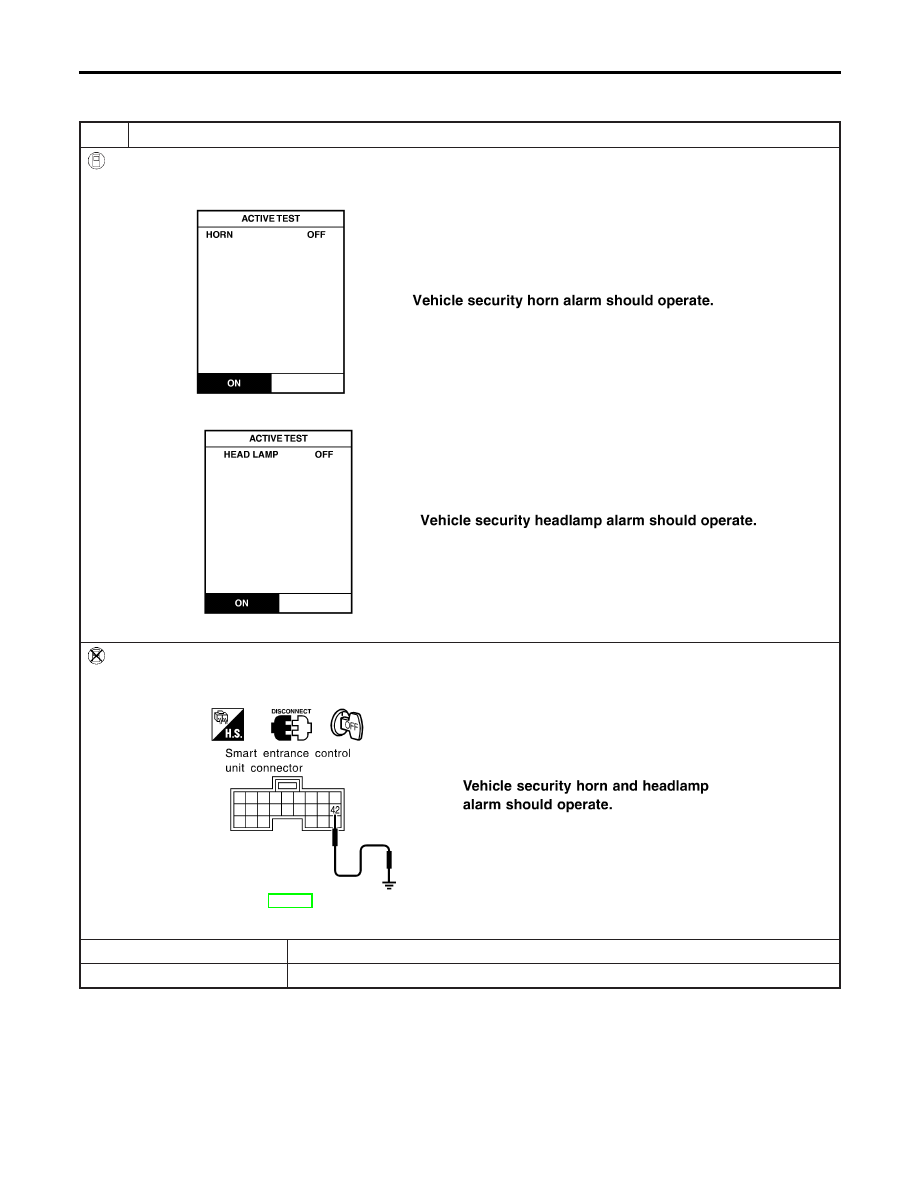

VEHICLE SECURITY HORN AND HEADLAMP ALARM
CHECK

=NHEL0123S09

1

CHECK VEHICLE SECURITY HORN AND HEADLAMP ALARM OPERATION

With CONSULT-II

1. Select “ACTIVE TEST” in “THEFT WAR ALM” with CONSULT-II.
2. Select “HORN” and touch “ON”.

SEL041Y

3. Select “HEADLAMP” and touch “ON”.

SEL042Y

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector M144 terminal 42 (BR/Y).

SEL043Y

Refer to wiring diagram in EL-377.

OK or NG

OK

©

Horn and headlamp alarm is OK.

NG

©

GO TO 2.

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-398

2

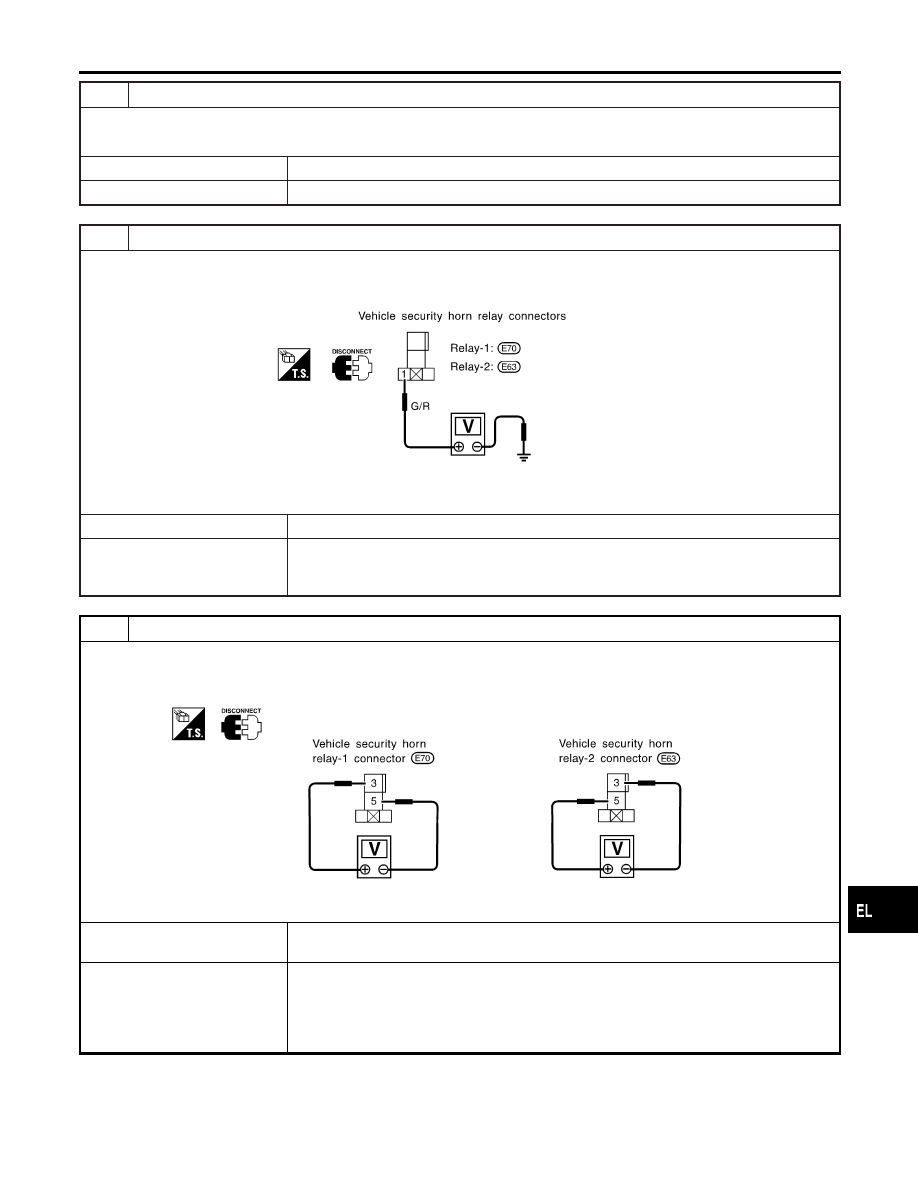

CHECK VEHICLE SECURITY HORN RELAY

Check vehicle security horn relay.

OK or NG

OK

©

GO TO 3.

NG

©

Replace.

3

CHECK POWER SUPPLY FOR VEHICLE SECURITY HORN RELAYS

1. Disconnect vehicle security horn relay-1 and relay-2 connectors.
2. Check voltage between terminal 1 and ground.

SEL044Y

Does battery voltage exist?

Yes

©

GO TO 4.

No

©

Check the following.

I

10A fuse (No. 61 located in the fuse and fusible link box)

I

Harness for open or short between vehicle security horn relays and fuse

4

CHECK VEHICLE SECURITY HORN RELAYS CIRCUIT

1. Disconnect vehicle security horn relay-1 and relay-2 connectors.
2. Check voltage between terminals of each relay.

Battery voltage should exist.

SEL045Y

OK or NG

OK

©

Check harness for open or short between vehicle security horn relay-2 and headlamp
relays.

NG

©

Check the following.

I

Harness for open or short between vehicle security horn relay-1 and fuse

I

Harness for open or short between vehicle security horn relay-1 and relay-2

I

Harness for open or short between vehicle security horn relay-1 and vehicle security
horn

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-399

Description

NHEL0124

OUTLINE

NHEL0124S01

The smart entrance control unit totally controls the following body electrical system operations.

I

Headlamp auto light control system

I

Warning chime

I

Rear defogger and door mirror defogger

I

Power door lock

I

Multi-remote control system

I

Vehicle security system

I

Interior lamp

In addition, the following timer operations are controlled by the smart entrance control unit.

I

Battery saver control

I

Retained power control

BATTERY SAVER CONTROL

NHEL0124S02

Headlamps/Parking Lamps/License Lamps/Tail Lamps/Fog Lamps/Illumination Lamps

NHEL0124S0201

When the ignition switch is turned OFF from ON (or START) while headlamps illuminate, the headlamps
(including parking, license, tail, fog and illumination lamps) are turned off after 45 seconds which are counted
by the smart entrance control unit.
The headlamps (including parking, license, tail, fog and illumination lamps) are turned off when the driver or
passenger side door is opened even if 45 seconds have not passed after the ignition switch is turned OFF
from ON (or START).

Interior Lamp/Trunk Room Lamp/Spot Lamp/Vanity Mirror Illumination

NHEL0124S0202

The lamps turn off automatically when the interior lamp, spot lamp or/and vanity mirror illumination are illumi-
nated with the ignition key in the OFF position, if the lamp remains lit by the door switch open signal or if the
lamp switch is in the ON position for more than 30 minutes.
After lamps are turned off by the battery saver system, the lamps illuminate again when:

I

Door is locked or unlocked with remote controller or door lock/unlock switch or door key cylinder or IVCS
system.

I

Ignition switch ON.

I

Door is opened or closed,

I

Key is inserted or removed into ignition key cylinder.

Rear Window Defogger/Door Mirror Defogger

NHEL0124S0203

Rear window defogger and door mirror defogger are turned off in approximately 15 minutes after the rear win-
dow defogger switch is turned on.

RETAINED POWER CONTROL

NHEL0124S03

When the ignition switch is turned to OFF (or ACC) position from ON or START position, the following sys-
tems can be operated for 45 seconds by the RAP signal from the smart entrance control unit terminal 46.

I

Electric sunroof

I

Power window

The retained power operation is canceled when the driver or passenger side door is opened.

INPUT/OUTPUT

NHEL0124S04

System

Input

Output

Power door lock

Door lock and unlock switch LH and RH
Key switch (Insert)
Door switches
Door key cylinder switches

Door lock actuator

SMART ENTRANCE CONTROL UNIT

Description

EL-400
