TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ECM Terminals and Reference Value (Cont’d)

EC-135

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

47

G

Power steering oil
pressure switch

[Engine is running]

I

Steering wheel is being turned.

0 - 1.0V

[Engine is running]

I

Steering wheel is not being turned.

BATTERY VOLTAGE
(11 - 14V)

48

B

ECM ground

[Engine is running]

I

Idle speed

Engine ground

49

W

Electronic controlled
engine mount-1

[Engine is running]

I

Idle speed

0 - 1.0V

[Engine is running]

I

Except the above

BATTERY VOLTAGE
(11 - 14V)

50

W/R

Electronic controlled
engine mount-2

[Engine is running]

I

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

I

Except the above

0 - 1.0V

51

PU

A/C cut signal

[Engine is running]

I

Air conditioner is operating.

0 - 0.5V

52

W/G

Electrical load signal

[Engine is running]

I

Rear window defogger: ON

I

Hi-beam headlamp: ON

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

I

Electrical load: OFF

0V

55

W/B

Swirl control valve con-
trol vacuum check
switch

[Engine is running]

I

Idle speed

I

Engine coolant temperature is between 15 to
50°C (59 to 122°F).

Approximately 5V

[Engine is running]

I

Idle speed

I

Engine coolant temperature is above 50°C
(122°F).

0 - 1.0V

56

GY/L

Throttle position switch
(Closed position)

[Engine is running]

I

Accelerator pedal fully released

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

I

Accelerator pedal depressed

Approximately 0V

57

B

ECM ground

[Engine is running]

I

Idle speed

Engine ground

58

B

Sensors’ ground

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 0V

59

B

Fuel level sensor
ground

[Engine is running]

I

Idle speed

Approximately 0V

61

W

Mass air flow sensor

[Engine is running]

I

Warm-up condition

I

Idle speed

1.2 - 1.8V

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,500 rpm.

1.6 - 2.2V

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ECM Terminals and Reference Value (Cont’d)

EC-136

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

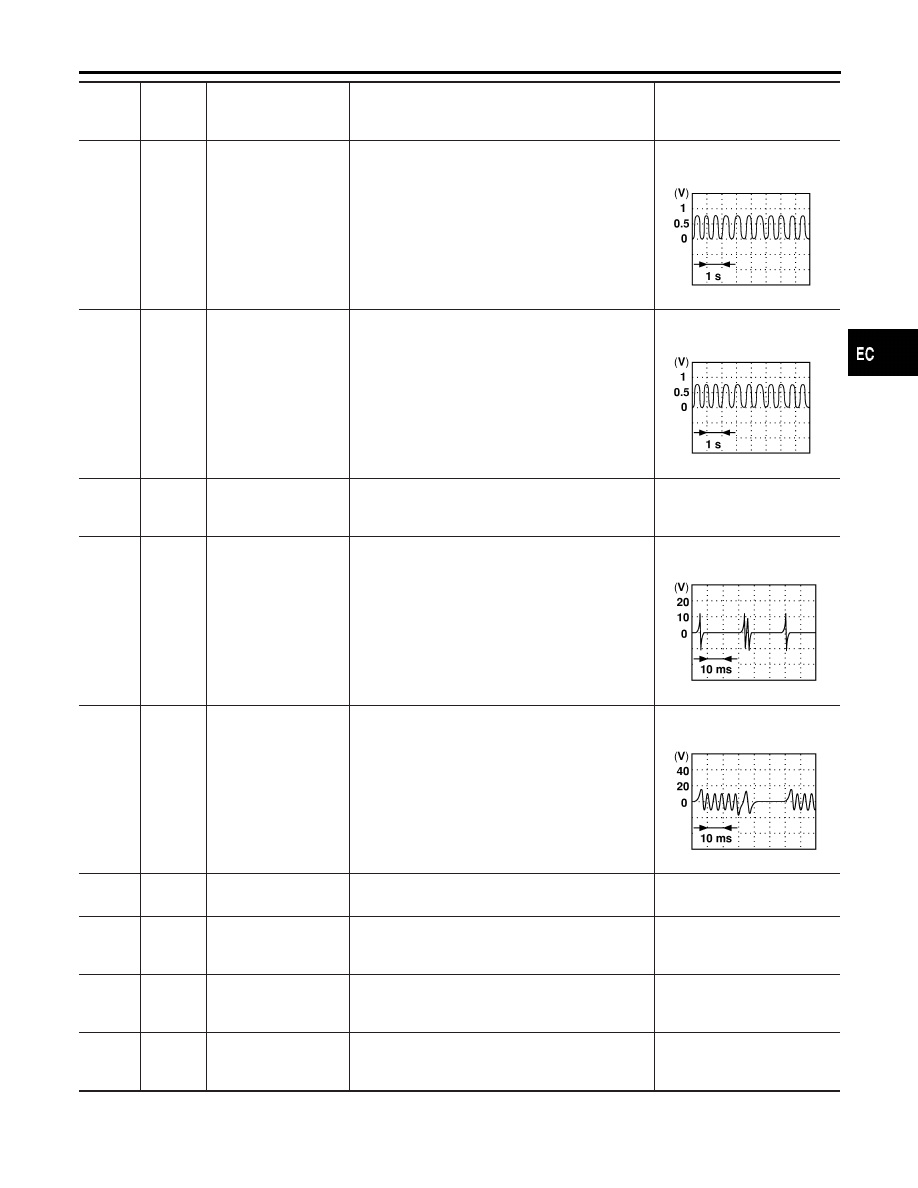

62

W

Heated oxygen sensor
1 (front) (bank 2)

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,000 rpm.

0 - Approximately 1.0V (Peri-
odically change)

SEF059V

63

W

Heated oxygen sensor
1 (front) (bank 1)

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,000 rpm.

0 - Approximately 1.0V (Peri-
odically change)

SEF059V

64

Y/G

Intake air temperature
sensor

[Engine is running]

Approximately 0 - 4.8V
Output voltage varies with
intake air temperature.

65
75

W
W

Crankshaft position
sensor (REF)

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 2.3V

★

(AC voltage)

SEF581X

66
76

W
W

Camshaft position sen-
sor (PHASE)

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 4.2V

★

(AC voltage)

SEF582X

67

W/L

Power supply for ECM
(Buck-up)

[Ignition switch “OFF”]

BATTERY VOLTAGE
(11 - 14V)

70

Y

Engine coolant tem-
perature sensor

[Engine is running]

Approximately 0 - 4.8V
Output voltage varies with
engine coolant temperature.

71

W

Heated oxygen sensor
2 (rear) (bank 2)

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,000 rpm.

0 - Approximately 1.0V

72

W

Heated oxygen sensor
2 (rear) (bank 1)

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,000 rpm.

0 - Approximately 1.0V

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ECM Terminals and Reference Value (Cont’d)

EC-137

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

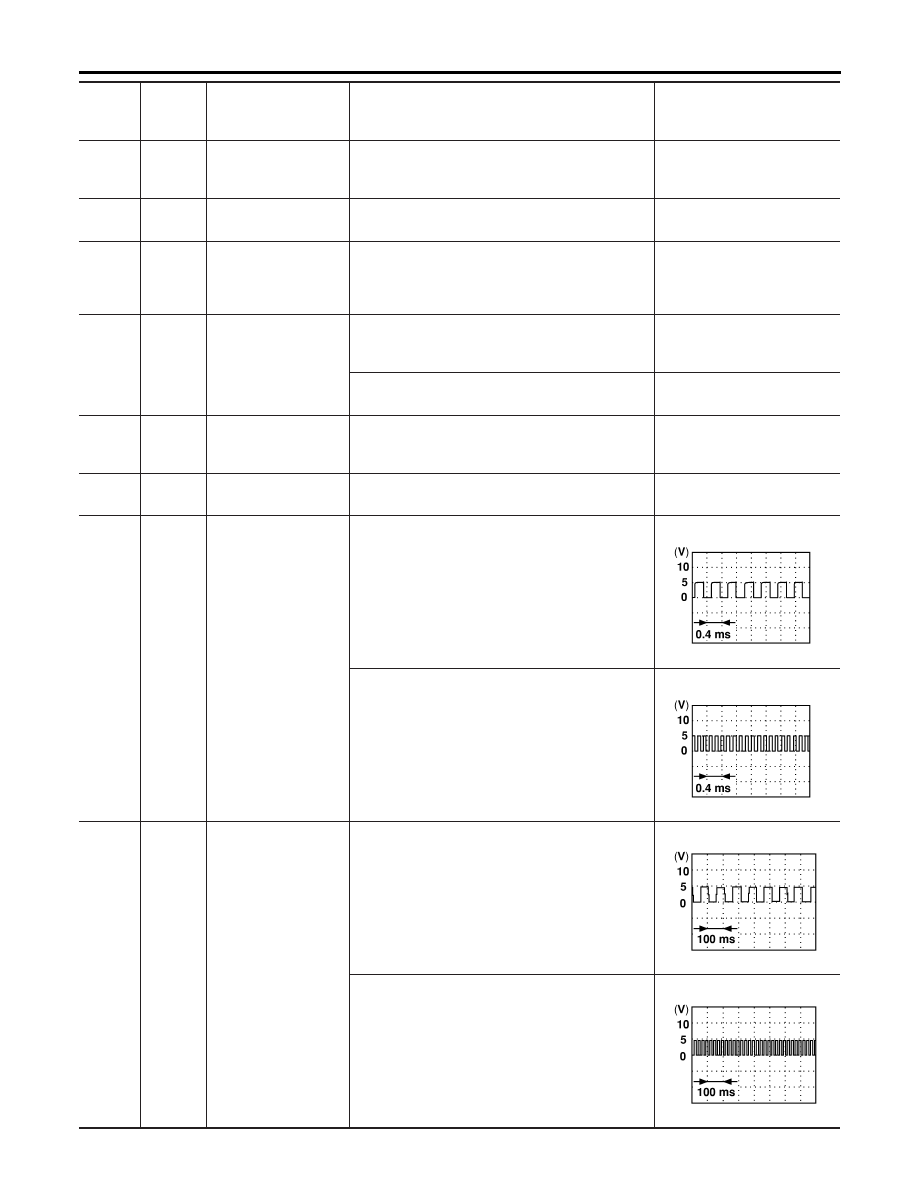

73

B

Mass air flow sensor
ground

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 0V

80

W

Absolute pressure sen-
sor

[Ignition switch “ON”]

Approximately 4.4V

81

W

Refrigerant pressure
sensor

[Engine is running]

I

Warm-up condition

I

Both A/C switch and blower switch are “ON”.

(Compressor operates.)

1.0 - 4.0V

82

W

Throttle position sensor
signal output

[Engine is running]

I

Warm-up condition

I

Accelerator pedal fully released

Approximately 0.4V

[Ignition switch “ON”]

I

Accelerator pedal fully depressed

Approximately 4V

83

G

Fuel level sensor

[Ignition switch “ON”]

Approximately 0 - 4.8V
Output voltage varies with
fuel level.

84

W

EVAP control system
pressure sensor

[Ignition switch “ON”]

Approximately 3.4V

85

W

Crankshaft position
sensor (POS)

[Engine is running]

I

Idle speed

Approximately 2.4V

SEF057V

[Engine is running]

I

Engine speed is 2,000 rpm.

Approximately 2.3V

SEF058V

86

P/L

Vehicle speed sensor

[Engine is running]

I

Jack up front wheels.

I

In 1st gear position

I

10 km/h (6 MPH)

Approximately 2.5V

SEF583X

[Engine is running]

I

Jack up front wheels.

I

In 2nd gear position

I

30 km/h (19 MPH)

Approximately 2.0V

SEF584X

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ECM Terminals and Reference Value (Cont’d)

EC-138
