Infiniti I30 (A33). Manual - part 166





SBT876

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

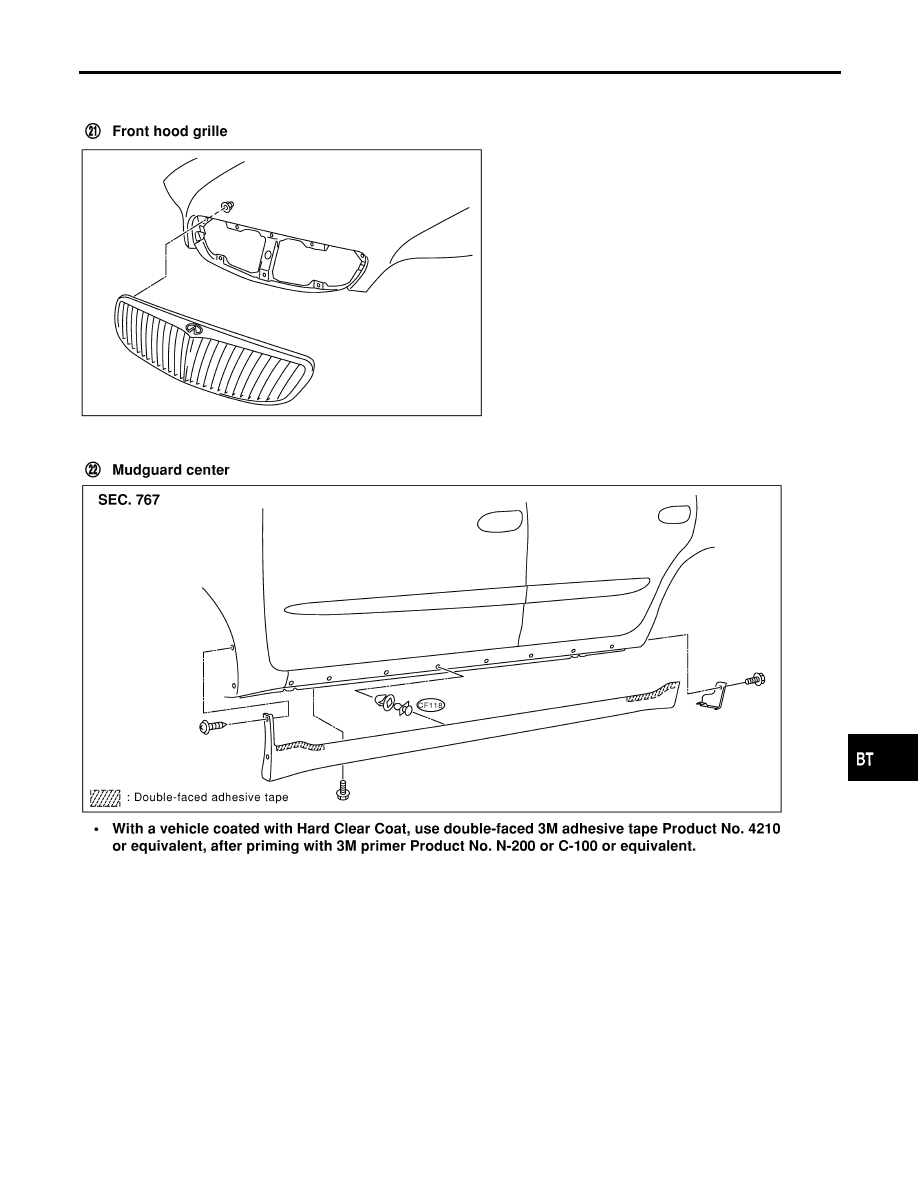

EXTERIOR

Removal and Installation (Cont’d)

BT-45

Removal and Installation

NHBT0018

I

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

For Wiring Diagram, refer to EL-265, “POWER SEAT” for details.

CAUTION:

I

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes.

I

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

I

Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.

FRONT SEAT

Removal and Installation

BT-46

POWER SEAT

NHBT0018S01

SBT877

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

FRONT SEAT

Removal and Installation (Cont’d)

BT-47

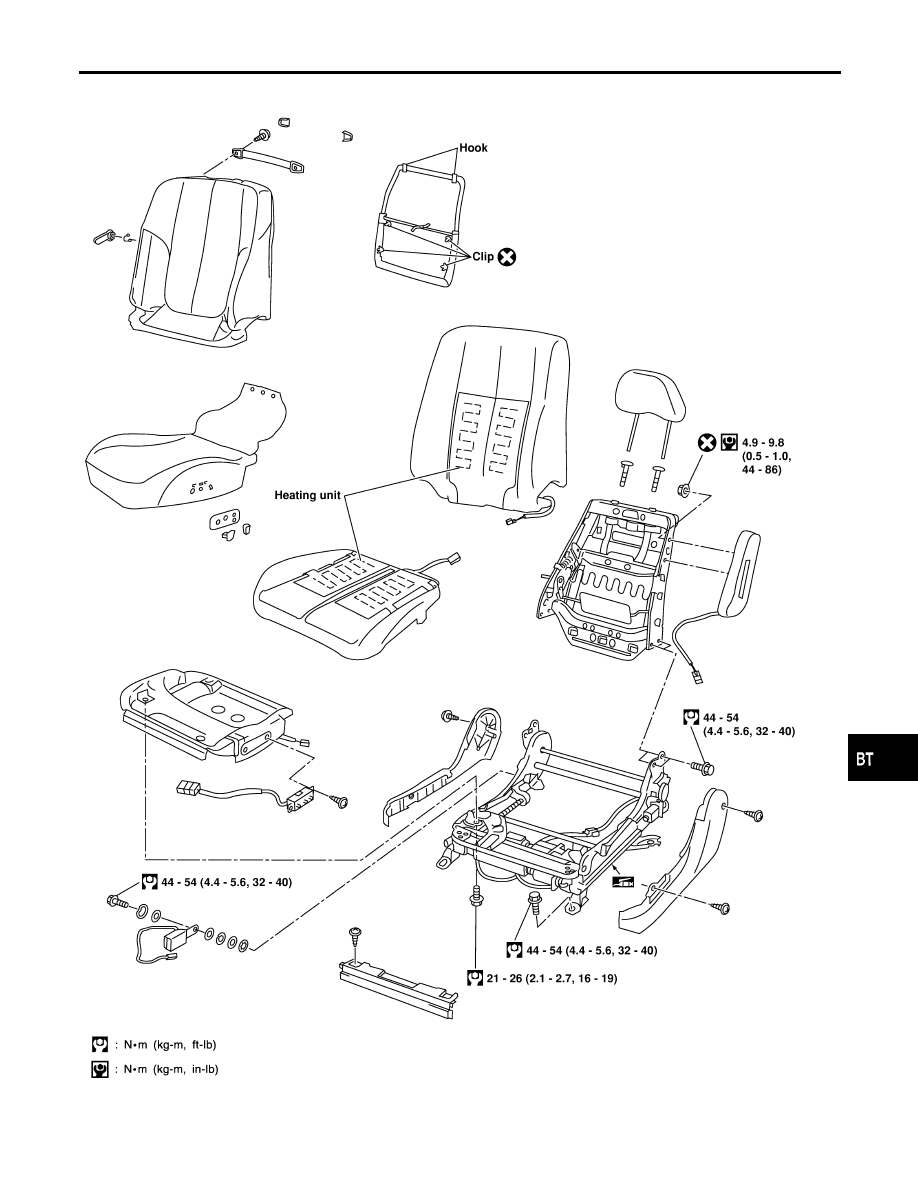

HEATED SEAT

NHBT0018S03

I

When handling seat, be extremely careful not to scratch heating unit.

I

To replace heating unit, seat trim and pad should be separated.

I

Do not use any organic solvent, such as thinner, benzene, alcohol, gasoline, etc. to clean trims.

For Wiring Diagram, refer to EL-268, “HEATED SEAT” for details.

SBT887

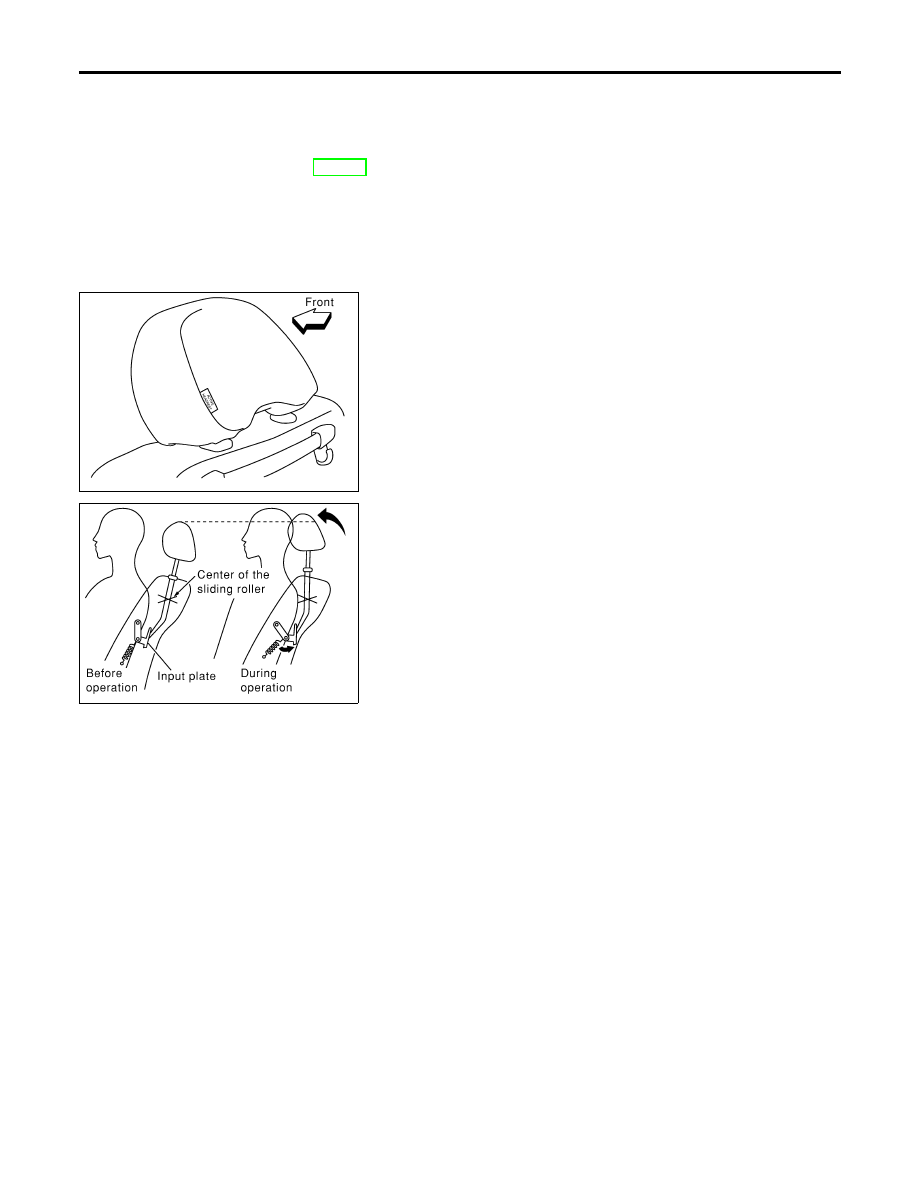

Active Head Restraint

NHBT0032

The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant’s head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.

SBT888

OPERATION OUTLINE

NHBT0032S01

When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.

FRONT SEAT

Removal and Installation (Cont’d)

BT-48
