Removal and Installation
NHBT0015
CAUTION:
When removing or installing body side welts, do not allow butyl seal to come in contact with pillar
garnish and headlining.

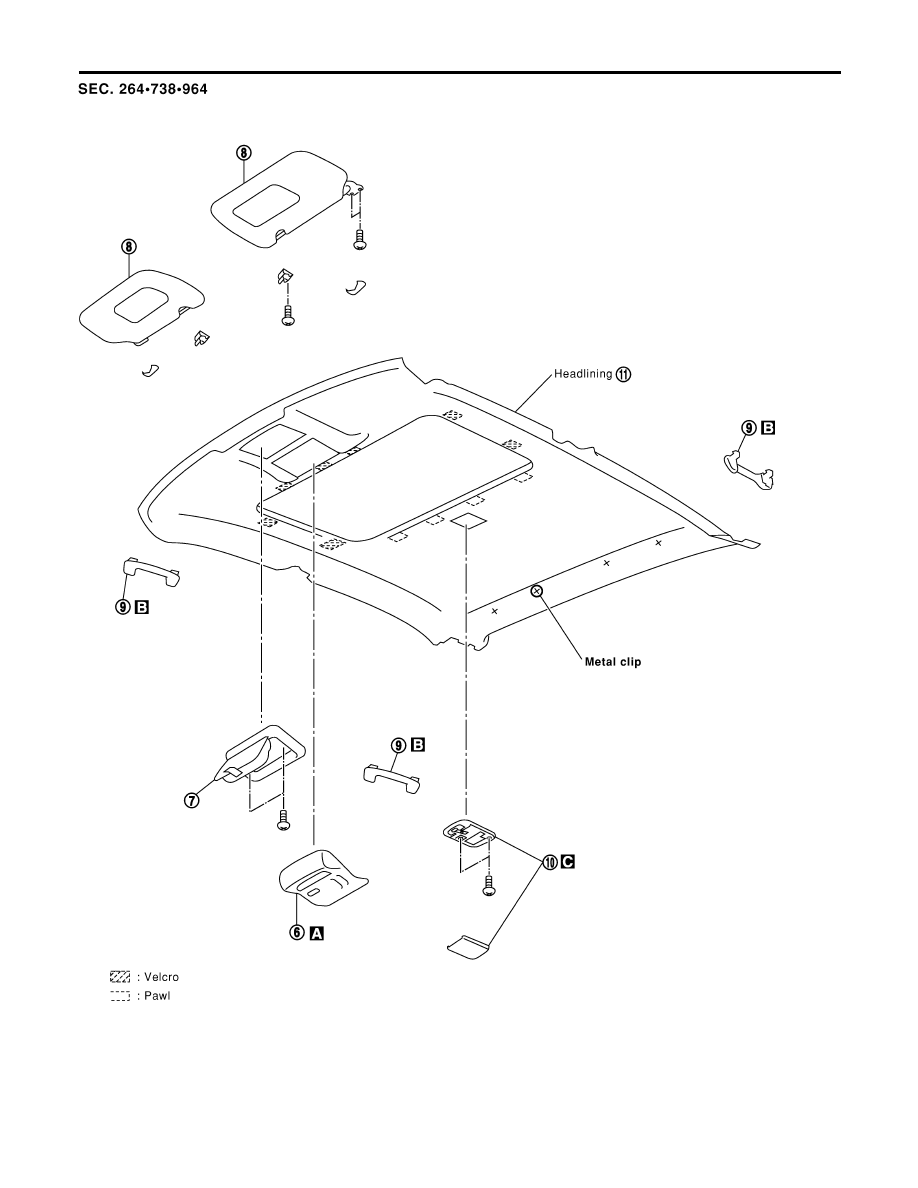

1. Remove rear seats. Refer to “REAR SEAT” for details, BT-49.
2. Remove shoulder anchor bolts. Refer to RS-5, “Front Seat Belt” for details.
3. Remove front pillar garnishes, center pillar upper garnishes and rear pillar garnishes. Refer to “SIDE AND
FLOOR TRIM” for details, BT-32.
4. Remove steering wheel. Refer to RS-23, “Driver Air Bag Module and Spiral Cable” for details.
5. Push back the front seatback.

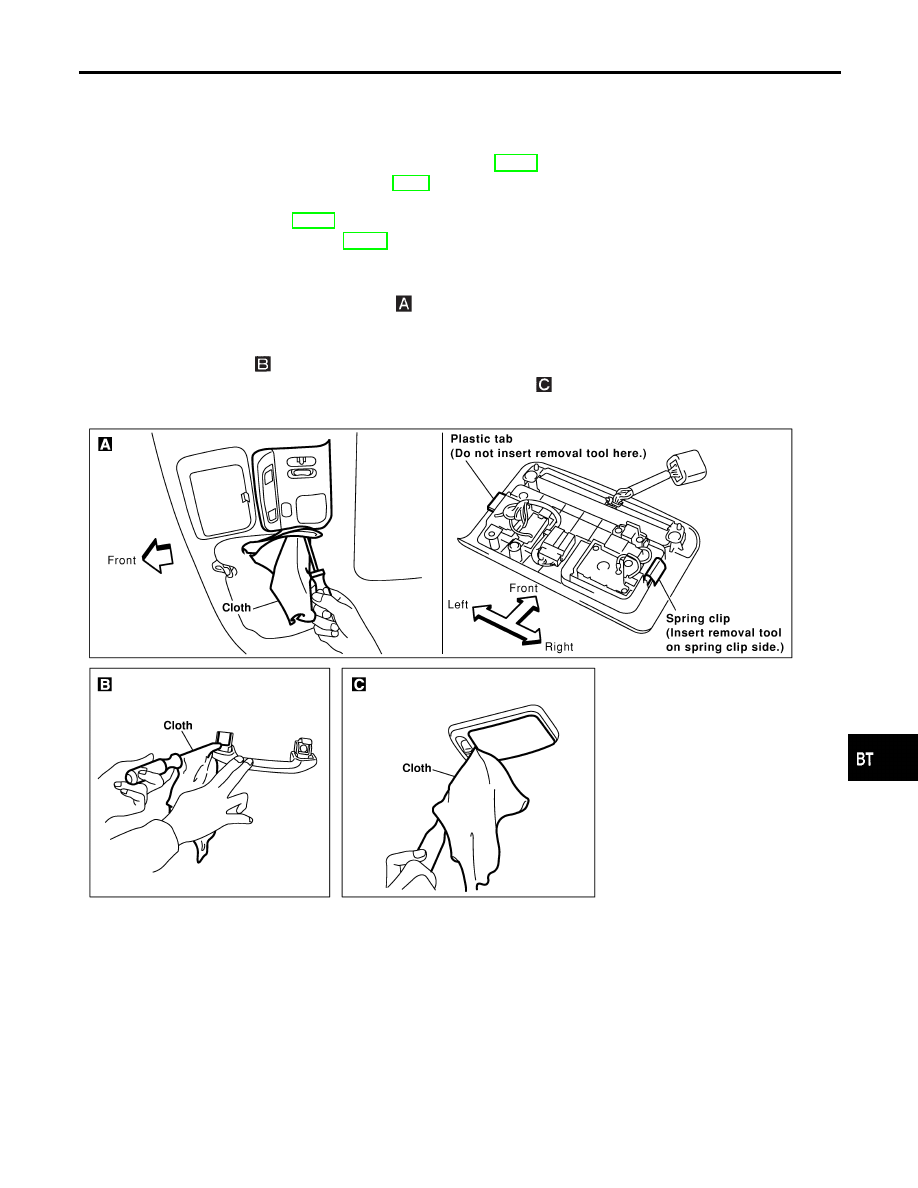

6. Insert a removal tool wrapped in a clean cloth between the right-hand side of the map light and the sun-
roof finisher, then disconnect connectors.
7. Remove roof console.
8. Remove sun visors.
9. Remove assist grips.
10. Remove interior lamp assembly, then disconnect connectors.
11. Remove metal clip securing headlining, then remove headlining from vehicle through front passenger side.
