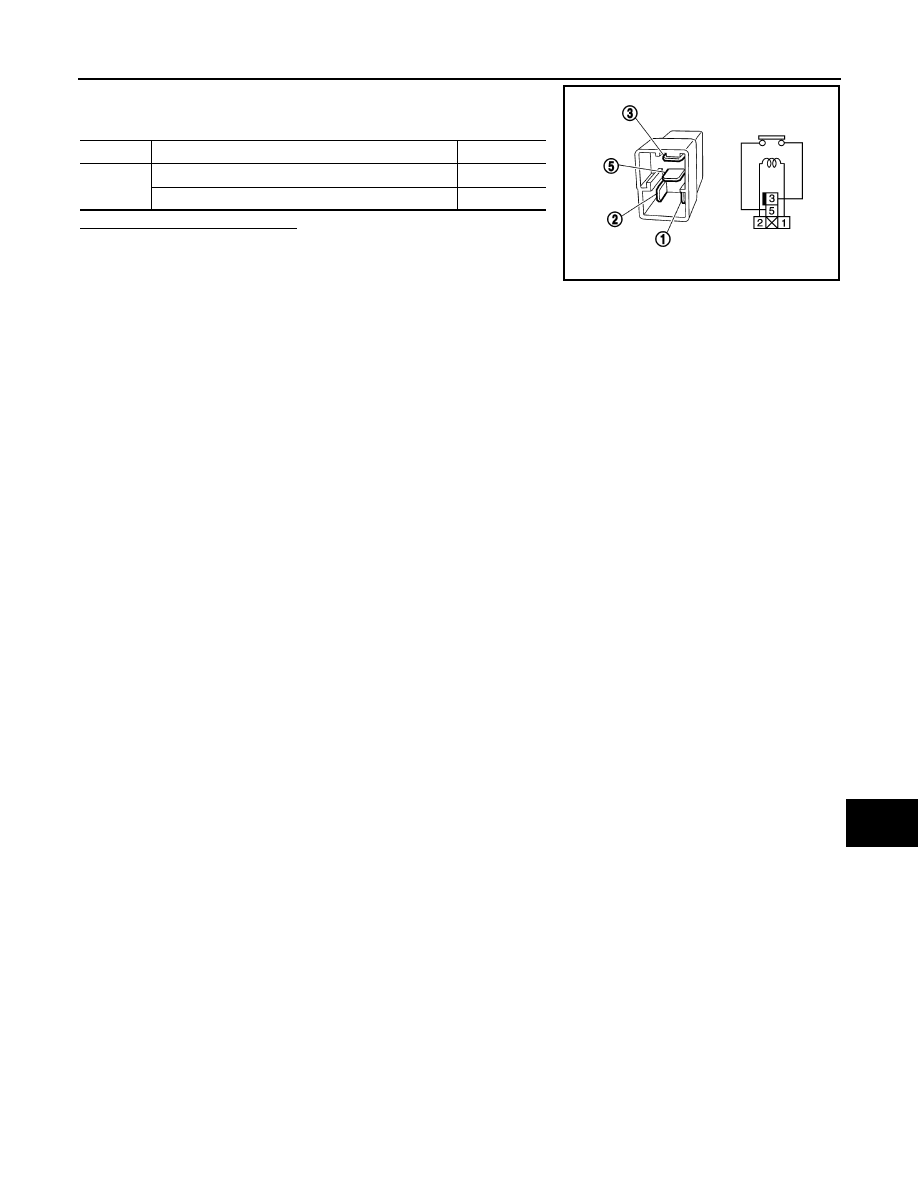

PCS B2614 ACC RELAY CIRCUIT PCS-57 < COMPONENT DIAGNOSIS > [POWER DISTRIBUTION SYSTEM] C D E F G H I J K L B A O P N B2614 ACC RELAY CIRCUIT Description INFOID:0000000001675276 BCM controls the various electrical components and simultaneously supplies power according to the power DTC Logic INFOID:0000000001675277 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1. PERFORM DTC CONFIRMATION PROCEDURE 1. Turn the power supply position to ACC under the following conditions, and wait for at least 1 second. A/T models - A/T selector lever is in the P or N position - Do not depress brake pedal M/T models - Do not depress clutch pedal 2. Check “Self diagnostic result” with CONSULT-III. Is DTC detected? YES >> Go to NO >> INSPECTION END Diagnosis Procedure INFOID:0000000001675278 1. CHECK ACCESSORY RELAY POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect accessory relay. 3. Check voltage between accessory relay harness connector and ground under the following conditions. Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM harness connector M123. 3. Check continuity between accessory relay harness connector and BCM harness connector. DTC No. Trouble diagnosis name DTC detecting condition Possible cause B2614 ACC relay circuit An immediate operation of ACC relay is requested • Harness or connectors (ACC relay circuit is open or short- • ACC relay Accessory relay Ground Condition Voltage (V) Terminal 1 Ground Ignition OFF 0 ACC Battery voltage Accessory relay BCM Continuity Terminal Connector Terminal 3 M123 122 Existed |
