Infiniti G37 Coupe. Manual - part 954

MWI-162

< ON-VEHICLE REPAIR >

UNIFIED METER AND A/C AMP.

UNIFIED METER AND A/C AMP.

Exploded View

INFOID:0000000001606735

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001606736

REMOVAL

1.

Remove the display unit. Refer to

AV-110, "Removal and Installation"

.

2.

Remove the unified meter and A/C amp and AV control unit as an assembly.

3.

Remove the bracket screws and remove the unified meter and A/C amp.

INSTALLATION

Install in the reverse order of removal.
NOTE:
• Unified meter and A/C amp. screws are different from other screws. Never confuse them when installing.
• Since AV control unit connector and unified meter and A/C amp. connector have the same from, be careful

not insert them wrongly.

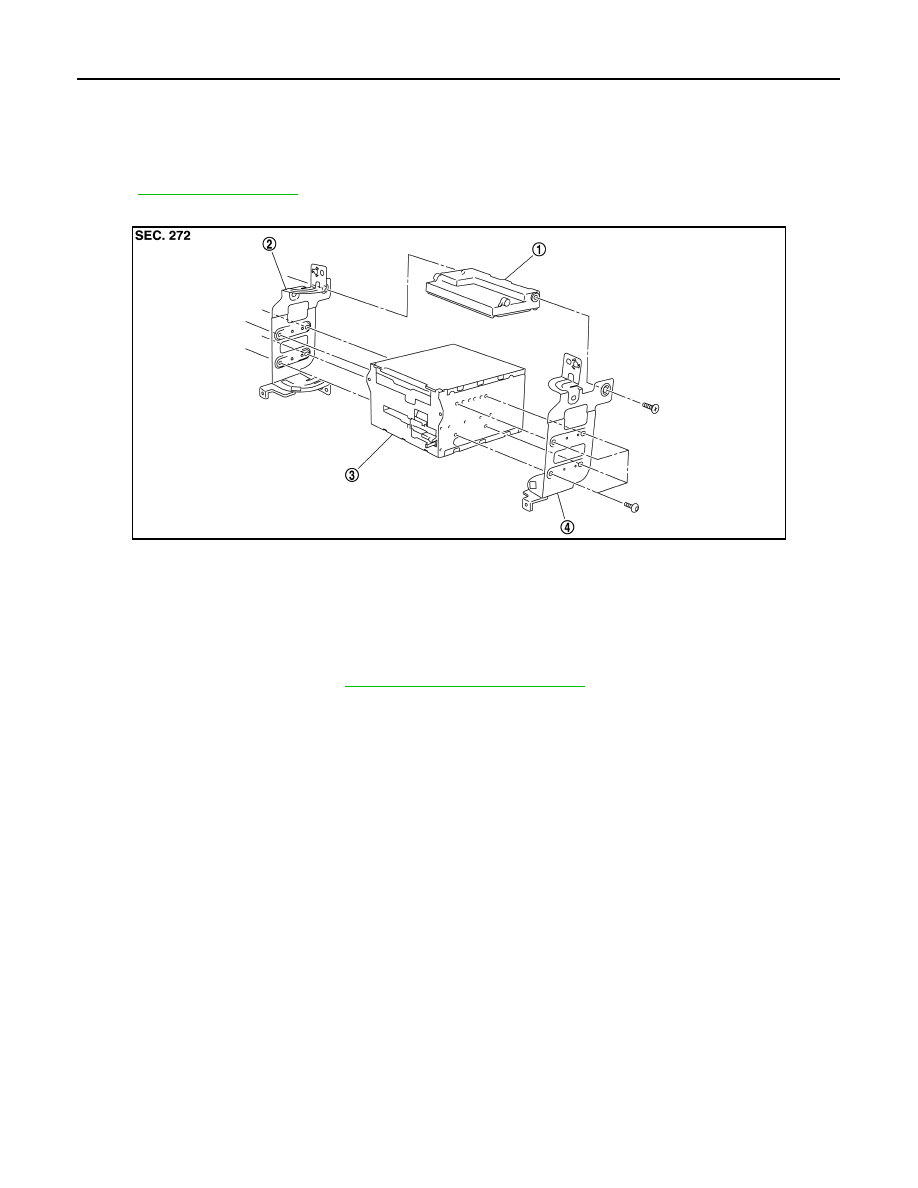

JPNIA0498ZZ

1.

Unified meter and A/C amp.

2.

Bracket (LH)

3.

AV control unit

4.

Bracket (RH)

MWI

METER CONTROL SWITCH

MWI-163

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH

Exploded View

INFOID:0000000001606737

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001606738

REMOVAL

1.

Remove combination meter.

2.

Remove screws (A) and remove bracket RH (1), LH (2).

3.

Remove screws (B) and remove meter control switch.

INSTALLATION

Install in the reverse order of removal.

JPNIA0499ZZ

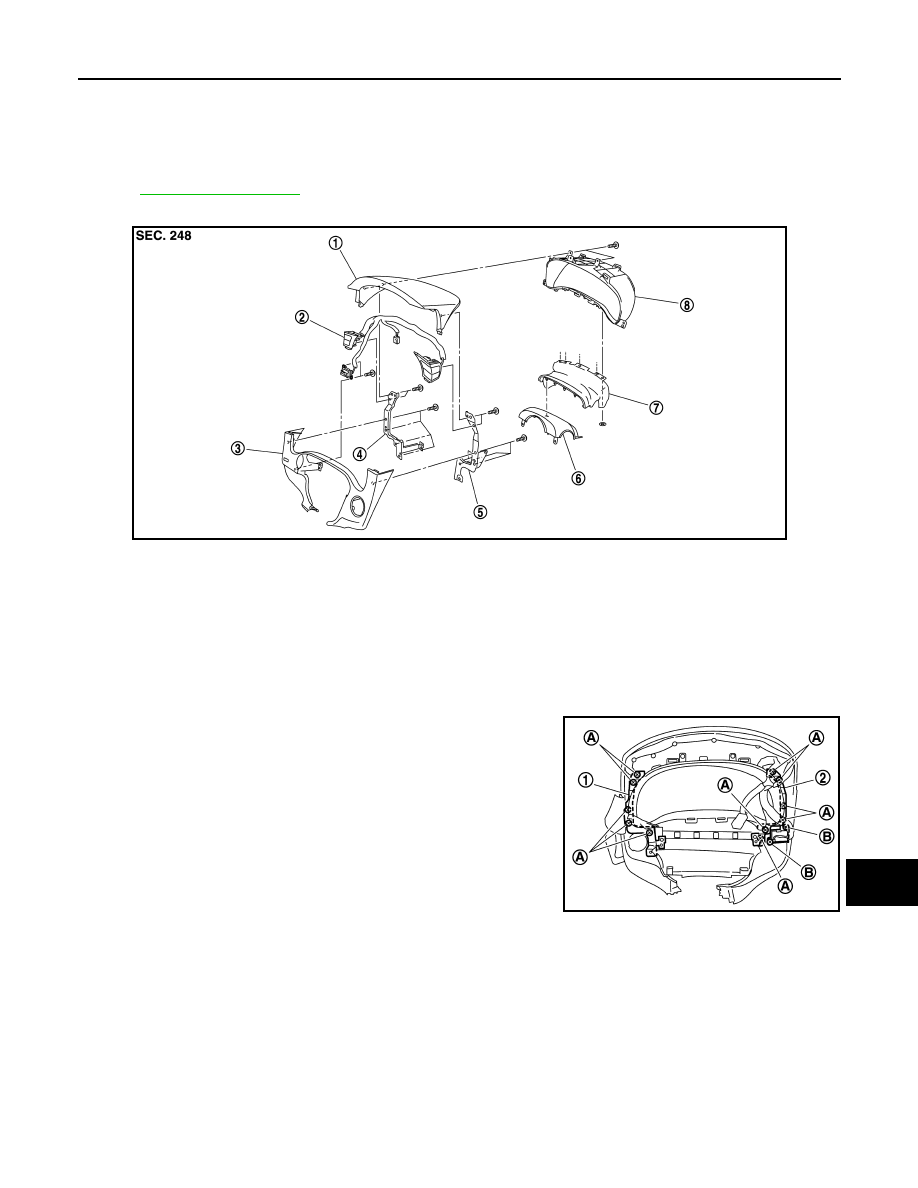

1.

Cluster lid A

2.

Meter control switch

3.

Cluster lid A under cover

4.

Bracket (LH)

5.

Bracket (RH)

6.

Steering column cover upper

7.

Steering column blind

8.

Meter housing

JPNIA0500ZZ

MWI-164

< ON-VEHICLE REPAIR >

COMPASS

COMPASS

Exploded View

INFOID:0000000001606739

Refer to

MIR-48, "Exploded View"

.

Removal and Installation

INFOID:0000000001606740

Refer to

MIR-48, "Removal and Installation"

.

MWI

CLOCK

MWI-165

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CLOCK

Exploded View

INFOID:0000000001606741

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001606742

REMOVAL

1.

Remove cluster lid C assembly. Refer to

IP-12, "Removal and Installation"

.

2.

Remove screws (A), (B), (C) and remove clock (2) in conjunction
with multifunction switch (1) from cluster lid C.

3.

Disengage the tabs to separate clock (2).

INSTALLATION

Install in the reverse order of removal.
NOTE:
Never confuse screws when installing.

JSNIA0107ZZ

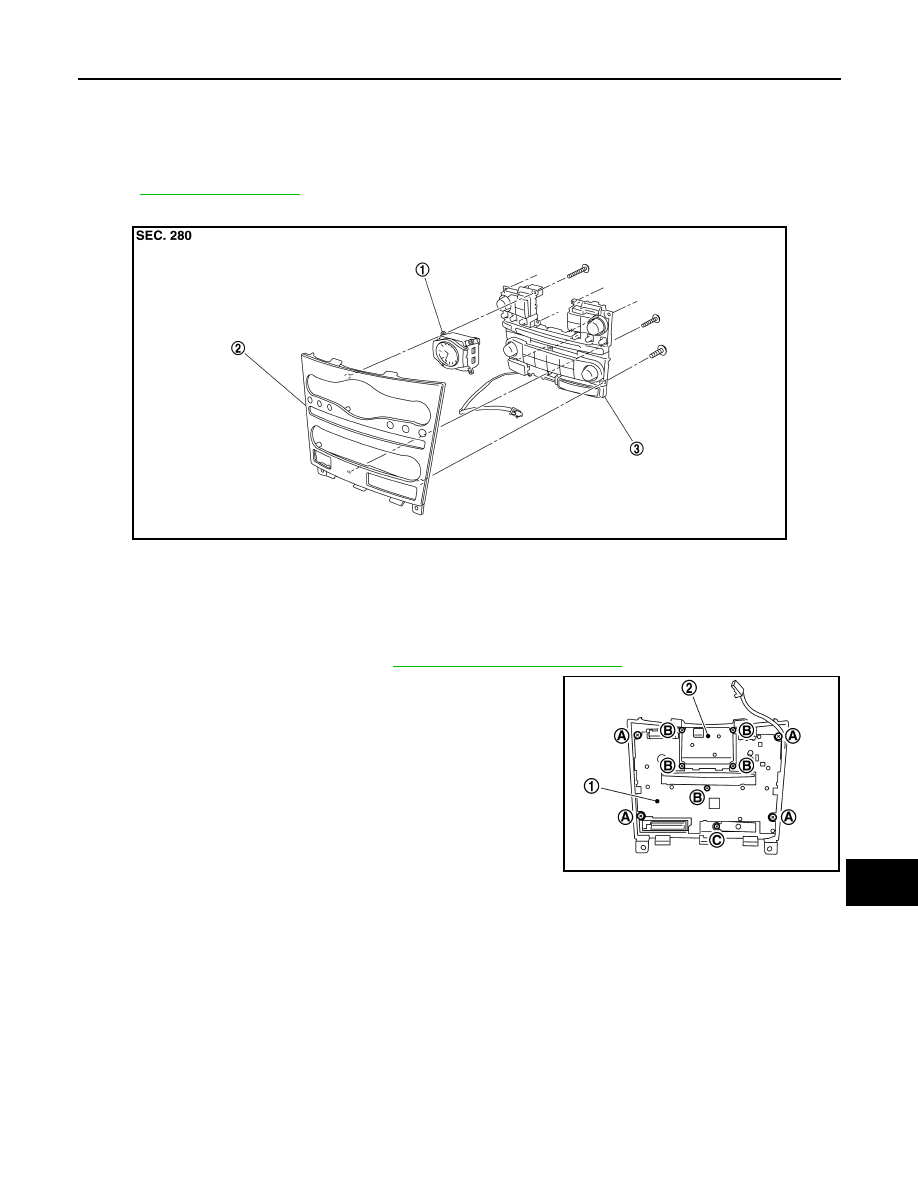

1.

Clock

2.

Cluster lid C

3.

Multifunction switch

JSNIA0108ZZ
