Infiniti G37 Coupe. Manual - part 953





MWI-158

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

COMPASS

COMPASS : Description

INFOID:0000000001606729

COMPASS

• The electronic compass is highly protected from changes in most magnetic fields. However, some large

changes in magnetic fields can affect it. Some examples are (but not limited to): high tension power lines,
large steel buildings, subways, steel bridges, automatic car washes, large piles of scrap metal, etc. While
this does not happen very often, it is possible.

• During normal operation, the Compass Mirror will continuously update the compass calibration to adjust for

gradual changes in the vehicle's magnetic “remnant” field. If the vehicle is subjected to high magnetic influ-
ences, the compass may appear to indicate false headings, become locked, or appear that it is unable to be
calibrated. If this occurs, perform the calibration procedure.

• If at any time the compass continually displays the incorrect direction or the reading is erratic or locked, ver-

ify the correct zone variance.

Symptom Chart

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000001606730

AMBIENT AIR TEMPERATURE

The displayed ambient air temperature on the information display may differ from the actual temperature
because it is a corrected value calculated from the ambient sensor signal by the unified meter and A/C amp.
Refer to

MWI-27, "INFORMATION DISPLAY : System Description"

 for details on the correction process.

POSSIBLE DRIVING DISTANCE

The calculated possible driving distance may differ from the actual distance to empty if the refueling amount is
approximately 15   (4 US gal, 3-3/10 Imp gal) or less. This is because the refuel control (moves the fuel
gauge needle quicker than normal judging that the driver is refueling the vehicle) is not performed in such a
case.

Symptom

Cause

Solution / Reference

The compass display reads “C”.

• Compass is not calibrated.
• Incorrect zone variance setting.
• Large change in magnetic field (Steel

bridges, subways, concentrations of
metal, carwashes, etc.)

• Compass was calibrated incorrectly or in

the presence of a strong magnetic field.

Perform Calibration. Refer to

MWI-32, "De-

scription"

.

Compass shows the wrong direction.

Compass does not change direction ap-
pears “Locked”.

Compass does not show all the directions,
one or more is missing.

The compass was calibrated but it “loses”
calibration.

On long trips the compass shows the
wrong direction.

Perform Zone Variation Setting if correct
reading is desired in that location. Refer
to

MWI-32, "Description"

.

MWI

PRECAUTIONS

MWI-159

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001696925

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

MWI-160

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

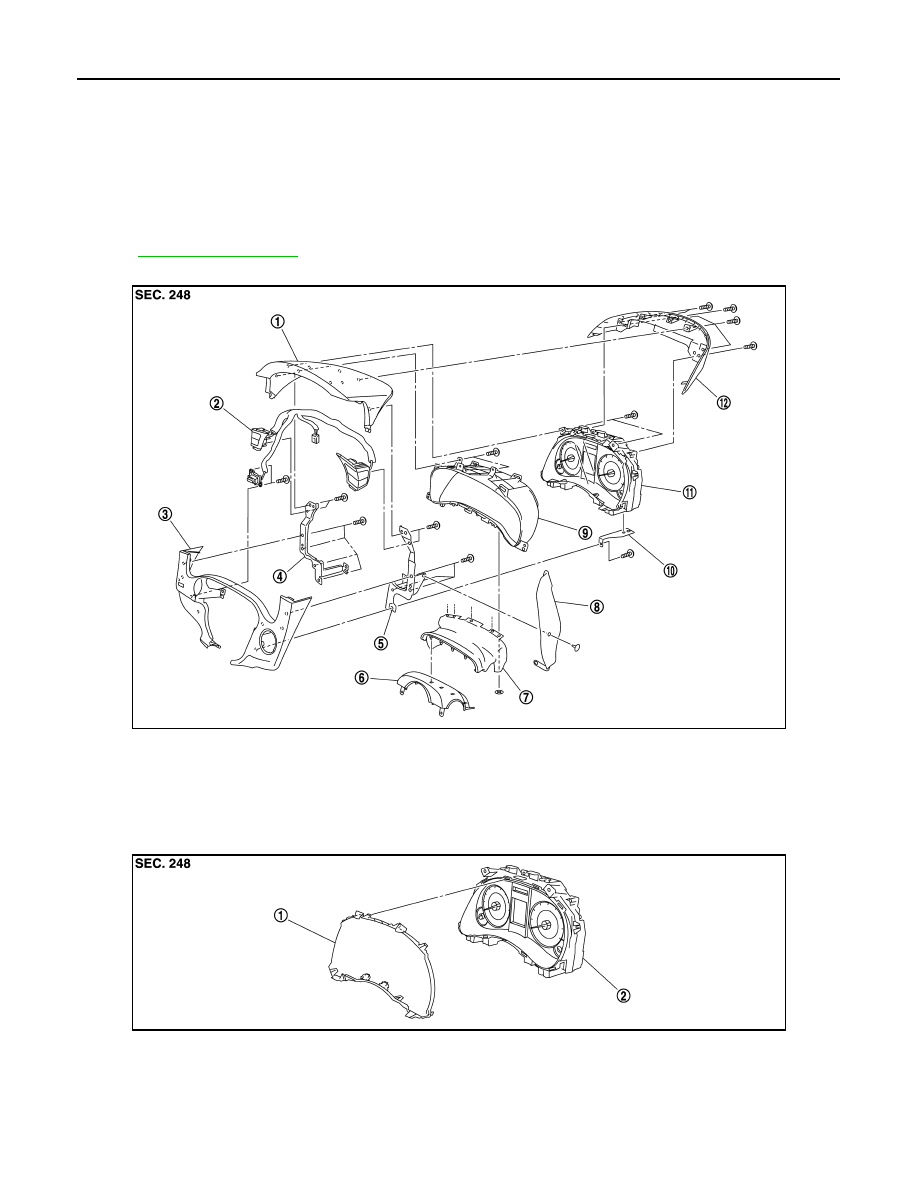

Exploded View

INFOID:0000000001606732

REMOVAL

Cluster lid A assembly

Refer to

IP-11, "Exploded View"

.

Combination meter

DISASSEMBLY

Removal and Installation

INFOID:0000000001606733

REMOVAL

JPNIA0497ZZ

1.

Cluster lid A

2.

Meter control switch

3.

Cluster lid A under cover

4.

Bracket (LH)

5.

Bracket (RH)

6.

Steering column cover upper

7.

Steering column blind

8.

Blind

9.

Meter housing

10. Combination meter stay

11. Combination meter

12. Cluster lid A cover

JSNIA0102ZZ

1.

Front cover

2.

Unified meter control unit

MWI

COMBINATION METER

MWI-161

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

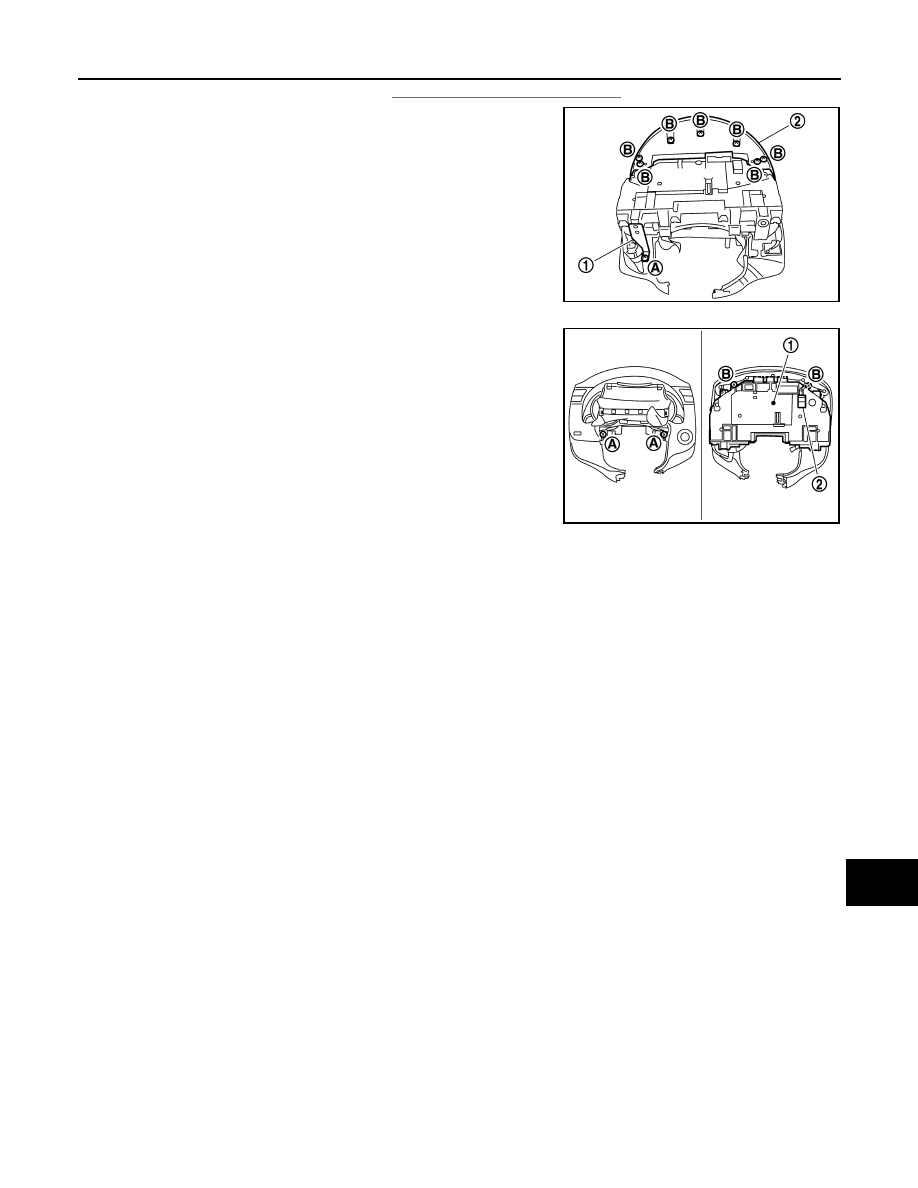

1.

Remove cluster lid A assembly. Refer to

IP-12, "Removal and Installation"

.

2.

Remove screw (A) and remove combination meter stay (1).

3.

Remove screws (B) and remove cluster lid A cover (2).

4.

Remove screws (A), (B) and remove combination meter (1).

5.

Remove meter control switch connector (2) from combination
meter (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001606734

DISASSEMBLY

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA0100ZZ

JSNIA0101ZZ
