Infiniti G37 Coupe. Manual - part 816

INL-98

< ON-VEHICLE REPAIR >

VANITY MIRROR LAMP

VANITY MIRROR LAMP

Exploded View

INFOID:0000000001604858

Replacement

INFOID:0000000001604859

CAUTION:

Disconnect the battery negative terminal or the fuse.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

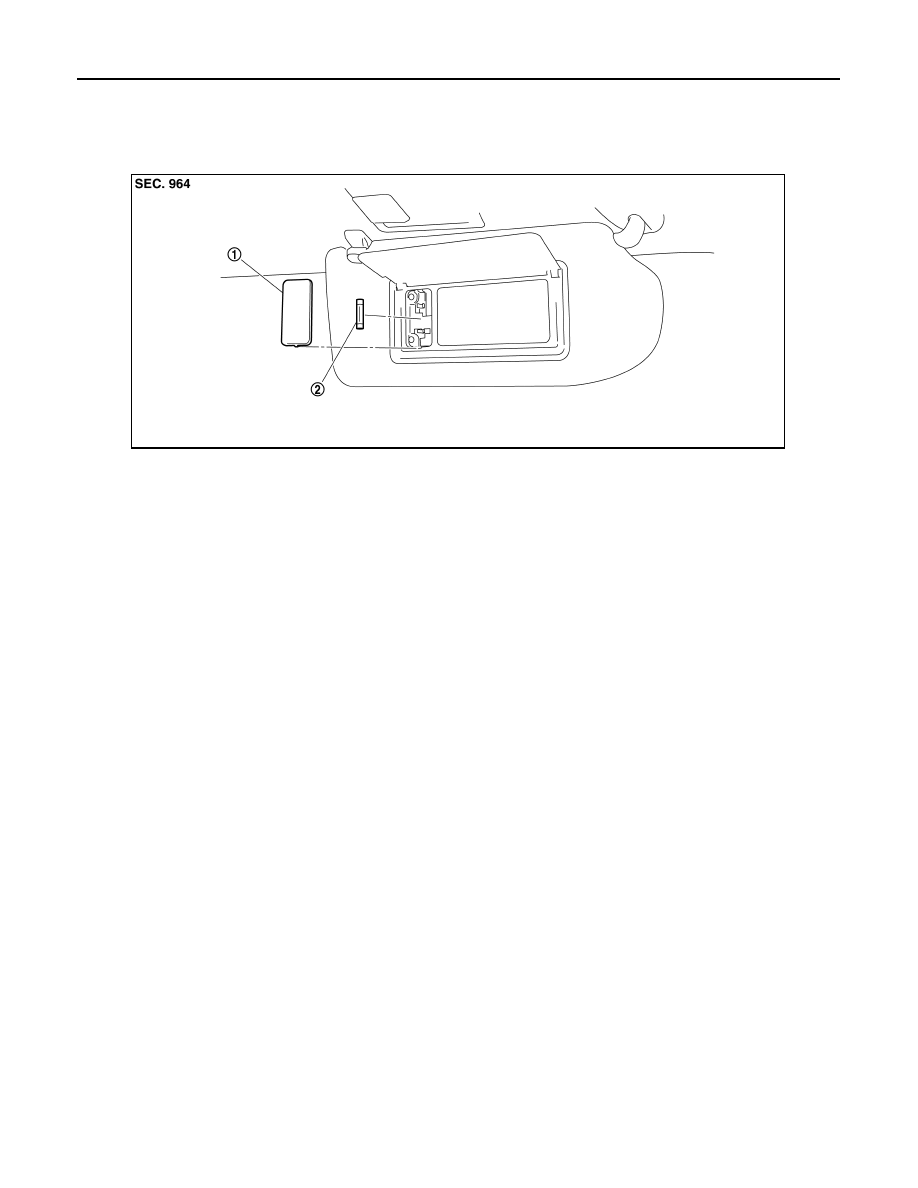

1.

Lens

2.

Bulb

JPLIA0061ZZ

CIGARETTE LIGHTER ILLUMINATION

INL-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

CIGARETTE LIGHTER ILLUMINATION

Exploded View

INFOID:0000000001604860

Replacement

INFOID:0000000001604861

CAUTION:

Disconnect the battery negative terminal or the fuse.

CIGARETTE LIGHTER ILLMINATION BULB

1.

Remove the console finisher. Refer to

IP-23, "Exploded View"

.

2.

Insert any appropriate tool into the gap of the bulb socket. Widen the hook and remove the bulb socket.

3.

Remove the bulb.

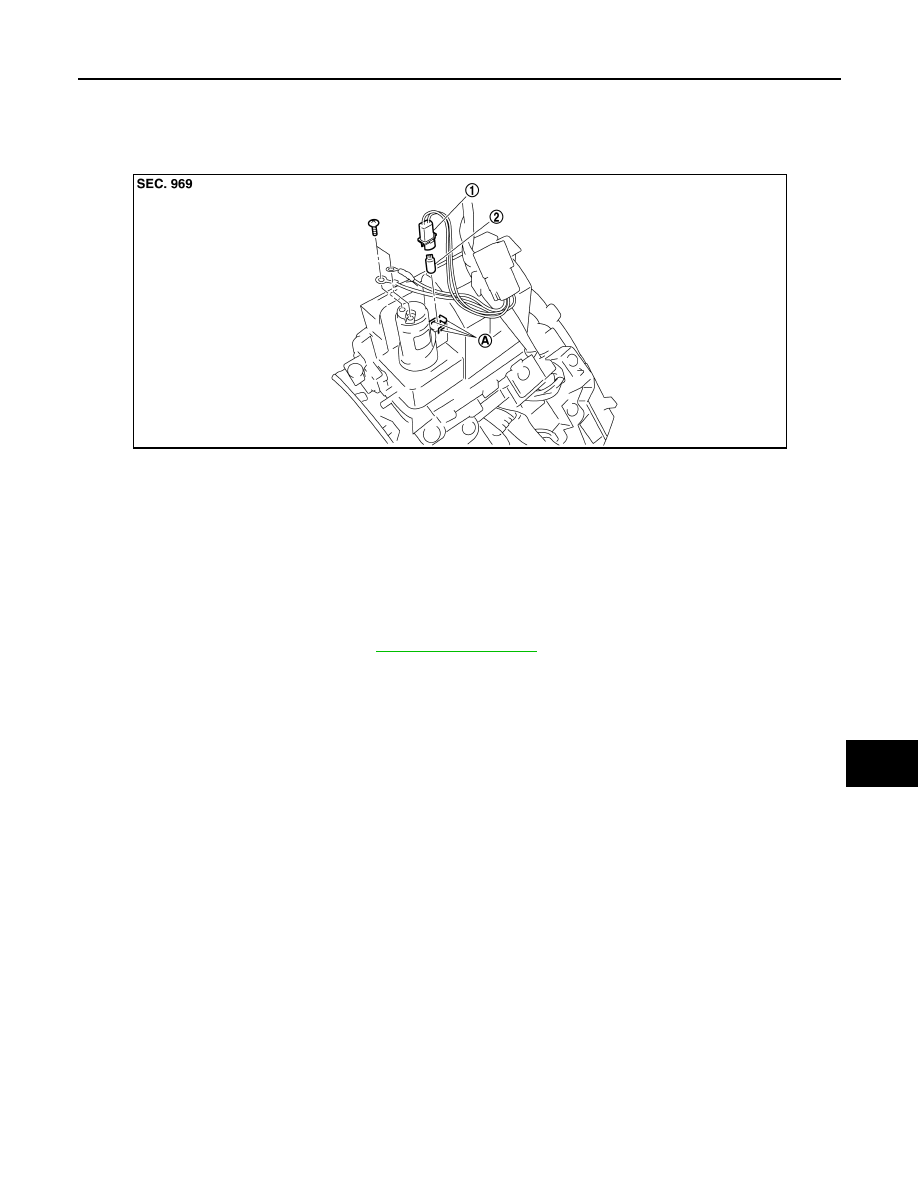

1.

Bulb socket

2.

Bulb
(Share with the ashtray illumination)

A

Hook

JPLIA0068ZZ

INL-100

< ON-VEHICLE REPAIR >

GLOVE BOX LAMP

GLOVE BOX LAMP

Exploded View

INFOID:0000000001604862

Replacement

INFOID:0000000001604863

CAUTION:

Disconnect the battery negative terminal or the fuse.

GLOVE BOX LAMP BULB

1.

Remove the instrument assist lower panel. Refer to

IP-11, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

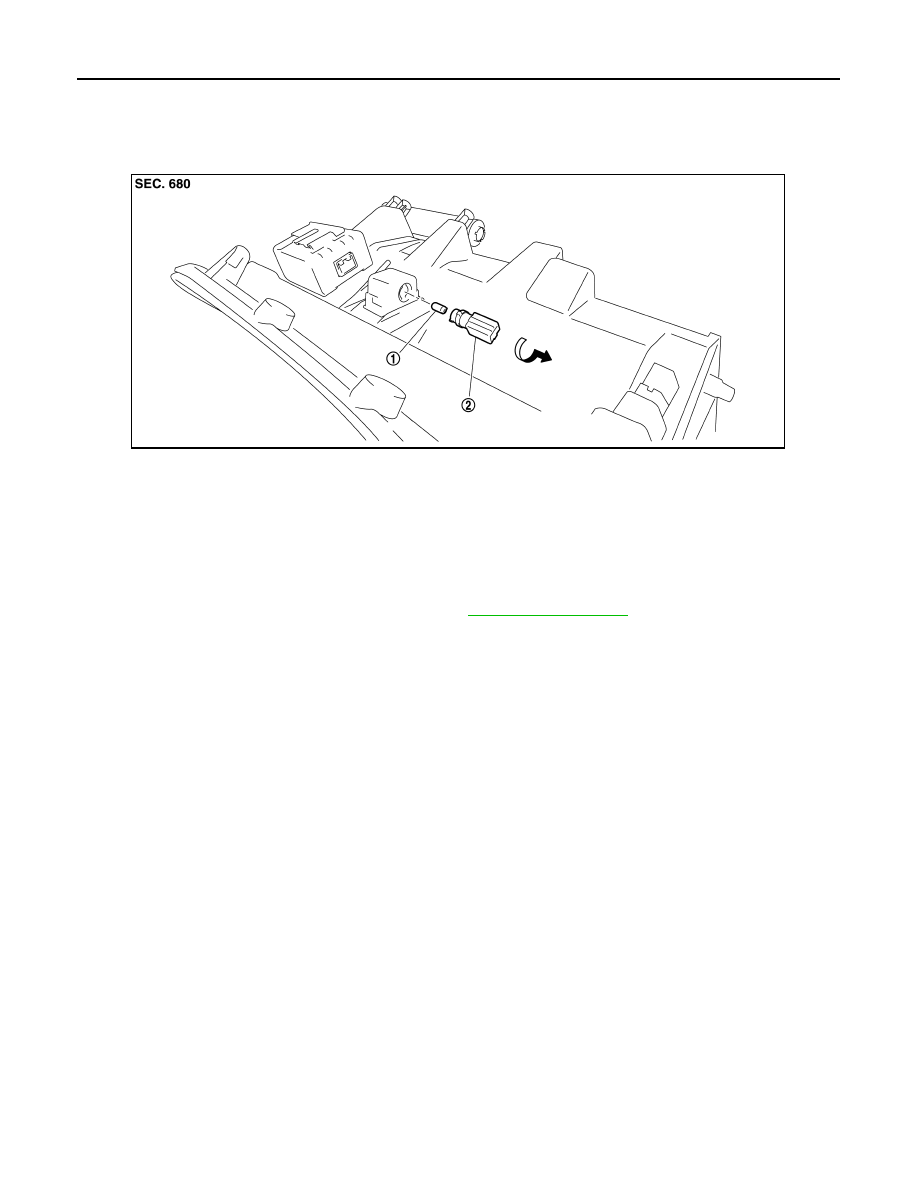

1.

Bulb

2.

Bulb socket

JPLIA0066ZZ

STEP LAMP

INL-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

STEP LAMP

Exploded View

INFOID:0000000001604864

Removal and Installation

INFOID:0000000001604865

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the step lamp and the door trim. Remove the step lamp.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001604866

CAUTION:

Disconnect the battery negative terminal or the fuse.

STEP LAMP BULB

1.

Remove the step lamp.

2.

Remove the lens.

3.

Remove the bulb.

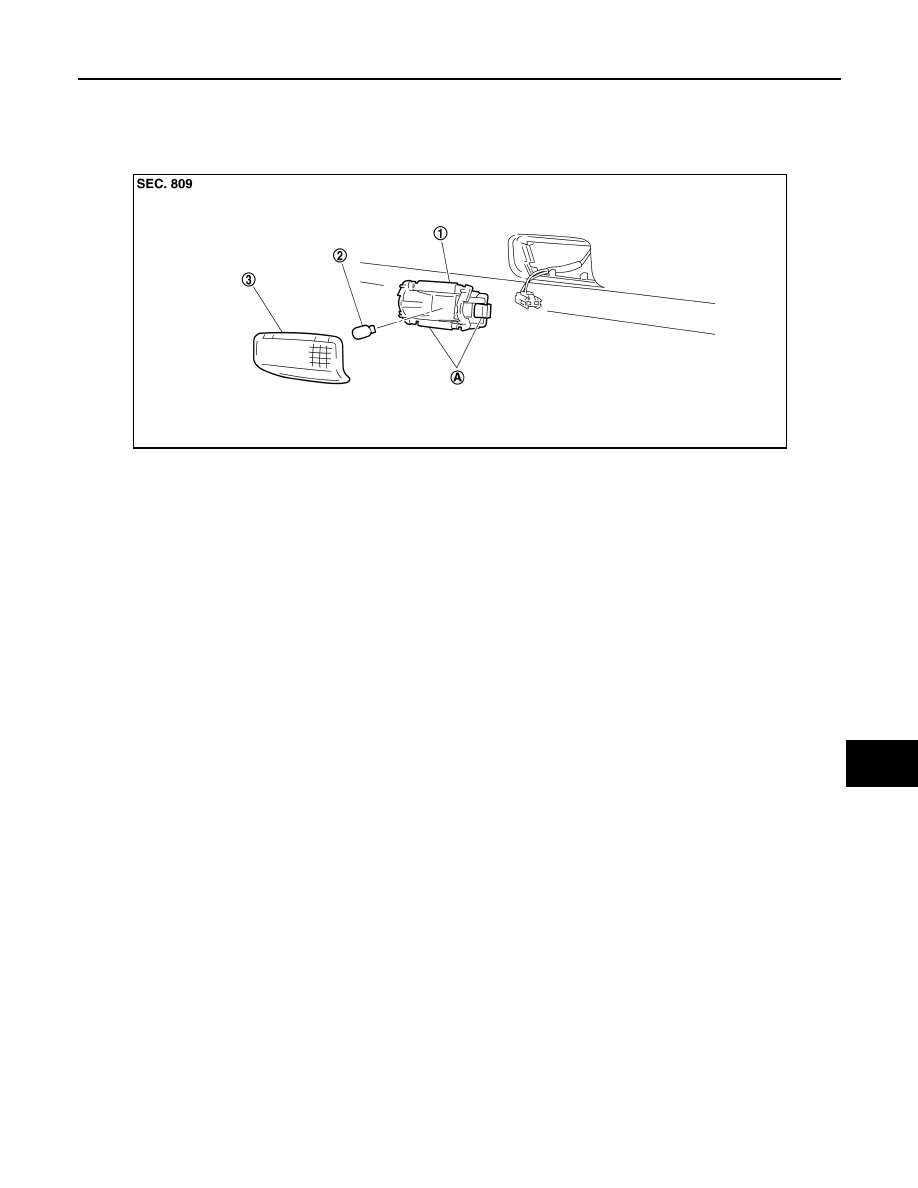

1.

Step lamp case

2.

Bulb

3.

Lens

A

Metal clip

JPLIA0062ZZ
