Infiniti G37 Coupe. Manual - part 712





FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-13

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

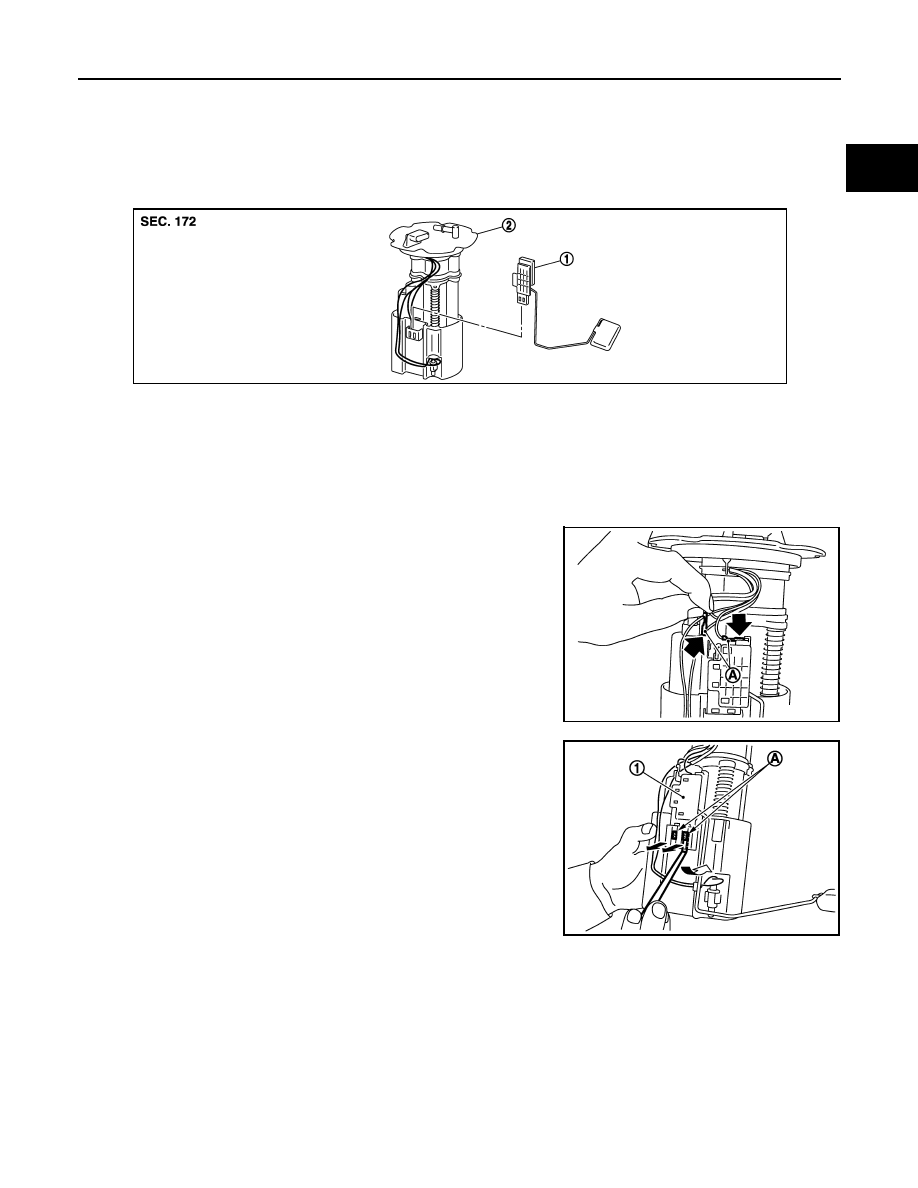

Exploded View

INFOID:0000000001547694

Disassembly

INFOID:0000000001547695

CAUTION:

Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
Remove fuel level sensor unit as follows:
1.

Disconnect harness connector (A).
• Hold connector by fingers and pull it out, because there is no

stopper release tab.

2.

Using suitable tool, pull up tabs points as shown in the figure
(two points) to release the lock.

CAUTION:

Be careful not to damage it.

1.

Fuel level sensor unit

2.

Fuel filter and fuel pump assembly

PBIC1081E

JPBIA0141ZZ

1

: Fuel level sensor unit

A

: Pull up tabs

JPBIA0142ZZ

FL-14

< DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

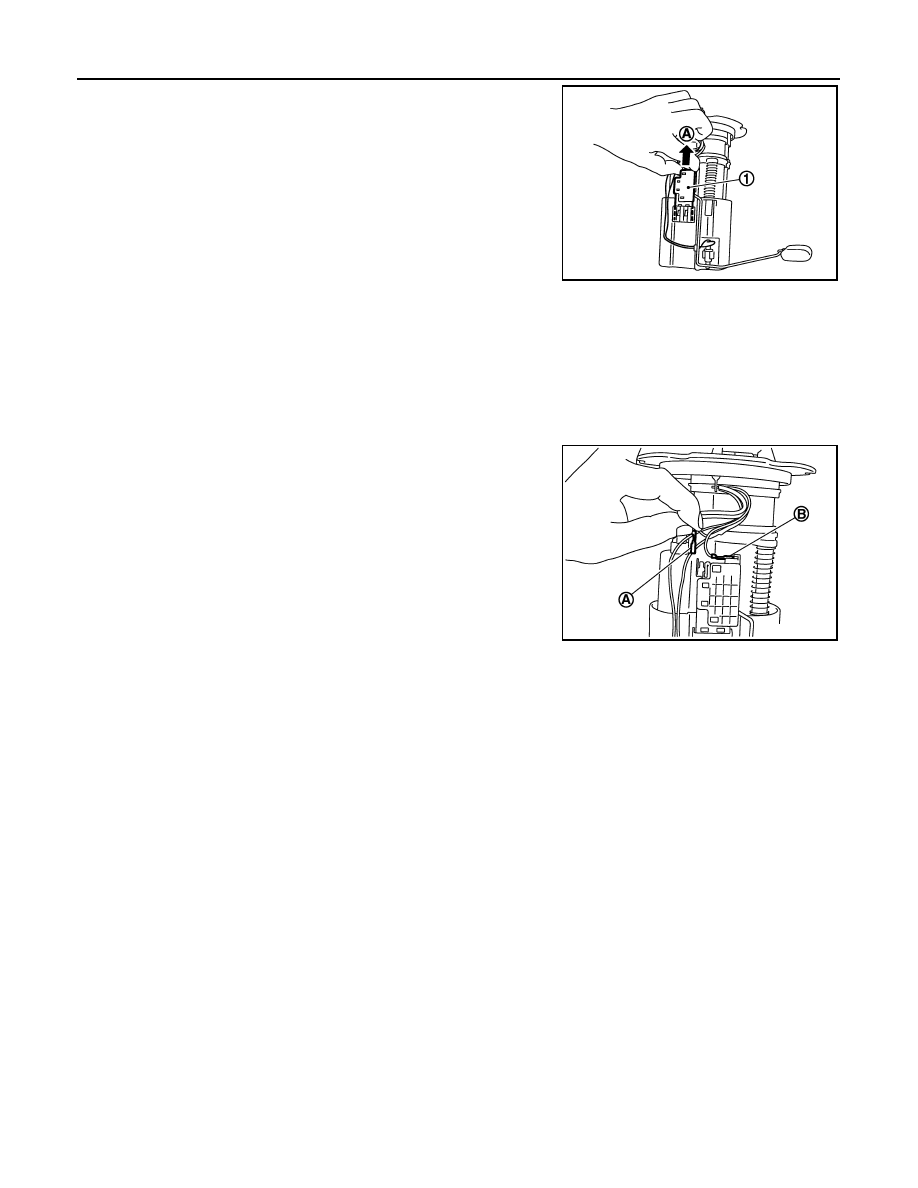

3.

After fixing tabs are disengaged, slide fuel level sensor unit (1)
out in direction shown by the arrow.

CAUTION:

Never disassemble fuel filter and fuel pump assembly.

Assembly

INFOID:0000000001547696

CAUTION:

Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.

1.

Check for damage of fuel level sensor unit installation position on the side of fuel filter and fuel pump
assembly.

2.

Slide fuel level sensor unit until it aligns to installation groove, then insert it until it stops.
• After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.

3.

Connect the black (A) and white (B) harnesses so that they are
in the positions shown in the figure.
• Securely insert harness connector until it stops.

A

:  Pull

JPBIA0143ZZ

PBIC3387E

SERVICE DATA AND SPECIFICATIONS (SDS)

FL-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000001547693

Standard and Limit

Fuel tank capacity

Approx. 76   (20 US gal, 16-3/4 Imp gal)

Fuel recommendation

Refer to

GI-29

FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O

P

CONTENTS

FRONT SUSPENSION

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

3

Precaution for Procedure without Cowl Top Cover

......

4

Precautions for Suspension  ......................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

ON-VEHICLE MAINTENANCE .....................

6

FRONT SUSPENSION ASSEMBLY  ...................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Wheel Alignment Inspection ......................................

7

ON-VEHICLE REPAIR ..................................

8

FRONT COIL SPRING AND SHOCK AB-
SORBER ..............................................................

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

9

Disassembly and Assembly  ......................................

9

Inspection ................................................................

11

TRANSVERSE LINK .........................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

14

Inspection ................................................................

14

UPPER LINK  .....................................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

17

Inspection ................................................................

17

FRONT STABILIZER  ........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

20

Inspection ................................................................

20

FRONT SUSPENSION MEMBER .....................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

22

Inspection ................................................................

22

REMOVAL AND INSTALLATION  ...............

23

FRONT SUSPENSION ASSEMBLY .................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

24

Inspection ................................................................

24

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

25

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

25

Wheel Alignment  .....................................................

25

Ball Joint  ..................................................................

25

Wheel Height  ...........................................................

26
