FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

ON-VEHICLE REPAIR

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

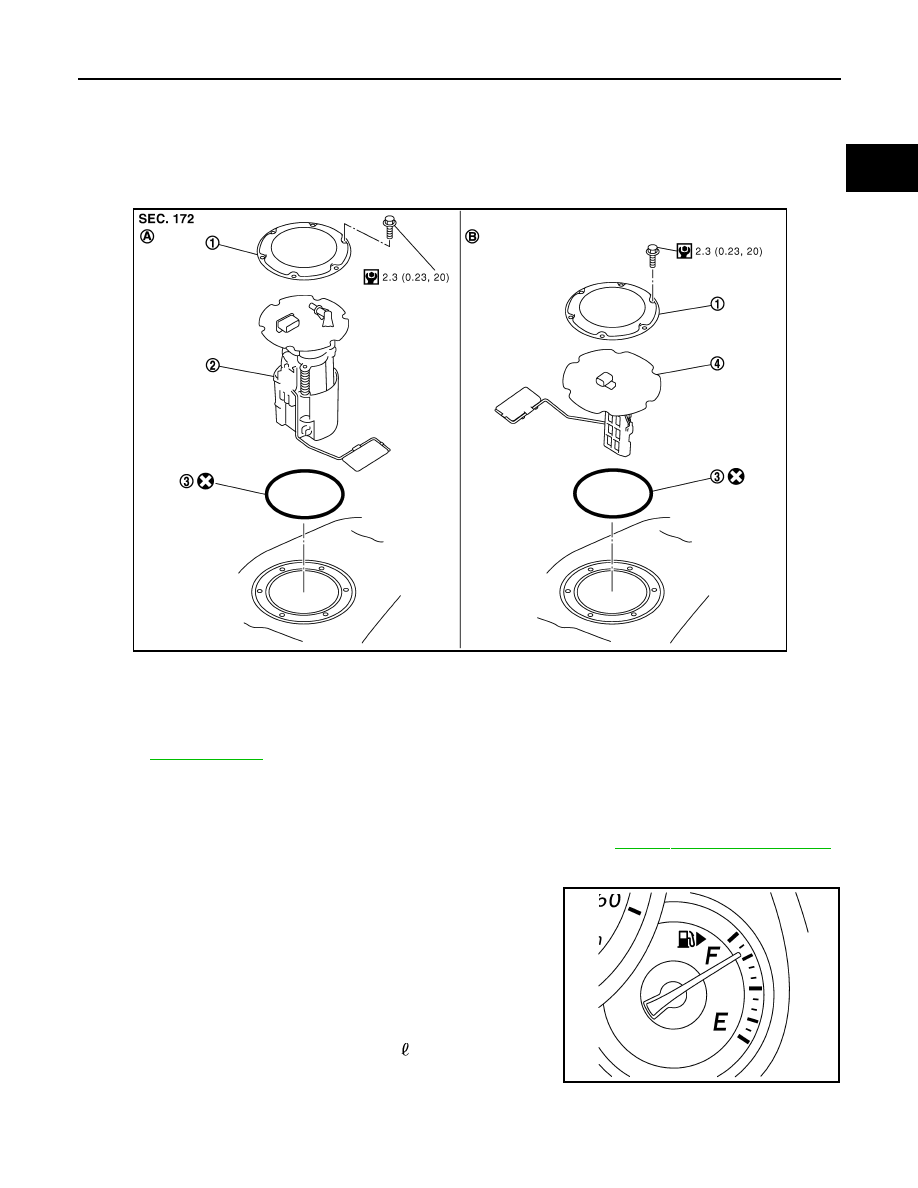

Exploded View

INFOID:0000000001547697

Removal and Installation

INFOID:0000000001547698

WARNING:

Read “General Precautions” when working on the fuel system. Refer to

GI-25, "General Precautions"

.

REMOVAL

1.

Check fuel level on fuel gauge. If fuel gauge indicates more than
the level as shown in the figure (full or almost full), drain fuel
from fuel tank until fuel gauge indicates level as shown in the fig-
ure or below.
NOTE:
Because fuel will be spilled when removing main and sub fuel
level sensor units for the top of the fuel is above the main and
sub fuel level sensor units installation surface.
• As a guide, fuel level becomes the position as shown in the

figure or below when approximately 20   (5-1/4 US gal, 4-3/8
Imp gal) of fuel are drained from fuel tank.

• In a case that fuel pump does not operate, perform the follow-

ing procedure.

1.

Retainer

2.

Main fuel level sensor unit, fuel filter
and fuel pump assembly

3.

O-ring

4.

Sub fuel level sensor unit

A.

Right side

B.

Left side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA0154GB

JPBIA0131ZZ

FL-6

< ON-VEHICLE REPAIR >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

a.

Insert hose of less than 25 mm (0.98 in) in diameter into fuel filler tube through fuel filler opening to draw
fuel from fuel filler tube.

b.

Disconnect fuel filler hose from fuel filler tube. Refer to

FL-10, "Exploded View"

.

c.

Insert fuel tube into fuel tank through fuel filler hose to draw fuel from fuel tank.

2.

Release the fuel pressure from the fuel lines. Refer to

EC-601, "Inspection"

.

3.

Open fuel filler lid.

4.

Open filler cap and release the pressure inside fuel tank.

5.

Remove rear seat cushion. Refer to

SE-160, "Exploded View"

.

6.

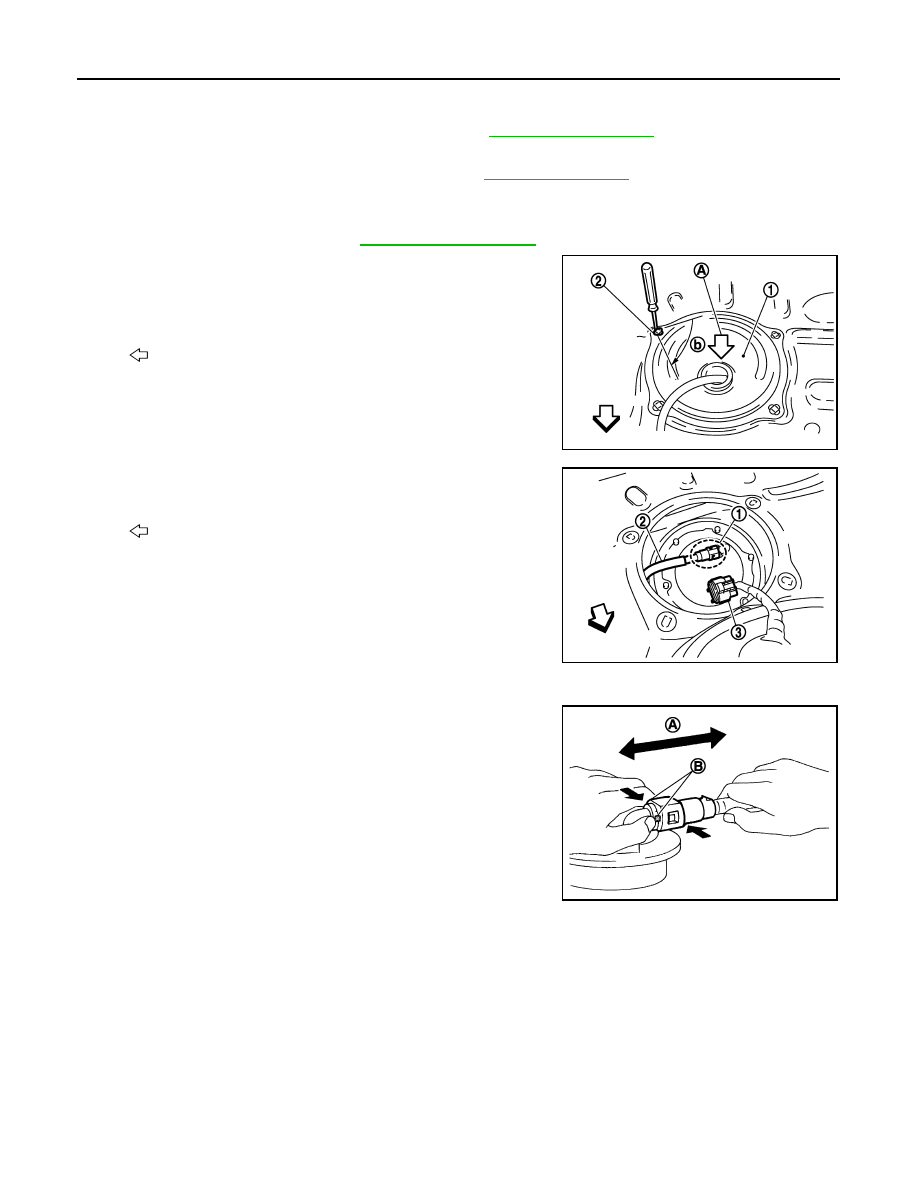

Peel off floor carpet, then remove inspection hole cover (1) units
by turning clips (2) clockwise by 90 degrees.

7.

Disconnect harness connector (3) and fuel feed tube (2).

Disconnect quick connector as follows:

• Hold the sides of connector, push in tabs and pull out fuel feed

tube.

• If quick connector sticks to tube of main fuel level sensor unit,

push and pull quick connector several times until they start to
move.Then disconnect them by pulling.

CAUTION:

A

: Direction mark

b

:  90

°

: Vehicle front

Right side

: Main fuel level sensor unit, fuel filter
and fuel pump assembly

Left side

: Sub fuel level sensor unit

JPBIA0132ZZ

1

: Quick connector

: Vehicle front

JPBIA0133ZZ

A

:  Pull

B

: Push in tabs

JPBIA0134ZZ

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

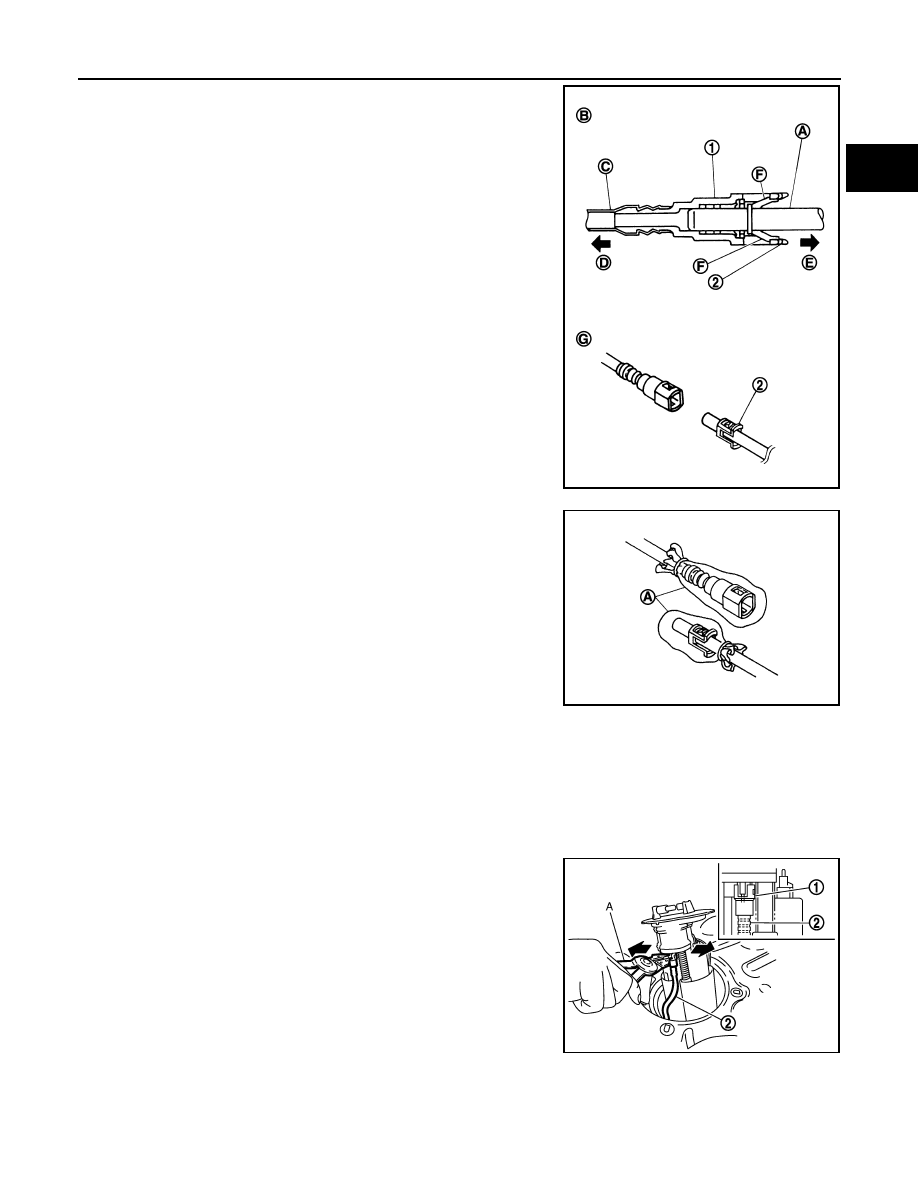

• Quick connector (1) can be disconnected when the tabs

(F) are completely depressed. Never twist it more than
necessary.

• Never use any tools to disconnected quick connector.
• Keep resin tube (C) away from heat. Be especially careful

when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from

getting on resin tube.

• Never bend or twist resin tube during installation and dis-

connection.

• Never remove the remaining retainer (2) on hard tube (or

the equivalent) (A) except when resin tube or retainer is
replaced.

• When resin tube or hard tube (or the equivalent) is

replaced, also replace retainer with new one.

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with
plastic bags (A) or something similar.

8.

Remove main fuel level sensor unit, fuel filter and fuel pump assembly, and sub fuel level sensor unit as
follows:

CAUTION:

• Never bend float arm during removal.
• Avoid impacts such as falling when handling components.

a.

Removal of main fuel level sensor unit, fuel filter and fuel pump assembly:

i.

Remove retainer.

ii.

Raise main fuel level sensor unit, fuel filter and fuel pump
assembly, and using snap ring pliers (A), remove fuel hose con-
nector (1).

CAUTION:

Be careful not to damage fuel hose connector by expanding
them excessively.

b.

Removal of sub fuel level sensor unit:

i.

Remove retainer.

ii.

Raise and release sub fuel level sensor unit to remove.

INSTALLATION

Note to the following, and install in the reverse order of removal.

Fuel hose

B

: Connection (Cross-section)

D

: To under floor fuel line

E

: To fuel tank

G

: Disconnection

Retainer color: Green

JPBIA0130ZZ

JPBIA0135ZZ

2

: Fuel hose

JPBIA0136ZZ

FL-8

< ON-VEHICLE REPAIR >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

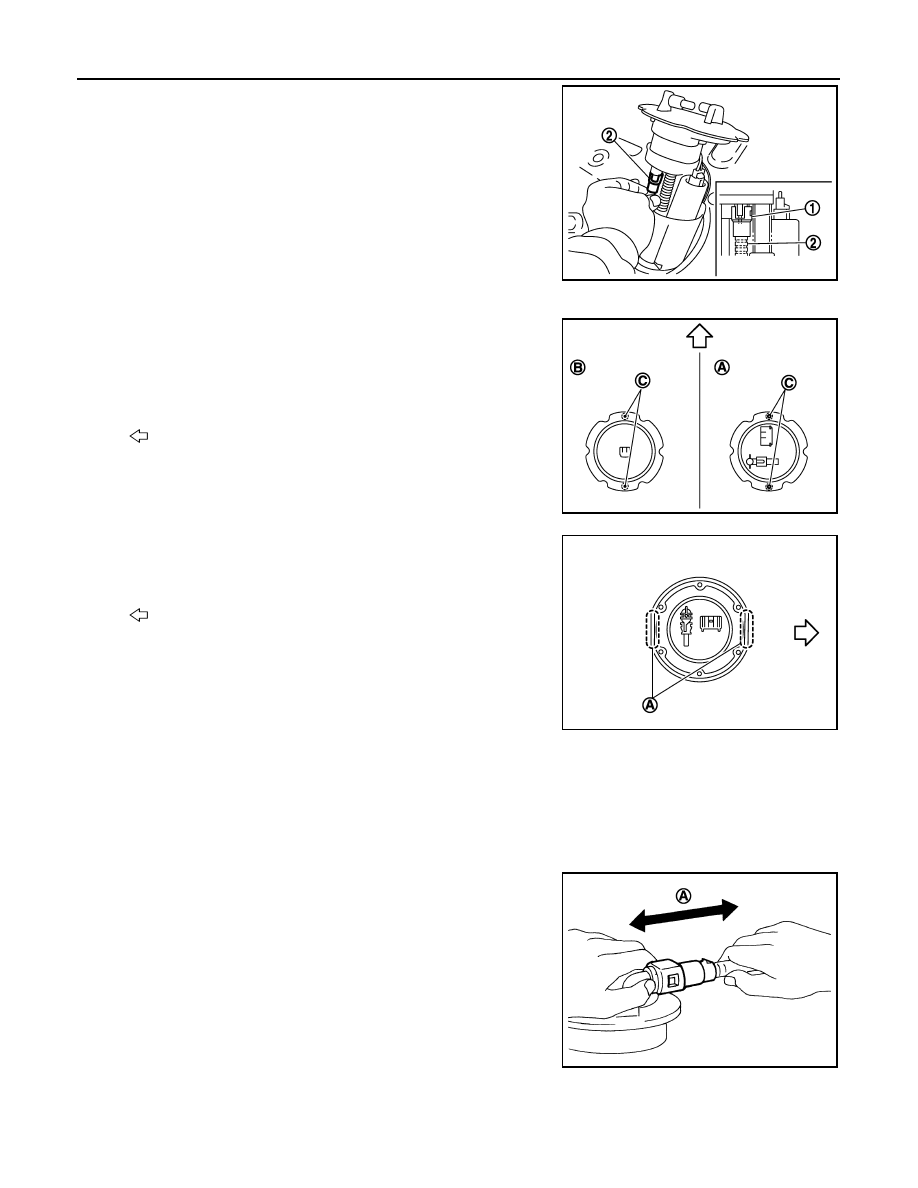

• When installing fuel hose connector (1) insert them fully until a

click sound of full stopper engagement is heard.

Main and Sub Fuel Level Sensor Unit

• Face main and sub fuel level sensor units as shown in the figure,

and install them with the knock pin (C) on back aligned with pin
hole on fuel tank.

• Install retainer so that its notch becomes parallel with the notch on

fuel tank.

• Tighten retainer mounting bolts evenly.

Quick Connector

• Connect quick connector as follows:

1.

Check the connection for damage or any foreign materials.

2.

Align the connector with the tube, then insert the connector straight into the tube until a click sound is
heard.

3.

After connecting, check that the connection is secure by following method.
• Pull the tube and the connector to check they are securely

connected.

• Visually confirm that the two retainer tabs are connected to the

connector.

Inspection

INFOID:0000000001547699

INSPECTION AFTER INSTALLATION

2

: Fuel hose

JPBIA0137ZZ

A

: Right side

B

: Left side

: Vehicle front

JPBIA0138ZZ

A

: Align notches

: Vehicle front

JPBIA0139ZZ

A

:  Pull

JPBIA0140ZZ
