Infiniti G37 Coupe. Manual - part 339





CO-6

< PRECAUTION >

PRECAUTIONS

3.

Attach liquid gasket tube to the tube presser (commercial ser-
vice tool).
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

4.

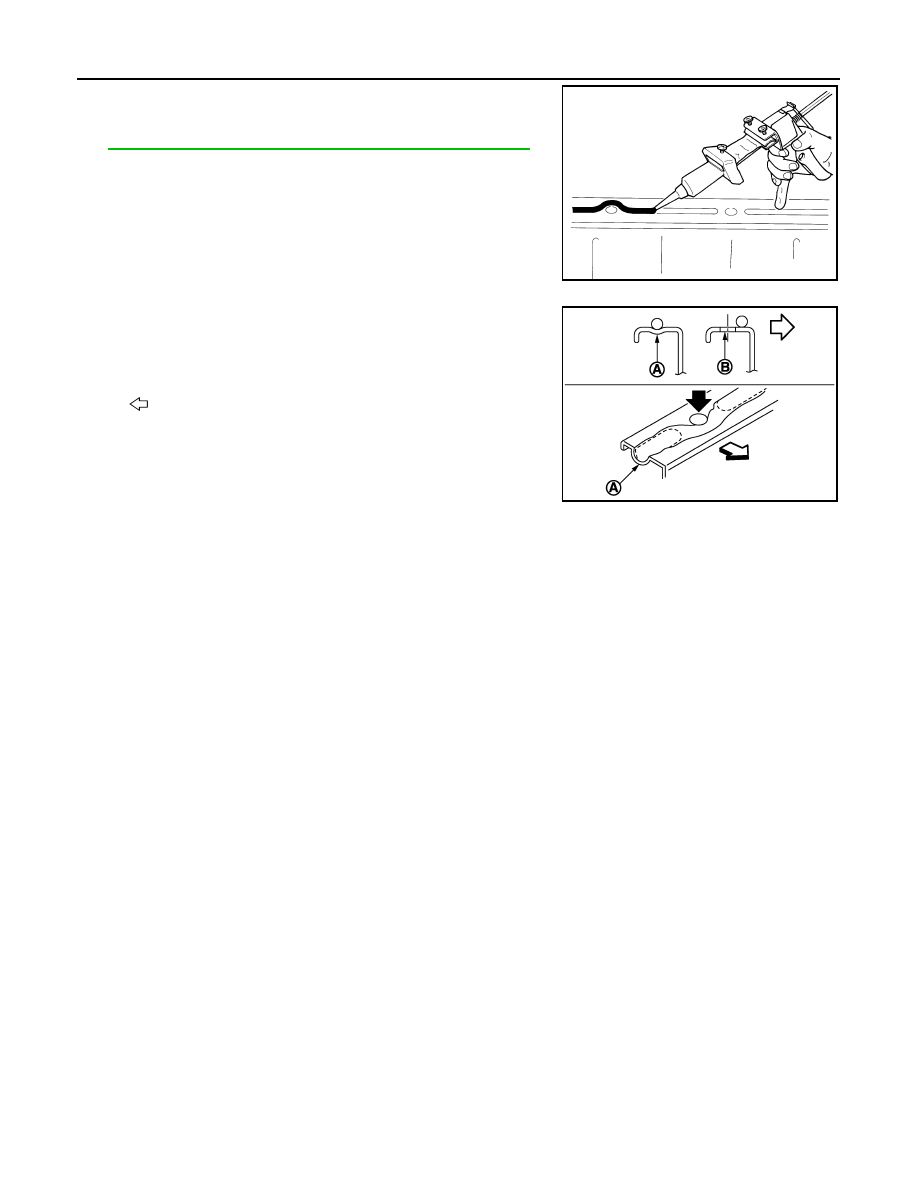

Apply liquid gasket without breaks to the specified location with
the specified dimensions.
• If there is a groove for the liquid gasket application, apply liq-

uid gasket to the groove.

• As for the bolt holes (B), normally apply liquid gasket inside

the holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten after mounting bolts and nuts the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

EMA0622D

A

:  Groove

: Inside

JPBIA0010ZZ

PREPARATION

CO-7

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000001547687

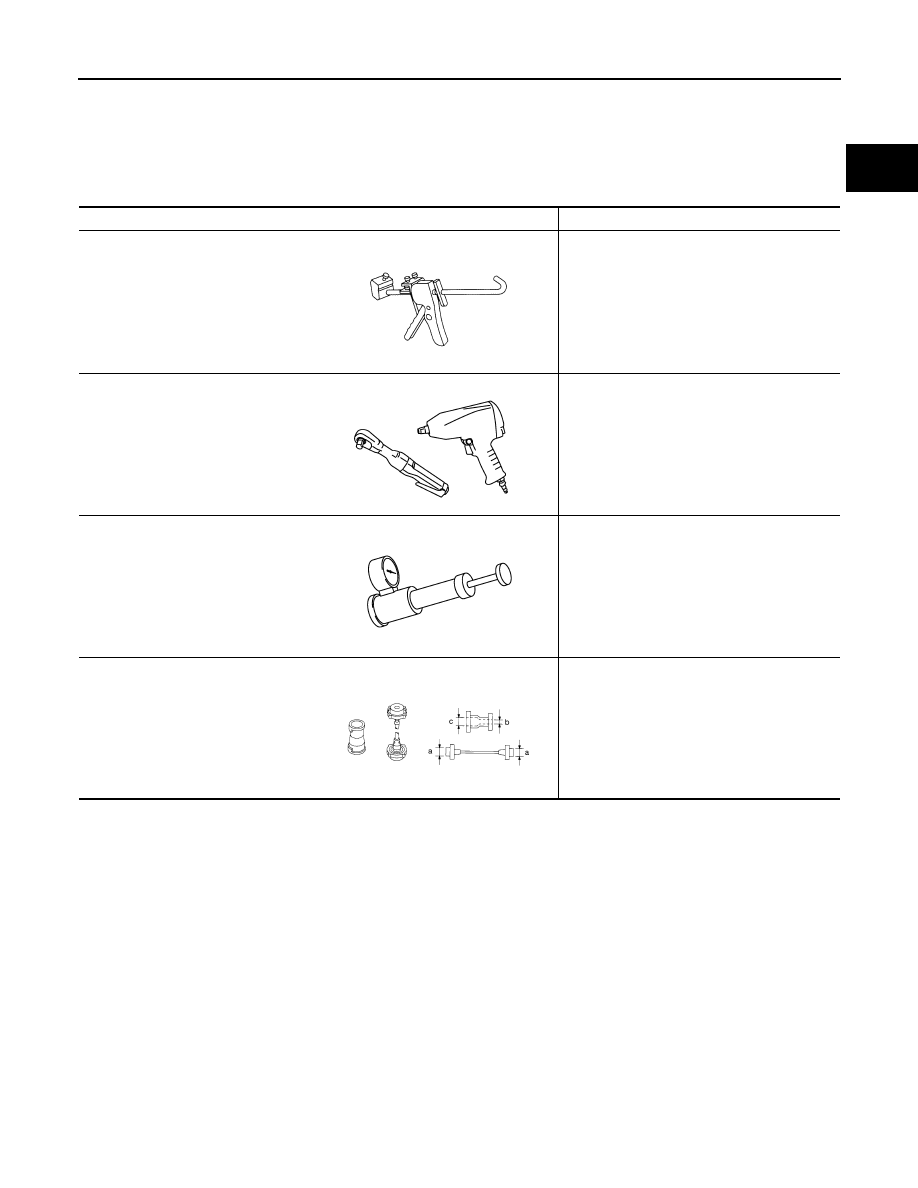

Tool name

Description

Tube presser

Pressing the tube of liquid gasket

Power tool

Loosening nuts and bolts

Radiator cap tester

Checking radiator and radiator cap

Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and water outlet (front) filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

S-NT052

PBIC0190E

PBIC1982E

S-NT564

CO-8

< ON-VEHICLE MAINTENANCE >

ENGINE COOLANT

ON-VEHICLE MAINTENANCE

ENGINE COOLANT

Inspection

INFOID:0000000001547680

LEVEL

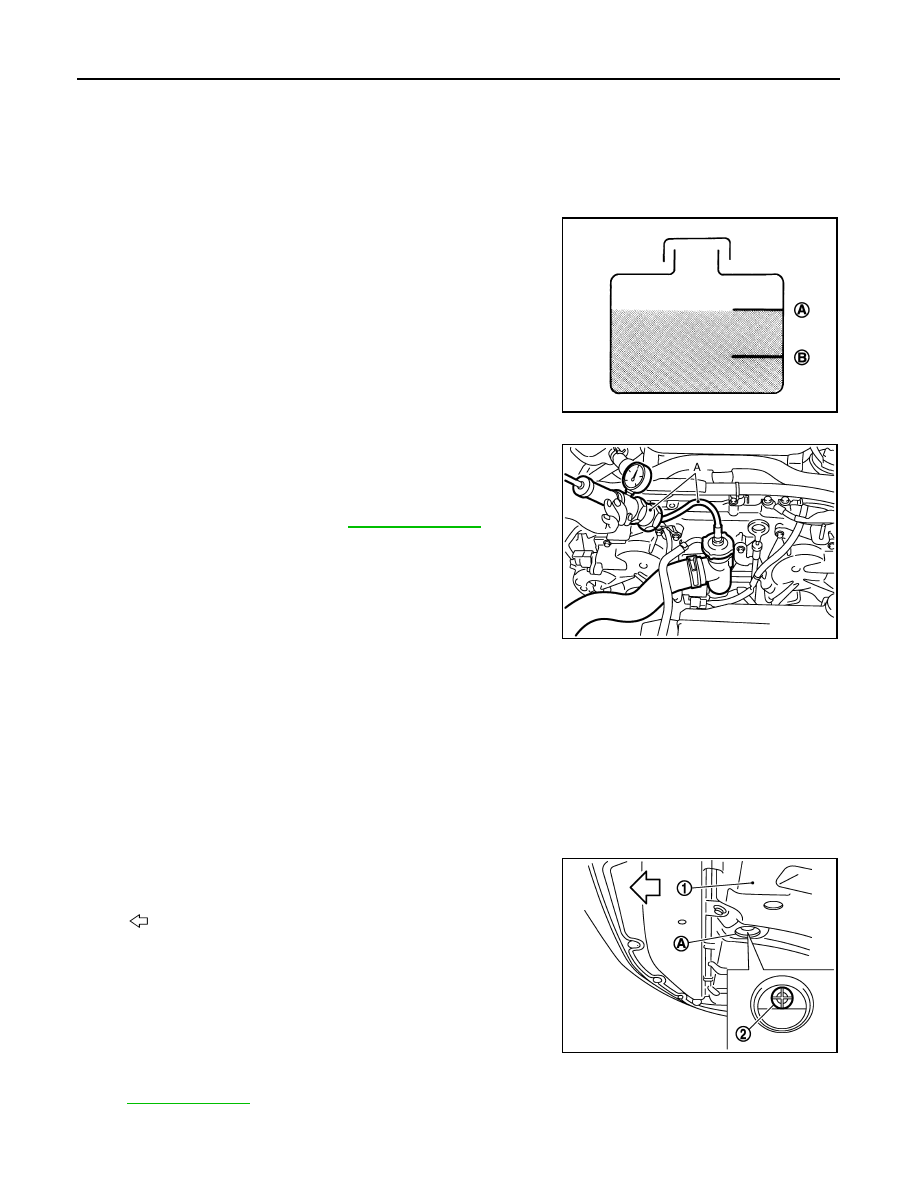

• Check if the reservoir tank engine coolant level is within the “MIN”

to “MAX” when the engine is cool.

• Adjust the engine coolant level as necessary.
• Check that the reservoir tank cap is tightened.

LEAKAGE

• To check for leaks, apply pressure to the cooling system with the

radiator cap tester and radiator cap tester adapter (commercial
service tool) (A).

WARNING:

Never remove radiator cap when engine is hot. Serious burns
could occur from high-pressure engine coolant escaping from
radiator.

CAUTION:

Higher test pressure than specified may cause radiator dam-
age.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

• If anything is found, repair or replace damaged parts.

Draining

INFOID:0000000001547681

WARNING:

• To avoid being scalded, never change engine coolant when the engine is hot.
• Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a

quarter of a turn to release built-up pressure. Then turn radiator cap all the way.

1.

Open radiator drain plug (2) at the bottom of radiator, and then remove radiator cap.

When draining all of engine coolant in the system, open water drain plugs on cylinder block. Refer
to

EM-72, "Setting"

.

2.

Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.

A

:  MAX

B

:  MIN

JPBIA0102ZZ

Testing pressure

: Refer to

CO-26, "Radiator"

.

JPBIA0411ZZ

1

: Engine under cover

A

: Radiator drain plug hole

: Vehicle front

JPBIA0259ZZ

ENGINE COOLANT

CO-9

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

3.

Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to

CO-10, "Flushing"

.

Refilling

INFOID:0000000001547682

1.

Remove air cleaner case (LH). Refer to

EM-26, "Exploded View"

.

2.

Install reservoir tank if removed, and radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

If water drain plugs on cylinder block are removed, close and tighten them. Refer to

EM-110,

"Exploded View"

.

3.

Check that each hose clamp has been firmly tightened.

4.

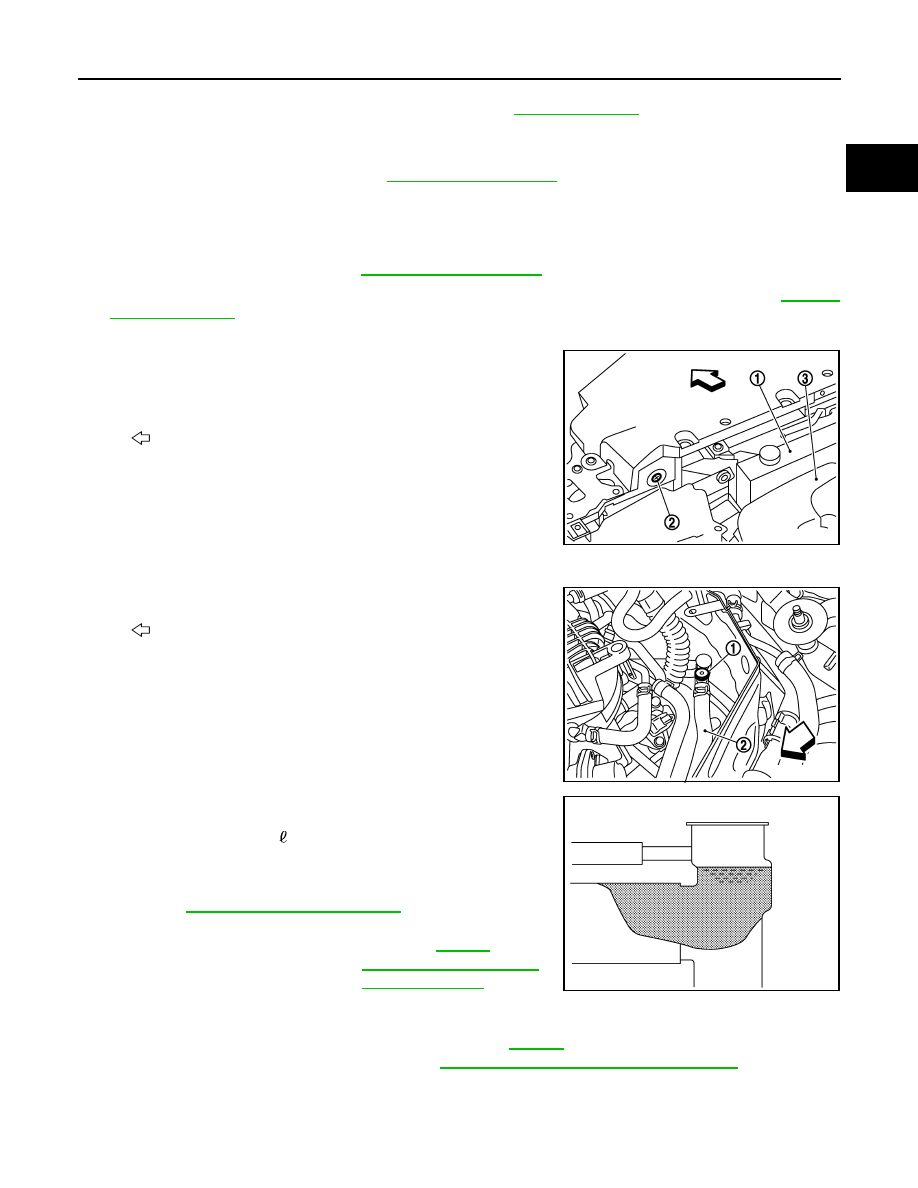

Remove air relief plug (2) on radiator left side.

5.

Remove air relief plug (1) on heater hose.

6.

Fill radiator, and reservoir tank if removed, to specified level.
• Pour engine coolant through engine coolant filler neck

slowly of less than 2  (2-1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.

• Use Genuine NISSAN Long Life Antifreeze/Coolant or

equivalent mixed with water (distilled or demineralized).
Refer to

MA-10, "Fluids and Lubricants"

.

Tightening torque

: Refer to

CO-14, "Exploded View"

.

1

: Reservoir tank

3

: Engine cover

: Vehicle front

JPBIA0260ZZ

2

: Heater hose

: Vehicle front

JPBIA0104ZZ

Engine coolant capacity

: Refer to

CO-26,

"Periodical Maintenanc
e Specification"

.

(With reservoir tank at
“MAX” level)

JPBIA0412ZZ

Reservoir tank engine coolant capacity

:Refer to

CO-26,

"Periodical Maintenance Specification"

(At “MAX” level)
