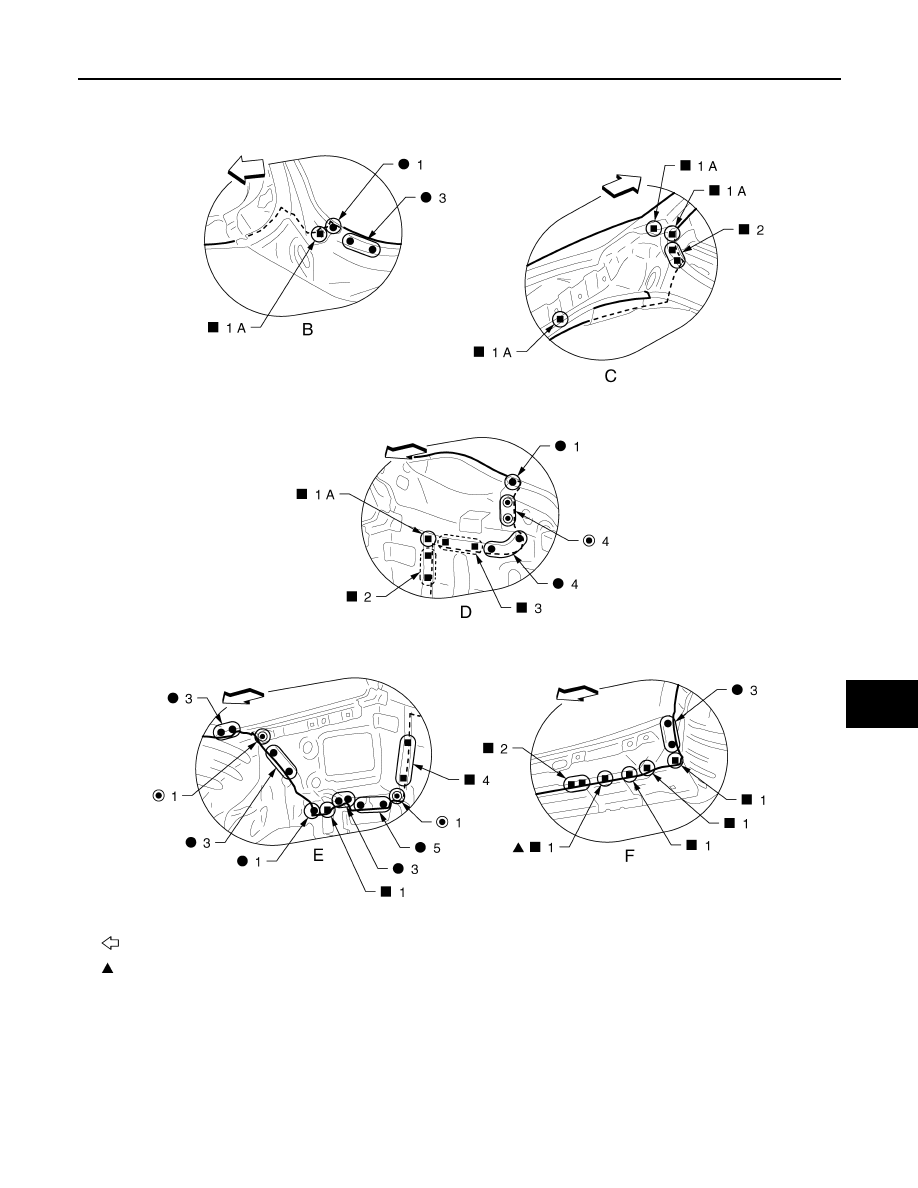

INSTALLATION NOTES

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength plate).

JSKIA0387GB

BRM-50

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

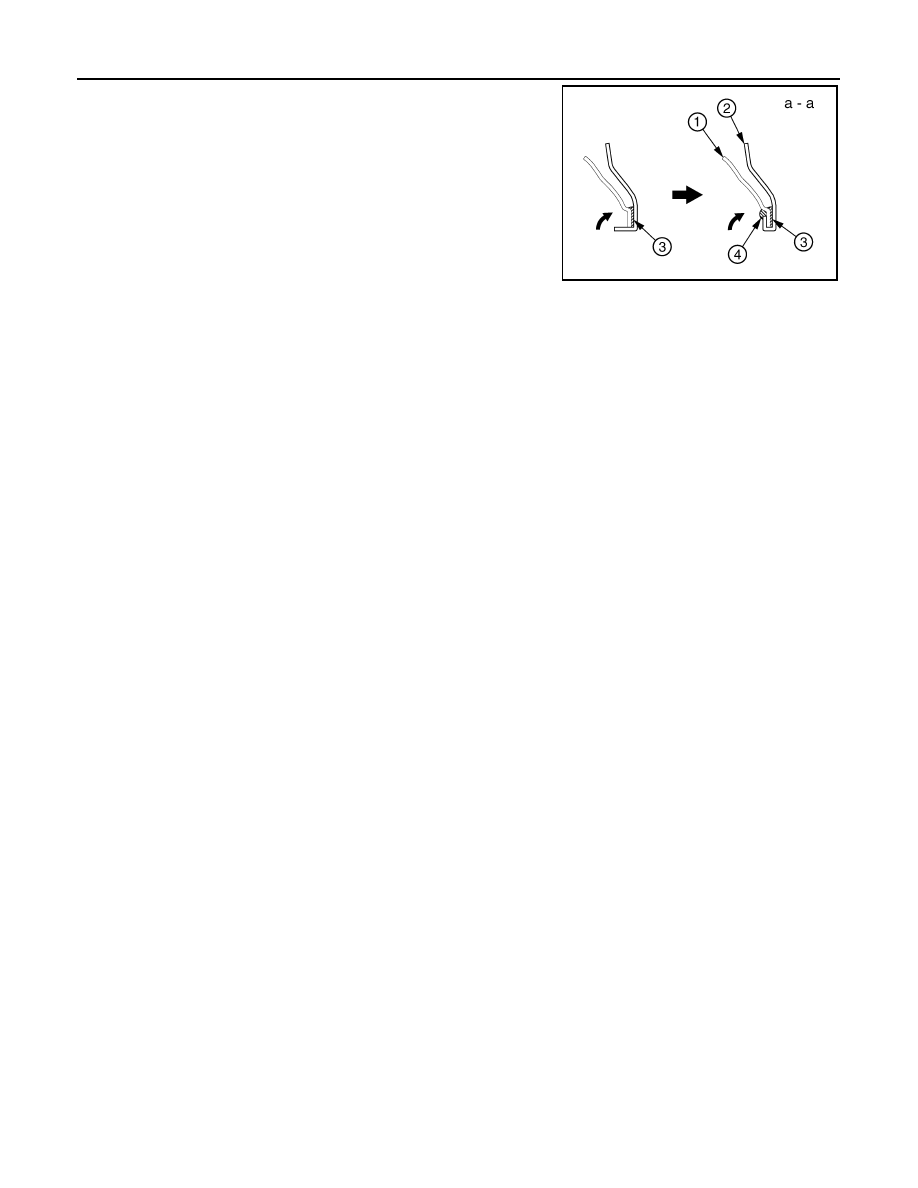

• Apply the adhesive to the flange of wheel arch and hem it.
• Seal up the area around the hemmed end of the flange.
• Refer to

″

Rear fender hemming process

″

.

Lock Pillar Reinforcement

INFOID:0000000001672412

Work after roof and rear fender have been removed.

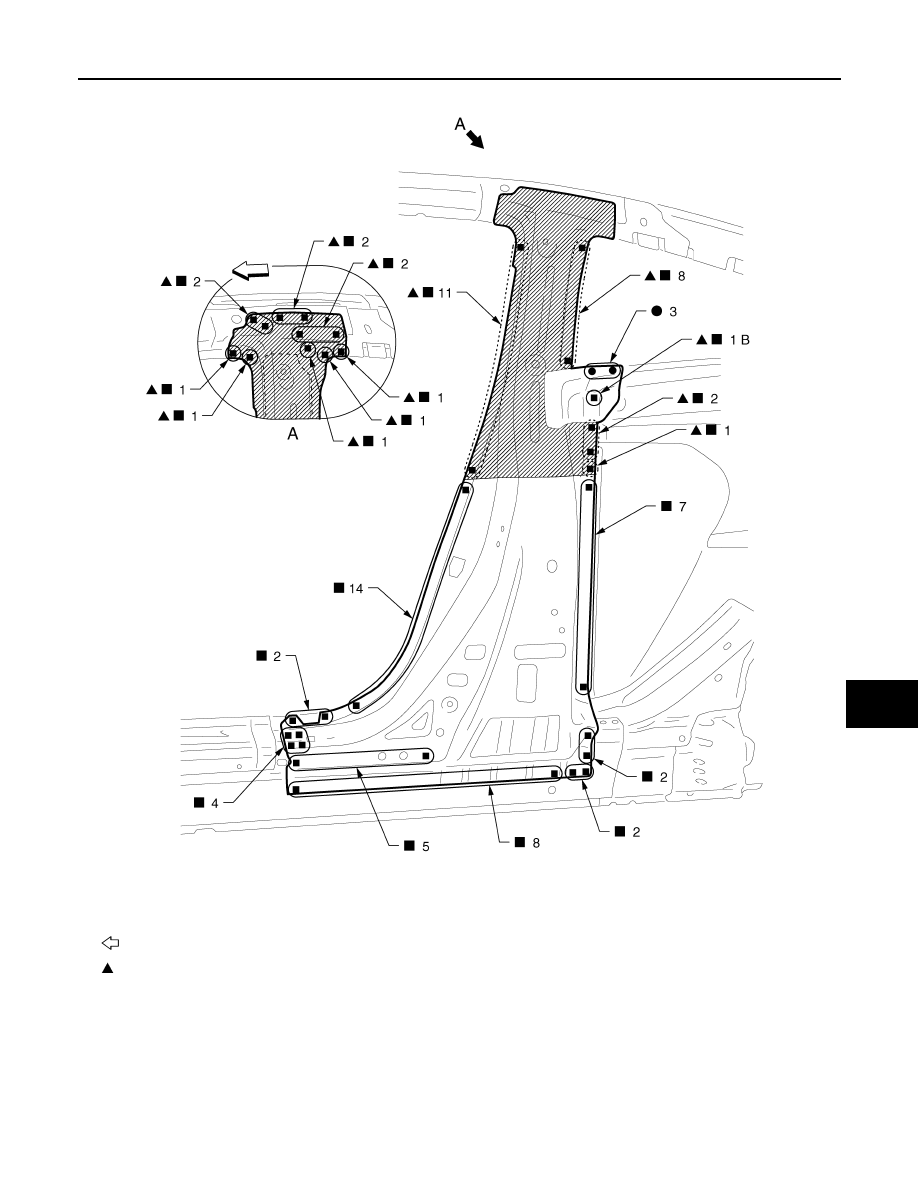

Never cut and joint the shaded area (see Figure) of lock pillar reinforcement, because it is made of ultra high
strength steel plate.

1.

Outer rear wheelhouse

2.

Rear fender

3.

Adhesive

4.

Sealant

JSKIA0204GB

REPLACEMENT OPERATIONS

BRM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Lock Pillar Reinforcement (Partial Replacement)

INFOID:0000000001728852

Work after rear fender have been removed.

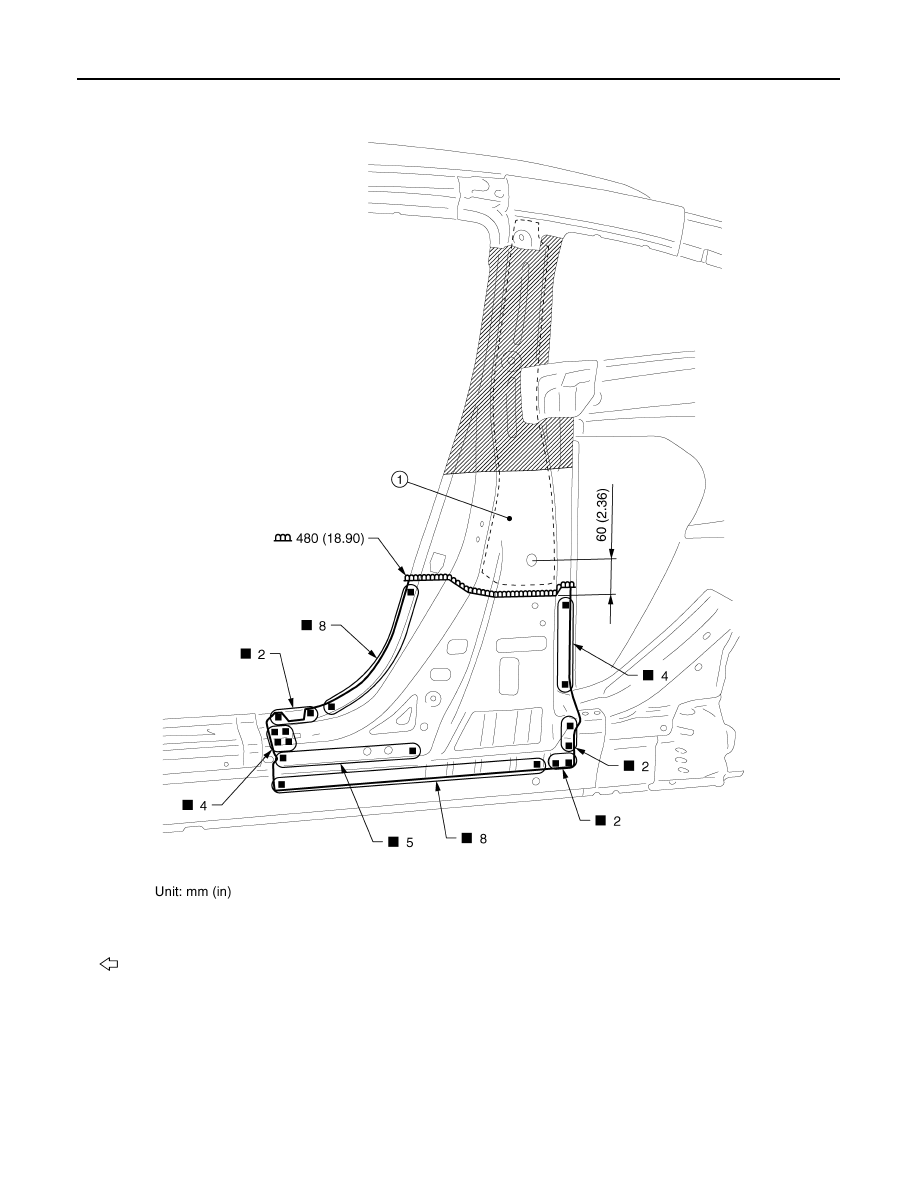

Never cut and joint the shaded area (see Figure) of lock pillar reinforcement and the upper inner lock pillar
reinforcement, because they are made of ultra high strength steel plate.

: Vehicle front

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel plate).

Replacement parts

●

Outer lock pillar reinforcement (LH)

JSKIA0388GB

BRM-52

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Outer Wheelhouse

INFOID:0000000001728884

Work after rear fender has been removed.
Cut the upper outer rear wheelhouse extension and the rear pillar reinforcement as shown in the figure for
repairing the hidden welding point.
Reuse the upper outer rear wheelhouse extension and the rear pillar reinforcement (cut parts).

1.

Upper inner lock pillar reinforcement

: Vehicle front

Replacement parts

●

Outer lock pillar reinforcement (LH)

JSKIA0389GB
