REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

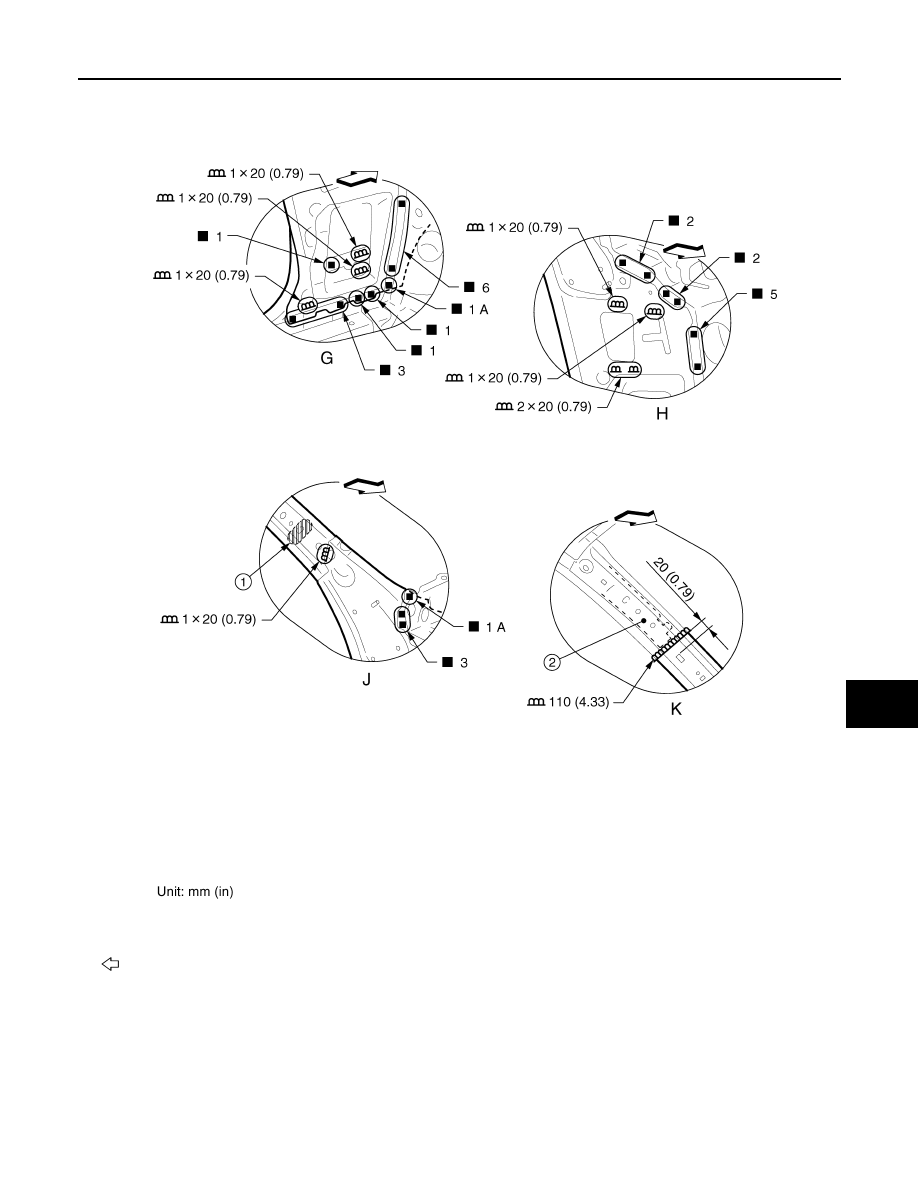

Outer Sill

INFOID:0000000001672409

Work after hoodledge reinforcement, outer lock pillar reinforcement and rear fender have been removed.
Remove the welding point (A) for easier replacement.

1.

Urethane foam

2.

Inner front pillar reinforcement

: Vehicle front

JSKIA0383GB

BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

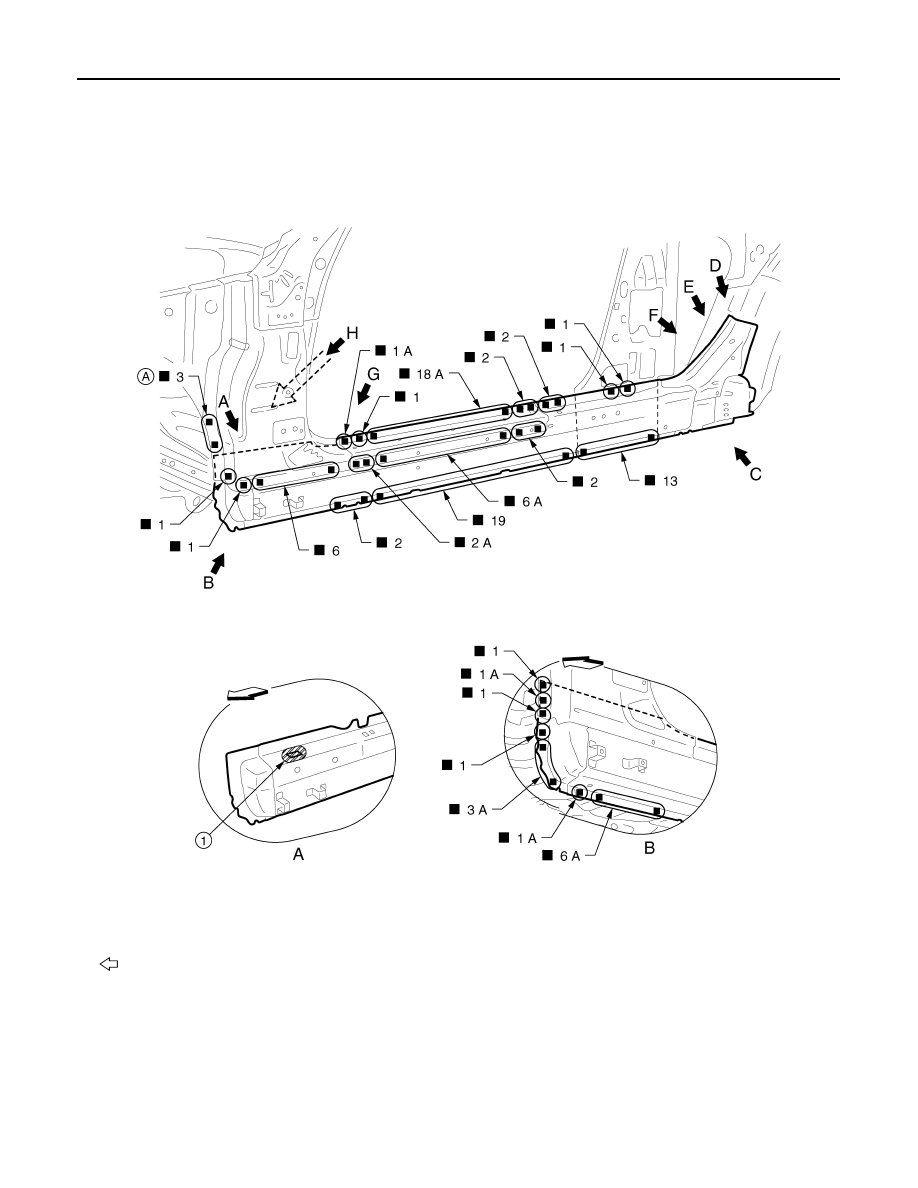

Remove the welding point (A) for easier replacement.

1.

Urethane foam (Cover the hole with urethane foam completely.)

: Vehicle front

Replacement parts

●

Outer step sill (LH)

●

Outer sill reinforcement (LH)

●

Upper outer rear wheelhouse exten-
sion (LH)

●

Lower outer rear wheelhouse exten-
sion (LH)

JSKIA0384GB

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

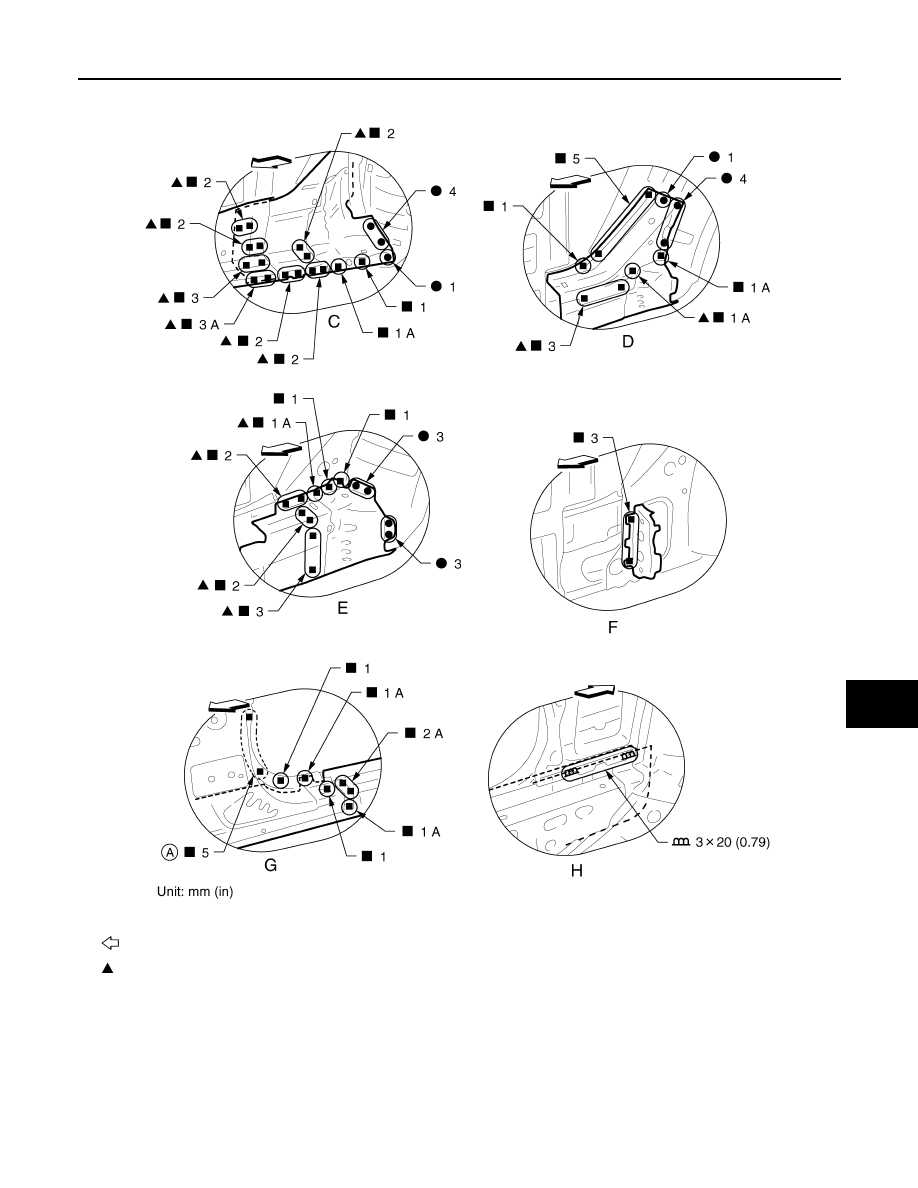

View D: Before installing outer sill reinforcement
View E: Before installing outer sill reinforcement and upper outer rear wheelhouse extension
View F: Before installing outer sill reinforcement, upper outer rear wheelhouse extension and lower outer rear
wheelhouse extension
View G: Before installing outer step sill

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

JSKIA0385GB

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

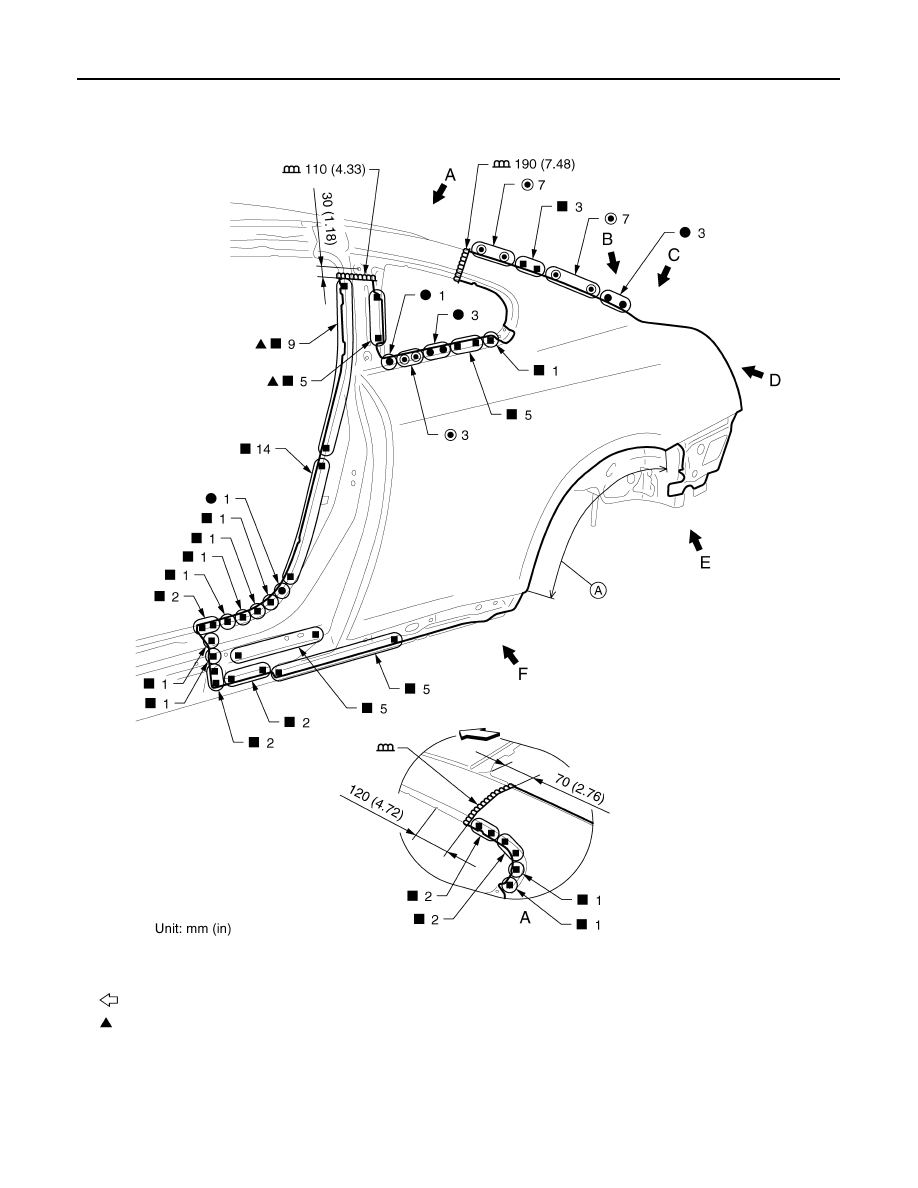

Rear Fender

INFOID:0000000001672410

A.

Hemming portion

: Vehicle front

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength plate).

Replacement parts

●

Rear fender assembly (LH)

JSKIA0386GB
