BODY SEALING

Description

INFOID:0000000001672392

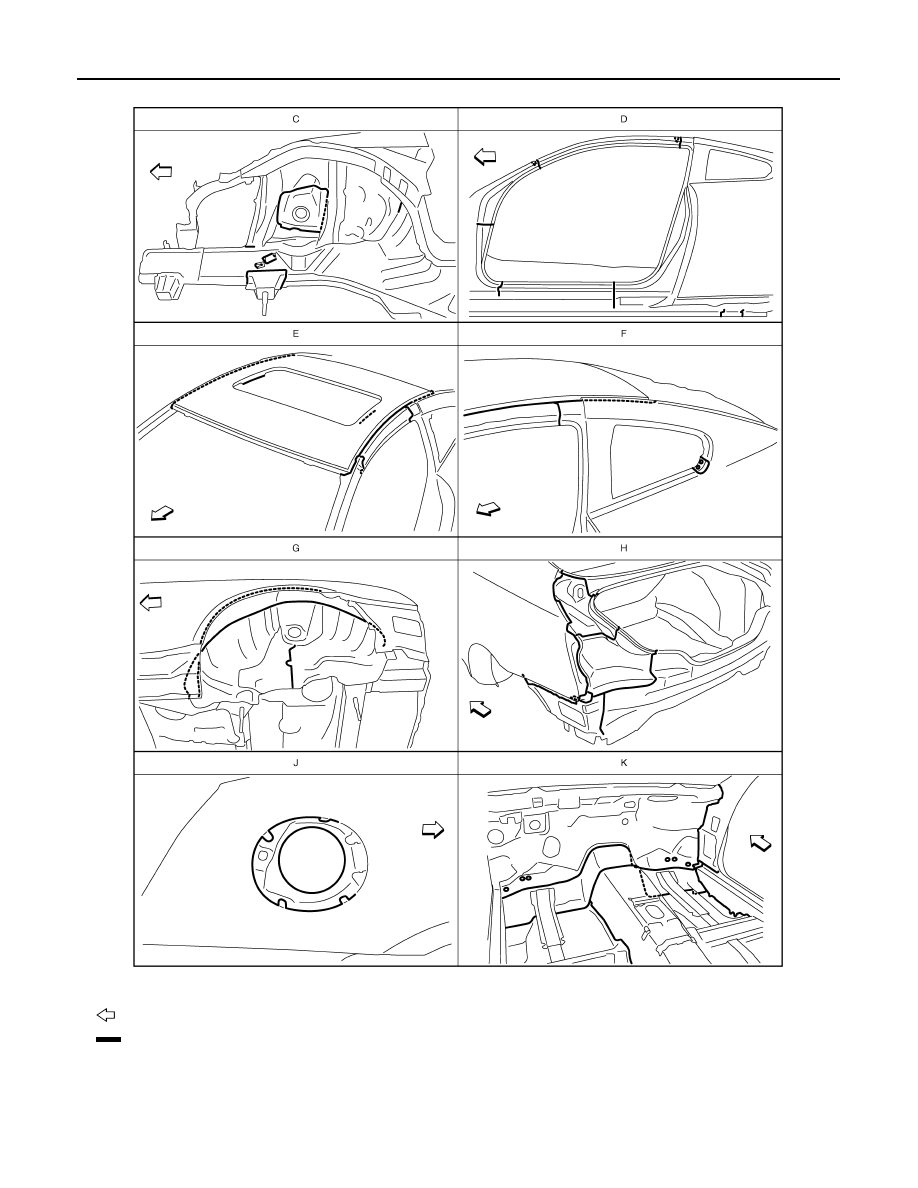

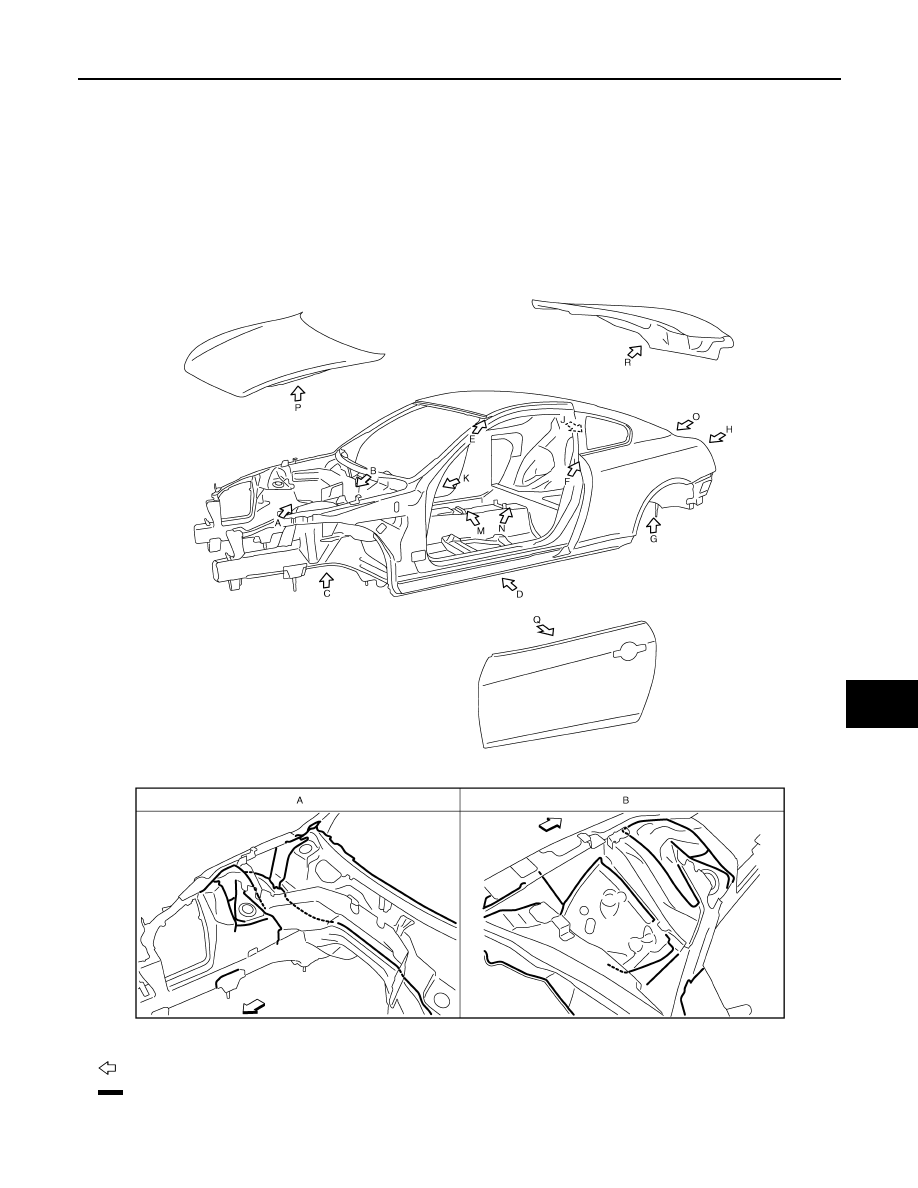

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.

: Vehicle front

: Sealed portions

JSKIA0368GB

BRM-14

< REMOVAL AND INSTALLATION >

BODY SEALING

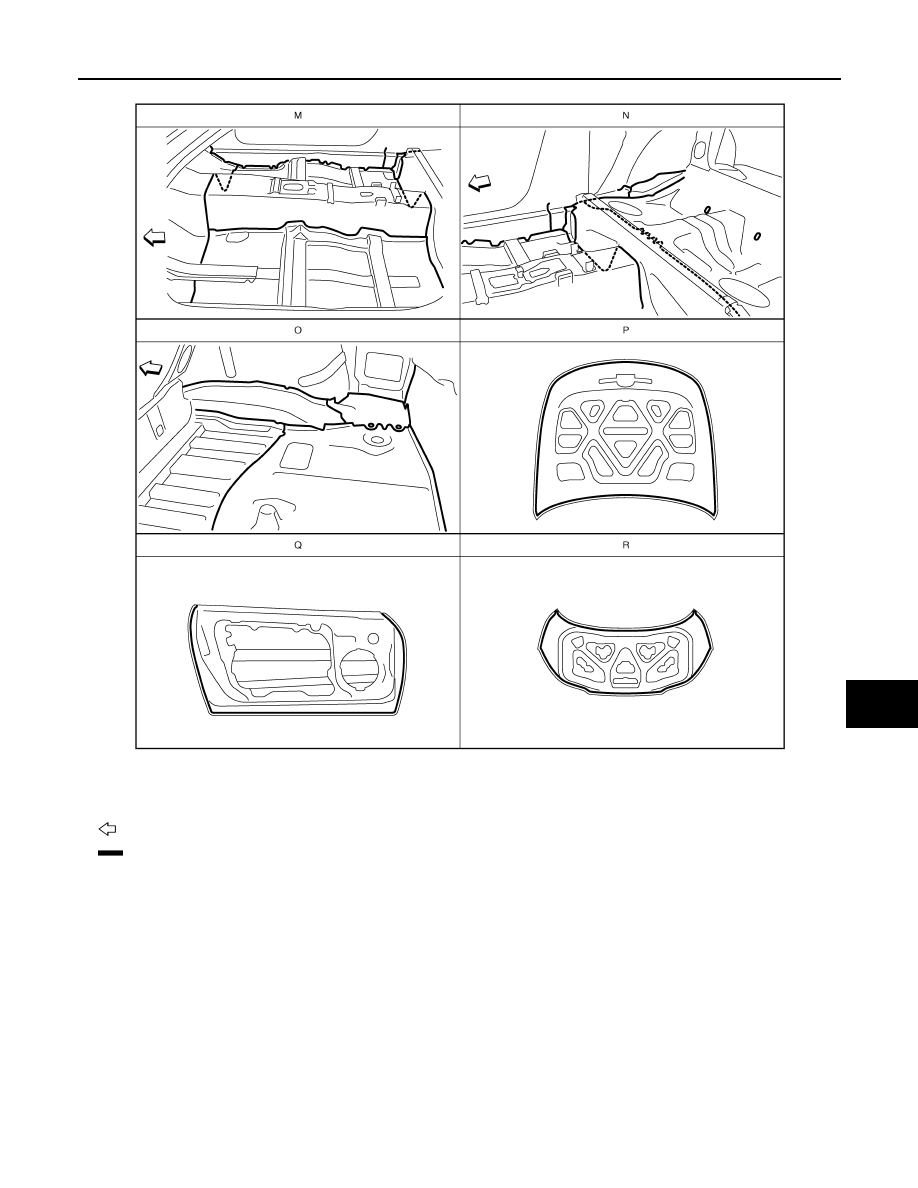

: Vehicle front

: Sealed portions

JSKIA0369GB

BODY SEALING

BRM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

: Sealed portions

JSKIA0370GB

BRM-16

< REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

BODY CONSTRUCTION

Body Construction

INFOID:0000000001672393

1.

Upper outer front pillar

2.

Outer front pillar reinforcement

3.

Upper inner front pillar

4.

Inner front pillar reinforcement

5.

Lower outer front pillar

6.

Front pillar hinge brace

7.

Upper hinge plate

8.

Weld nut

9.

Upper rear hoodledge

JSKIA0371GB
