HANDLING PRECAUTIONS

BRM-5

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

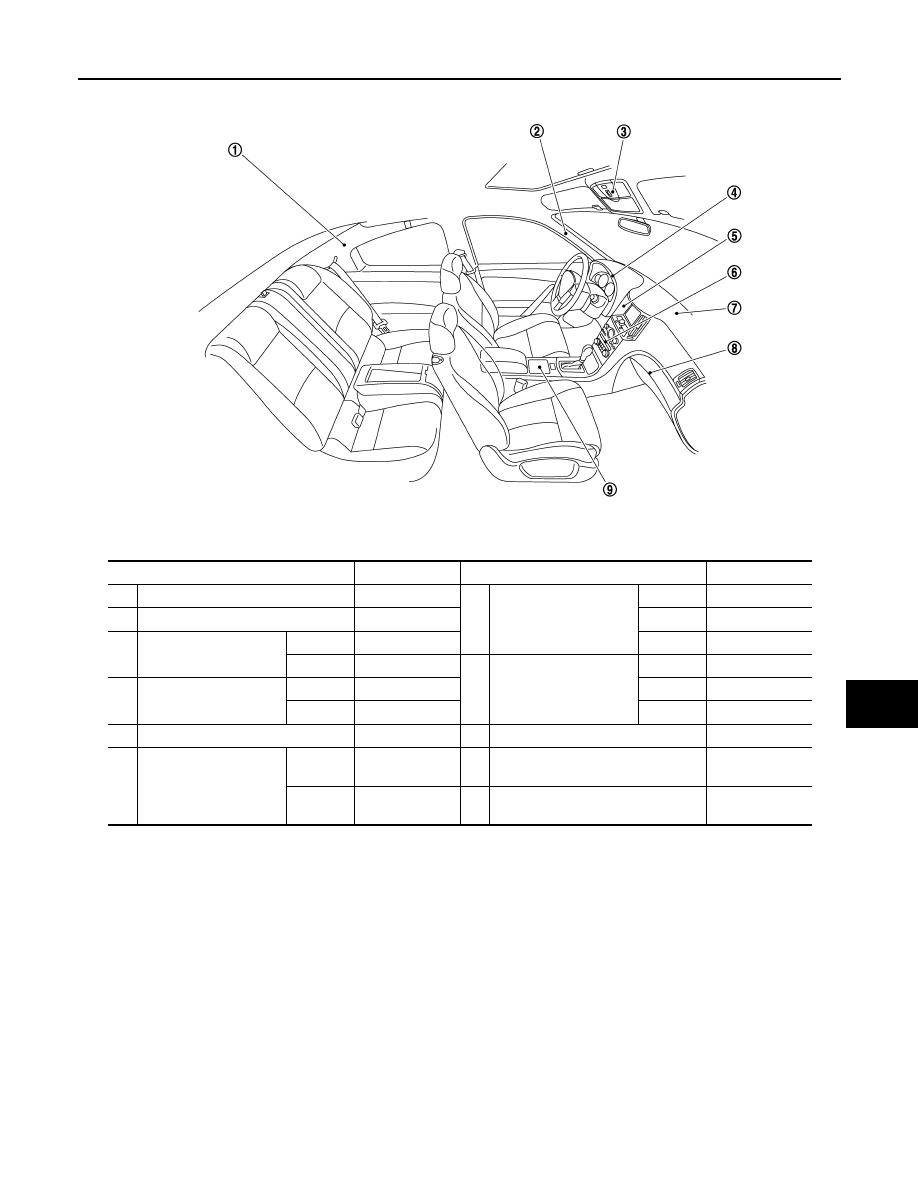

Component

Material

Component

Material

1

Rear pillar finisher

PP

7

Instrument panel

Core

PP

2

Front pillar finisher

PP

Pad

PUR

3

Map  lamp

Lens

PC

Skin

TPU

Housing

PP

8

Glove  box

Core

ABS

4

Cluster lid A

Upper

ABS

Pad

PUR

Lower

PP

Skin

PVC

5

Cluster lid D

ABS

9

Center console

PP + PVC

6

Cluster lid C

Standard
finisher

ABS

Wood fin-
isher

PC + ABS

JSKIA0363GB

BRM-6

< REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

REMOVAL AND INSTALLATION

BODY COMPONENT PARTS

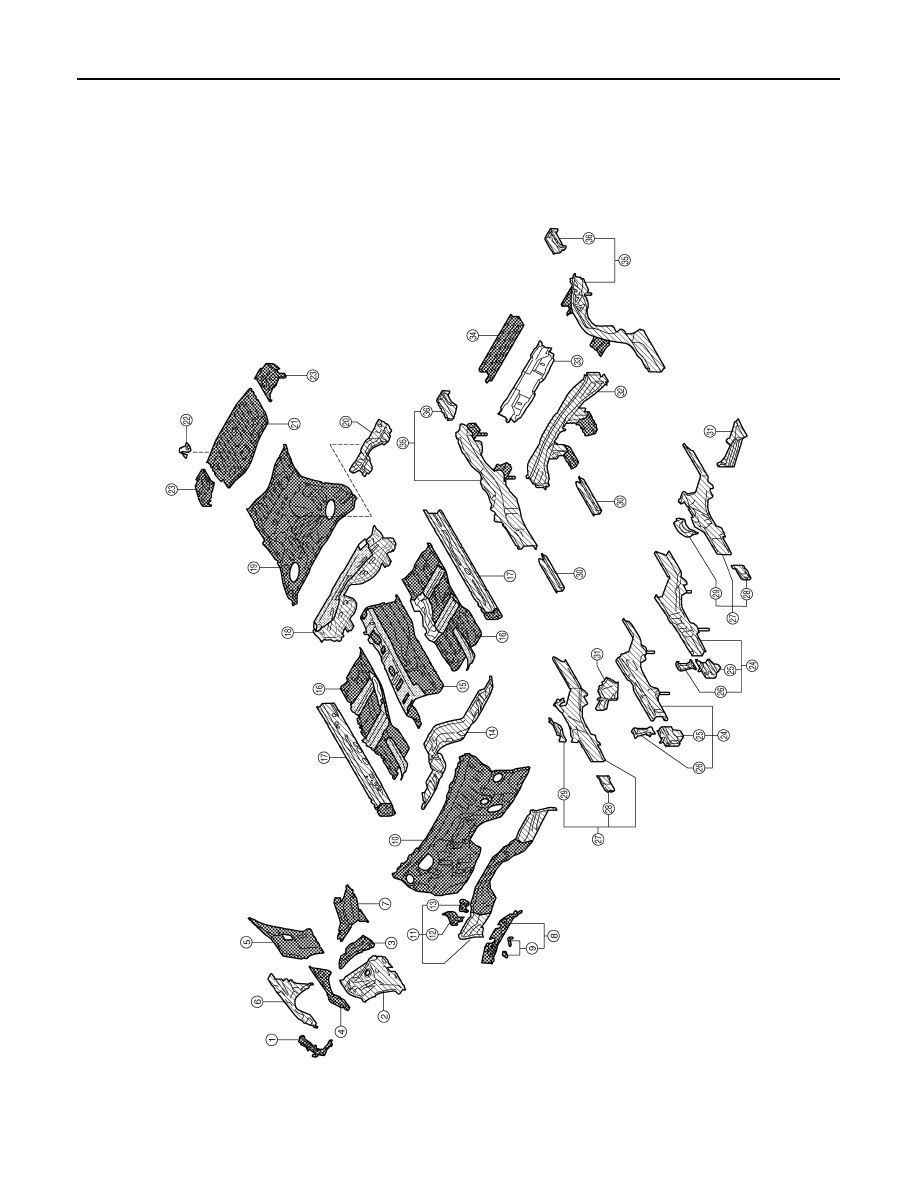

Underbody Component Parts

INFOID:0000000001672386

JSKIA0364GB

BODY COMPONENT PARTS

BRM-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

1.

Radiator core support assembly (RH
& LH)

2.

Front strut housing (RH & LH)

3.

Lower rear hoodledge (RH & LH)

4.

Upper front hoodledge (RH & LH)

5.

Upper rear hoodledge (RH & LH)

6.

Hoodledge reinforcement (RH & LH)

7.

Upper side cowl top (RH & LH)

8.

Upper front cowl top assembly

9.

Cowl top bracket

10. Upper dash

11. Lower dash crossmember assembly

12. Lower outer battery support bracket

13. Lower battery support bracket

14. Lower dash

15. Center front floor

16. Front floor

17. Inner sill

18. Rear seat crossmember reinforce-

ment assembly

19. Rear floor front

20. Rear floor seat belt anchor reinforcement

21. Rear floor rear

22. Spare tire clamp bracket

23. Rear floor side

24. Front side member assembly

25. Front side member front extension

26. Front side member connector assembly

27. Front side member closing plate as-

sembly

28. Front side member front closing

plate

29. Front side member center closing plate

30. Front side member rear extension

31. Front side member outrigger assem-

bly

32. Rear seat crossmember

33. 2nd rear crossmember

34. Rear crossmember center assembly 35. Rear side member assembly

36. Rear side member extension

 : Both sided anti-corrosive precoated steel portions

 : High strength steel (HSS) portions

 : Both sided anti-corrosive steel and HSS portions

BRM-8

< REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

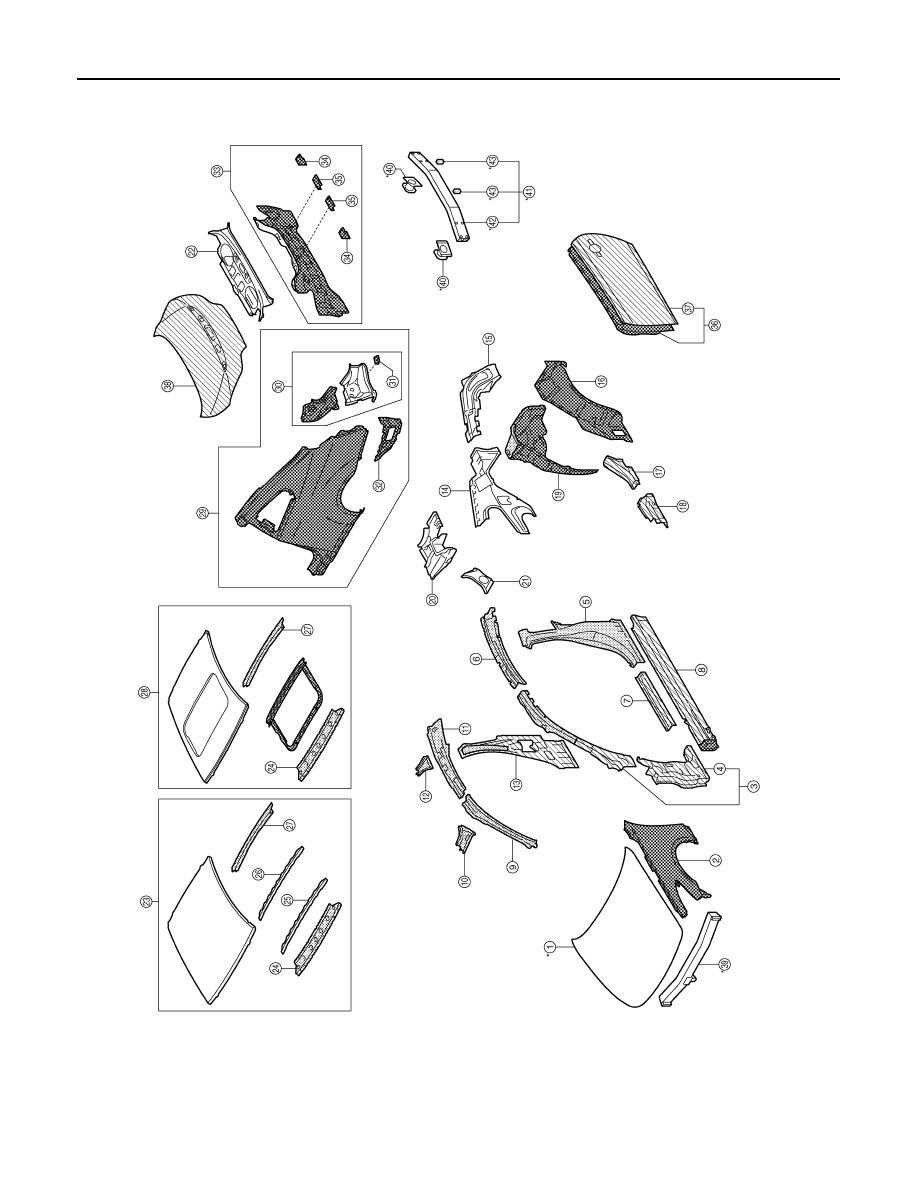

Body Component Parts

INFOID:0000000001672387

1.

Hood

2.

Front fender (RH & LH)

3.

Upper front pillar reinforcement (RH
& LH)

4.

Front  pillar brace (RH &  LH)

5.

Outer lock pillar reinforcement (RH &
LH)

6.

Outer side roof rail reinforcement
(RH & LH)

JSKIA0365GB
