BRC-10

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

FUNCTION DIAGNOSIS

VDC

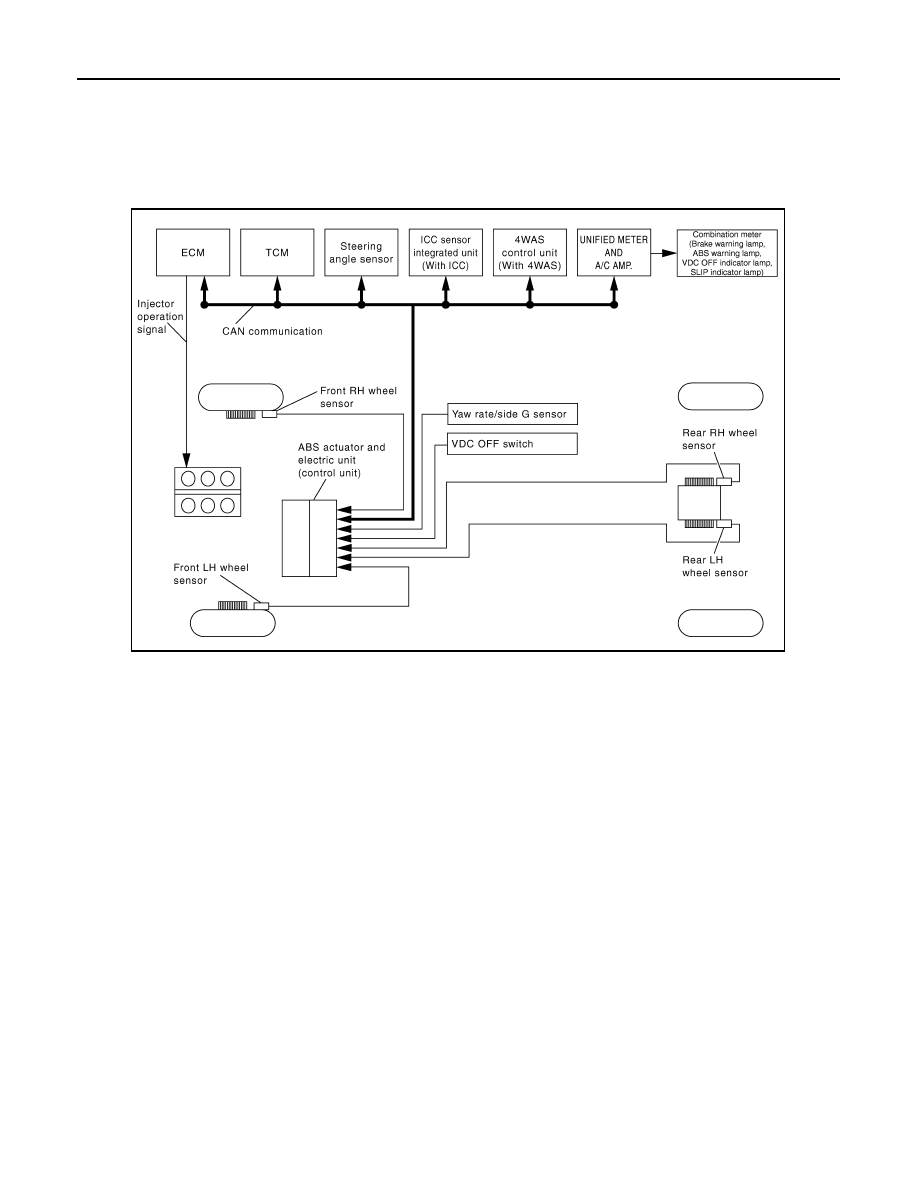

System Diagram

INFOID:0000000001635023

System Description

INFOID:0000000001635024

• Vehicle Dynamics Control system detects driver

s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensor. Using information from yaw rate/side G sensor and wheel sen-
sor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle driving stabil-
ity by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

JSFIA0124GB

VDC

BRC-11

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Parts Location

INFOID:0000000001635025

For USA

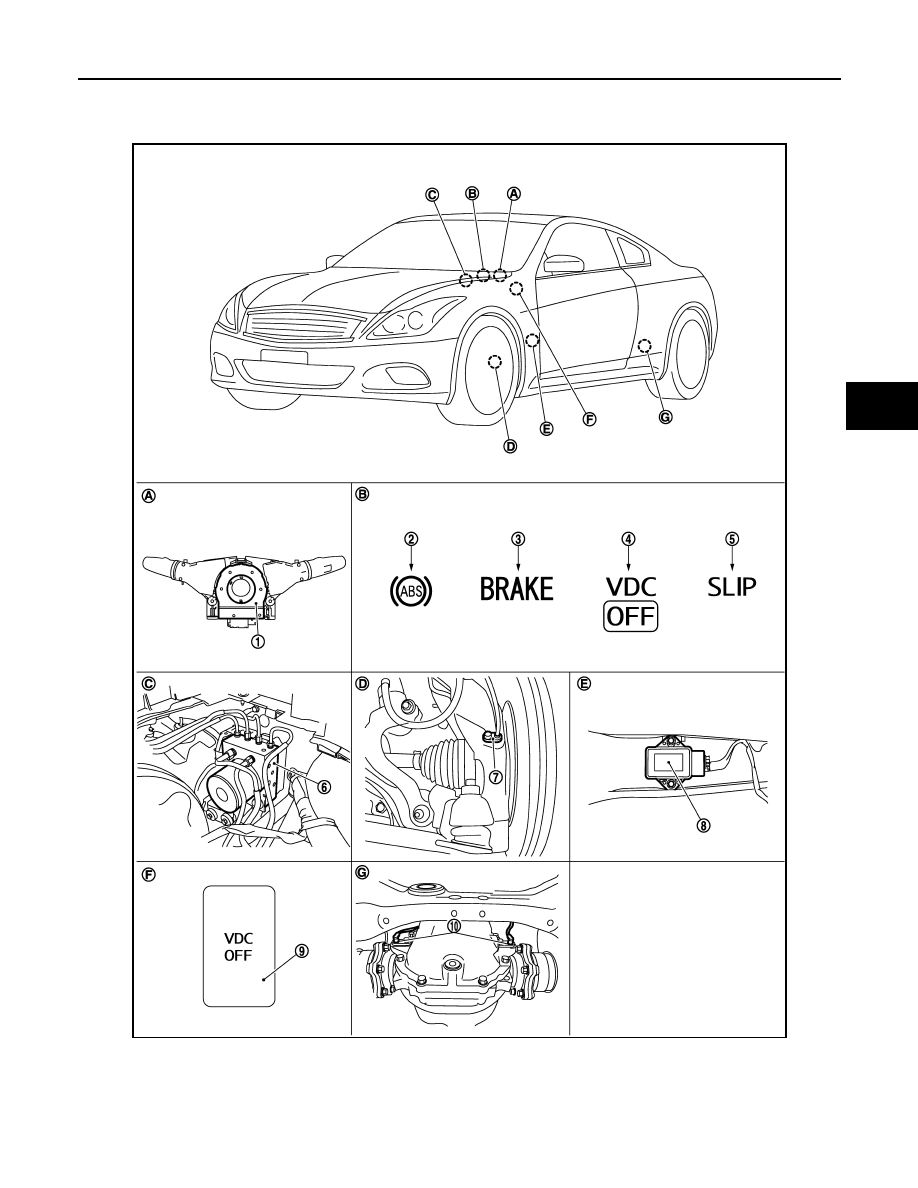

JSFIA0125ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

BRC-12

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

For Canada

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear final drive assembly

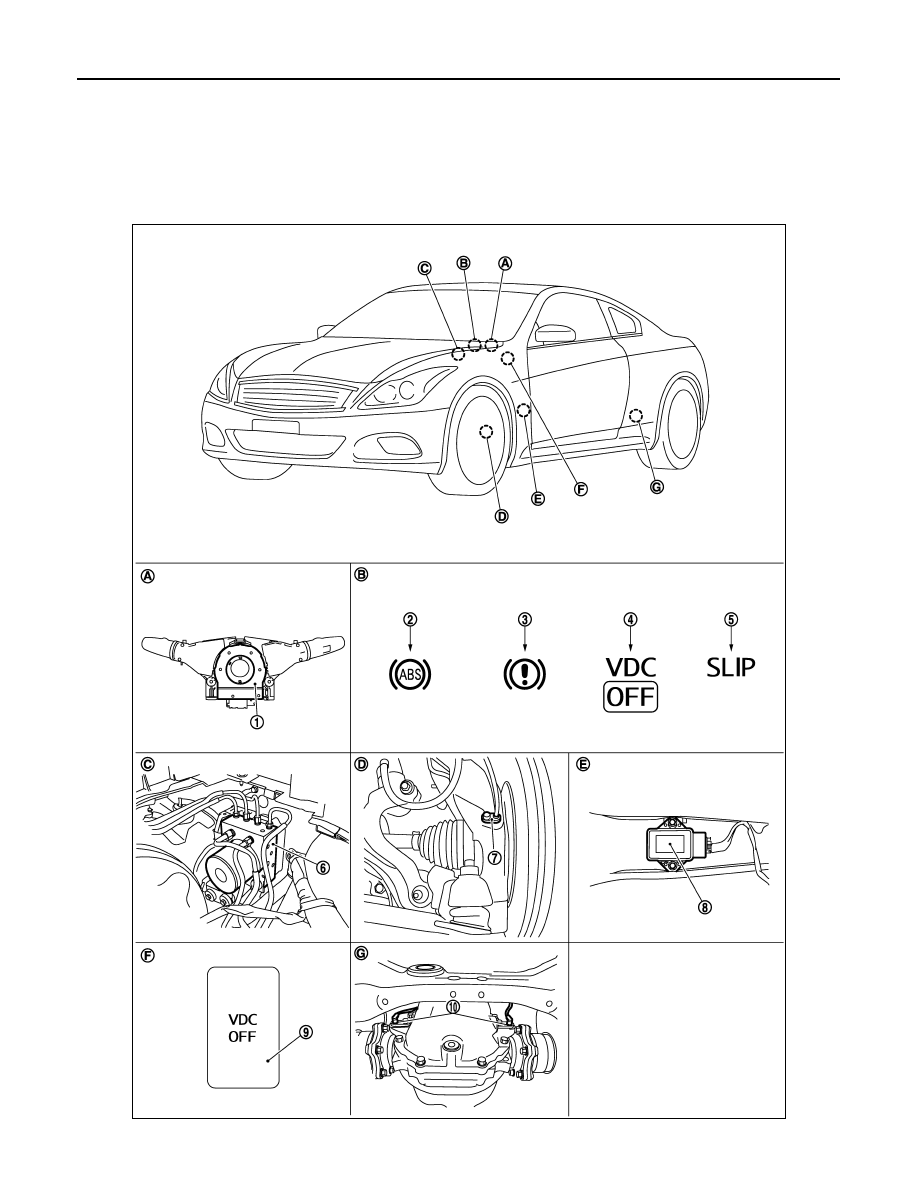

JSFIA0126ZZ

VDC

BRC-13

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000001635026

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear final drive assembly

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-40, "Description"

Motor

Actuator relay (Main relay)

BRC-42, "Description"

Solenoid valve

BRC-49, "Description"

Pressure sensor

BRC-57, "Description"

VDC switch-over valve
(USV1, USV2, HSV1, HSV2)

BRC-64, "Description"

Wheel sensor

BRC-31, "Description"

Yaw rate/side G sensor

BRC-61, "Description"

Steering angle sensor

BRC-59, "Description"

VDC OFF switch

BRC-73, "Description"

ABS warning lamp

BRC-75, "Description"

Brake warning lamp

BRC-76, "Description"

VDC OFF indicator lamp

BRC-77, "Description"

SLIP indicator lamp

BRC-78, "Description"
