TRANSMISSION ASSEMBLY

TM-289

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft
with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual
shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the trans-

mission case.

8.

Install O-rings to servo assembly.

9.

Install return spring to servo assembly.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E

SCIA5717E

TM-290

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

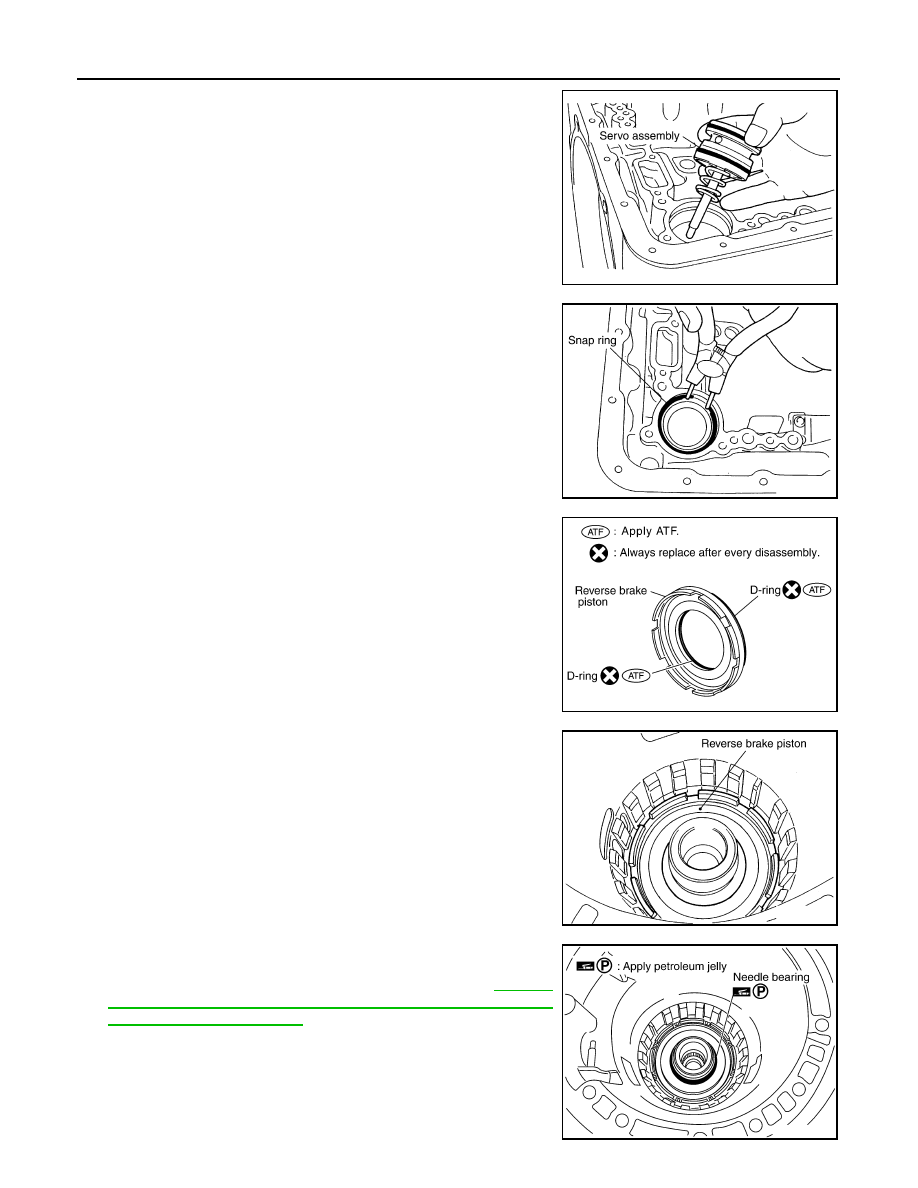

10. Install servo assembly in transmission case.

11. Using a pair of snap ring pliers, install snap ring to transmission

case.

12. Install D-rings in reverse brake piston.

13. Install reverse brake piston in transmission case.

14. Install needle bearing to drum support edge surface.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

SCIA5679E

SCIA2333E

SCIA6330E

SCIA2325E

SCIA2796E

TRANSMISSION ASSEMBLY

TM-291

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

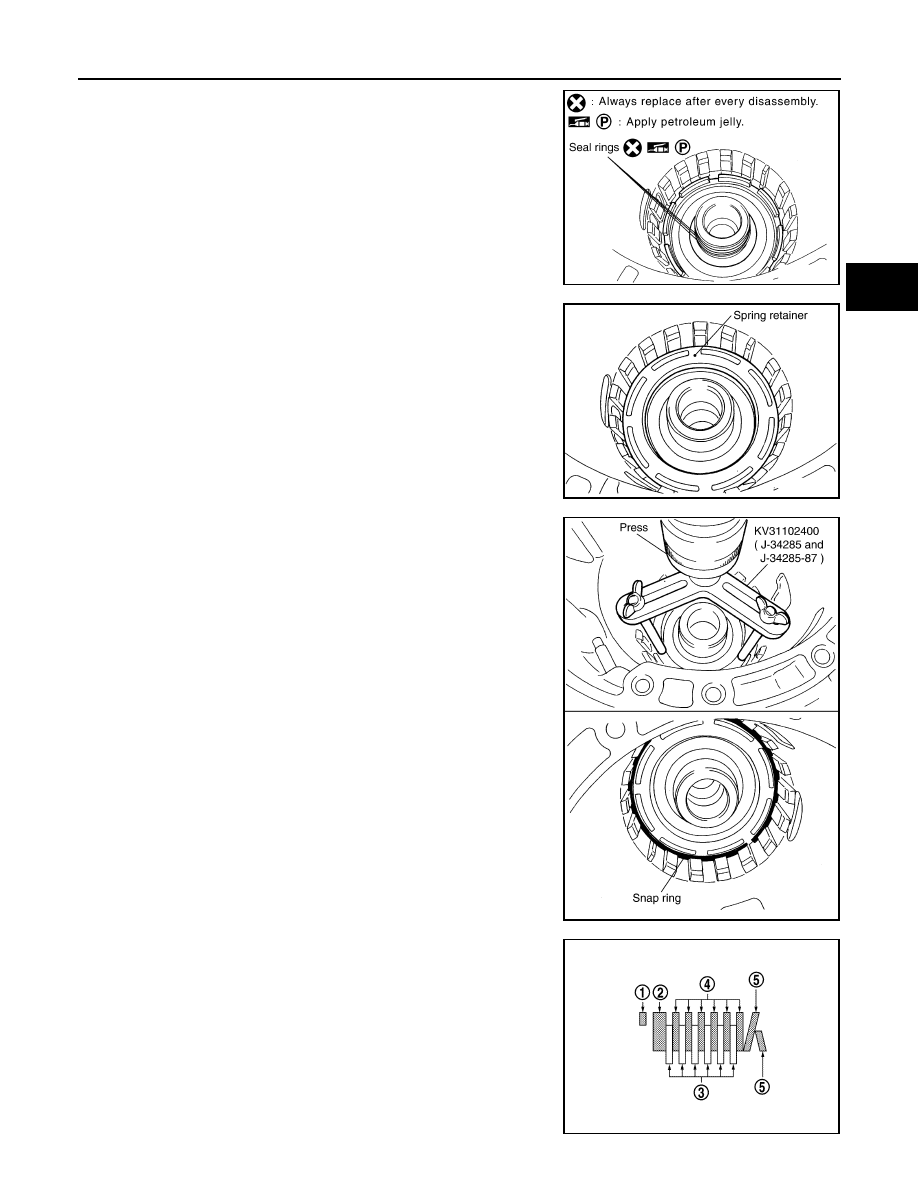

15. Install seal rings to drum support.

16. Install spring retainer and return spring in transmission case.

17. Set the SST on spring retainer and install snap ring (fixing spring

retainer) in transmission case while compressing return spring.

CAUTION:

Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.

18. Install reverse brake drive plates, driven plates, dish plates and

retaining plate in transmission case.

CAUTION:

SCIA3333E

SCIA2324E

SCIA5877E

1

:  Snap  ring

2

: Retaining plate

3

: Drive plate

4

: Driven plate

5

: Dish plate

6 / 6

: Drive plate / Driven plate

SCIA6949E

TM-292

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

Check order of plates.

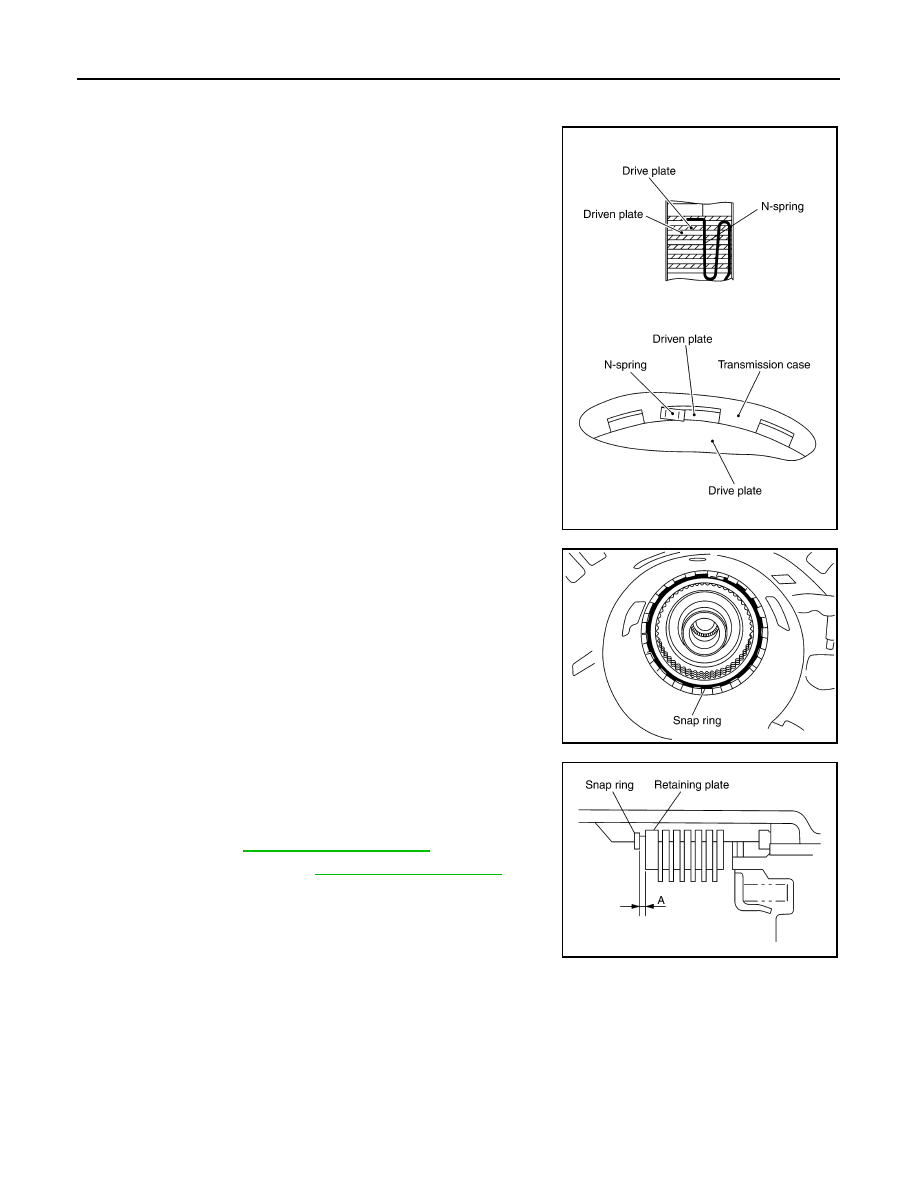

19. Assemble N-spring.

20. Install reverse brake retaining plate in transmission case.

21. Install snap ring in transmission case.

22. Measure clearance between retaining plate and snap ring. If not

within specified clearance, select proper retaining plate.

SCIA5249E

SCIA2439E

Specified clearance “A”

Standard:

TM-330, "Reverse Brake"

.

Retaining plate: Refer to

TM-330, "Reverse Brake"

SCIA3129E
