TRANSMISSION ASSEMBLY

TM-285

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

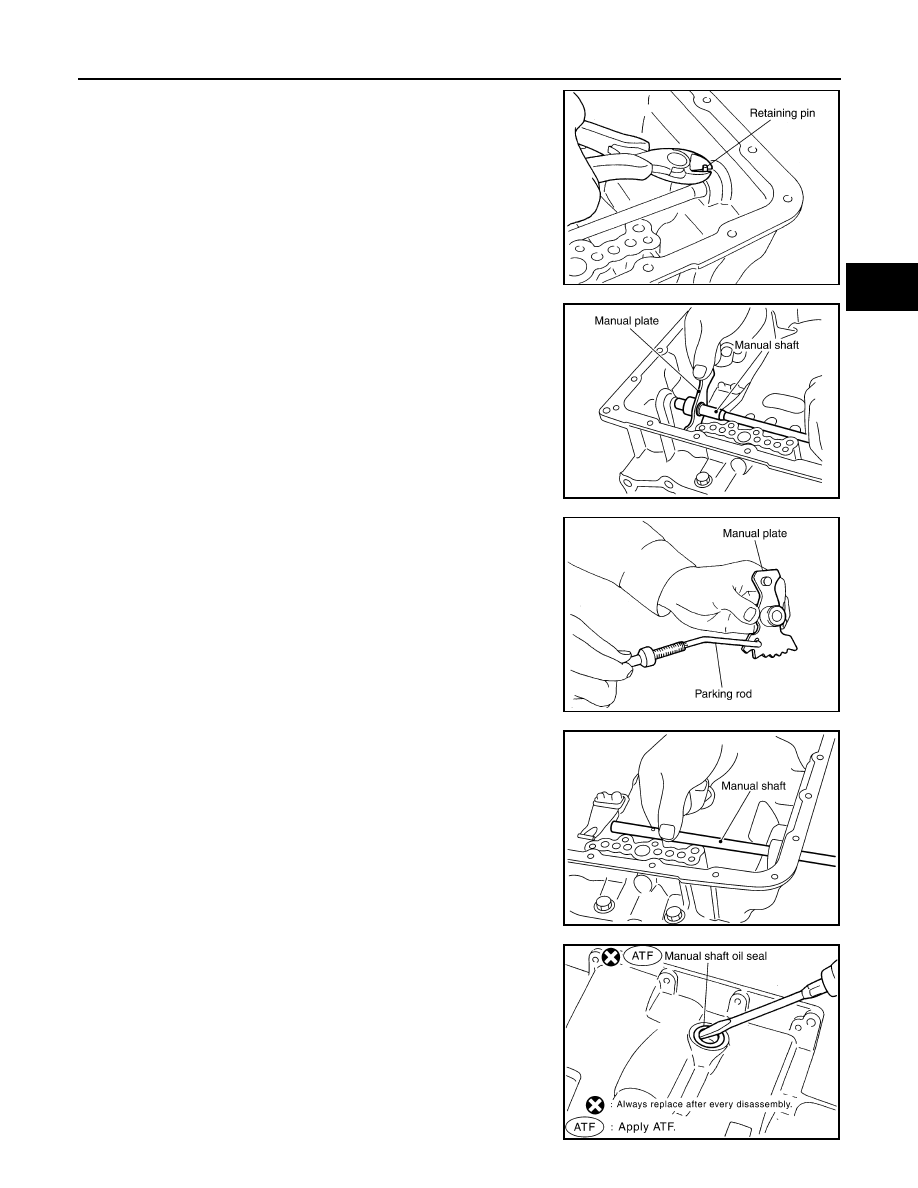

63. Remove manual shaft retaining pin with pair of nippers.

64. Remove manual plate (with parking rod) from manual shaft.

65. Remove parking rod from manual plate.

66. Remove manual shaft from transmission case.

67. Remove manual shaft oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transmission case.

SCIA2329E

SCIA5715E

SCIA5220E

SCIA5716E

SCIA2331E

TM-286

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

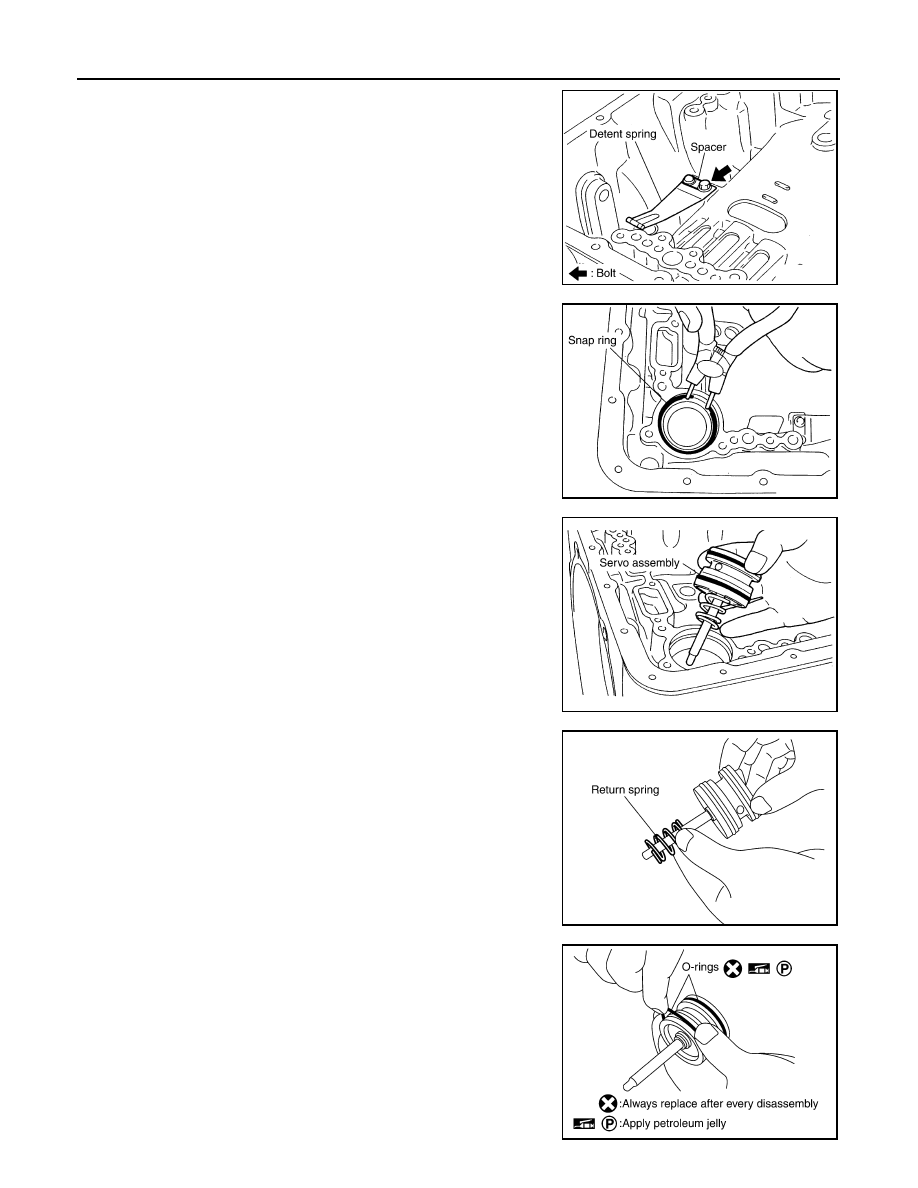

68. Remove detent spring and spacer from transmission case.

69. Using pair of snap ring pliers, remove snap ring from transmis-

sion case.

70. Remove servo assembly (with return spring) from transmission

case.

71. Remove return spring from servo assembly.

72. Remove O-rings from servo assembly.

SCIA5248E

SCIA2333E

SCIA5679E

SCIA5717E

SCIA5719E

TRANSMISSION ASSEMBLY

TM-287

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

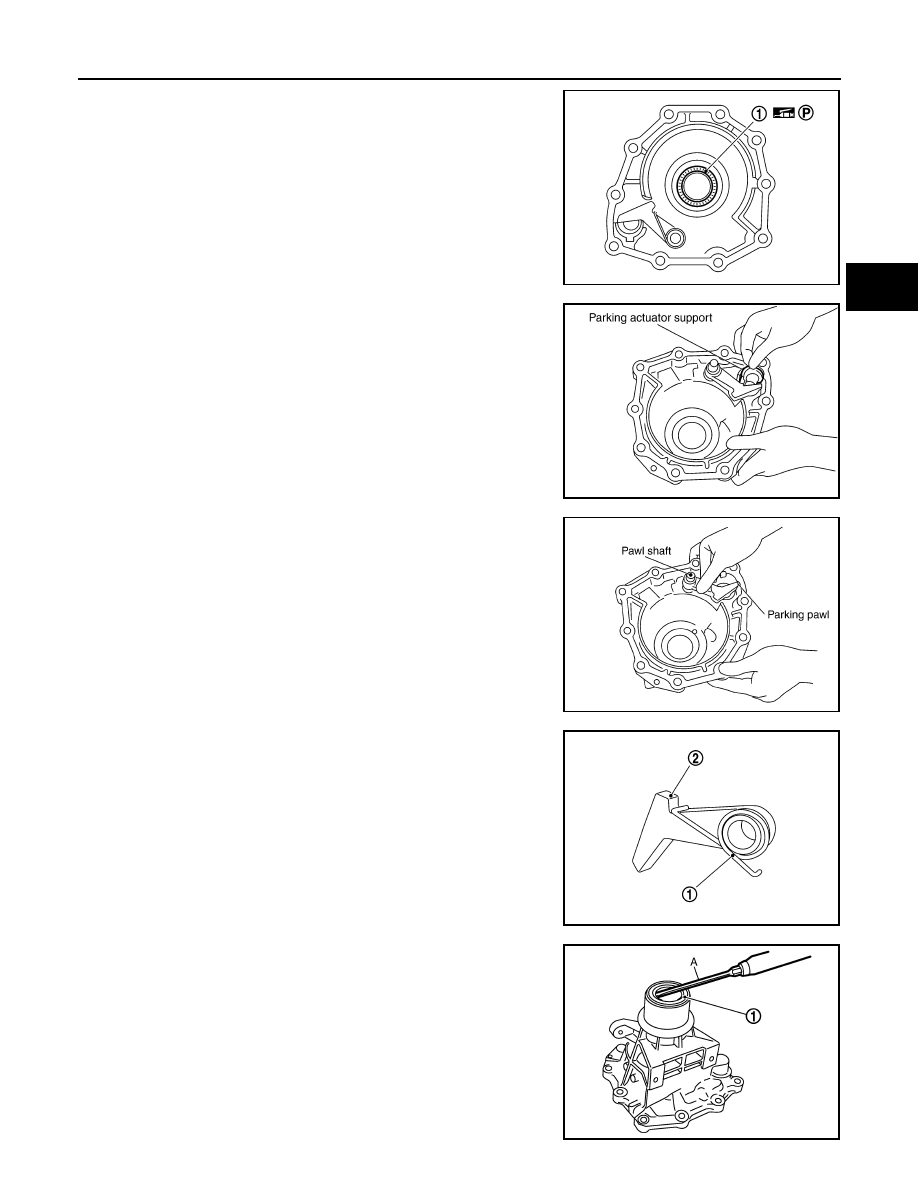

73. Remove needle bearing (1) from rear extension.

74. Remove parking actuator support from rear extension.

75. Remove parking pawl (with return spring) and pawl shaft from

rear extension.

76. Remove return spring (1) from parking pawl (2).

77. Remove rear oil seal (1) from rear extension using flat-bladed

screwdrivers (A).

CAUTION:

Be careful not to scratch rear extension.

SCIA6179J

SCIA3423E

SCIA3424E

SCIA6180J

JPDIA0033ZZ

TM-288

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

Assembly

INFOID:0000000001672298

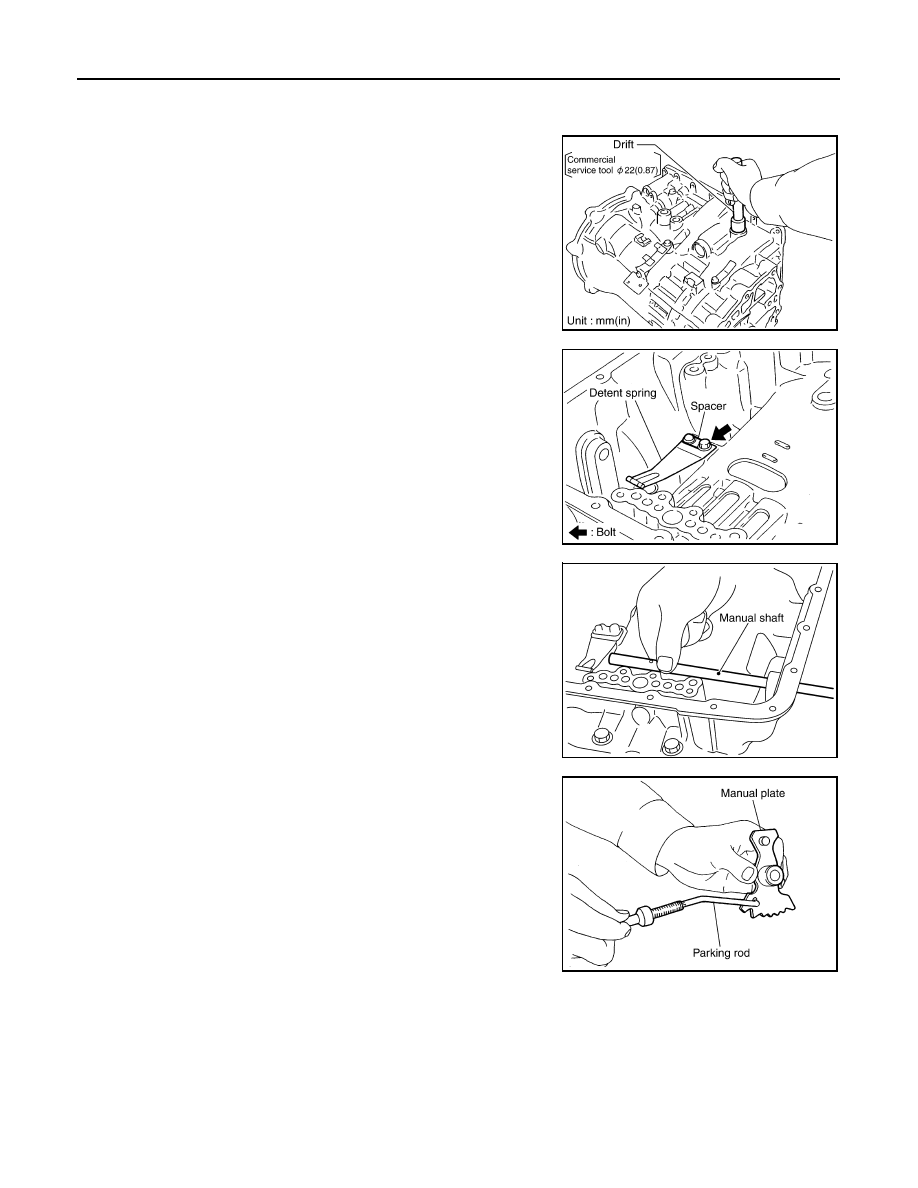

1.

As shown in the figure, use a drift [22 mm (0.87 in) dia. commer-
cial service tool] to drive manual shaft oil seals into the transmis-
sion case until it is flush.

CAUTION:

• Do not reuse manual shaft oil seals.
• Apply ATF to manual shaft oil seals.

2.

Install detent spring and spacer in transmission case. Tighten
detent spring and spacer bolt to the specified torque.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

SCIA5248E

SCIA5716E

SCIA5220E
