Infiniti G37 Coupe. Manual - part 1275





4WAS FRONT CONTROL UNIT

STC-151

< ECU DIAGNOSIS >

[WITH 4WAS]

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

Fail Safe

INFOID:0000000001666480

4WAS system (front)

• 4WAS system enters in the fail-safe mode (4WAS system is stopped), and 4WAS warning lamp turns ON if

an error is detected in 4WAS system (4WAS front control unit and 4WAS main control unit) component part.

• 4WAS system enters in the protection function mode (4WAS system is temporarily stopped) if 4WAS system

continues the heavy load condition and the overheat condition.4WAS system reactivates automatically if the

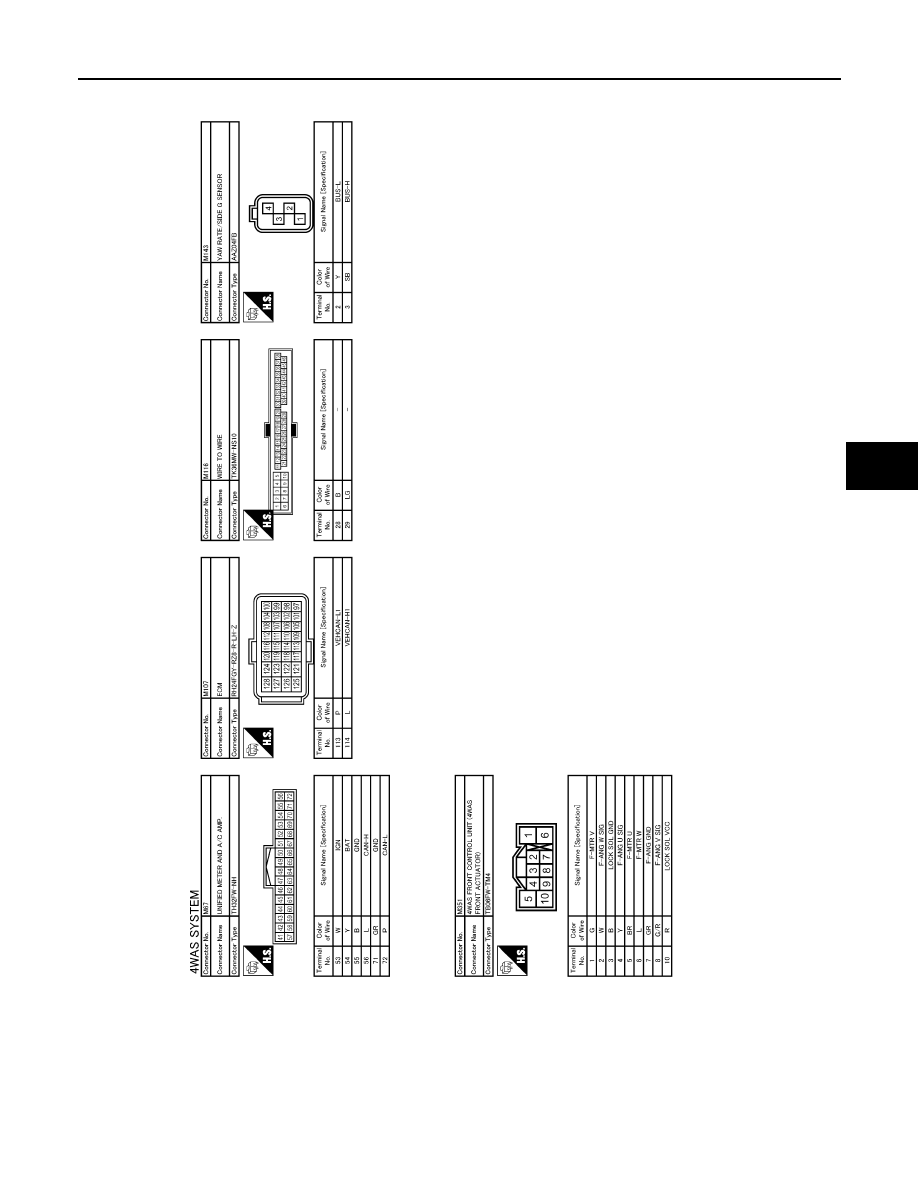

JCGWA0054GB

STC-152

< ECU DIAGNOSIS >

[WITH 4WAS]

4WAS FRONT CONTROL UNIT

heavy load condition and the overheat condition are resolved.4WAS warning lamp continues turning OFF in
the protection function mode.

*: Communication line between 4WAS front control unit and 4WAS main control unit.

DTC Inspection Priority Chart

INFOID:0000000001666481

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

Mode

Warn-

ing

lamp

DTC

Detected area (Error area)

Error area and root cause

Protec-

tion

function

Turn-

OFF

4WAS front control unit

4WAS front control unit overheat condition

Turn-

OFF

4WAS front actuator

4WAS front actuator overheat condition

Turn-

OFF

4WAS front control unit

4WAS front control unit heavy load condition

Fail-safe

Turn-

ON

C1621
C1622

4WAS front actuator

4WAS front control unit or 4WAS front motor error is detected.

Turn-

ON

C1627

4WAS front actuator

4WAS front actuator error

Turn-

ON

C1628

Front wheel steering angle
sensor

Front wheel steering angle sensor error

Turn-

ON

C1631
C1632

4WAS front control unit

4WAS front control unit or 4WAS front control unit power supply er-
ror is detected.

Turn-

OFF

C1633

4WAS front control unit

4WAS front control unit error

Turn-

ON

C1651

4WAS front control unit

4WAS front control unit or the ignition power supply error is detect-
ed.

Turn-

ON

C1652

4WAS front control unit

4WAS front control unit or 4WAS front motor power supply error is
detected.

Turn-

ON

C1654

4WAS front control unit

The main relay power supply inside 4WAS front control unit error is
detected.

Turn-

ON

C1655

4WAS front control unit

4WAS front control unit or 4WAS front motor power supply error is
detected.

Turn-

ON

C1661

4WAS front lock solenoid
valve (lock structure)

4WAS front control unit or 4WAS front lock solenoid valve error is
detected.

Turn-

ON

C1667

4WAS front actuator

The inside 4WAS front actuator error is detected.

Turn-

ON

C1668

4WAS front actuator

The inside 4WAS front actuator error is detected.

Turn-

ON

C1669

4WAS front actuator

The power steering oil pressure or the inside 4WAS front actuator
error is detected.

Turn-

ON

C1671

4WAS front actuator

4WAS front actuator adjustment is not performed.

Turn-

ON

C1672

4WAS main actuator

4WAS front actuator adjustment is incomplete.

Turn-

ON

C1684
C1685
U1000
U1002
U1010

4WAS communication line*/
4WAS main control unit/4WAS
front control unit

4WAS communication line*/4WAS main control unit/4WAS front
control unit error

Turn-

ON

C1686

4WAS main control unit

4WAS main control unit fail-safe mode

4WAS FRONT CONTROL UNIT

STC-153

< ECU DIAGNOSIS >

[WITH 4WAS]

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

*: 4WAS communication line

DTC Index

INFOID:0000000001666482

Priority

Detected items (DTC)

1

• U1000 CANCOMM CIRCUIT*
• U1002 SYSTEM COMM(CAN)*
• U1010 CONTROL UNIT(CAN)*

2

• C1671 ACT ADJ NOT PRFRM
• C1672 INCOMP ACTUATR ADJ

3

• C1631 CONTROL UNIT
• C1632 CONTROL UNIT

4

• C1651 IGN POWER SUPPLY
• C1652 MOTOR POWER SUPPLY
• C1654 ACTUATOR RELAY
• C1655 PRE-DRIVER

5

• C1621 ACTUATOR
• C1622 ACTUATOR
• C1627 ACTUATOR
• C1628 ACTUATOR
• C1661 LOCK SOLENOID
• C1667 LOCK INSERTION
• C1668 LOCK HLD GAP DETCT
• C1669 INCOMP LOCK RELEAS

6

• C1684 4WAS MAIN ECU COMM
• C1685 4WAS MAIN ECU COMM
• C1686 4WAS MAIN ECU

7

• C1633 CONTROL UNIT

DTC

Items

(CONSULT-III screen terms)

Reference

C1621

ACTUATOR

STC-47, "DTC Logic"

C1622

ACTUATOR

STC-47, "DTC Logic"

C1627

ACTUATOR

STC-50, "DTC Logic"

C1628

ACTUATOR

STC-52, "DTC Logic"

C1631

CONTROL UNIT

STC-55, "DTC Logic"

C1632

CONTROL UNIT

STC-55, "DTC Logic"

C1633

CONTROL UNIT

STC-58, "DTC Logic"

C1651

IGN POWER SUPPLY

STC-60, "DTC Logic"

C1652

MOTOR POWER SUPPLY

STC-62, "DTC Logic"

C1654

ACTUATOR RELAY

STC-64, "DTC Logic"

C1655

PRE-DRIVER

STC-66, "DTC Logic"

C1661

LOCK SOLENOID

STC-68, "DTC Logic"

C1667

LOCK INSERTION

STC-70, "DTC Logic"

C1668

LOCK HLD GAP DETCT

STC-72, "DTC Logic"

C1669

INCOMP LOCK RELEAS

STC-73, "DTC Logic"

C1671

ACT ADJ NOT PRFRM

STC-74, "DTC Logic"

C1672

INCOMP ACTUATR ADJ

STC-76, "DTC Logic"

C1684

4WAS MAIN ECU COMM

STC-77, "DTC Logic"

C1685

4WAS MAIN ECU COMM

STC-77, "DTC Logic"

C1686

4WAS MAIN ECU

STC-81, "DTC Logic"

U1000

CAN COMM CIRCUIT

STC-82, "DTC Logic"

STC-154

< ECU DIAGNOSIS >

[WITH 4WAS]

4WAS FRONT CONTROL UNIT

U1002

SYSTEM COMM(CAN)

STC-82, "DTC Logic"

U1010

CONTROL UNIT (CAN)

STC-86, "DTC Logic"

DTC

Items

(CONSULT-III screen terms)

Reference
