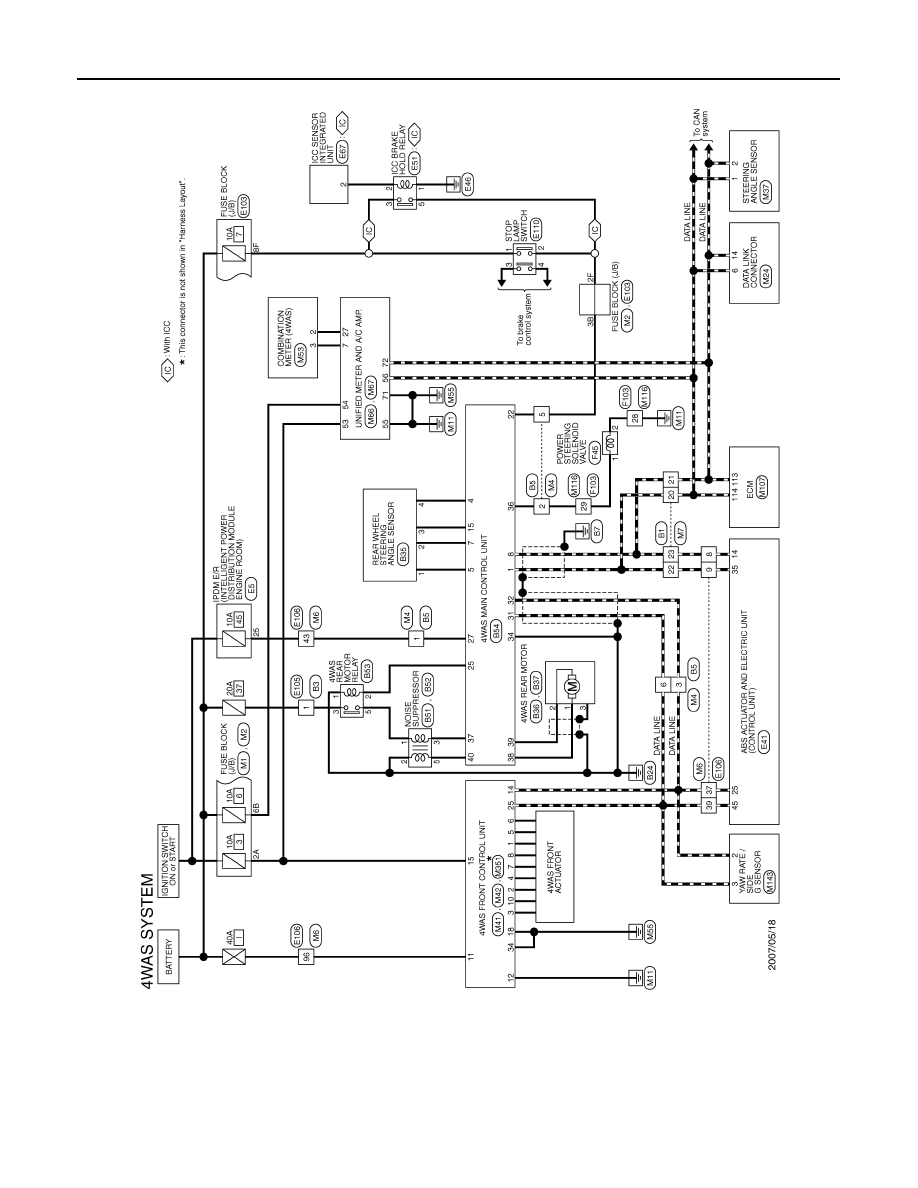

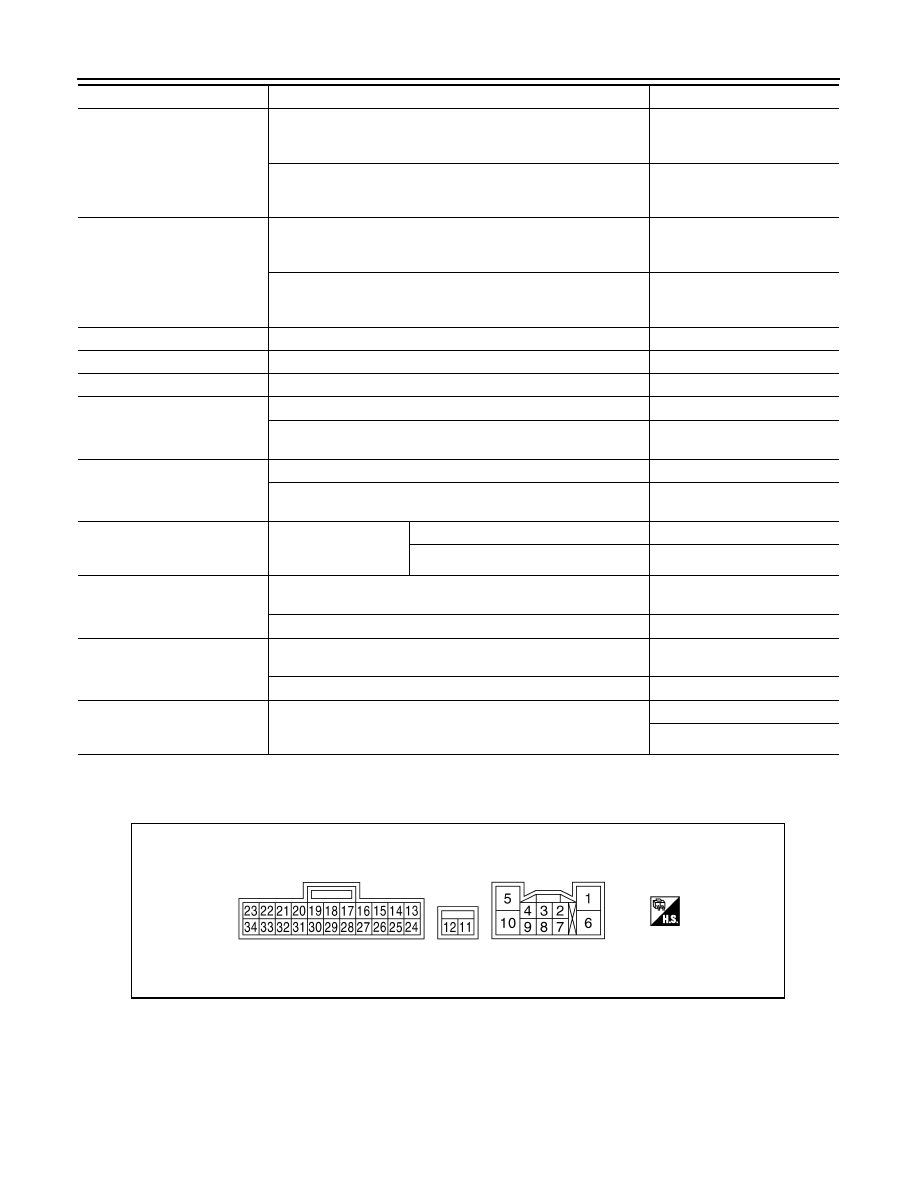

4WAS FRONT CONTROL UNIT STC-143 < ECU DIAGNOSIS > [WITH 4WAS] C D E F H I J K L M A B STC N O P ACTR ANGL SUB Steer the steering wheel leftward slowly. Steer until the steering Approx. 0 – − 60 deg Steer the steering wheel rightward slowly. Steer until the steering Approx. 0 – 60 deg STR ANGL SPD The steering wheel is not steered. 0 deg/s The steering wheel is steering. Other than 0 deg/s OVRLD JDG TMG It displays record of 4WAS system (entire 4WAS system) high 0 – 39 ACT PRTCT TMG It displays record of 4WAS system (4WAS front actuator) over- 0 – 39 ECU PRTCT TMG It displays record of 4WAS system (4WAS front control unit) over- 0 – 39 DRV TMPO TMG It displays record of 4WAS system (terminal power supply convert- 0 – 39 MTR PW TMP TM It displays record of 4WAS system (terminal voltage of 4WAS front 0 – 39 LOW VOLT TMG It displays record of 4WAS system (terminal voltage of 4WAS front 0 – 39 HIGH VOLT TMG It displays record of 4WAS system (terminal voltage of 4WAS front 0 – 39 OVRLD JDG FLG 4WAS system (the entire 4WAS system) heavy load condition On 4WAS system (the entire 4WAS system) heavy load condition Off ACT PRTCT FLG 4WAS front actuator overheat condition judgment On 4WAS front actuator overheat condition judgment Off ECU PRTCT FLG 4WAS front control unit overheat condition judgment On 4WAS front control unit overheat condition judgment Off DRV TMPO FLG 4WAS system (4WAS front motor terminal power supply convert- On 4WAS system (4WAS front motor terminal power supply convert- Off MTR PW TMP FL 4WAS system (4WAS front motor terminal voltage) intermittent er- On 4WAS system (4WAS front motor terminal voltage) intermittent er- Off Monitor item Condition Value/Status |
