Infiniti G37 Coupe. Manual - part 1129





INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-13

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

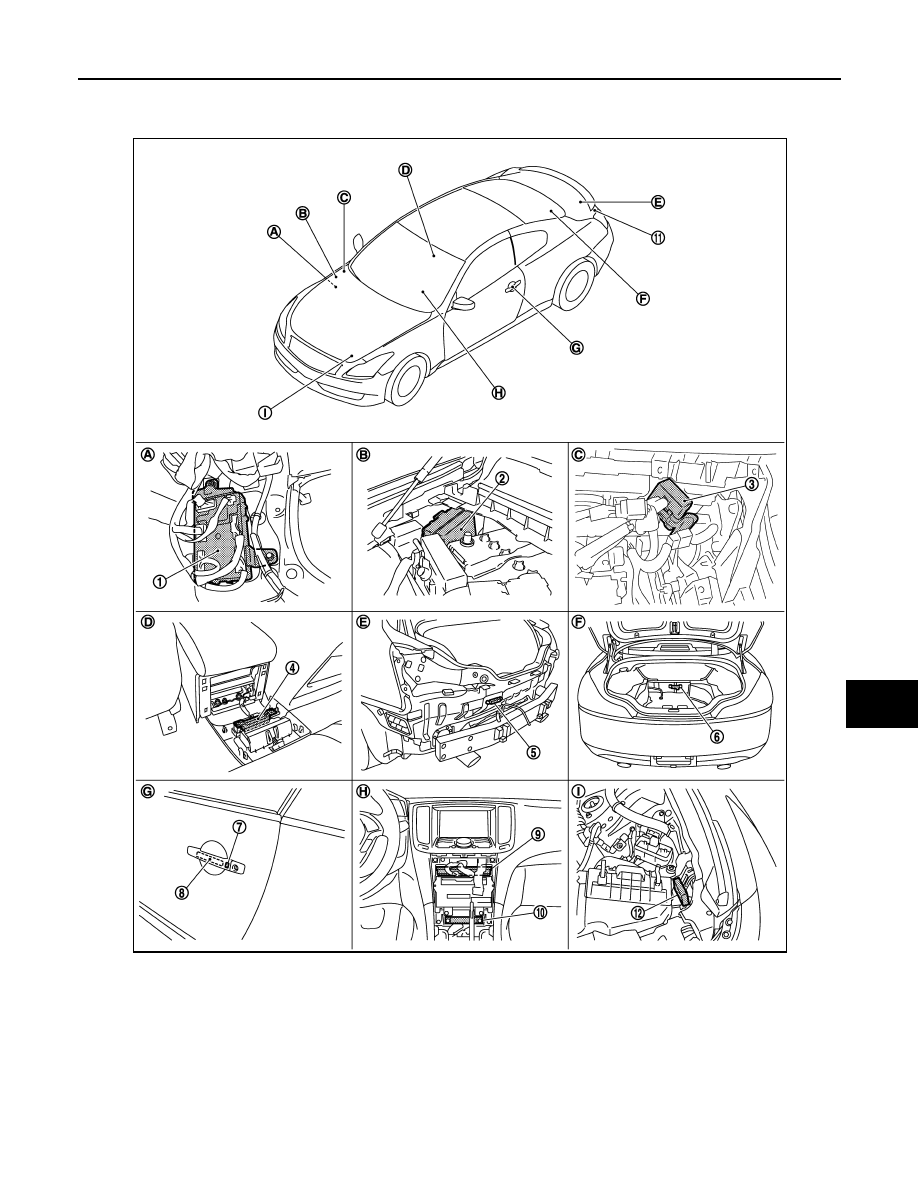

Component Parts Location

INFOID:0000000001699907

1.

BCM M118, M119, M121, M122, M123

2.

IPDM E/R E5, E6, E7

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP M66,
M67

10. Inside key antenna (instrument center)

M131

11. Trunk lid request switch B304

12. Intelligent Key warning buzzer (en-

gine room) E57

JMKIA1118ZZ

SEC-14

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

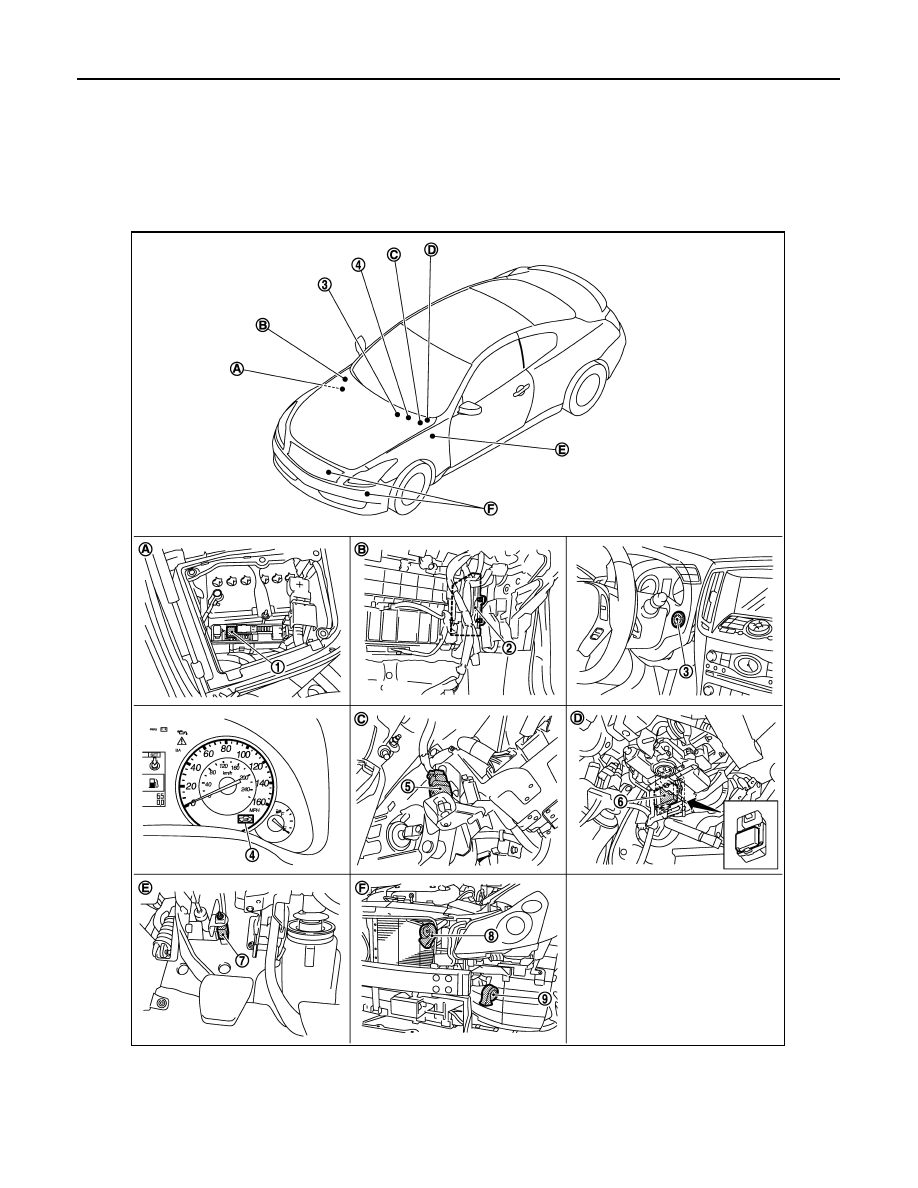

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk rear finisher (up-
per) removed.

G.

View of front door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

1.

Horn relay1 E11

2.

ECM M107

3.

Push-button ignition switch M50

4.

Combination meter (Security indica-
tor) M53

5.

Stop lamp switch E110

6.

Steering lock unit M40

7.

Clutch interlock switch E111

8.

Horn (high) E61, E62

9.

Horn (low) E69, E70

JMKIA1271ZZ

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-15

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

A.

View with battery cover removed.

B.

View with instrument assist lower
panel removed.

C.

View with instrument driver lower
cover removed.

D.

View with instrument driver lower
cover removed.

E.

View with instrument driver lower
cover removed.

F.

View with front bumper removed.

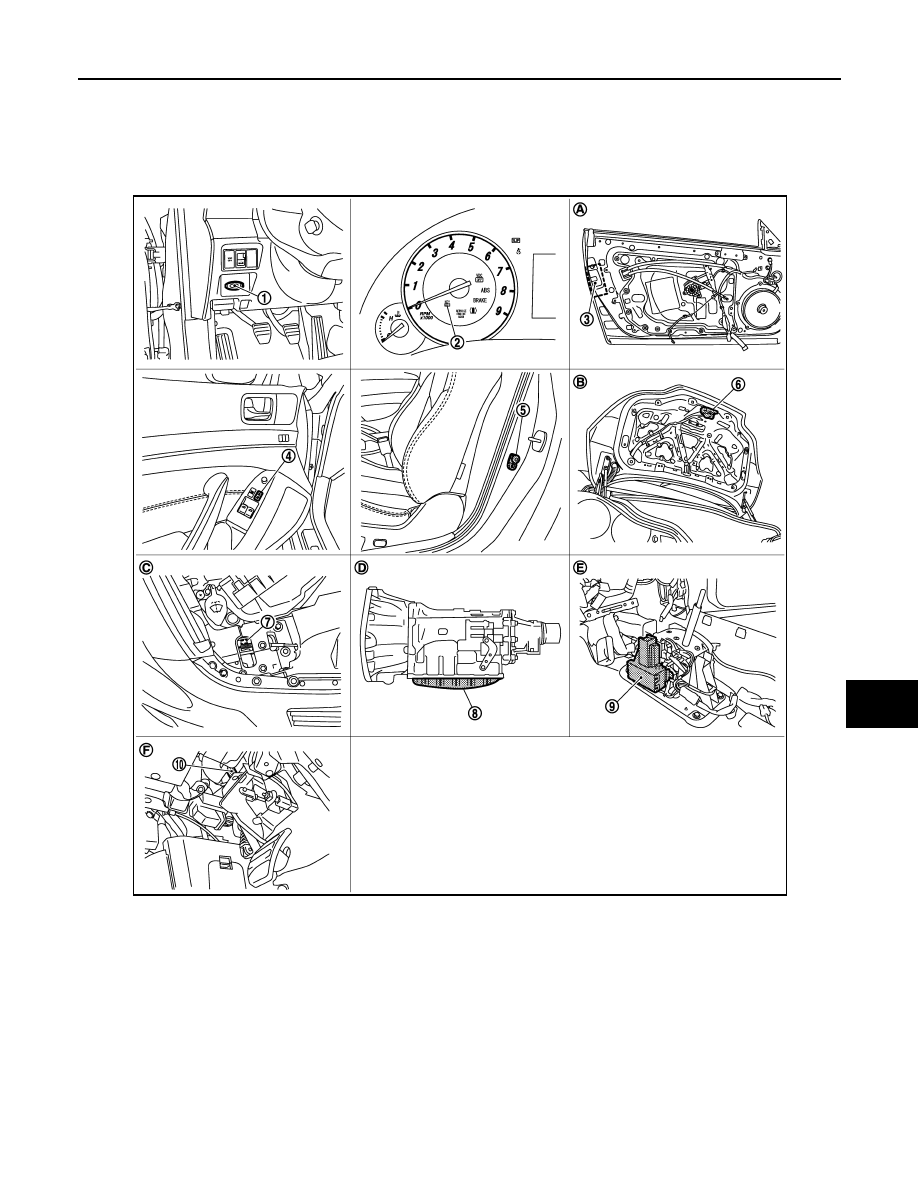

1.

Key slot M22

2.

Combination meter (Key warning
lamp) M53

3.

Driver side door lock assembly (door
key cylinder switch) D15

4.

Power window main switch D8

5.

Driver side  door switch B16

6.

Trunk lid lock assembly (trunk room
lamp switch) B303

7.

Hood switch E30

8.

TCM F151

9.

A/T device (detention switch) M137

10. ASCD clutch switch (ASCD models)

E108
ICC clutch switch (ICC models) E113

A.

View with front door finisher re-
moved.

B.

View with trunk lid finisher removed. C.

View with hood switch incorporated
into hood lock (RH).

D.

Inside of A/T (built into A/T).

E.

View with center console assembly
removed.

F.

View with instrument driver lower
cover removed.

JMKIA1272ZZ

SEC-16

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

Component Description

INFOID:0000000001699908

Component Reference

BCM

SEC-96

Steering lock unit

SEC-85

Push-button ignition switch

SEC-97

Door switch

DLK-66

A/T device (detention switch) (A/T models)

SEC-64

Inside key anttena

DLK-59

Remote keyless entry receiver

DLK-96

Stop lamp switch

SEC-58

Park/neutral position switch (A/T models)

SEC-72

Clutch switch (M/T models)

SEC-112

ASCD clutch switch (M/T models with ASCD)

SEC-124

ICC clutch switch (M/T models with ICC)

SEC-124

Steering lock relay

SEC-76

Starter relay

SEC-79

Starter control relay

SEC-63

Security indicator

SEC-135

Key warning lamp

SEC-134
