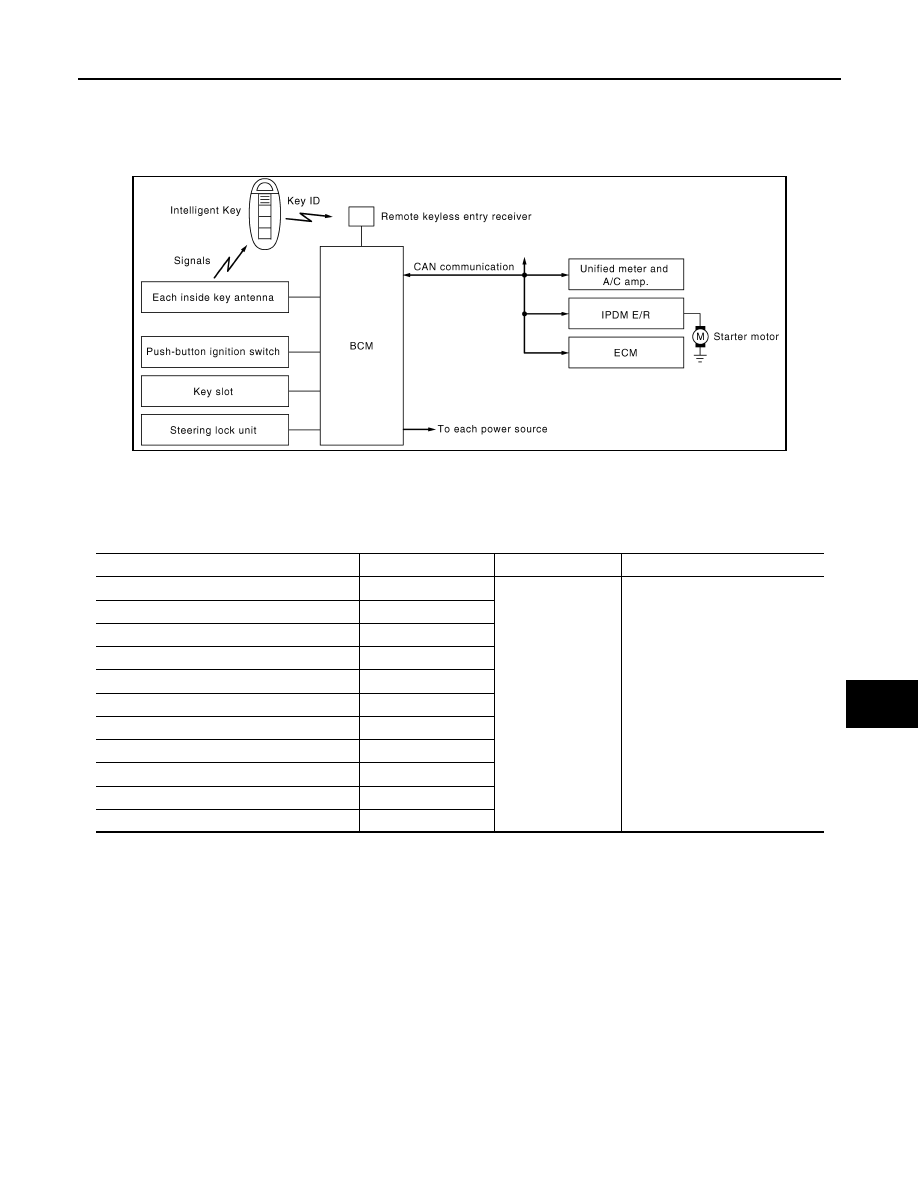

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION SEC-9 < FUNCTION DIAGNOSIS > [INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B SEC N O P FUNCTION DIAGNOSIS INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION System Diagram INFOID:0000000001699905 System Description INFOID:0000000001699906 INPUT/OUTPUT SIGNAL CHART SYSTEM DESCRIPTION • The engine start function of Intelligent Key system is a system that makes it possible to start and stop the engine without removing the key. It verifies the electronic ID using two-way communications when pressing • Intelligent Key has 2 IDs [for Intelligent Key and for IVIS (NATS)]. It can perform the door lock/unlock opera- tion and the push-button ignition switch operation when the registered Intelligent Key is carried. • When the Intelligent Key battery is discharged, it can be used as emergency back-up by inserting the Intelli- gent Key to the key slot. At that time, perform the IVIS (NATS) ID verification. If it is used when the Intelligent • If the ID is successfully verified, and when push-button ignition switch is pressed, steering lock will be released and initiating the engine will be possible. JMKIA0057GB Switch Input signal to BCM BCM function Actuator Push-button ignition switch Push switch Engine start function • Steering lock relay AT device (A/T models) P range PNP switch (A/T models) N, P range Clutch interlock switch (M/T models) Clutch ON/OFF ASCD clutch switch (M/T models with ASCD) Clutch ON/OFF ICC clutch switch (M/T models with ICC) Clutch ON/OFF Stop lamp switch Brake ON/OFF Each inside key antenna Request signal Remote keyless entry receiver Key ID Each door switch Door open/close ECM Engine status signal |
