Infiniti G37 Coupe. Manual - part 1072





SB-10

< ON-VEHICLE REPAIR >

REAR SEAT BELT

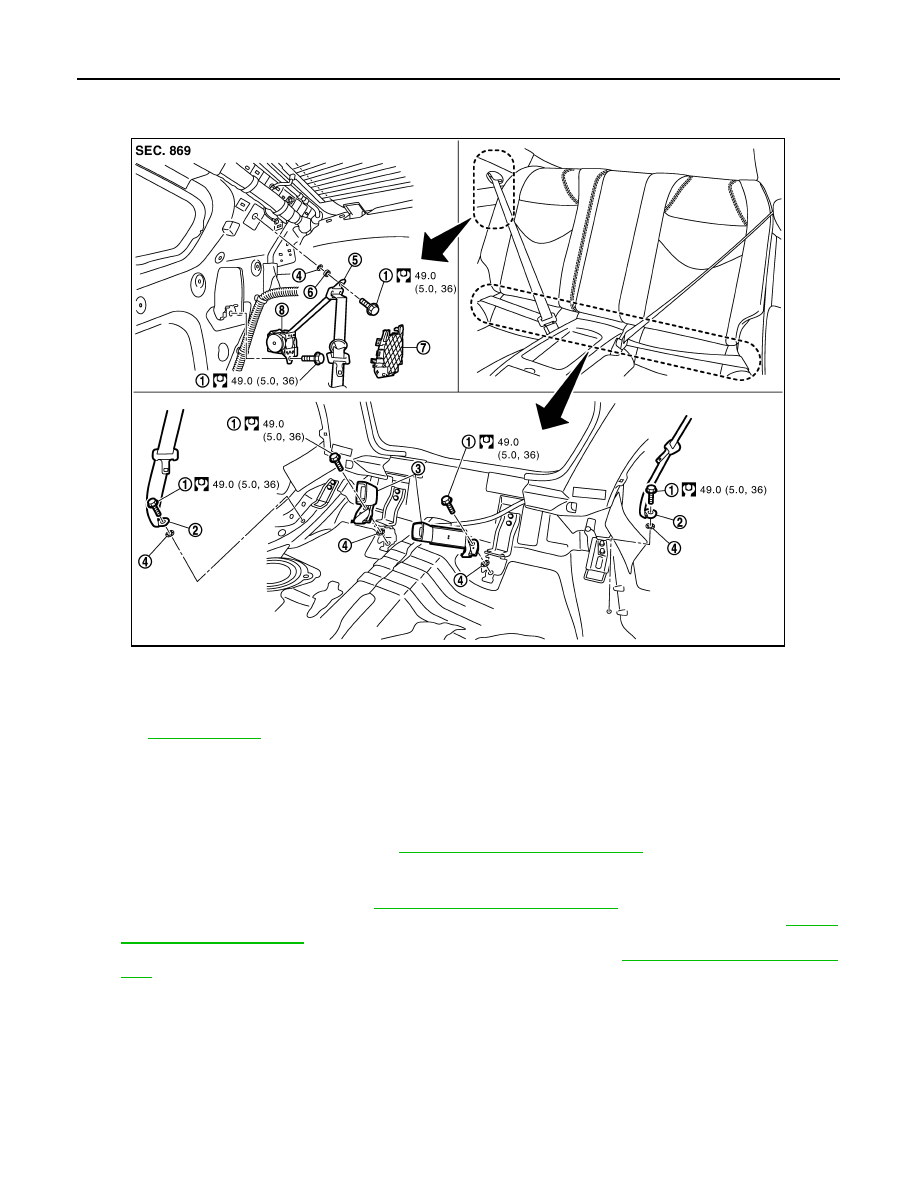

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000001728790

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000001728791

REMOVAL

1.

Remove the outer and inner anchors.
• Remove the rear seat cushion. Refer to

SE-160, "Removal and Installation"

.

• Remove the outer anchor fixing anchor bolt.

2.

Remove the seat belt assembly.
• Remove the rear seatback. Refer to

SE-160, "Removal and Installation"

.

• Remove the kicking plate inner, the rear side finisher and the rear pillar finisher. Refer to

INT-14,

"Removal and Installation"

.

• Remove the seat belt escutcheon from the rear pillar finisher. Refer to

INT-14, "Removal and Installa-

tion"

.

• Remove the retractor cover.
• Remove the fixing anchor bolt of the seat belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

1.

Anchor bolt

2.

Outer anchor

3.

Seat belt buckle

4.

Retaining washer

5.

Shoulder anchor

6.

Spacer

7.

Retractor cover

8.

Seat belt retractor

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0434GB

REAR SEAT BELT

SB-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Inspection

INFOID:0000000001728792

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

2.

Repeat step above as necessary to check the other seat belts.

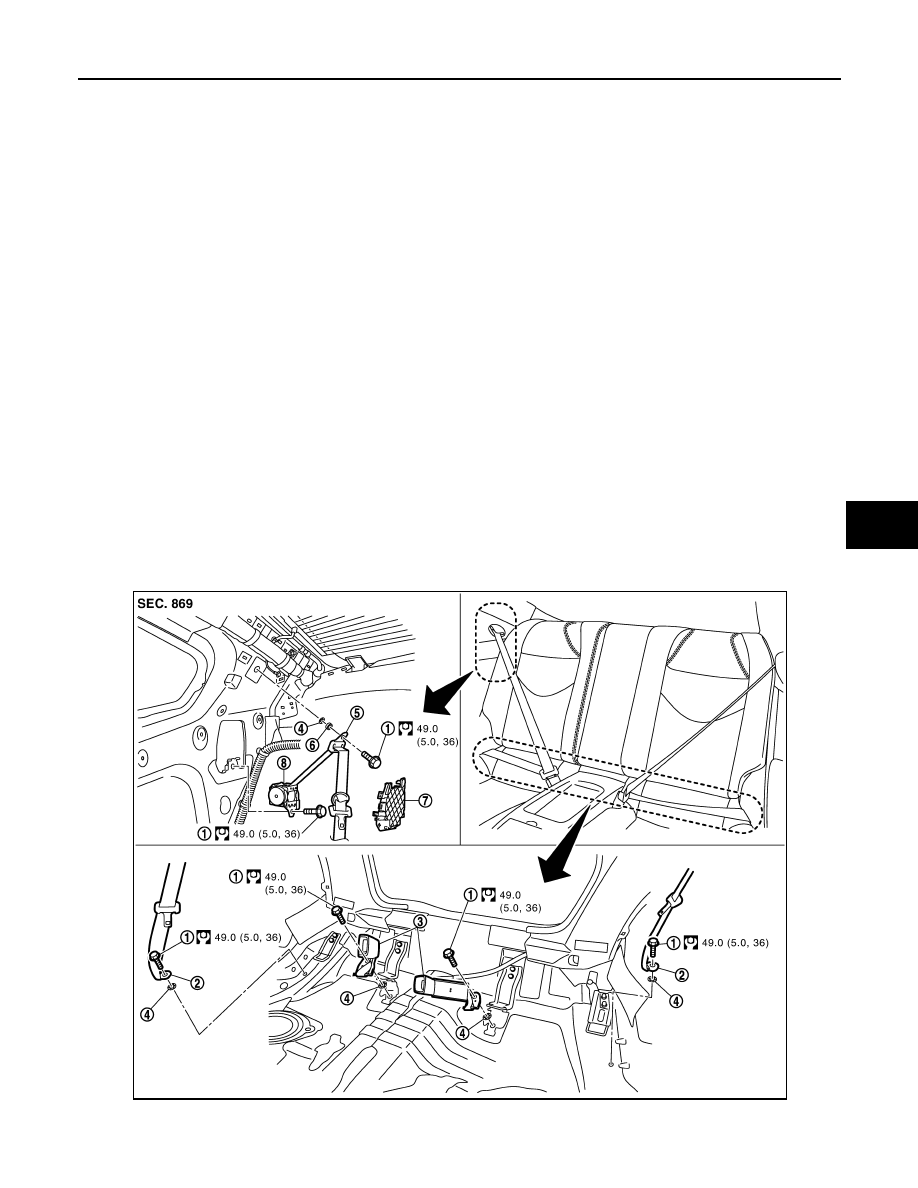

SEAT BELT BUCKLE : Exploded View

INFOID:0000000001826818

JMHIA0434GB

SB-12

< ON-VEHICLE REPAIR >

REAR SEAT BELT

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000001728794

REMOVAL

Remove the seat belt buckle.
• Remove the rear seat cushion. Refer to

SE-160, "Removal and Installation"

.

• Remove the fixing anchor bolt of the inner anchor.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Outer anchor

3.

Seat belt buckle

4.

Retaining washer

5.

Shoulder anchor

6.

Spacer

7.

Retractor cover

8.

Seat belt retractor

Refer to

GI-4, "Components"

 for symbols in the figure.

LATCH SYSTEM FOR CHILDREN

SB-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

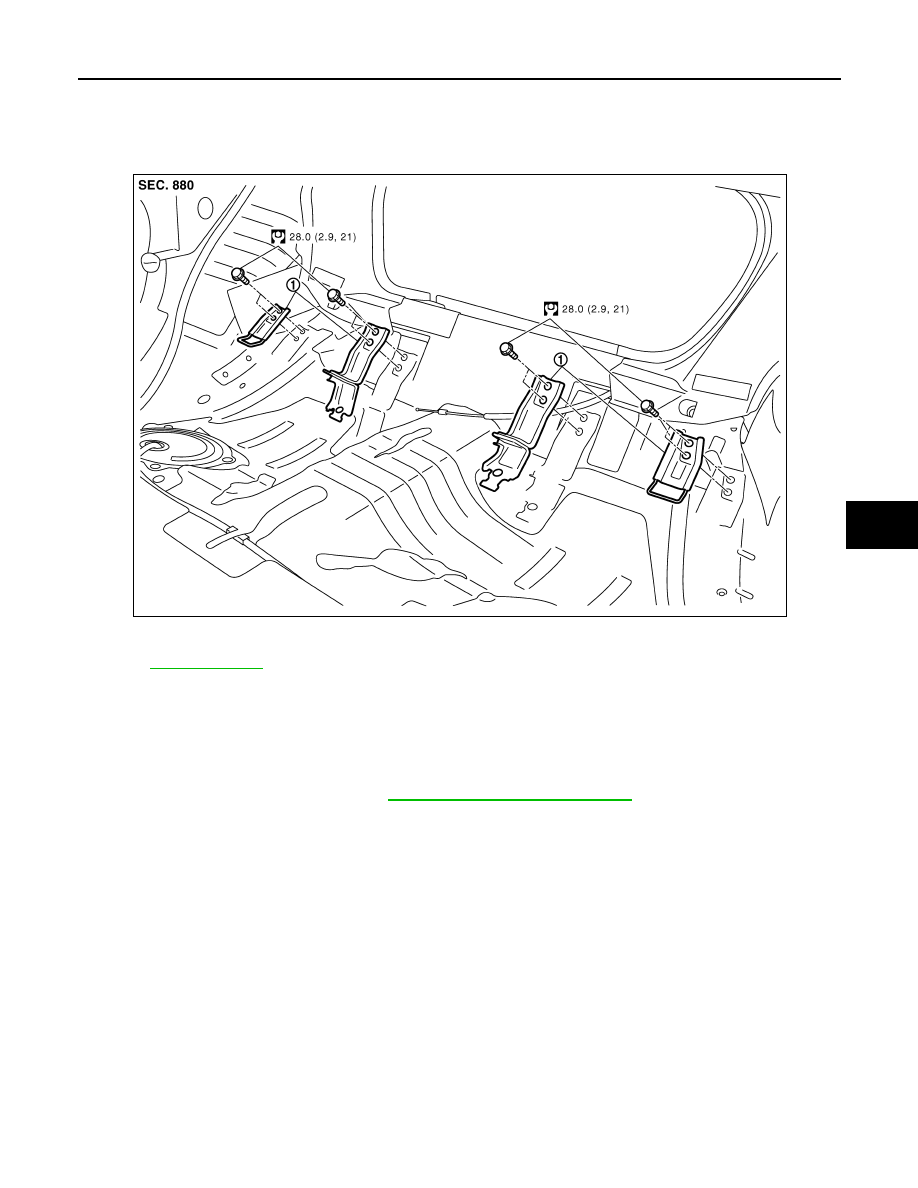

Exploded View

INFOID:0000000001728795

Removal and Installation

INFOID:0000000001728796

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.

1.

Remove the rear seat cushion. Refer to

SE-160, "Removal and Installation"

.

2.

Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION

Install in the reverse order of removal.

1.

LATCH system

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0435GB
