RADIUS ROD

Removal and Installation

INFOID:0000000001671761

REMOVAL

1.

Remove tire with power tool.

2.

Set suitable jack under axle assembly.

3.

Remove mounting bolts and nuts in axle side of radius rod with power tool.

4.

Remove mounting bolt in rear suspension member side of radius rod with power tool, then remove radius
rod.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000001671762

INSPECTION AFTER REMOVAL

Check radius rod and bushing for any deformation, cracks, or damage. Replace if there are.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-28, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

7.

Suspension member

8.

Stabilizer bar

9.

Stabilizer bushing

10. Stabilizer clamp

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Rear lower link

16. Front lower link

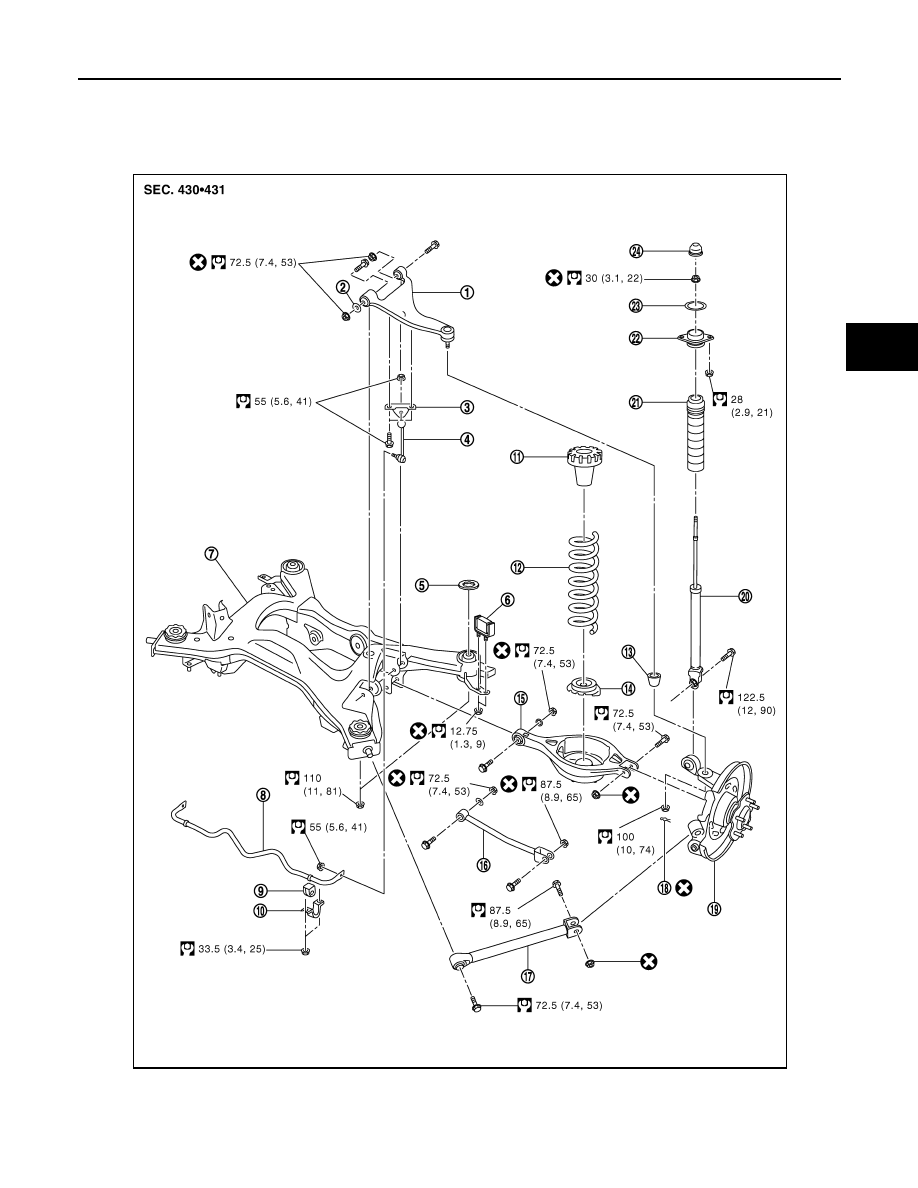

17. Radius rod

18. Cotter pin

19. Axle assembly

20. Shock absorber

21. Bound bumper cover

22. Shock absorber mounting bracket

23. Mounting seal

24. Cap

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT LOWER LINK

RSU-19

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

FRONT LOWER LINK

Exploded View

INFOID:0000000001686610

1.

Suspension arm

2.

Stopper rubber

3.

Stabilizer connecting rod mounting
bracket

4.

Stabilizer connecting rod

5.

Mount stopper

6.

Damper assembly

JPEIB0059ZZ

RSU-20

< ON-VEHICLE REPAIR >

FRONT LOWER LINK

Removal and Installation

INFOID:0000000001671764

REMOVAL

1.

Remove tire with power tool.

2.

Set suitable jack under axle assembly to relieve the coil spring tension.

3.

Remove mounting bolts and nuts between front lower link and rear suspension member with power tool.

4.

Remove mounting bolts and nuts between front lower link and axle with power tool.

5.

Remove front lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000001671765

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace if there are.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-28, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

7.

Suspension member

8.

Stabilizer bar

9.

Stabilizer bushing

10. Stabilizer clamp

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Rear lower link

16. Front lower link

17. Radius rod

18. Cotter pin

19. Axle assembly

20. Shock absorber

21. Bound bumper cover

22. Shock absorber mounting bracket

23. Mounting seal

24. Cap

Refer to

GI-4, "Components"

 for symbols in the figure.
