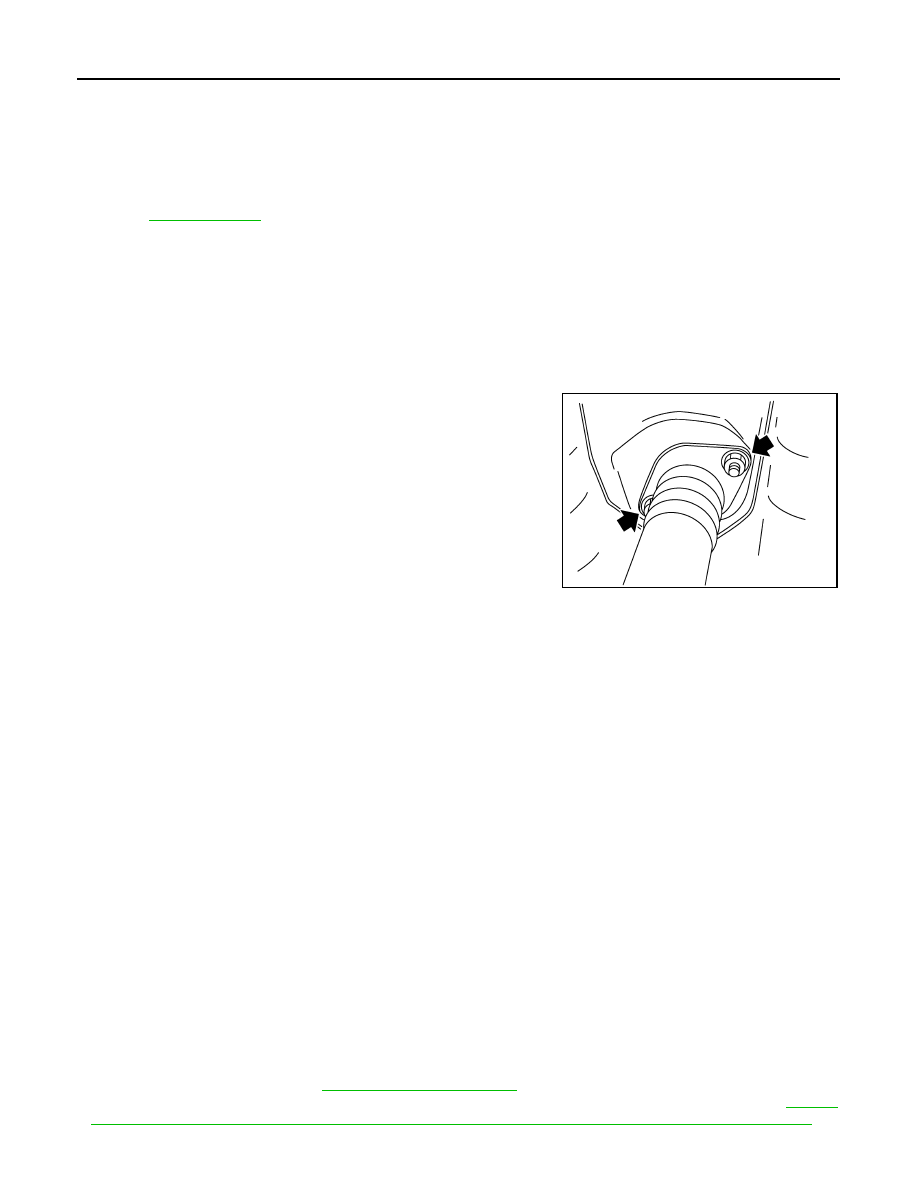

RSU-10

< ON-VEHICLE REPAIR >

REAR LOWER LINK & COIL SPRING

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

REAR SHOCK ABSORBER

RSU-11

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR SHOCK ABSORBER

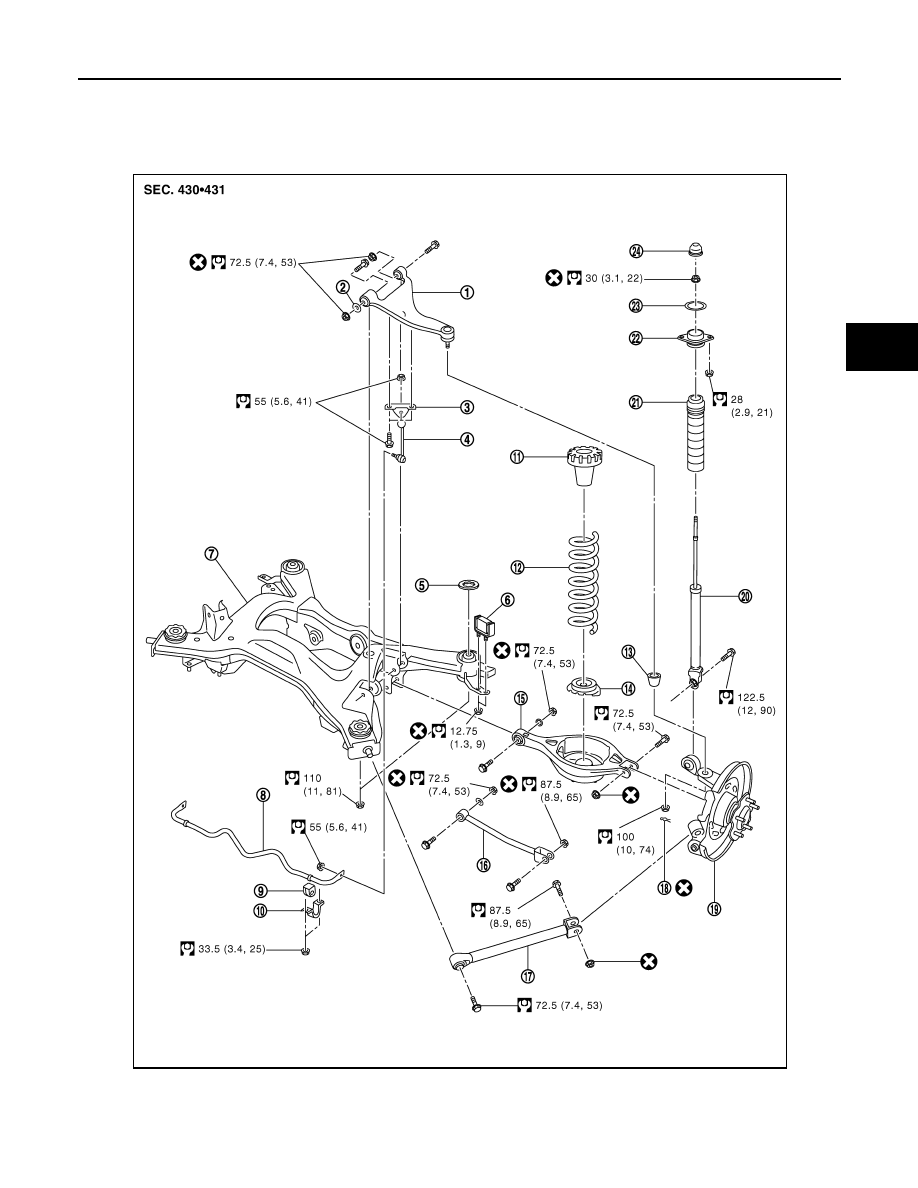

Exploded View

INFOID:0000000001686607

1.

Suspension arm

2.

Stopper rubber

3.

Stabilizer connecting rod mounting
bracket

4.

Stabilizer connecting rod

5.

Mount stopper

6.

Damper assembly

JPEIB0059ZZ

RSU-12

< ON-VEHICLE REPAIR >

REAR SHOCK ABSORBER

Removal and Installation

INFOID:0000000001671754

REMOVAL

1.

Remove tires with power tool.

2.

Set suitable jack under axle assembly to relieve the coil spring tension.

3.

Remove shock absorber lower end bolt with power tool.

4.

Gradually lower the jack to remove it from rear lower link.

5.

Remove shock absorber assembly upper end nuts with power
tool, and then remove shock absorber assembly from vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of bolts and nuts at the shock absorber lower side (rubber bushing), under unladen

conditions with tires on level ground.

Disassembly and Assembly

INFOID:0000000001671755

DISASSEMBLY

CAUTION:

Never damage shock absorber piston rod when removing components from shock absorber.

1.

Remove cap from mounting bracket

2.

Wrap a shop cloth around lower side of shock absorber and fix it with a vise.

CAUTION:

Never set the cylindrical part of shock absorber with a vise.

3.

Secure the piston rod tip so that piston rod does not turn, and remove piston rod lock nut.

4.

Remove mounting seal, mounting bracket and bound bumper cover from shock absorber.

ASSEMBLY

Install in the reverse order of removal.

Inspection

INFOID:0000000001671756

INSPECTION AFTER REMOVAL

• Check shock absorber assembly for deformation, cracks, damage, and replace if there are.
• Check welded and sealed areas for oil leakage, and replace if there are.

INSPECTION AFTER INSTALLION

• Check wheel alignment. Refer to

RSU-28, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

7.

Suspension member

8.

Stabilizer bar

9.

Stabilizer bushing

10. Stabilizer clamp

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Rear lower link

16. Front lower link

17. Radius rod

18. Cotter pin

19. Axle assembly

20. Shock absorber

21. Bound bumper cover

22. Shock absorber mounting bracket

23. Mounting seal

24. Cap

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0060ZZ

REAR SHOCK ABSORBER

RSU-13

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

INSPECTION AFTER DISASSEMBLY

Bound Bumper and Bushing

Check bound bumper cover and bushing for cracks and damage. Replace if there are.

Shock Absorber

Check the following:
• Shock absorber for deformation, cracks, and other damage. Replace if there are.
• Piston rod for damage, uneven wear, and distortion. Replace if there are.

INSPECTION AFTER ASSEMBLY

Make sure piston rod on shock absorber is not damaged when attaching components to shock absorber.
