CONTROL SIGNAL CIRCUIT

Description

INFOID:0000000001559044

TEL adapter unit identifies the vehicle model according to the control signal and performs the control.

Diagnosis Procedure

INFOID:0000000001559045

1.

CHECK CONTINUITY CONTROL SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TEL adapter unit connector.

3.

Check continuity between TEL adapter unit harness connector terminals 23, 24 and ground.

Is the inspection result normal?

YES

>> Replace TEL adapter unit.

NO

>> Repair harness or connector.

23, 24 - Ground

: Continuity should exist.

AV-178

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

MODE CHANGE SIGNAL CIRCUIT

MODE CHANGE SIGNAL CIRCUIT

Description

INFOID:0000000001907369

• AV control unit transmits the mode change signal to BOSE amp.
• Driver's Audio Stage controls the speaker's output characteristic by BOSE amp. so that the driver's seat is to

be the center of sounds.

Diagnosis Procedure

INFOID:0000000001907370

1.

CHECK CONTINUITY MODE CHANGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BOSE amp. connector and AV control unit connector.

3.

Check continuity between BOSE amp. harness connector terminal 37 and AV control unit harness con-
nector terminal 27.

4.

Check continuity between BOSE amp. harness connector terminal 37 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK MODE CHANGE SIGNAL

1.

Connect BOSE amp. connector.

2.

Turn ignition switch ON.

3.

Check signal between BOSE amp. harness connector terminal 37 and ground.

Is the inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace BOSE amp.

37 - 27

: Continuity should exist.

37 - Ground

: Continuity should not exist.

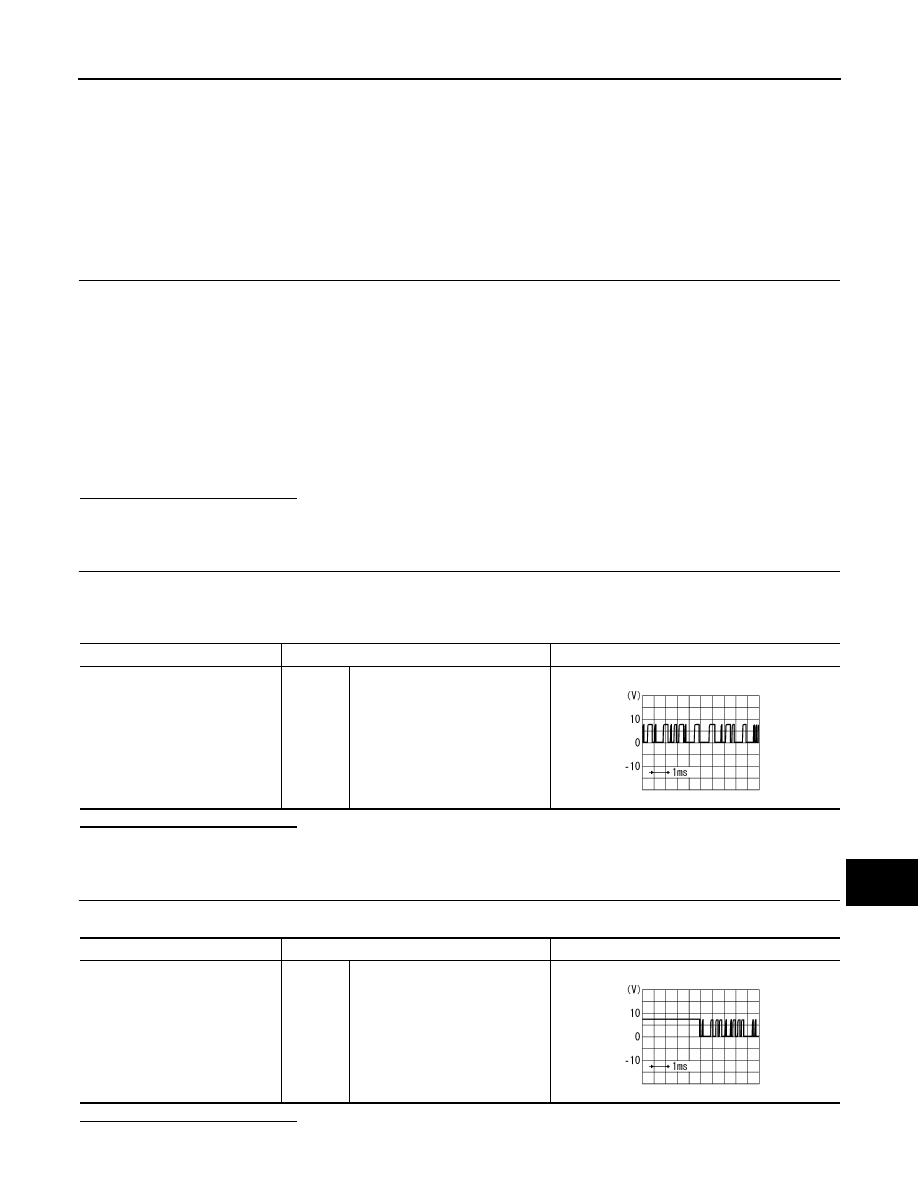

Terminal

Condition

Reference value

37 - Ground

Ignition

switch

ON

8.5  V

AV

COMMUNICATION SIGNAL CIRCUIT (CONT-SAT)

AV-179

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMMUNICATION SIGNAL CIRCUIT (CONT-SAT)

Description

INFOID:0000000001559046

Satellite radio tuner and AV control unit are connected with a serial communication. They transmit the opera-
tion signal from AV control unit to satellite radio tuner, and transmit the display signal from satellite radio tuner
to AV control unit.

Diagnosis Procedure

INFOID:0000000001559047

1.

CHECK CONTINUITY COMMUNICATION SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect satellite radio tuner connector and AV control unit connector.

3.

Check continuity between satellite radio tuner harness connector terminals 9, 10 and AV control unit har-
ness connector terminals 29, 30.

4.

Check continuity between satellite radio tuner harness connector terminals 9, 10 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK COMMUNICATION SIGNAL

1.

Connect satellite radio tuner connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between satellite radio tuner harness connector terminal 9 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace satellite radio tuner.

3.

CHECK COMMUNICATION SIGNAL

Check signal between satellite radio tuner harness connector terminal 10 and ground.

Is the inspection result normal?

YES

>> Replace satellite radio tuner.

9 - 29

: Continuity should exist.

10 - 30

: Continuity should exist.

9, 10 - Ground

: Continuity should not exist.

Terminal

Condition

Reference value

9 - Ground

Ignition

switch

ON

When satellite radio mode is se-
lected.

SKIA9300J

Terminal

Condition

Reference value

10 - Ground

Ignition

switch

ON

When satellite radio mode is se-
lected.

SKIA9301J

AV-180

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

COMMUNICATION SIGNAL CIRCUIT (CONT-SAT)

NO

>> Replace AV control unit.
