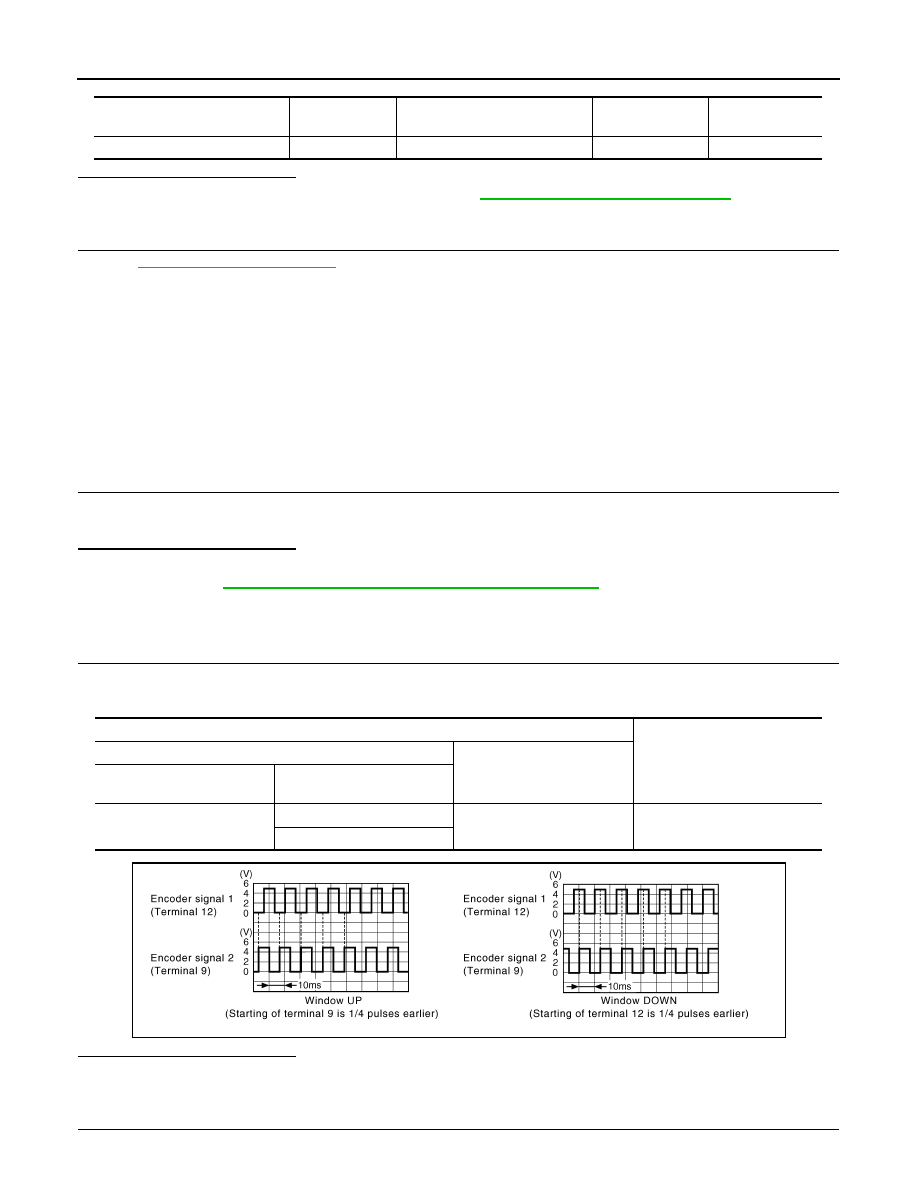

ENCODER PWC-21 < COMPONENT DIAGNOSIS > C D E F G H I J L M A B PWC N O P Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace harness. 3. CHECK ENCORDER POWER SUPPLY CIRCUIT 1. Connect power window main switch connector. 2. Turn ignition switch ON. 3. Check voltage between driver side power window motor harness connector and ground. Is the measurement value within the specification? YES >> GO TO 4. NO >> GO TO 5. 4. CHECK GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Check continuity between driver side power window motor harness connector and ground. Is the inspection result normal? YES >> GO TO 7. NO >> GO TO 6. 5. CHECK HARNESS CONTINUITY 1 1. Turn ignition switch OFF. 2. Disconnect power window main switch connector. 3. Check continuity between power window main switch harness connector and driver side power window 4. Check continuity between power window main switch harness connector and ground. Is the inspection result normal? YES >> Replace power window main switch. Refer to PWC-92, "Removal and Installation" NO >> Repair or replace harness. 6. CHECK HARNESS CONTINUITY 2 1. Disconnect power window main switch connector. 2. Check continuity between power window main switch harness connector and driver side power window Power window main switch connector Terminal Ground Continuity D8 9 Not existed 13 Terminal Voltage (V) (Approx.) (+) (–) Driver side power window motor connector Terminal D10 4 Ground 12 Driver side power window motor con- nector Terminal Ground Continuity D10 1 Existed Power window main switch con- nector Terminal Driver side power window mo- tor connector Terminal Continuity D8 5 D10 4 Existed Power window main switch connector Terminal Ground Continuity D8 5 Not existed |
