Infiniti G37 Coupe. Manual - part 4





ADP-10

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001699869

1.

SYSTEM INITIALIZATION

Perform system initialization. Refer to

ADP-10, "SYSTEM INITIALIZATION : Description"

.

>> GO TO 2.

2.

SYSTEM SETTING

Perform system setting. Refer to

ADP-12, "SYSTEM SETTING : Description"

.

>> GO TO 3.

3.

MEMORY STORING

Perform memory storing. Refer to

ADP-11, "MEMORY STORING : Description"

.

>> END

SYSTEM INITIALIZATION

SYSTEM INITIALIZATION : Description

INFOID:0000000001693610

Always perform the initialization when the battery terminal is disconnected or the driver seat control unit is
replace. If the initialization is not performed, the seat synchronization function, memory function, Intelligent
Key interlock function and power walk-in function do not function.

SYSTEM INITIALIZATION : Special Repair Requirement

INFOID:0000000001693611

INITIALIZATION PROCEDURE

1.

 STEP-1

Make sure that the ignition position is in the LOCK position.

>> GO TO 2.

2.

 STEP-2

Door switch is ON (open)

 OFF (close)

 ON (open).

NOTE:
STEP-1 and STEP-2 are the initialization procedures for synchronization function, memory function and Intel-
ligent Key interlock function.
STEP-1 and STEP-2 can be omitted by driving the vehicle at 25 km/h (16 MPH) or more.

>> GO TO 3.

3.

 STEP-3

Slide the seat to the front edge.
NOTE:
• STEP-3 is the initialization procedure for power walk-in function.
• If the seat sliding position is already at the front edge, slide the seat rearward once, and then slide it to the

front edge again.

>> END

MEMORY STORING

INSPECTION AND ADJUSTMENT

ADP-11

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY STORING : Description

INFOID:0000000001693612

Always perform the memory storing when the battery terminal is disconnected or the driver seat control unit is
replaced. The memory function and Intelligent Key interlock function will not operate normally if no memory
storing is performed.

MEMORY STORING : Special Repair Requirement

INFOID:0000000001693613

Memory Storing Procedure

Two positions for the driver seat, steering column and outside mirror can be stored for memory operation by
following procedure.

1.

STEP-1

Shift A/T selector lever to P position (A/T models) or applied parking brake (M/T models).

>> GO TO 2.

2.

STEP-2

Turn ignition switch ON.

>> GO TO 3.

3.

STEP-3

Adjust driver seat, steering column, and outside mirror position manually.

>> GO TO 4.

4.

STEP-4

1.

Push set switch.

2.

Make sure that the memory switch indicators 1 and 2 illuminate.

3.

After starting the indicator illumination, select the memory switch to be registered within 5 seconds, and
then press and hold it for 1 second or more.
NOTE:
If the selected memory switch is already registered, the previous memory is overwritten.

4.

Make sure that the memory switch indicators 1 and 2 illuminate.

Do you need linking of Intelligent Key?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

STEP-5

Confirm the operation of each part with memory operation.

>> END

6.

STEP-6

Push the Intelligent Key unlock button within 5 seconds after pushing memory switch (while the memory indi-
cator is turned ON).

Illuminate for 0.5 second

: Not registered

Illuminate for 5 second

: Registered

Blink for 5 seconds

: The registration to the not reg-
istered memory is completed

Illuminate for 5 seconds after
turning off for 0.5 second

: The overwriting of registered
memory is completed.

ADP-12

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

>> GO TO 7.

7.

STEP-7

Confirm the operation of each part with memory operation and lntelligent Key interlock function.

>> END

SYSTEM SETTING

SYSTEM SETTING : Description

INFOID:0000000001693614

The setting of the automatic driving positioner system can be changed using the set switch.

SYSTEM SETTING : Special Repair Requirement

INFOID:0000000001693615

SETTING PROCEDURE

1.

STEP-1

Set the vehicle to the following condition.
• Ignition position: OFF
• A/T selector lever: P position (A/T models)
• Parking brake: Applied only (M/T models)

>> GO TO 2.

2.

STEP-2

Press set switch and hold for more than 10 seconds, then confirm blinking of the memory switch indicator.

>> END.

Memory indicator blink
two times.

:Seat synchronization
function is ON.

Memory indicator blink
once.

:Seat synchronization
function is OFF.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

FUNCTION DIAGNOSIS

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

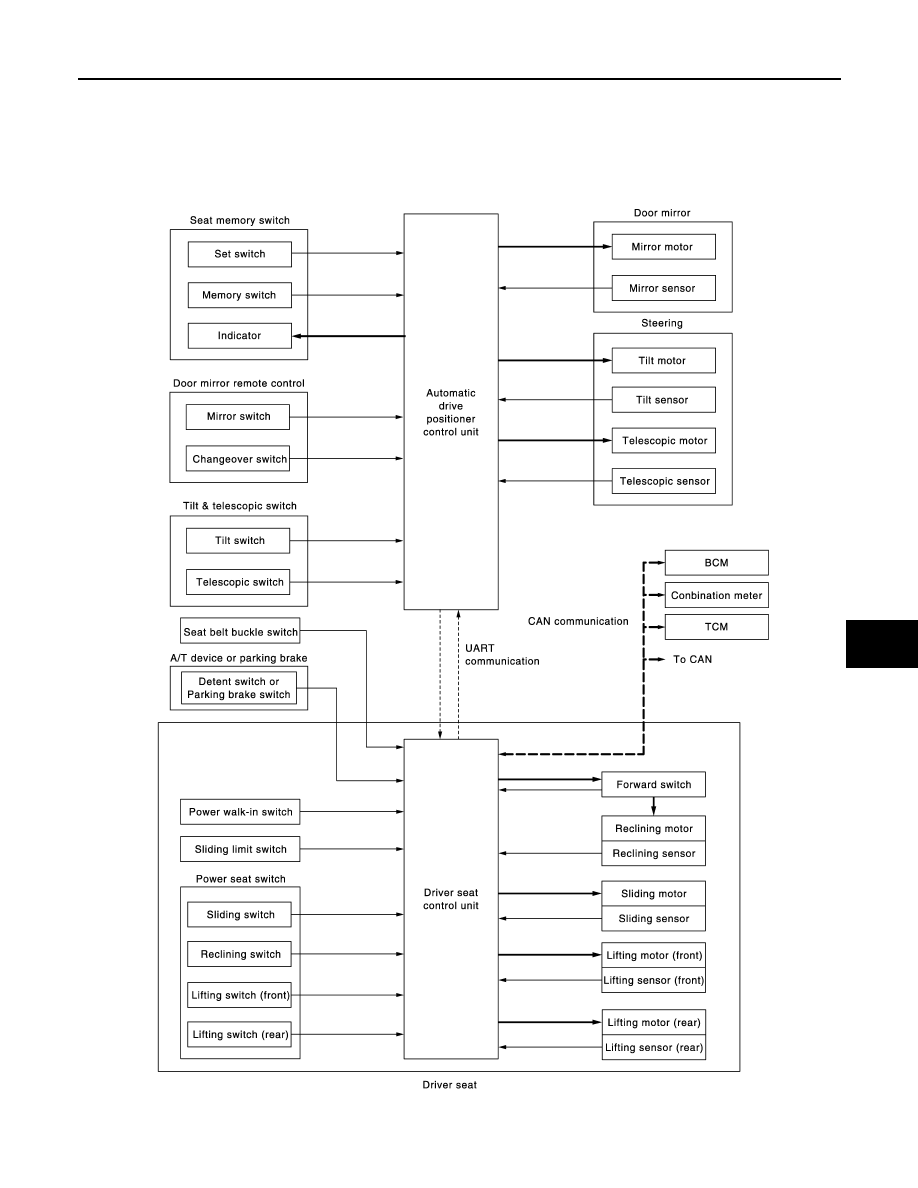

AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000001693616

JMJIA0915GB
