Infiniti G37 Coupe. Manual - part 1





ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001547750

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

ACCELERATOR CONTROL SYSTEM

ACC-3

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

ON-VEHICLE REPAIR

ACCELERATOR CONTROL SYSTEM

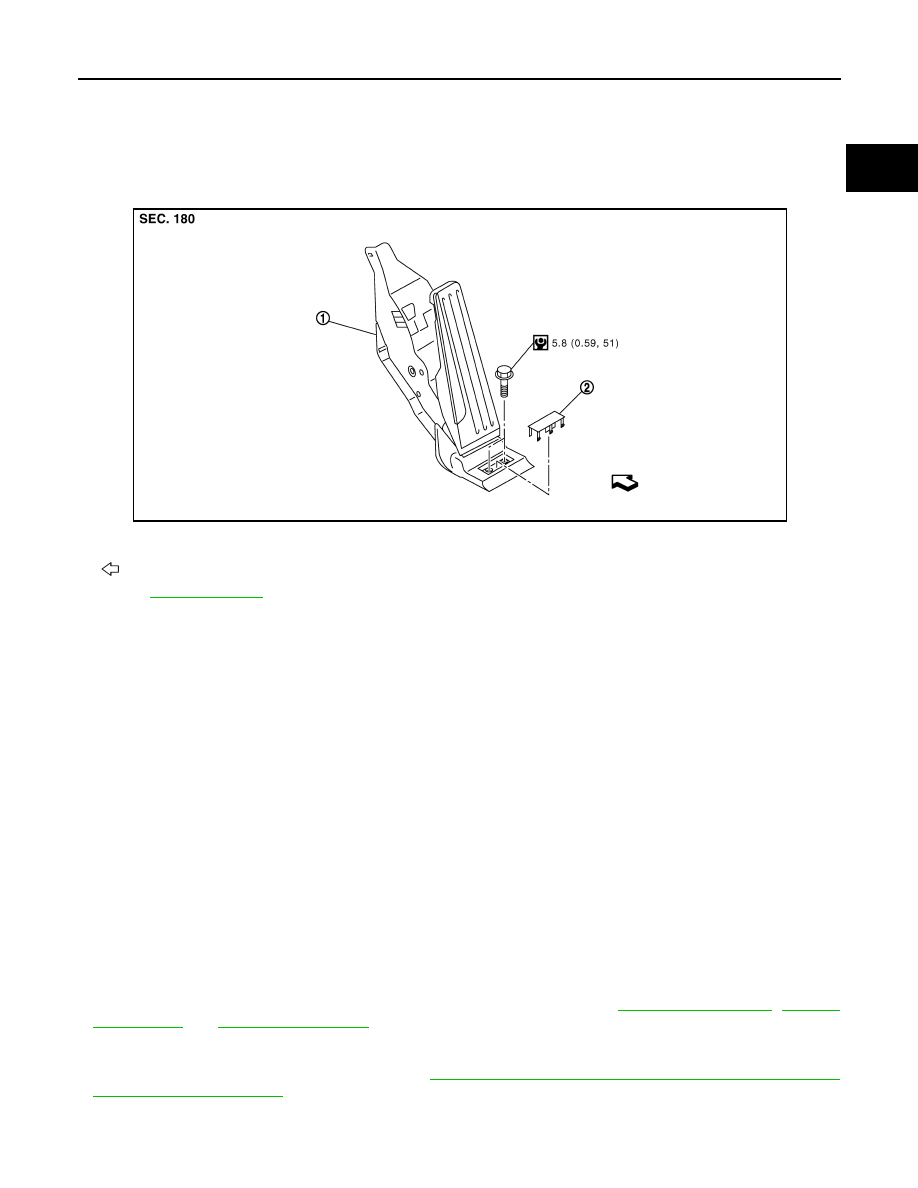

Exploded View

INFOID:0000000001547747

Removal and Installation

INFOID:0000000001547748

REMOVAL

1.

Remove the cap and the inside mounting bolt.

2.

Remove accelerator pedal assembly.

3.

Disconnect accelerator pedal position sensor harness connector.

CAUTION:

• Never disassemble accelerator lever. Never remove accelerator pedal position sensor from

accelerator lever.

• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator lever away from water.

INSTALLATION

Installation is the reverse order of removal.

Inspection

INFOID:0000000001547749

INSPECTION AFTER INSTALLATION

• Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and

released.

• Check accelerator pedal securely returns to the fully released position.
• For the electrical inspection of accelerator pedal position sensor, refer to

EC-458, "Description"

EC-462,

"Description"

 and

EC-466, "Description"

.

-

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator
Pedal Released Position Learning”. Refer to

EC-18, "ACCELERATOR PEDAL RELEASED POSITION

LEARNING : Description"

.

1.

Accelerator pedal assembly

2.

Bolt cap

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA0253GB

ADP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

ADP

A

B

ADP

N

O

P

CONTENTS

AUTOMATIC DRIVE POSITIONER

BASIC INSPECTION  ....................................

6

DIAGNOSIS AND REPAIR WORKFLOW  ..........

6

Work Flow  .................................................................

6

INSPECTION AND ADJUSTMENT .....................

9

ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL ...................................
..

9

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Description ......

9

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement .....................................................
..

9

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................
..

9

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................
..

9

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....

10

SYSTEM INITIALIZATION  ........................................

10

SYSTEM INITIALIZATION : Description  .................

10

SYSTEM INITIALIZATION : Special Repair Re-
quirement ................................................................

10

MEMORY STORING ..................................................

10

MEMORY STORING : Description ..........................

11

MEMORY STORING : Special Repair Require-
ment ........................................................................

11

SYSTEM SETTING  ....................................................

12

SYSTEM SETTING : Description ............................

12

SYSTEM SETTING : Special Repair Requirement

....

12

FUNCTION DIAGNOSIS ..............................

13

AUTOMATIC DRIVE POSITIONER SYSTEM ....

13

AUTOMATIC DRIVE POSITIONER SYSTEM ...........

13

AUTOMATIC DRIVE POSITIONER SYSTEM :
System Diagram  ......................................................

13

AUTOMATIC DRIVE POSITIONER SYSTEM :
System Description ..................................................

14

AUTOMATIC DRIVE POSITIONER SYSTEM :
Component Parts Location  ......................................

15

AUTOMATIC DRIVE POSITIONER SYSTEM :
Component Description ..........................................

17

MANUAL FUNCTION  ................................................

18

MANUAL FUNCTION : System Diagram  ................

19

MANUAL FUNCTION : System Description  ............

19

MANUAL FUNCTION : Component Parts Loca-
tion ...........................................................................

21

MANUAL FUNCTION : Component Description .....

23

SEAT SYNCHRONIZATION FUNCTION  ..................

24

SEAT SYNCHRONIZATION FUNCTION : Sys-
tem Diagram  ............................................................

24

SEAT SYNCHRONIZATION FUNCTION : Sys-
tem Description ........................................................

24

SEAT SYNCHRONIZATION FUNCTION : Com-
ponent Parts Location ..............................................

26

SEAT SYNCHRONIZATION FUNCTION :
Component Description ..........................................

28

MEMORY FUNCTION ................................................

29

MEMORY FUNCTION : System Diagram  ...............

29

MEMORY FUNCTION : System Description ...........

29

MEMORY FUNCTION : Component Parts Loca-
tion ...........................................................................

31

MEMORY FUNCTION : Component Description ....

33

INTELLIGENT KEY INTERLOCK FUNCTION  ..........

34

INTELLIGENT KEY INTERLOCK FUNCTION :
System Diagram  ......................................................

34

INTELLIGENT KEY INTERLOCK FUNCTION :
System Description ..................................................

34

INTELLIGENT KEY INTERLOCK FUNCTION :
Component Parts Location  ......................................

36

INTELLIGENT KEY INTERLOCK FUNCTION :
Component Description ..........................................

38
