CHASSIS MAINTENANCE

MA-25

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

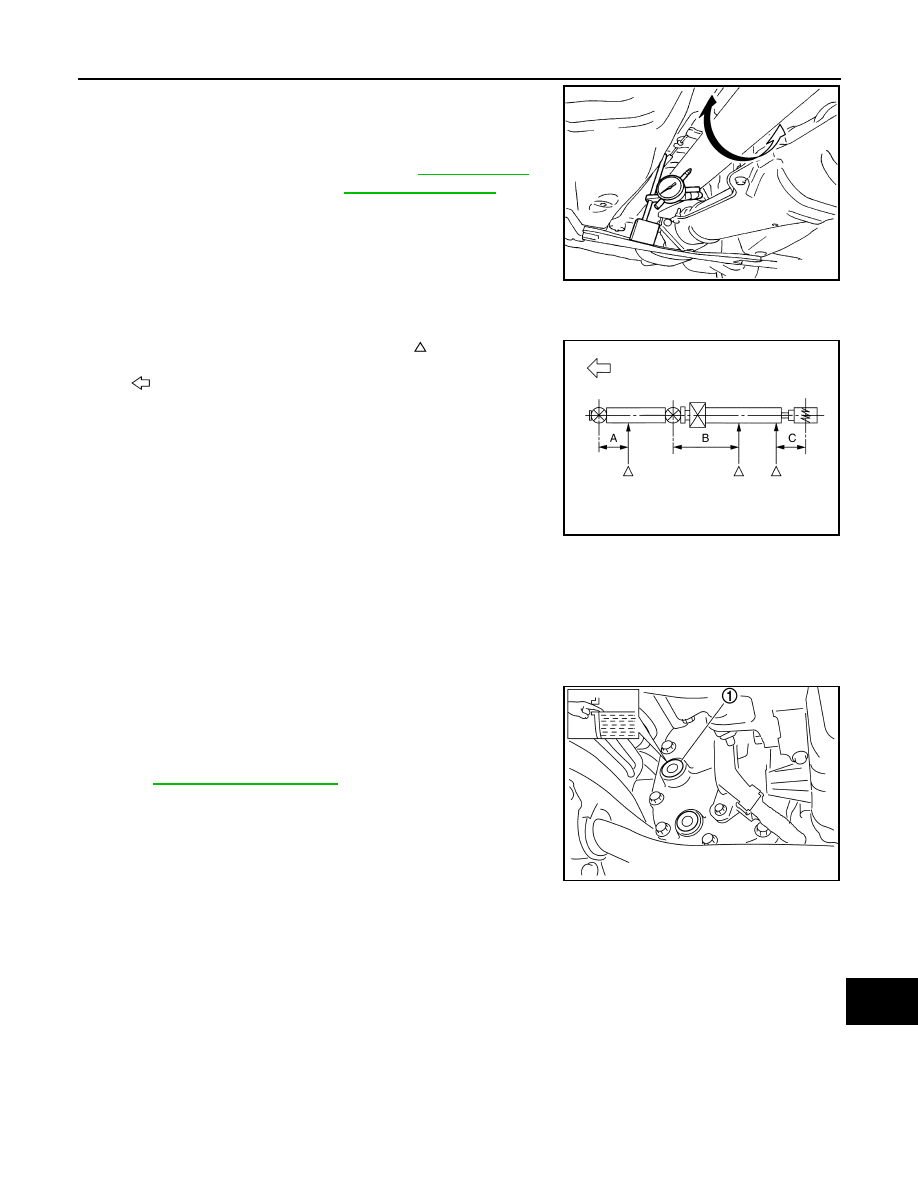

1.

Measure propeller shaft runout at several points by rotating final
drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

• Propeller shaft runout measuring point (Point “ ”).

REAR PROPELLER SHAFT: 3S80A

REAR PROPELLER SHAFT: 3S80A : Inspection

INFOID:0000000000967327

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
• If center bearing is noisy or damaged, replace propeller shaft assembly.

VIBRATION

• If vibration is present at high speed, inspect propeller shaft runout first.
1.

Measure propeller shaft runout at several points by rotating final
drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications,
replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

: Vehicle front

Limit

Propeller shaft runout

: Refer to

DLN-82, "Propel-

ler Shaft Runout"

.

PDIA0767J

Dimension

A: 381.5 mm (15.02 in)

PDIA0768J

Limit

Propeller shaft runout

: Refer to

DLN-89, "Propel-

ler Shaft Runout"

.

SDIA1087E

MA-26

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

• Propeller shaft runout measuring point (Point “ ”).

REAR PROPELLER SHAFT: 3S80A-R

REAR PROPELLER SHAFT: 3S80A-R : Inspection

INFOID:0000000000967328

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
• If center bearing is noisy or damaged, replace propeller shaft assembly.

VIBRATION

• If vibration is present at high speed, inspect propeller shaft runout first.
1.

Measure propeller shaft runout at several points by rotating final
drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 120,
240 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications,
replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

• Propeller shaft runout measuring point (Point “ ”).

REAR PROPELLER SHAFT: 3S81A-1VL107

REAR PROPELLER SHAFT: 3S81A-1VL107 : Inspection

INFOID:0000000000967329

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
• If center bearing is noisy or damaged, replace propeller shaft assembly.

VIBRATION

• If vibration is present at high speed, inspect propeller shaft runout first.

: Vehicle front

Dimension

A: 192 mm (7.56 in)

B: 172 mm (6.77 in)

C: 170 mm (6.69 in)

PDIA0770J

Limit

Propeller shaft runout

: Refer to

DLN-97, "Propel-

ler Shaft Runout"

.

SDIA1087E

: Vehicle front

Dimension

A: 192 mm (7.56 in)

B: 172 mm (6.77 in)

C: 172 mm (6.77 in)

JSDIA0169ZZ

CHASSIS MAINTENANCE

MA-27

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

1.

Measure propeller shaft runout at several points by rotating final
drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 60,
120 180, 240, 300 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications,
replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

• Propeller shaft runout measuring point (Point “ ”).

FRONT DIFFERENTIAL GEAR OIL: F160A

FRONT DIFFERENTIAL GEAR OIL: F160A : Inspection

INFOID:0000000000967330

OIL LEAKAGE

Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

• Remove filler plug (1) and check oil level from filler plug mounting

hole as shown in the figure.

CAUTION:

Never start engine while checking oil level.

• Set a gasket on filler plug (1) and install it on final drive assembly.

Refer to

DLN-119, "Exploded View"

.

CAUTION:

Never reuse gasket.

FRONT DIFFERENTIAL GEAR OIL: F160A : Draining

INFOID:0000000000967331

1.

Stop engine.

Limit

Propeller shaft runout

: Refer to

DLN-105, "Pro-

peller Shaft Runout"

.

SDIA1087E

: Vehicle front

Dimension

A: 162 mm (6.38 in)

B: 245 mm (9.65 in)

C: 185 mm (7.28 in)

PDIA0772J

PDIA0782J

MA-28

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

2.

Remove drain plug (1) and drain gear oil.

3.

Set a gasket on drain plug (1) and install it to final drive assem-
bly and tighten to the specified torque. Refer to

DLN-119,

"Exploded View"

.

CAUTION:

Never reuse gasket.

FRONT DIFFERENTIAL GEAR OIL: F160A : Refilling

INFOID:0000000000967332

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.

2.

After refilling oil, check oil level. Set a gasket to filler plug (1),
then install it to final drive assembly. Refer to

DLN-119,

"Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL: R200

REAR DIFFERENTIAL GEAR OIL: R200 : Inspection

INFOID:0000000000967333

OIL LEAKEGE

• Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

• Remove filler plug (1) and check oil level from filler plug mounting

hole as shown in the figure.

CAUTION:

Never start engine while checking oil level.

• Set a gasket on filler plug (1) and install it on final drive assembly.

Refer to

DLN-174, "2WD : Exploded View"

 (2WD models),

DLN-

186, "AWD : Exploded View"

 (AWD models).

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL: R200 : Draining

INFOID:0000000000967334

1.

Stop engine.

PDIA0781J

Oil grade and Viscosity

: Refer to

MA-10, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-144, "Gen-

eral Specifications"

.

PDIA0782J

PDIA0749J
