Infiniti G35 (V35) Sedan. Manual - part 764

HAC-28

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

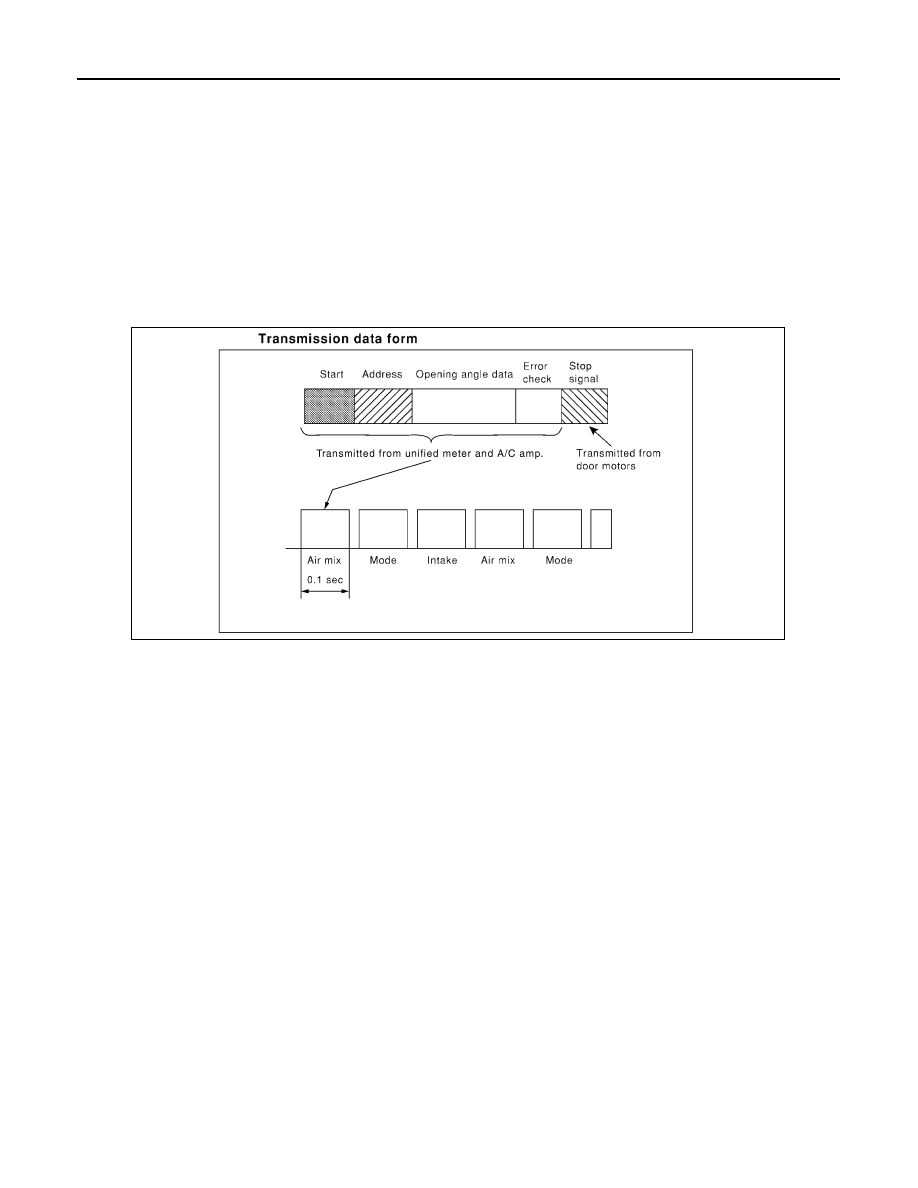

OPENING ANGLE:

• Data that shows the indicated door opening angle of each door motor.

ERROR CHECK:

• In this procedure, transmitted and received data is checked for errors. Error data are then compiled. The

error check prevents corrupted data from being used by the mode door motor, the air mix door motor and the
intake door motor. Error data can be related to the following symptoms.

- Malfunction of electrical frequency
- Poor electrical connections
- Signal leakage from transmission lines
- Signal level fluctuation

STOP SIGNAL:

• At the end of each transmission, a stop operation, in-operation, or internal malfunction message is delivered

to the unified meter and A/C amp. This completes one data transmission and control cycle.

AIR MIX DOOR CONTROL (AUTOMATIC TEMPERATURE CONTROL)

The air mix door is automatically controlled so that in-vehicle temperature is maintained at a predetermined
value by the temperature setting, ambient temperature, in-vehicle temperature and amount of sunload.

FAN SPEED CONTROL

Blower speed is automatically controlled by the temperature setting, ambient temperature, in-vehicle tempera-
ture, intake temperature, amount of sunload and air mix door position.
With pressing AUTO switch, the blower motor starts to gradually increase air flow volume.
When engine coolant temperature is low, the blower motor operation is delayed to prevent cool air from flow-
ing.

INTAKE DOOR CONTROL

The intake doors are automatically controlled by the temperature setting, ambient temperature, in-vehicle tem-
perature, intake temperature, amount of sunload and ON/OFF operation of the compressor.

MODE DOOR CONTROL

The mode door is automatically controlled by the temperature setting, ambient temperature, in-vehicle temper-
ature, intake temperature and amount of sunload.

JSIIA0118GB

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-29

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MAGNET CLUTCH CONTROL

When A/C switch, AUTO switch, DEF switch or D/F switch is pressed, unified meter and A/C amp. transmits
compressor ON signal to ECM, via CAN communication.
ECM judges whether compressor can be turned ON, based on each sensor status (refrigerant-pressure sen-
sor signal, throttle angle, etc.). If it judges compressor can be turned ON, it sends compressor ON signal to
IPDM E/R, via CAN communication.
Upon receipt of compressor ON signal from ECM, IPDM E/R turns air conditioner relay ON to operate com-
pressor.
When sending compressor ON signal to IPDM E/R via CAN communication line, ECM simultaneously sends
compressor feedback signal to ECM via CAN communication line.
ECM sends compressor feedback signal to unified meter and A/C amp., then, uses input compressor feed-
back signal to control air inlet.

WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON-
TROL SYSTEM : Component Part Location

INFOID:0000000000959910

ENGINE COMPARTMENT

JSIIA0148GB

HAC-30

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Ambient sensor

3.

Compressor (magnet clutch)

4.

Compressor (ECV)

JSIIA0081ZZ

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-31

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

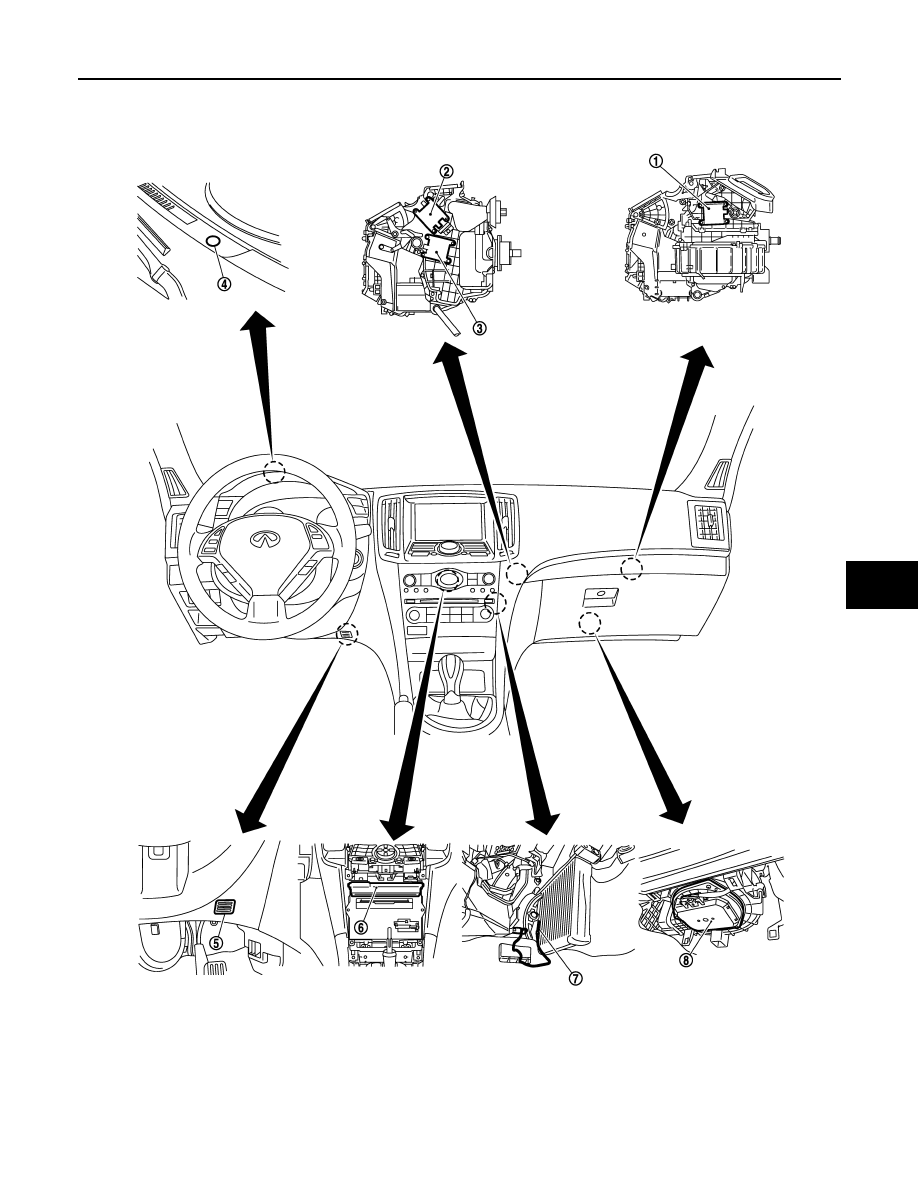

WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON-
TROL SYSTEM : Component Description

INFOID:0000000000959911

1.

Intake door motor

2.

Mode door motor

3.

Air mix door motor

4.

Sunload sensor

5.

In-vehicle sensor

6.

Unified meter and A/C amp.

7.

Intake sensor

8.

Blower motor

JSIIA0122ZZ
