FRONT STABILIZER

FSU-17

< ON-VEHICLE REPAIR >

[2WD]

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

FRONT STABILIZER

Exploded View

INFOID:0000000000957777

Refer to

FSU-19, "Exploded View"

.

Removal and Installation

INFOID:0000000000957778

REMOVAL

1.

Remove tires with power tool.

2.

Remove under cover with power tool.

3.

Remove the mounting nut on the lower side of stabilizer connecting rod with power tool, and then remove
stabilizer connecting rod from stabilizer bar.

4.

Remove the mounting nuts of stabilizer clamp, and then remove stabilizer clamp and stabilizer bushing.

5.

Remove stabilizer bar.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000000957779

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if a malfunction is detected.

FSU-18

< ON-VEHICLE REPAIR >

[2WD]

FRONT SUSPENSION MEMBER

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000000957780

Refer to

FSU-19, "Exploded View"

.

Removal and Installation

INFOID:0000000000957781

REMOVAL

1.

Remove tire with power tool.

2.

Remove under cover with power tool.

3.

Remove suspension member stay with power tool.

4.

Separate steering gear assembly and lower joint. Refer to

ST-27, "2WD : Removal and Installation"

.

5.

Remove steering outer socket from steering knuckle.

6.

Remove wheel sensor from steering knuckle. Refer to

BRC-101, "REAR SENSOR ROTOR : Removal

and Installation"

.

7.

Remove stabilizer connecting rod from transverse link. Refer to

FSU-17, "Removal and Installation"

.

8.

Remove front stabilizer. Refer to

FSU-17, "Removal and Installation"

.

9.

Install engine slinger, and then hoist engine.

10. Remove transverse link from front suspension member with power tool. Refer to

FSU-13, "Removal and

Installation"

.

11. Remove steering hydraulic piping bracket and steering gear from front suspension member. Refer to

ST-

55, "2WD : Exploded View"

.

12. Set suitable jack front suspension member.
13. Remove mounting nuts between engine mounting insulator and from suspension member. Refer to

EM-

77, "2WD : Removal and Installation"

.

14. Remove mounting bolts and nuts of front suspension member with power tool.
15. Gradually lower jack to remove front suspension assembly from vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of installation position between front suspension member and transverse links (rub-

ber bushing) under unladen condition with tires on level ground.

Inspection

INFOID:0000000000957782

INSPECTION AFTER REMOVAL

Check the front suspension member for significant deformation, cracks, or damages. Replace if necessary.

INSPECTION AFER INSTALLATION

• Check wheel alignment. Refer to

FSU-21, "Wheel Alignment"

.

• Adjust the neutral position of the steering angle sensor after checking the wheel alignment. Refer to "Steer-

ing".

FRONT SUSPENSION ASSEMBLY

FSU-19

< REMOVAL AND INSTALLATION >

[2WD]

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

REMOVAL AND INSTALLATION

FRONT SUSPENSION ASSEMBLY

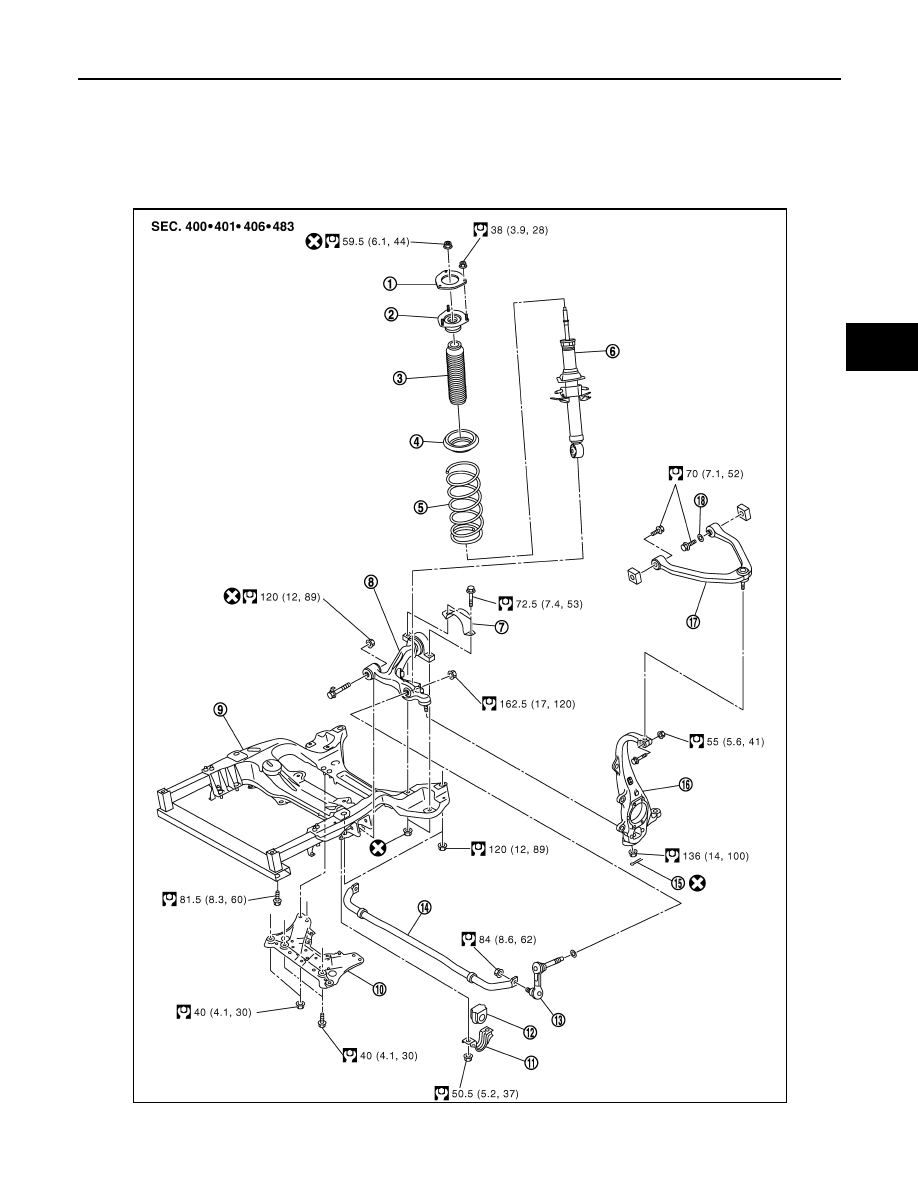

Exploded View

INFOID:0000000000957783

JPEIA0001GB

FSU-20

< REMOVAL AND INSTALLATION >

[2WD]

FRONT SUSPENSION ASSEMBLY

Removal and Installation

INFOID:0000000000957784

REMOVAL

Remove suspension assembly with engine assembly from vehicle. Refer to

EM-77, "2WD : Removal and

Installation"

.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000000957785

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

FSU-21, "Wheel Alignment"

.

• Adjust the neutral position of the steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

• Check wheel sensor harness for proper connection. Refer to

BRC-100, "Removal and Installation"

.

1.

Gasket

2.

Shock absorber mounting bracket

3.

Bound bumper

4.

Rubber seat

5.

Coil spring

6.

Shock absorber

7.

Insulator

8.

Transverse link

9.

Front suspension member

10. Suspension member stay

11. Stabilizer clamp

12. Stabilizer bushing

13. Stabilizer connecting rod

14. Stabilizer bar

15. Cotter pin

16. Steering knuckle

17. Upper link

18. Stopper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.
