Commercial Service Tool

INFOID:0000000000957470

Tool name

Description

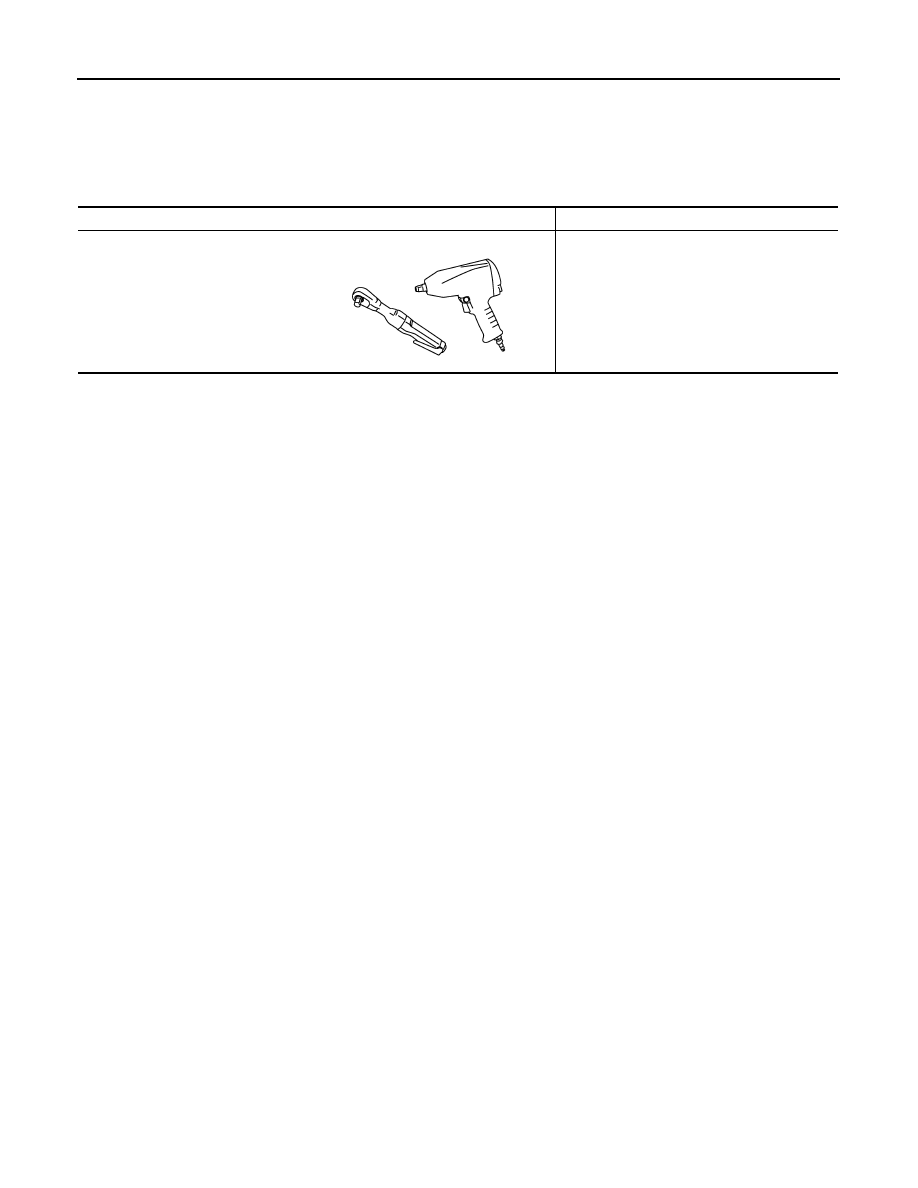

Power tool

Looseing bolts and nuts

PBIC0190E

FRONT WHEEL HUB AND KNUCKLE

FAX-5

< ON-VEHICLE MAINTENANCE >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

ON-VEHICLE MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Exploded View

INFOID:0000000000957471

Refer to

FAX-6, "Exploded View"

.

Inspection

INFOID:0000000000957472

MOUNTING INSPECTION

Make sure that the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub and make sure that is no unusual noise or other irregular conditions. If there is any of

irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

FAX-8, "Wheel Bearing"

.

FAX-6

< ON-VEHICLE REPAIR >

[2WD]

FRONT WHEEL HUB AND KNUCKLE

ON-VEHICLE REPAIR

FRONT WHEEL HUB AND KNUCKLE

Exploded View

INFOID:0000000000957473

Removal and Installation

INFOID:0000000000957474

REMOVAL

Wheel Hub and Bearing Assembly

1.

Remove tires from vehicle with power tool.

2.

Remove wheel sensor from steering knuckle. Refer to

BRC-100, "Removal and Installation"

.

CAUTION:

Never pull on wheel sensor harness.

3.

Remove torque member mounting bolts with power tool. Hang torque member in a place where it will not
interfere with work. Refer to

BR-42, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal and

Installation"

 (1 piston type),

BR-46, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal and

Installation"

 (2 piston type).

CAUTION:

Never depress brake pedal while brake caliper is removed.

4.

Remove disc rotor. Refer to

BR-40, "BRAKE PAD (1 PISTON TYPE) : Inspection and Adjustment"

 (1 pis-

ton type),

BR-41, "BRAKE PAD (2 PISTON TYPE) : Inspection and Adjustment"

 (2 piston type).

5.

Remove wheel hub and bearing assembly mounting bolts, and then remove splash guard and wheel hub
and bearing assembly from steering knuckle.

Steering Knuckle

1.

Remove wheel hub and bearing assembly, and then remove splash guard.

2.

Remove brake hose bracket. Refer to

BR-21, "FRONT BRAKE : Exploded View"

.

1.

Steering knuckle

2.

Ball seat

3.

Cotter pin

4.

Splash guard

5.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIF0001GB

FRONT WHEEL HUB AND KNUCKLE

FAX-7

< ON-VEHICLE REPAIR >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

3.

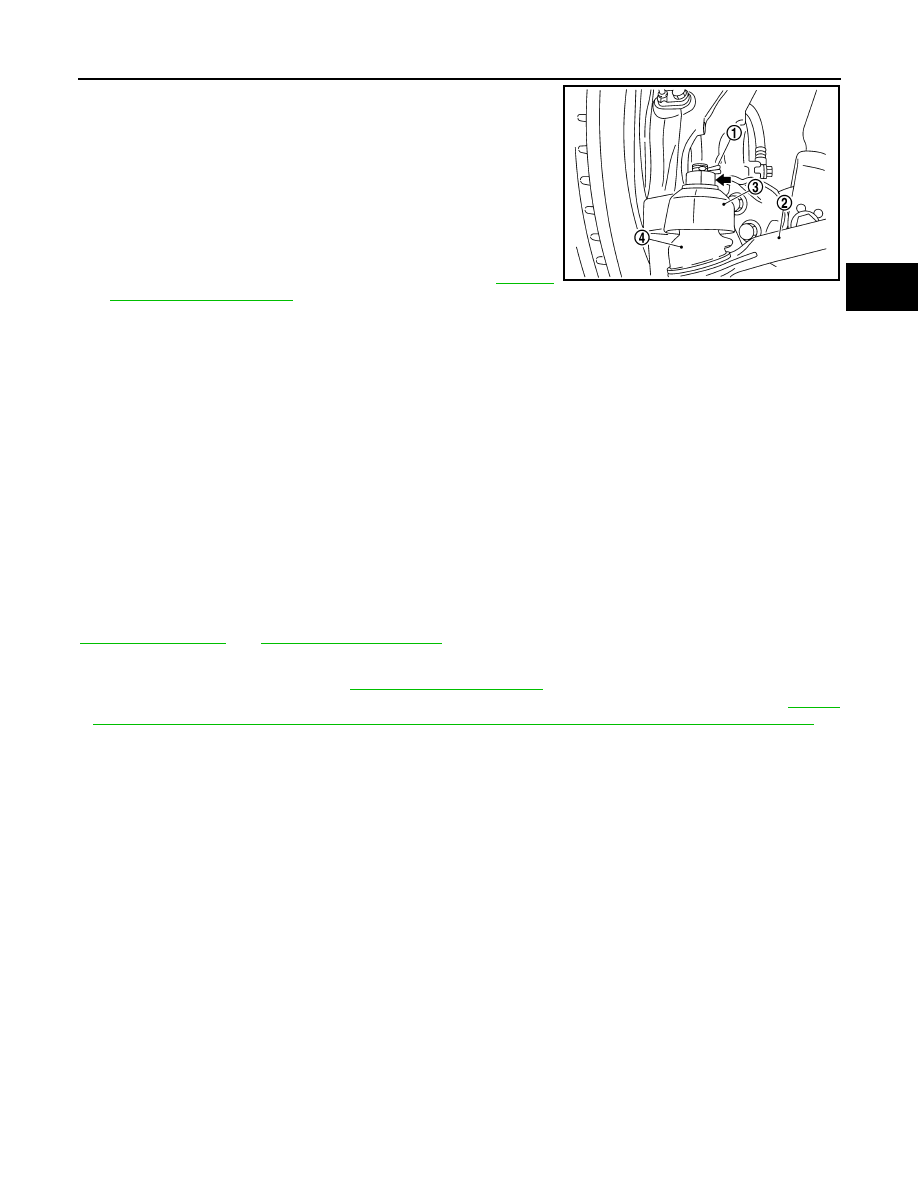

Remove cotter pin (1) of steering outer socket, and then loosen
the nut.

4.

Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using the ball joint remover.

CAUTION:

Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover from suddenly coming
off.

5.

Remove cotter pin of transverse link and steering knuckle, and
then loosen nut.

6.

Separate upper link from steering knuckle. Refer to

FSU-15,

"Removal and Installation"

.

7.

Separate transverse link from steering knuckle so as not to damage ball joint boot using the ball joint
remover.

CAUTION:

Temporarily tighten the nut to prevent damage to threads and to prevent the ball joint remover
from suddenly coming off.

8.

Remove steering knuckle form vehicle.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and bearing assembly and steering knuckle.

Inspection

INFOID:0000000000957475

INSPECTION AFTER REMOVAL

Check components for deformation, cracks, and other damage. Replace if there are.

Ball Joint Inspection

Check boots of transverse link and steering outer socket ball joint for breakage, axial play, and torque. Refer to

FSU-13, "Inspection"

 and

ST-32, "2WD : Inspection"

.

INSPECTION AFTER INSTALLATION

• Check the wheel alignment. Refer to

FSU-21, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

SGIA1183E
