< ON-VEHICLE REPAIR >

DOOR SASH MOLDING

DOOR SASH MOLDING

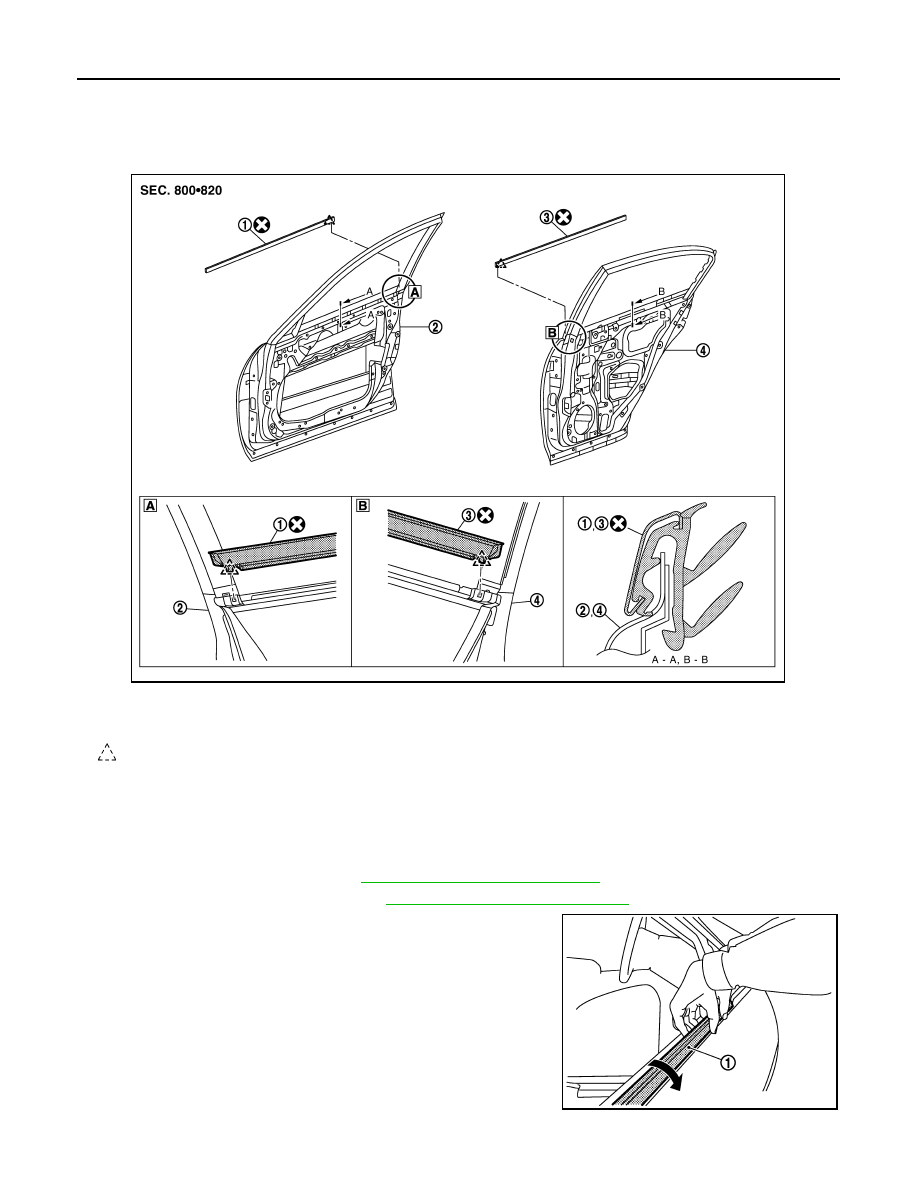

Exploded View

INFOID:0000000000961810

Removal and Installation

INFOID:0000000000961811

FRONT DOOR SASH MOLDING

Removal

1.

Remove door mirror assembly. Refer to

MIR-67, "Removal and Installation"

.

2.

Remove front door weather strip.

3.

Release roof portion of glass run.

1.

Front door sash molding

2.

Rear door sash molding (front)

3.

Rear door sash molding (rear)

4.

Molding clip

5.

Front door panel

6.

Rear door panel

7.

Body side outer panel

8.

Front door weather strip

9.

Front door sash

10. Rear door weather strip

11.

Rear door sash

12. Double-faced adhesive tape

Clip

JMKIA0083GB

DOOR SASH MOLDING

EXT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

4.

Remove front door sash molding (1) connection between door
panel and molding from glass run side, using a remover tool (A).

5.

Remove front door sash molding (1).

Installation

Install in the reverse order of removal.

REAR DOOR SUSH MOLDING

Removal

1.

Remove rear door weather strip.

2.

Release roof portion of glass run.

3.

Remove rear door sash molding (1) connection between door
panel and molding from glass run side, using a remover tool (A).

4.

Remove rear door sash molding (front) (1).

5.

Release rear door sash molding connection between rear door
panel and molding (1), using a remover tool (A), and take off
double-faced adhesive tape.

6.

Remove rear door sash molding (rear) (1).

Installation

Install in the reverse order of removal.

CAUTION:

• l Do not let air between contact surfaces when installing.
• l To secure contact, do not wash vehicle within 24 hours after installation.
• Do not use a material for remover tool (A) which could damage door panel.

JMKIA0113GB

JMKIA0114GB

JMKIA0115GB

EXT-32

< ON-VEHICLE REPAIR >

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000000961812

Removal and Installation

INFOID:0000000000961813

REMOVAL

FRONT DOOR OUTSIDE MOLDING

1.

Remove front door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Remove door mirror assembly. Refer to

MIR-67, "Removal and Installation"

.

3.

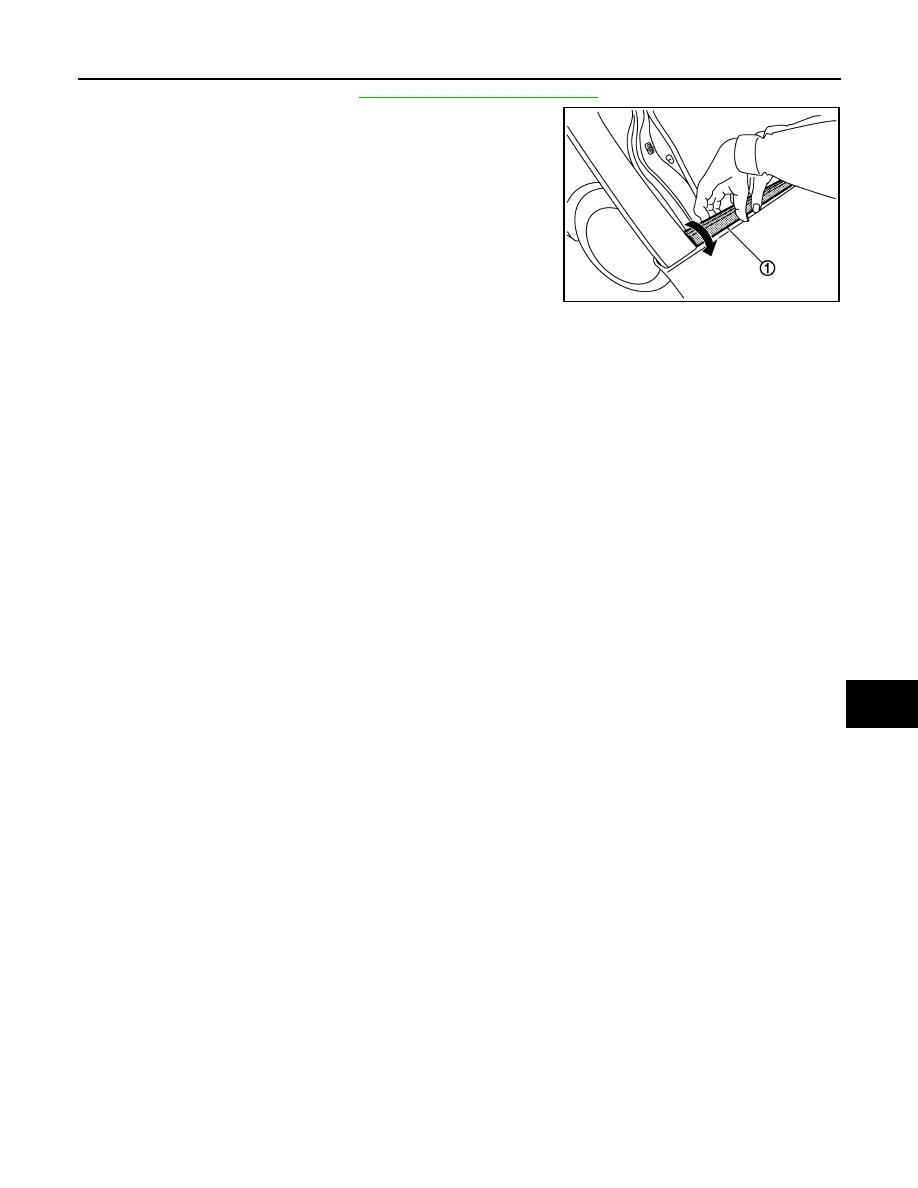

Twists and pull up to upper side, and then remove front door out-
side molding (1).

REAR DOOR OUTSIDE MOLDING

1.

Front door outside molding

2.

Front door panel

3.

Rear door outside molding

4.

Rear door panel

Pawl

JMKIA0084GB

JMKIA0116GB

DOOR OUTSIDE MOLDING

EXT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

1.

Remove rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Twists and pull up to upper side, and then remove rear door out-
side molding (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0117GB
