COWL TOP

COWL TOP

Exploded View

INFOID:0000000000961800

Removal and Installation

INFOID:0000000000961801

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm (LH/RH) from vehicle. Refer to

WW-84, "Removal and Installation"

.

1.

Front fender cover (RH)

2.

Cowl top seal

3.

Front fender cover (LH)

4.

Cowl top cover (RH)

5.

Cowl top cover (LH)

6.

Cowl top cover seal (RH)

7.

Cowl top cover seal (LH)

8.

Battery cover

9.

Brake master cylinder cover

10. Hoodledge cover (RH)

11. Hoodledge cover (LH)

12. EPT sealer

Clip

Pawl

JMKIA0077GB

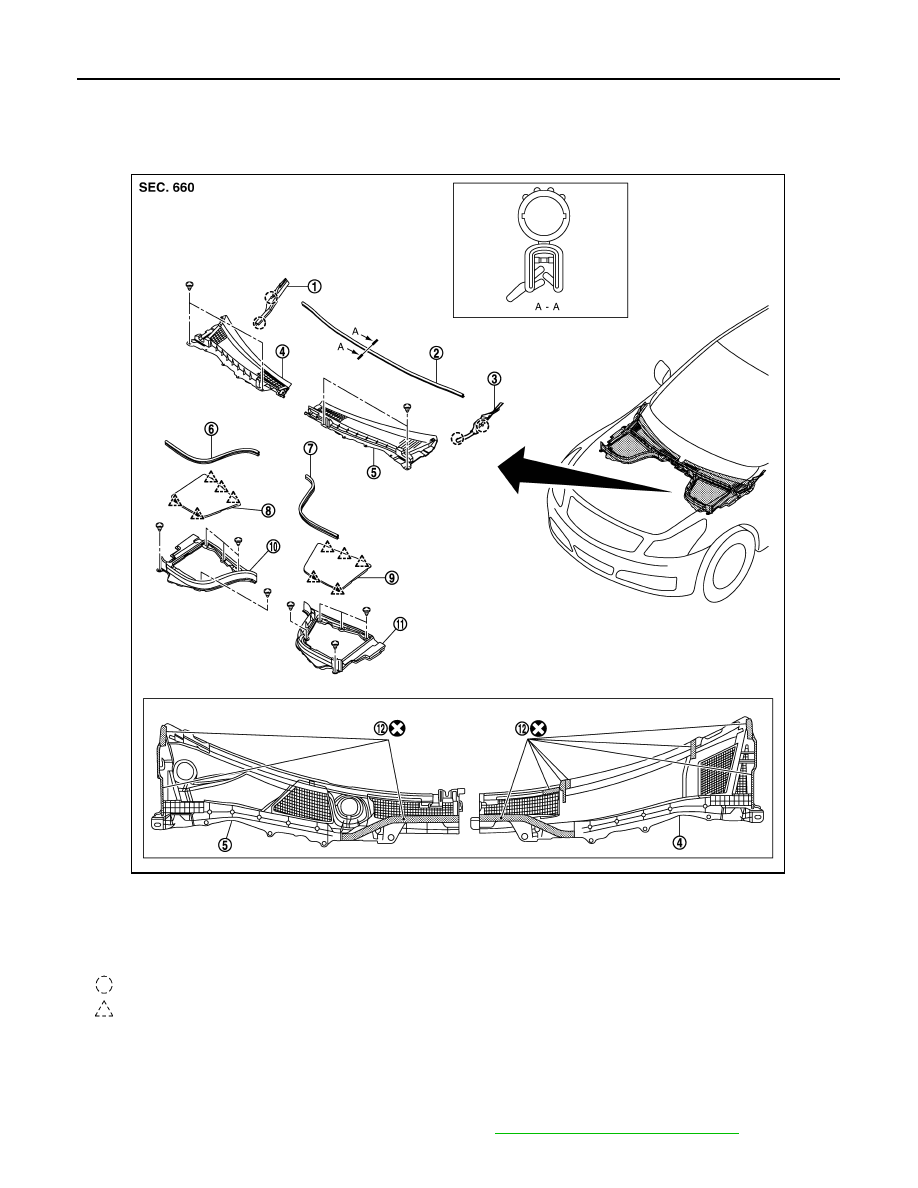

COWL TOP

EXT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

3.

Remove battery cover and brake master cylinder cover.

4.

Remove hoodledge cover mounting clips and then remove hoodledge cover (LH/RH) and cowl top cover
seal (LH/RH).

5.

Remove cowl top seal.

6.

Remove cowl top cover mounting clips.

7.

Plastic pawl (A) is pull up and cowl top cover RH (2) is removed
ahead of vehicles.

8.

Plastic pawl (B) is push down and cowl top cover LH (1) is
removed ahead of vehicles.

9.

Remove the following parts after removing cowl top cover.
• Front fender cover (LH/RH).
• EPT sealer.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install cowl top cover LH (1) with (C) (pin from front windshield

glass) aligned with concave part.

• Slide the pawl while aligning with the concave part of (E).
• Engage the joint of plastic pawl of (A) with (D), and then assemble

cowl top covers LH (1) and RH (2).

JMKIA0099GB

JMKIA0100GB

JMKIA0104GB

JMKIA0105GB

EXT-20

< ON-VEHICLE REPAIR >

COWL TOP

CAUTION:

After installing, perform adjustment of wiper arm. Refer to

WW-85, "Adjustment"

.

FENDER PROTECTOR

EXT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

Exploded View

INFOID:0000000000961802

FENDER PROTECTOR

REAR WHEEL HOUSE PROTECTOR

1.

Fender protector (front)

2.

Fender protector (rear)

3.

U-nut

4.

Fairing

5.

Splash guard

6.

Front fender

7.

Fender clip

8.

Grommet

JMKIA0078GB
